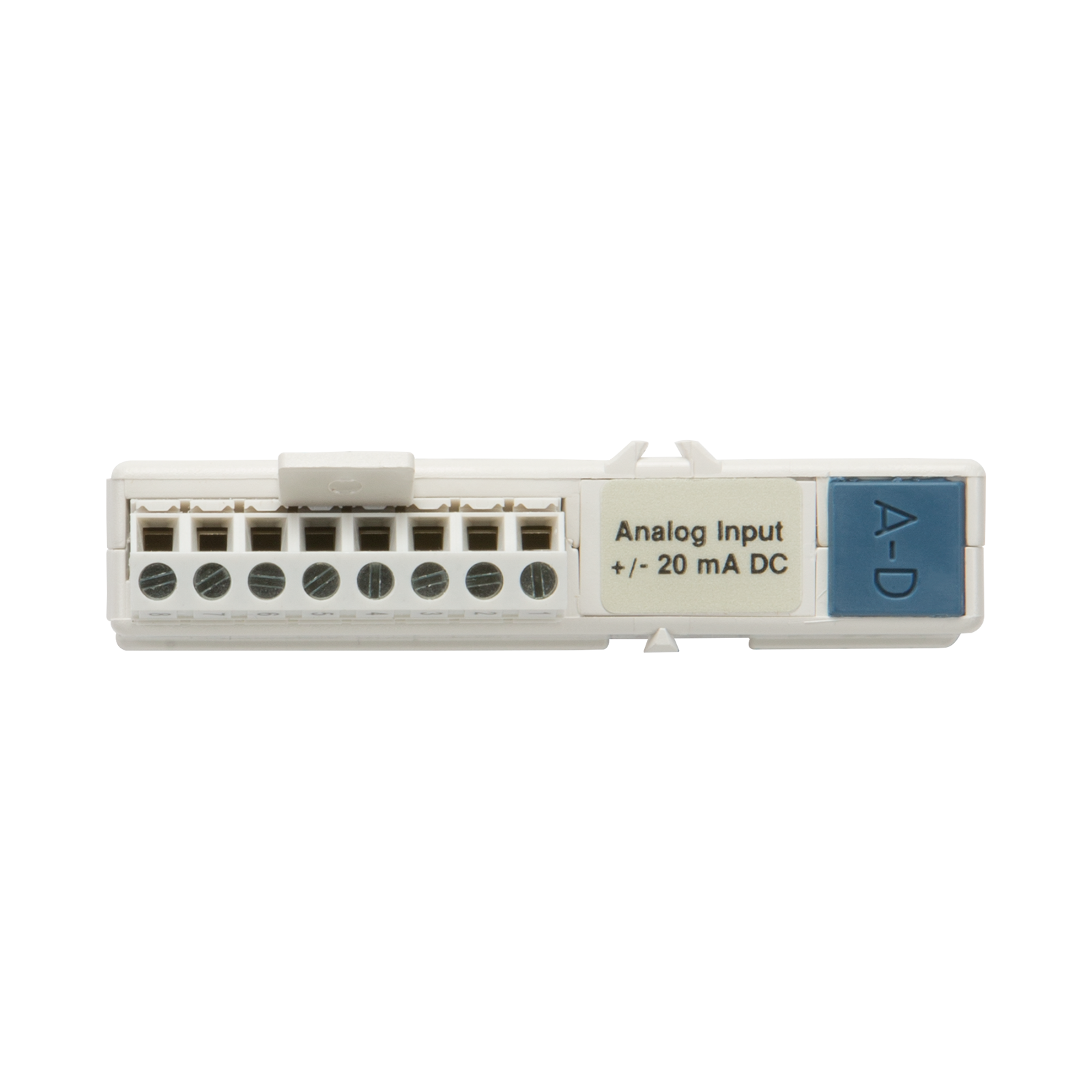

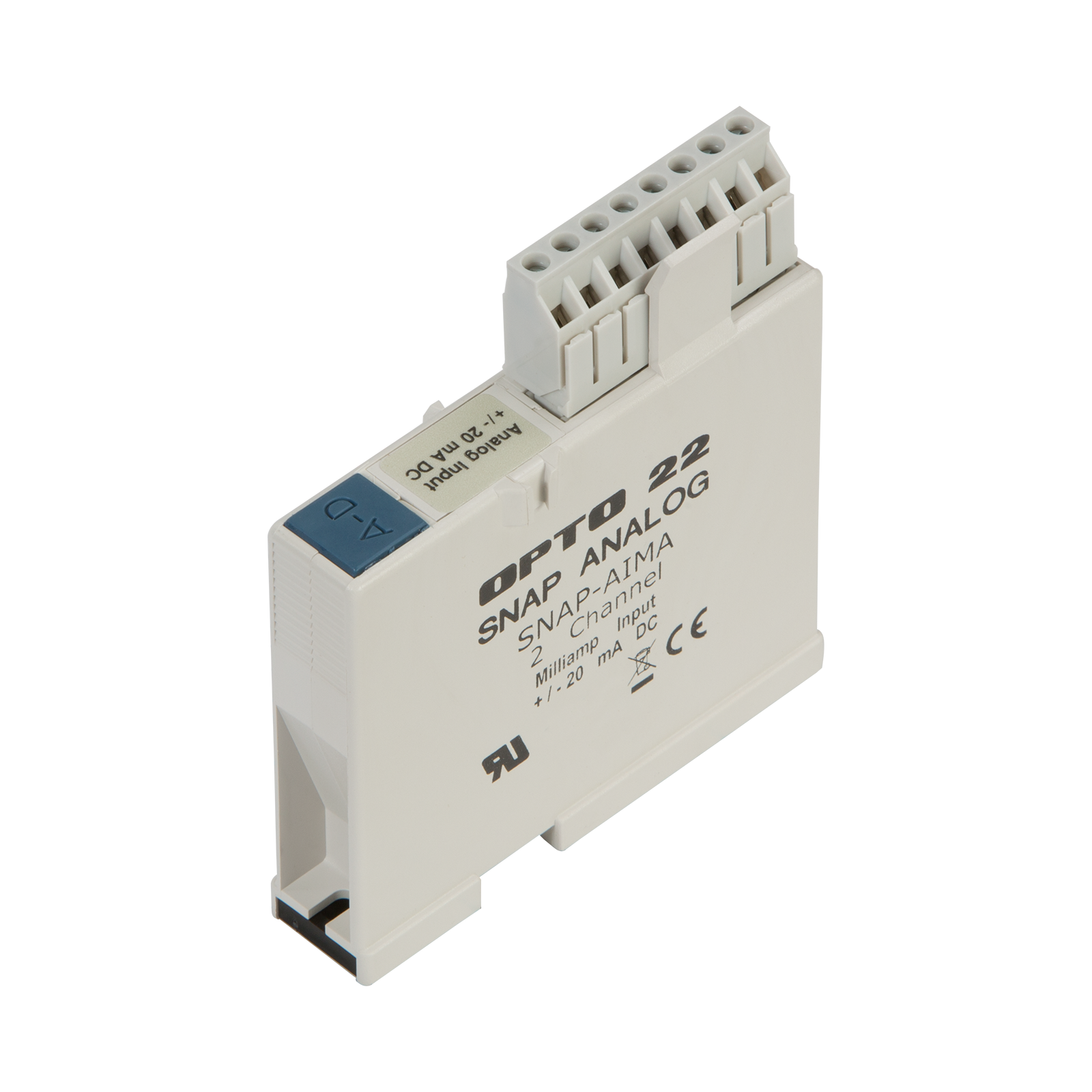

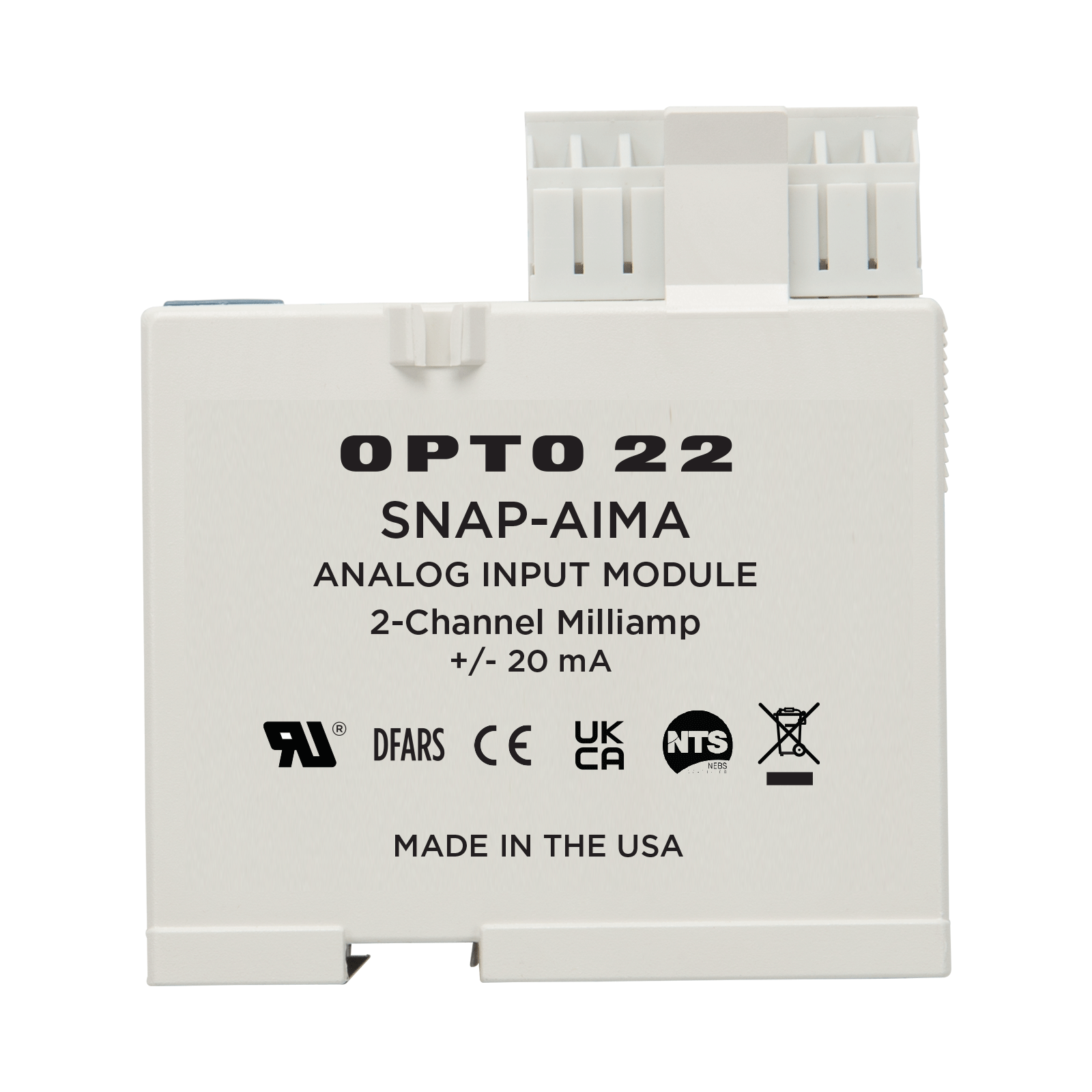

SNAP-AIMA
Hover over image to zoom in

SNAP-AIMA

$289.00 (USA and Canada only)

Availability: In stock
SNAP 2-Ch -20mA to +20mA Analog Current Input Module

Production Specification

The SNAP-AIMA provides two channels of -20 mA to +20 mA analog current input. The module does not supply loop excitation current. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For a similar module that provides two isolated channels, see SNAP-AIMA-i.

For a module that provides two isolated channels and supplies loop excitation, see SNAP-AIMA-iSRC.

For SNAP PAC brains and rack-mounted controllers, we also have a four-channel module, the SNAP-AIMA-4, and a 32-channel module, the SNAP-AIMA-32.

Build your system in the SNAP I/O Configurator.

Input Range

-20 mA to +20 mA

Resolution

0.8 microamps

Over-Range Limits

From -22 to +22 mA
(+/-20 mA range)

Input Response Time
(% of span/ delta I/delta tme)

99.9% / 19.9 mA / 10 ms

Data Freshness (Max)

SNAP-AIMA: 11.5 ms
SNAP-AIMA-4: 23 ms

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

36 mA or 9 VDC

Maximum Operating Common Mode Voltage

250 V

Accuracy

0.05% (10 microamps)

DRIFT: Gain Temperature Coefficient

30 PPM/ °C

DRIFT: Offset Temperature Coefficient

15 PPM/ °C

Power Requirements

5 VDC (±0.15 ) @ 170 mA

Input Resistance - Single Ended

200 ohms (each channel)

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Wire size

22 to 14 AWG

Agency Approvals

UL, CE, RoHS, DFARS; UKCA, NEBS

Warranty

Lifetime
