SNAP 2-Ch Isolated -20 mA to +20 mA Analog Current Input Module

Please call (800) 321-6786 to order.

Production Specification

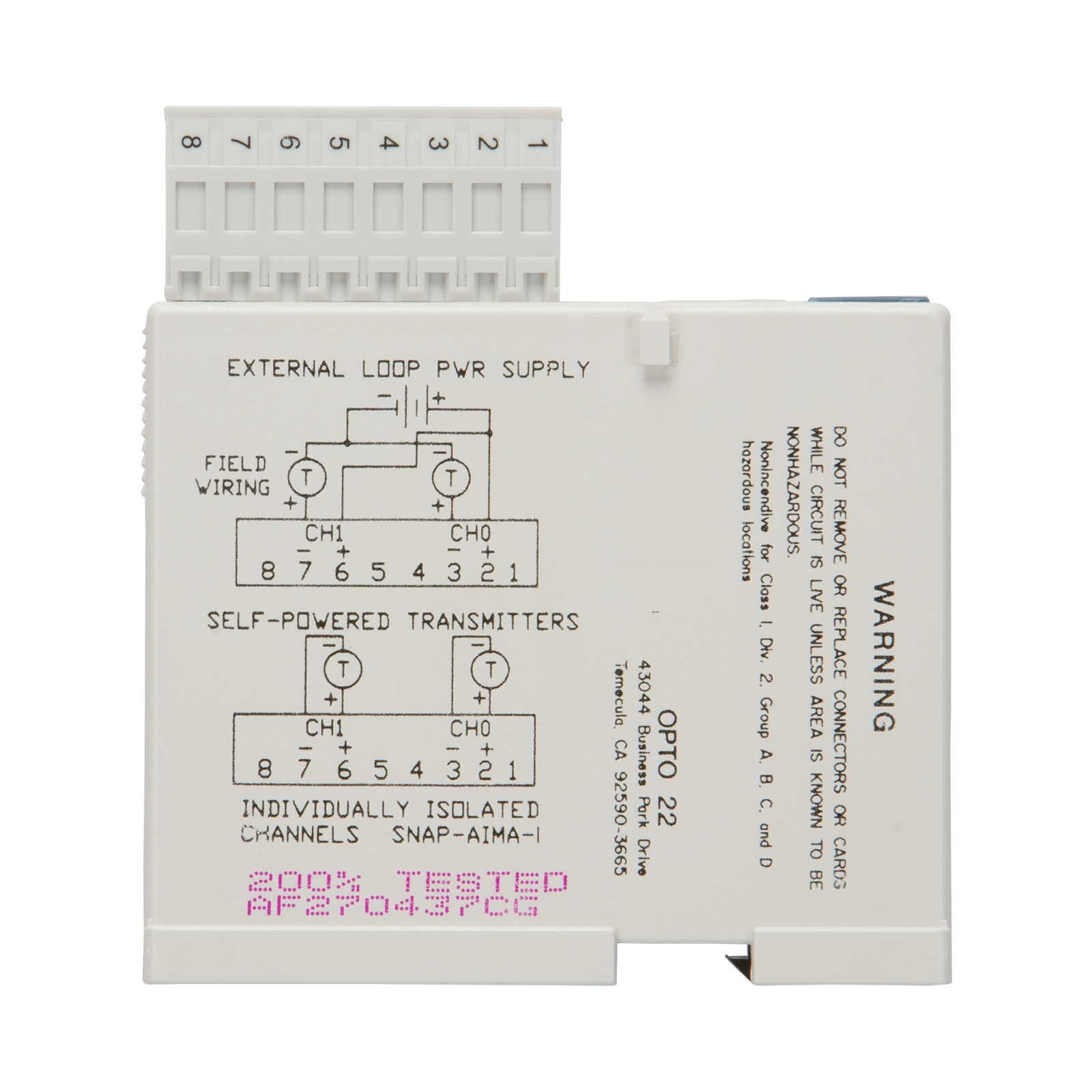

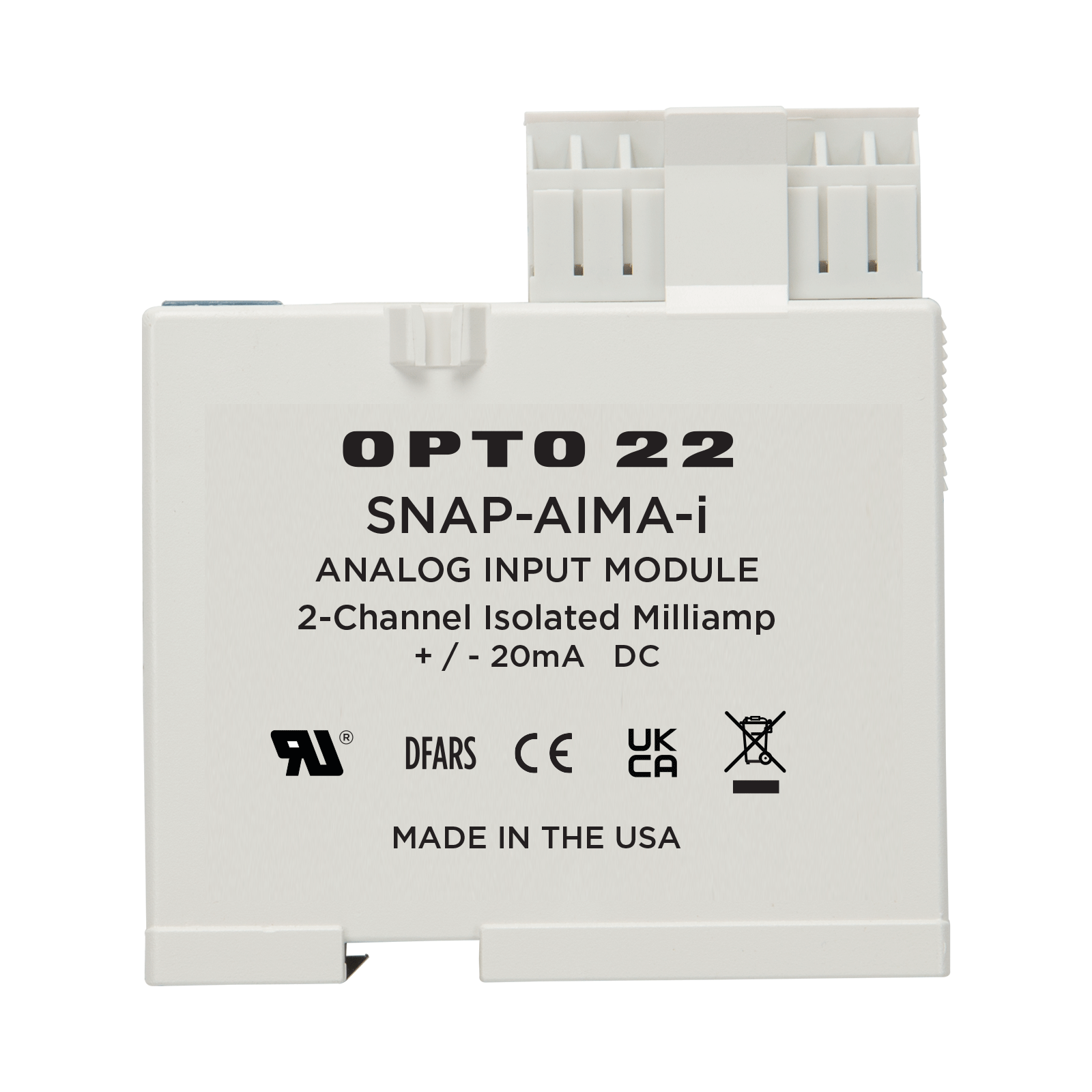

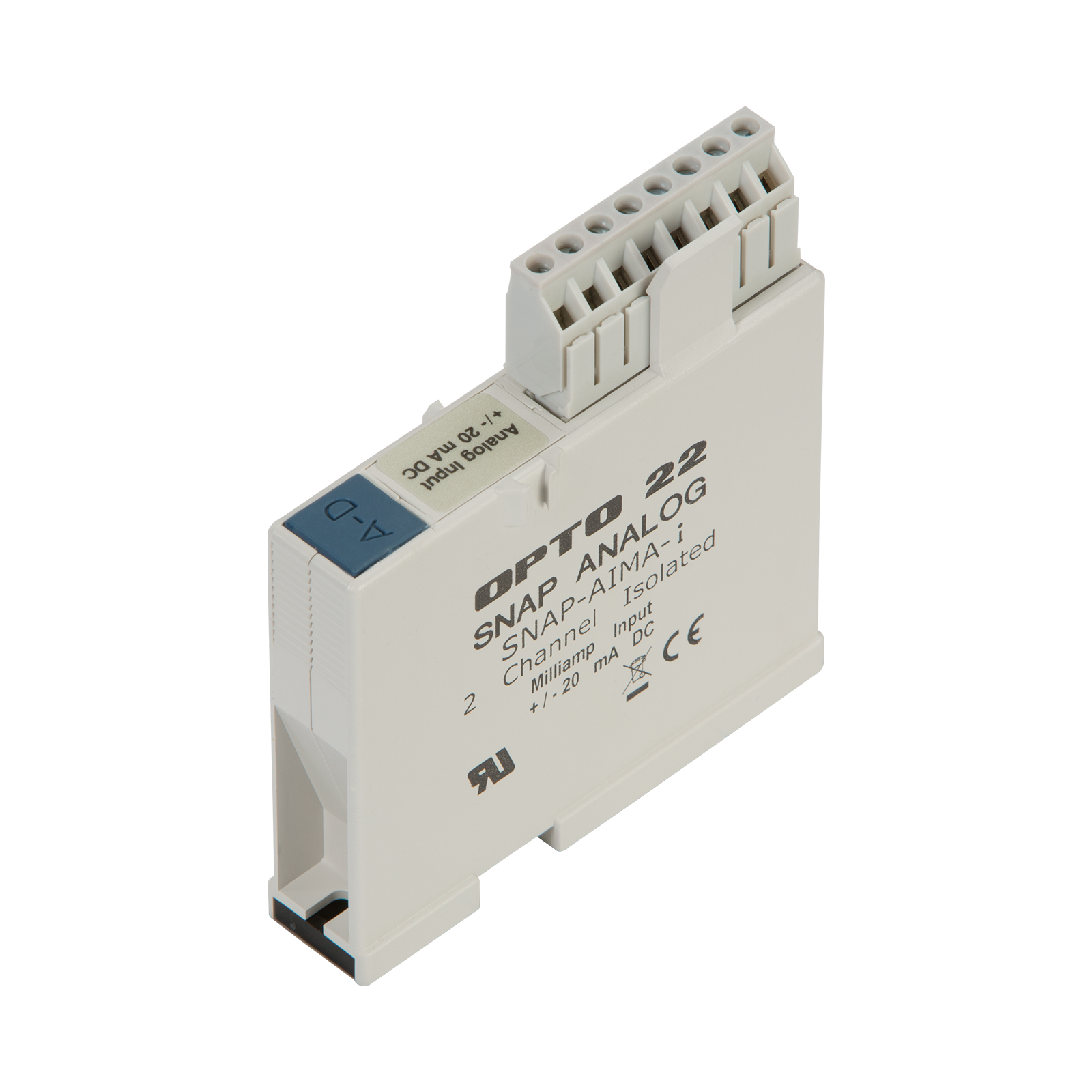

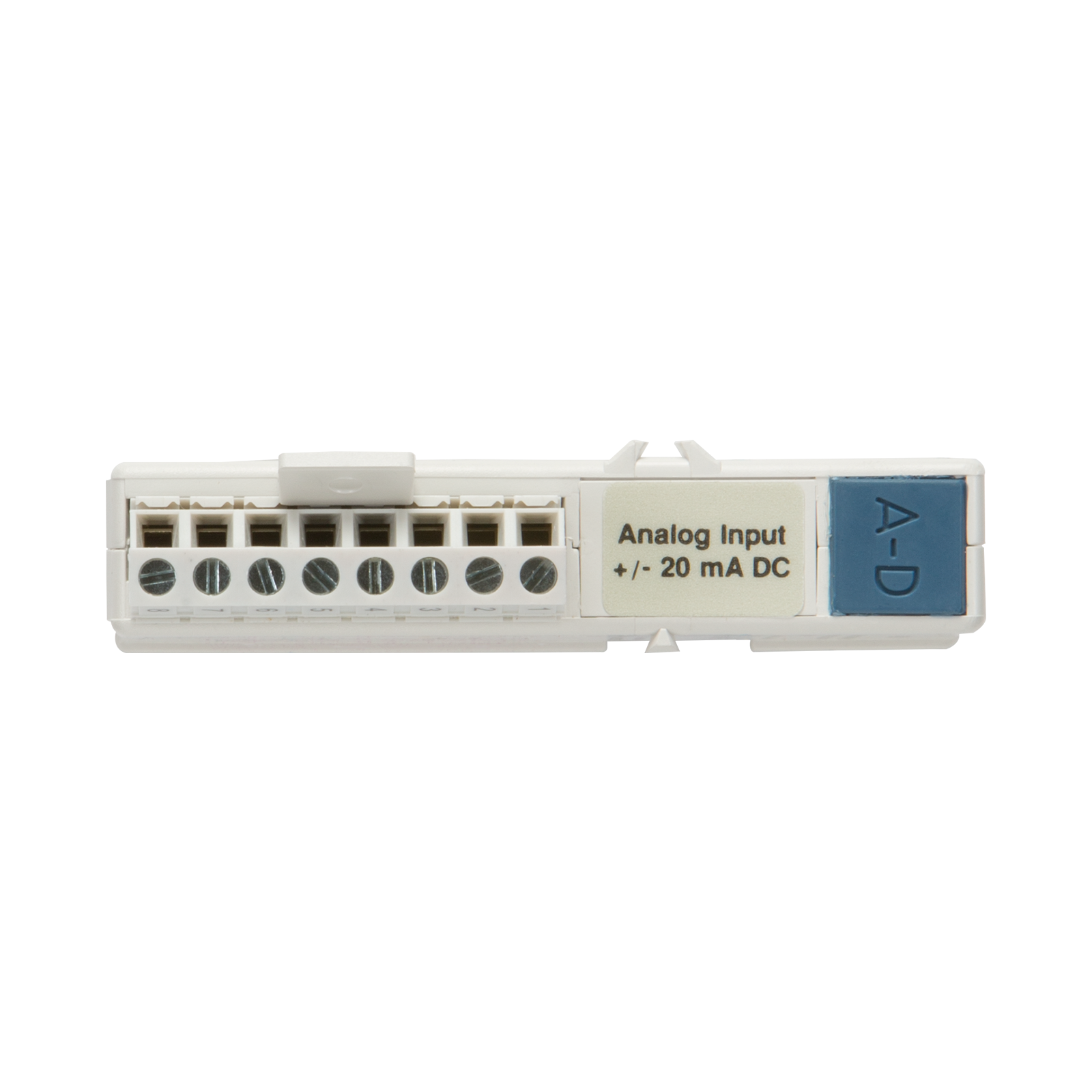

The SNAP-AIMA-i provides two isolated channels of -20 mA to +20 mA analog current input. The module does not supply loop excitation current. In addition to having two channels isolated from each other, the module is also transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you also need built-in loop sourcing, see SNAP-AIMA-iSRC.

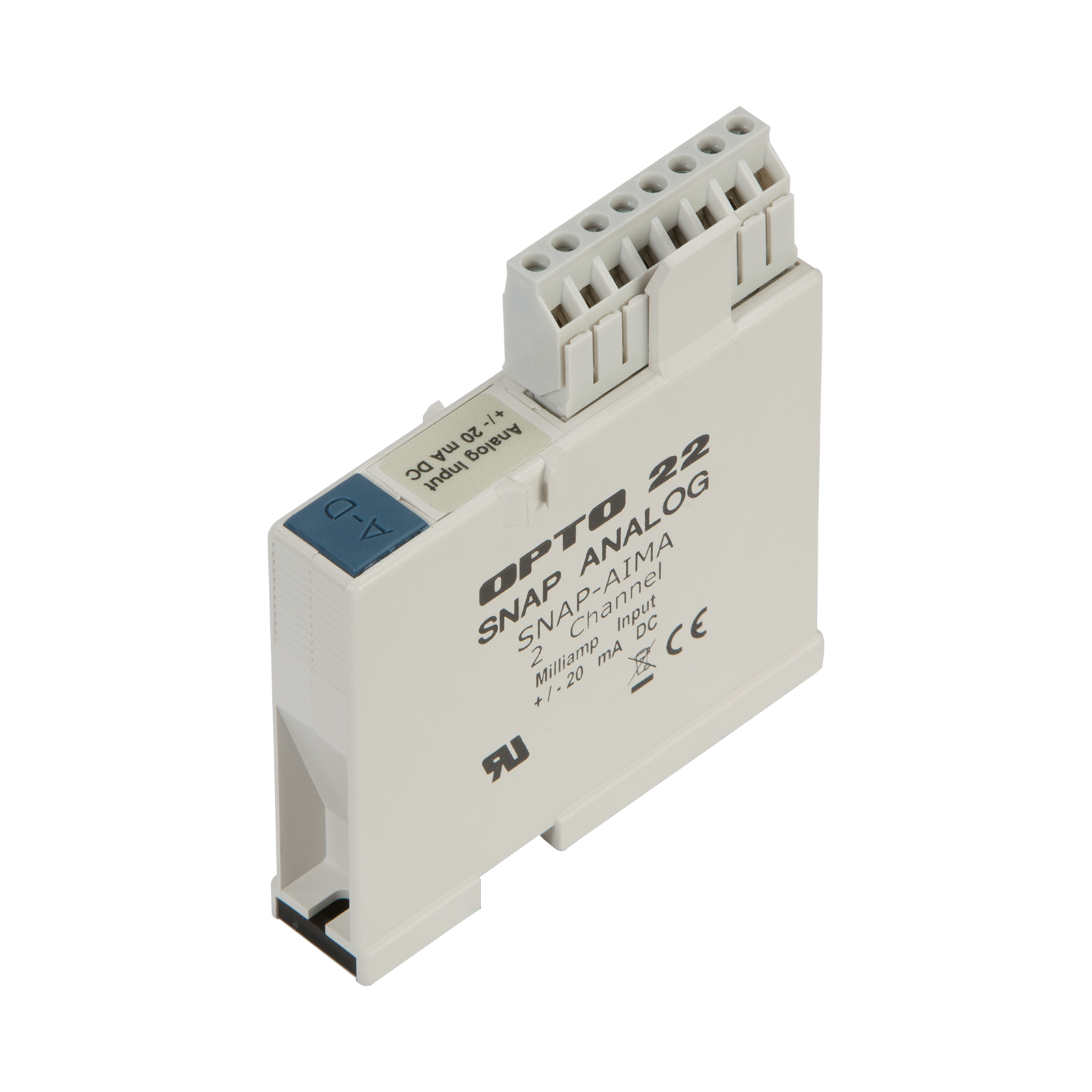

If you do not need channel-to-channel isolation, see SNAP-AIMA.

Build your system in the SNAP I/O Configurator.

Input Range

-20 mA to +20 mA

Maximum Over Range

± 10%
(= ± 27500 counts)

Resolution

0.8 µA

Input Response Time
(% of span/delta I/delta time)

99.9 %/19.9 µA/10 mS

Data Freshness

11 ms

DC Common Mode
Rejection

>-120 dB

AC Common Mode
Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

36 mA or 9 VDC

Maximum Operating
Common Mode Voltage

250 V

Accuracy

0.05% (10 µA)

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

DRIFT: Gain Temperature Coefficient

30 PPM/ °C

DRIFT: Offset Temperature Coefficient

15 PPM/ °C

Power Requirements

5 VDC (±0.15 ) @ 200 mA

Input Resistance - Single Ended

200 ohms (each channel)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

UL, CE, FM, RoHS, DFARS

Warranty

Lifetime
