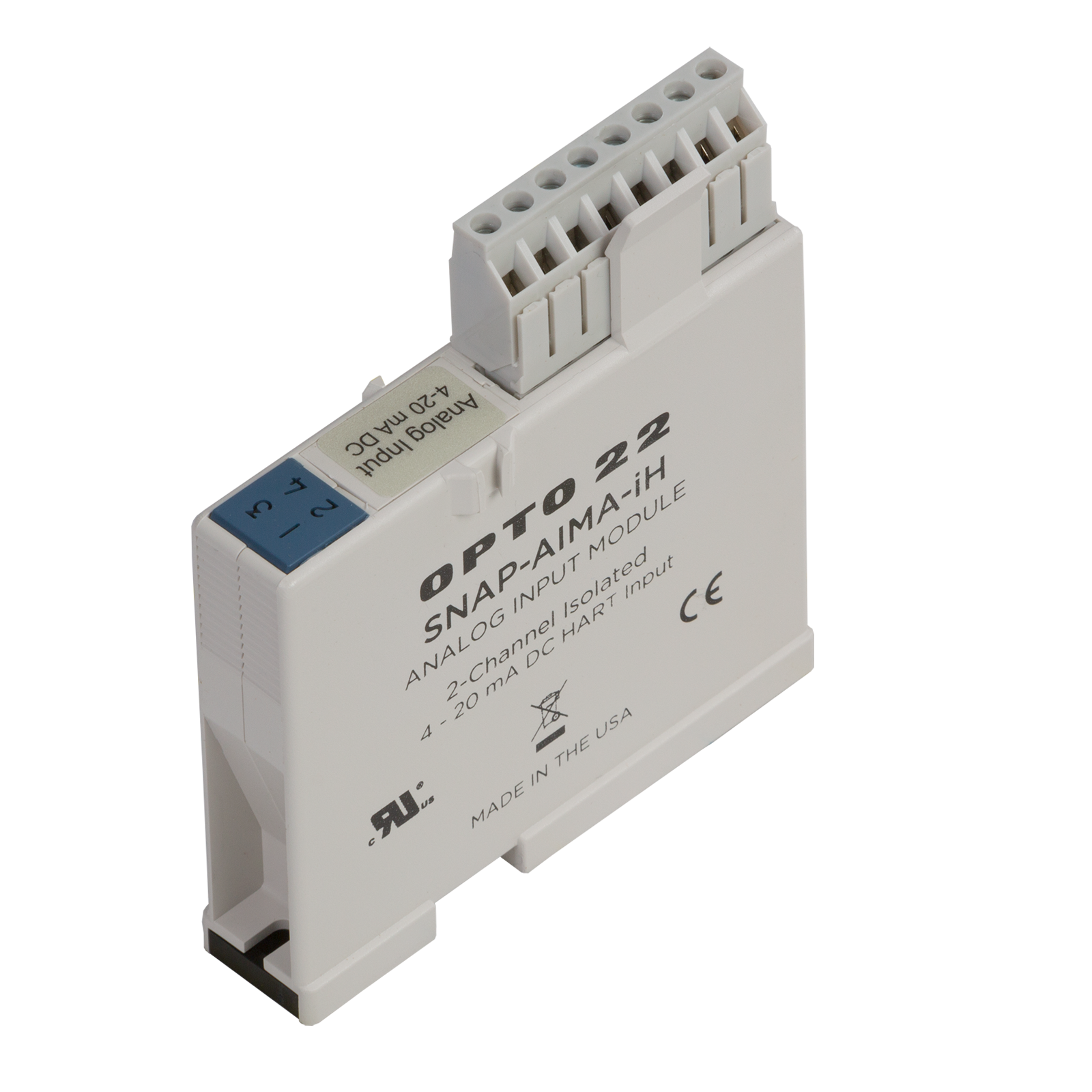

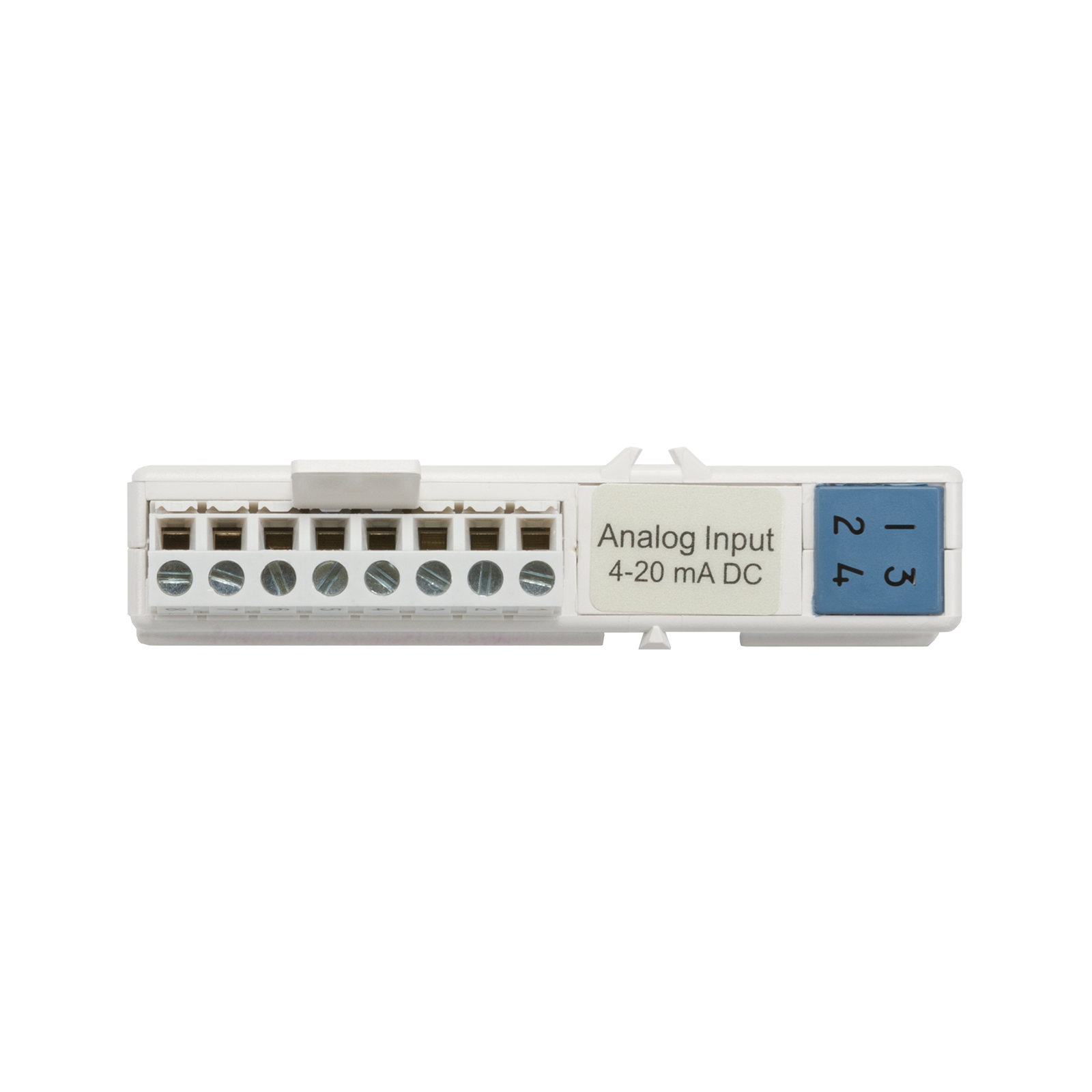

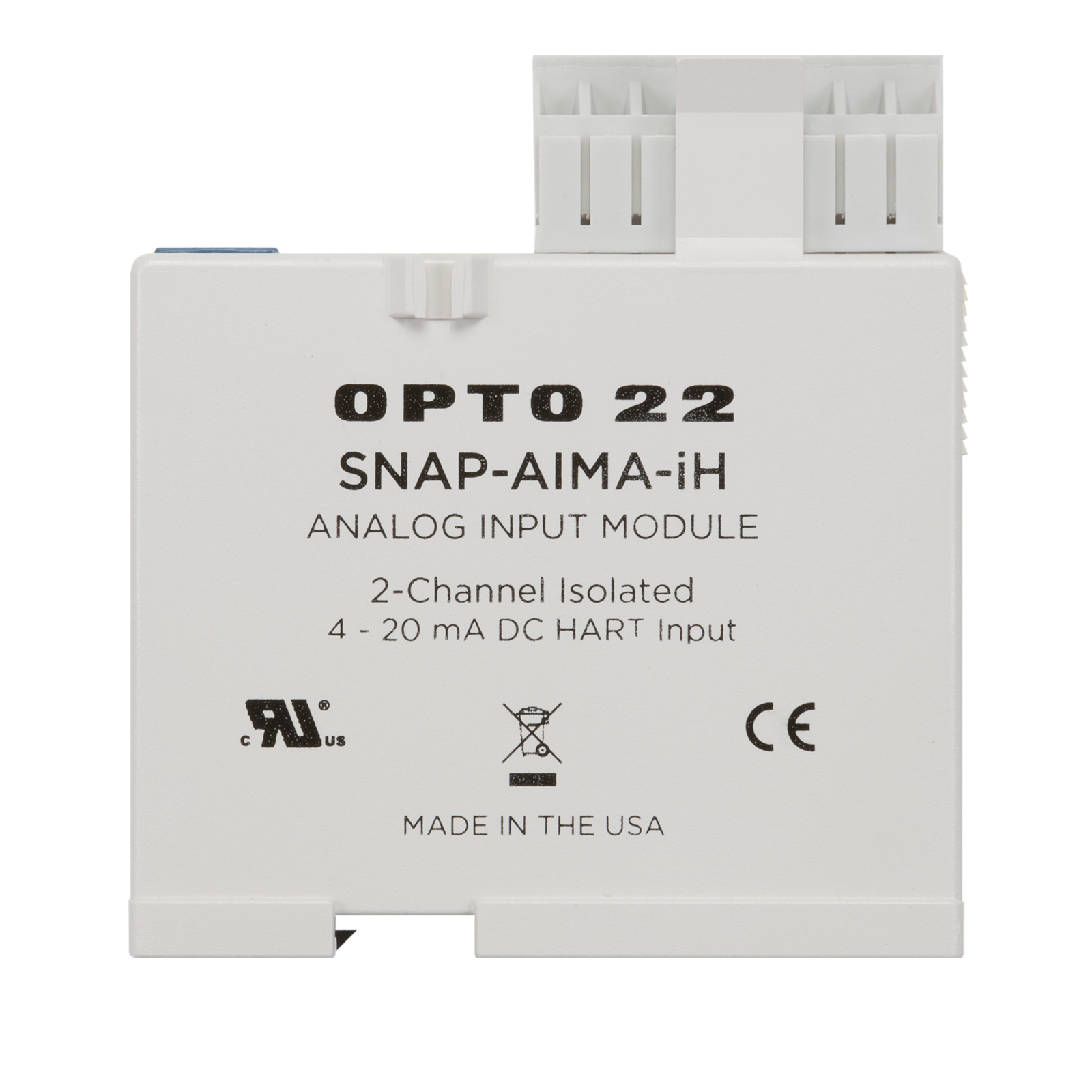

OBSOLETE Isolated two-channel analog current input, HART communication, 4-20 mA

Production Specification

*** This product is obsolete and no longer available. ***

The SNAP-AIMA-iH provides two channels of isolated analog input current with a range of 4–20 mA and communicates with other Highway Addressable Remote Transducer (HART®) current loop devices. External loop power supplies are required for current loops.

Each channel features an integrated HART modem that allows the channel to communicate digitally with a HART FSK (frequency-shift keying) signal superimposed onto the analog 4–20 mA current loop. The channel is a master device when used together with SNAP PAC brains or controllers to communicate with other HART current loop devices in either point-to-point or multidrop configurations.

The SNAP-AIMA-iH is categorized by the HART protocol as a current input connection type, which means that the module is a low impedance device.
The module provides channel-to-channel isolation as well as transformer isolation and optical isolation. It is factory calibrated.

HART SNAP I/O modules are part of the SNAP PAC System. They mount on SNAP PAC racks alongside other SNAP I/O modules (analog, digital, and serial), so you have the combination of I/O you need at any location.

These modules require a SNAP PAC brain or rack-mounted controller for I/O processing and communications. They are not compatible with legacy brains and controllers.
HART SNAP I/O modules are designed for use with a SNAP PAC programmable automation controller and PAC Control automation software. Several HART-specific commands are available in PAC Control (version 9.4 and higher) for these modules. See the module data sheet for additional information. Sample PAC Control subroutines show you how to use commands to communicate with HART devices.

HART SNAP I/O modules can also be used without PAC Control. Use the SNAP PAC .NET HART developer toolkit to integrate HART SNAP I/O modules into an existing .NET/Mono application.

NOTE: If you need a HART output module, see the SNAP-AOA-23-iH.
*** This product is obsolete and no longer available. ***

Input Range
Nominal
Full



4 to 20 mA
3.2 to 24 mA

Maximum Survivable Input

40 V or 160 mA

Impedance

230 Ohms nominal

Resolution

0.8 microamps

Accuracy

+/- 10 microamps

Response Time
(% of span/delta I/delta time)

99.9%/20.7mA/10 ms

Gain Temperature Coefficient

30 ppm/ °C

Offset Temperature Coefficient

15 ppm/ °C

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Operating Common Mode Voltage

250 V continuous
1500 V transient (1 s)

Isolation: Channel-Channel

250 V continuous
1500 V transient (1 s)

Power Requirements

5 VDC (+/- 0.15) @ 150 mA

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime

HART SNAP I/O Modules Data Sheet

HART® SNAP I/O modules for analog current input and output provide communication with other Highway Addressable Remote Transducer (HART) current loop devices. This data sheet covers the SNAP-AIMA-iH input module and the SNAP-AOA-23-iH output module.

*** The SNAP-AIMA-iH and SNAP-AOA-23-iH are OBSOLETE and no longer available. ***


HART SNAP I/O Modules User's Guide

This guide shows you how to install and use Opto 22's HART SNAP I/O analog input and output modules, either with PAC Control or in a custom program you develop. This guide covers the SNAP-AIMA-iH input module and the SNAP-AOA-23-iH output module.

SNAP-AIMA-iH Module Firmware Readme

This README file lists revision changes made to the firmware used in SNAP-AIMA-iH (HART protocol) analog input modules.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

HART Sample Subroutines for PAC Control Technical Note

This technical note describes how to install and use the HART (Highway Addressable Remote Transducer) Sample Subroutines for PAC Control. These subroutines allow Opto 22 controllers using PAC Control to communicate with a HART transmitter via an Opto 22 HART input module (SNAP-AIMA-iH).

Opto 22 Releases HART SNAP Analog I/O Modules

Opto 22 Releases HART SNAP Analog I/O Modules.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

SNAP-AIMA-iH Module Firmware

This download contains current firmware for the SNAP-AIMA-iH (HART protocol) input module. For a list of bug fixes and enhancements included in this firmware, see the RM SNAP-AIMA-iH Module Firmware Readme.

HART Sample Subroutines for PAC Control

The HART (Highway Addressable Remote Transducer) Sample Subroutines for PAC Control allow Opto 22 controllers, using PAC Control to communicate with a HART transmitter via an Opto 22 HART input module (SNAP-AIMA-iH).

What’s included:

  • • 14 PAC Control subroutines—one subroutine for each of 14 universal HART commands
  • • An Example Chart using the subroutines
Once you've wired the HART device to the module and run the example strategy, you'll be able to communicate with the device.

Before you download, read the Legal Agreement.
