SNAP-AIMA2-i

SNAP-AIMA2-i

Please contact your local distributor for pricing. Please contact your local distributor for pricing.

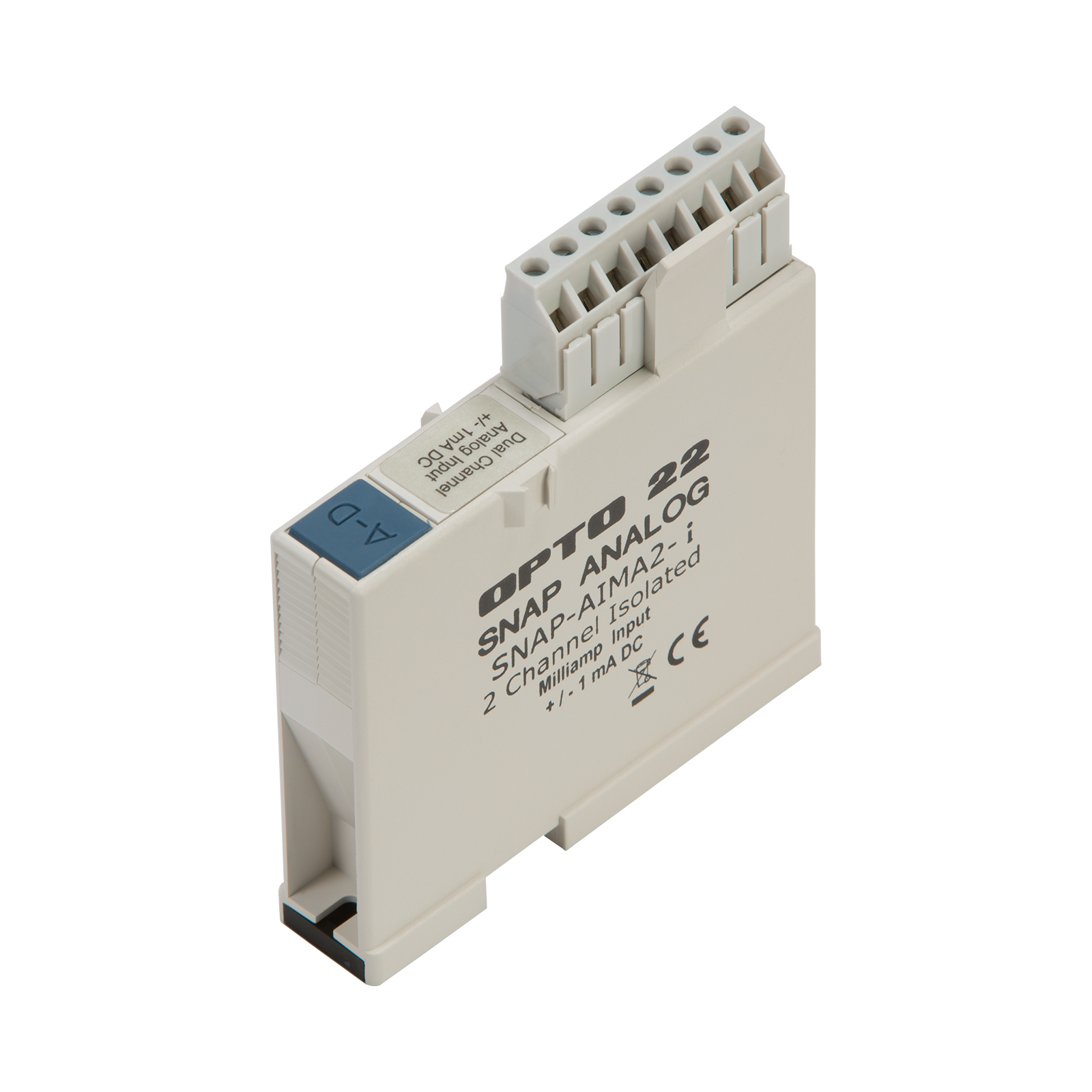

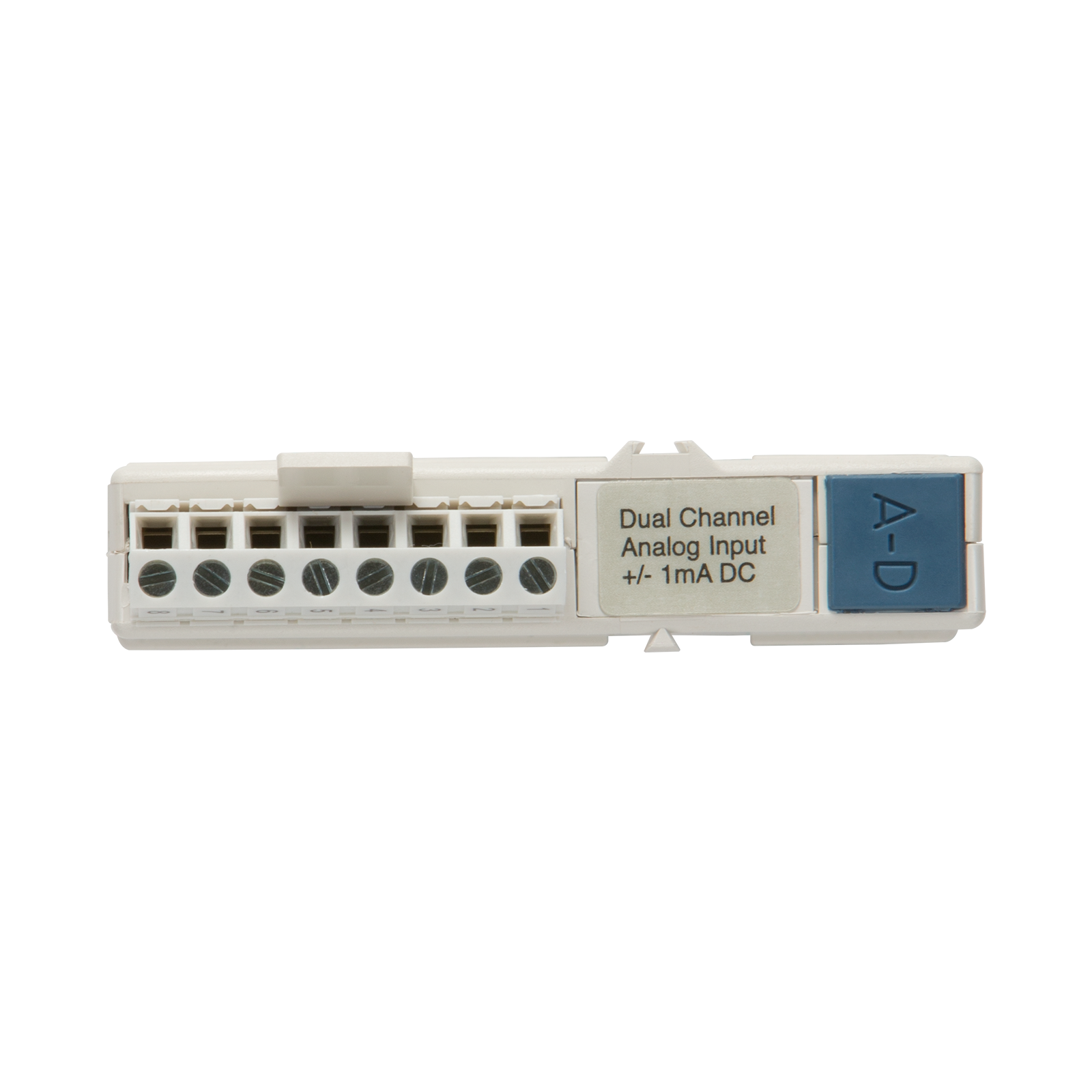

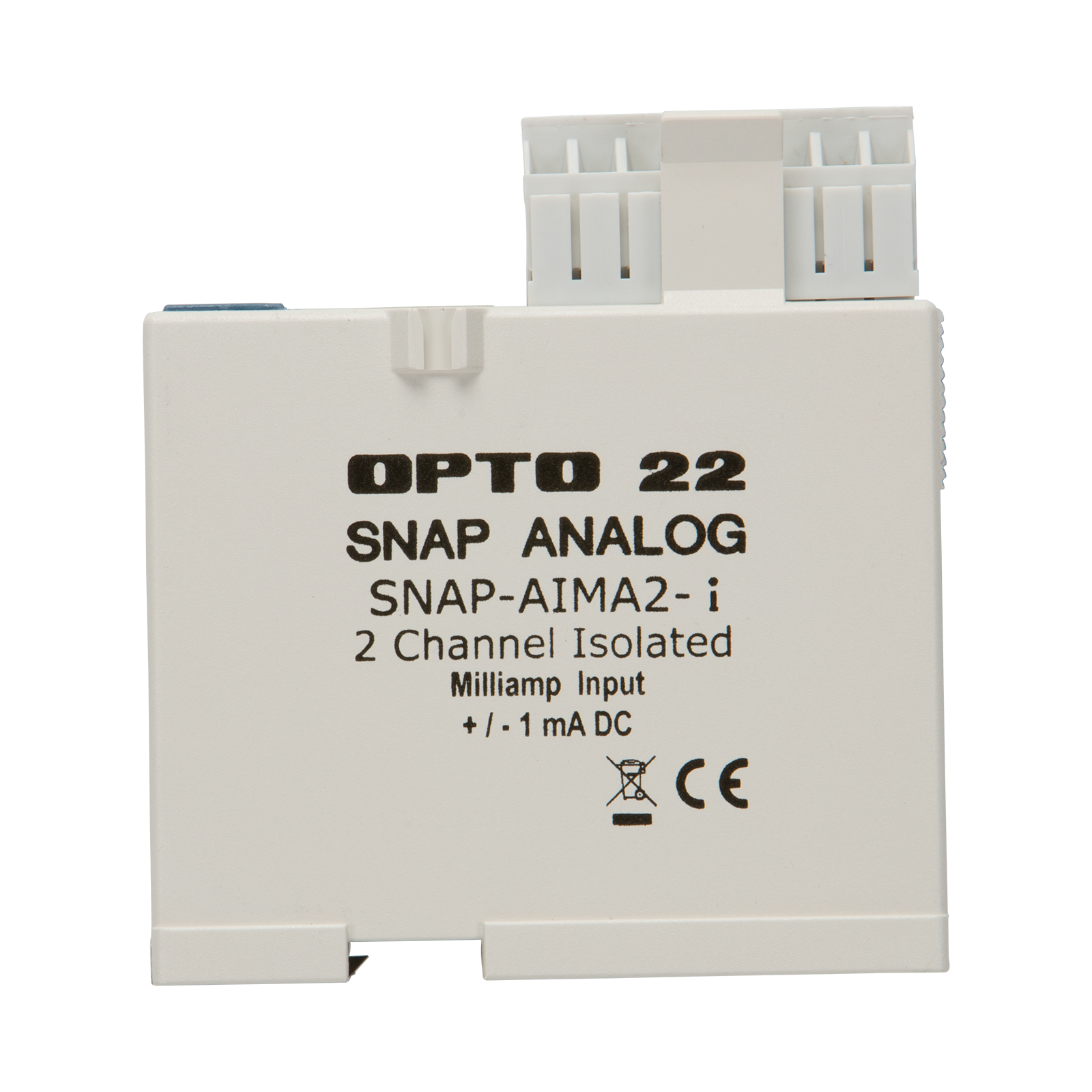

SNAP 2-Ch Isolated -1 mA to +1 mA Analog Current Input Module

Please call (800) 321-6786 to order.

Production Specification

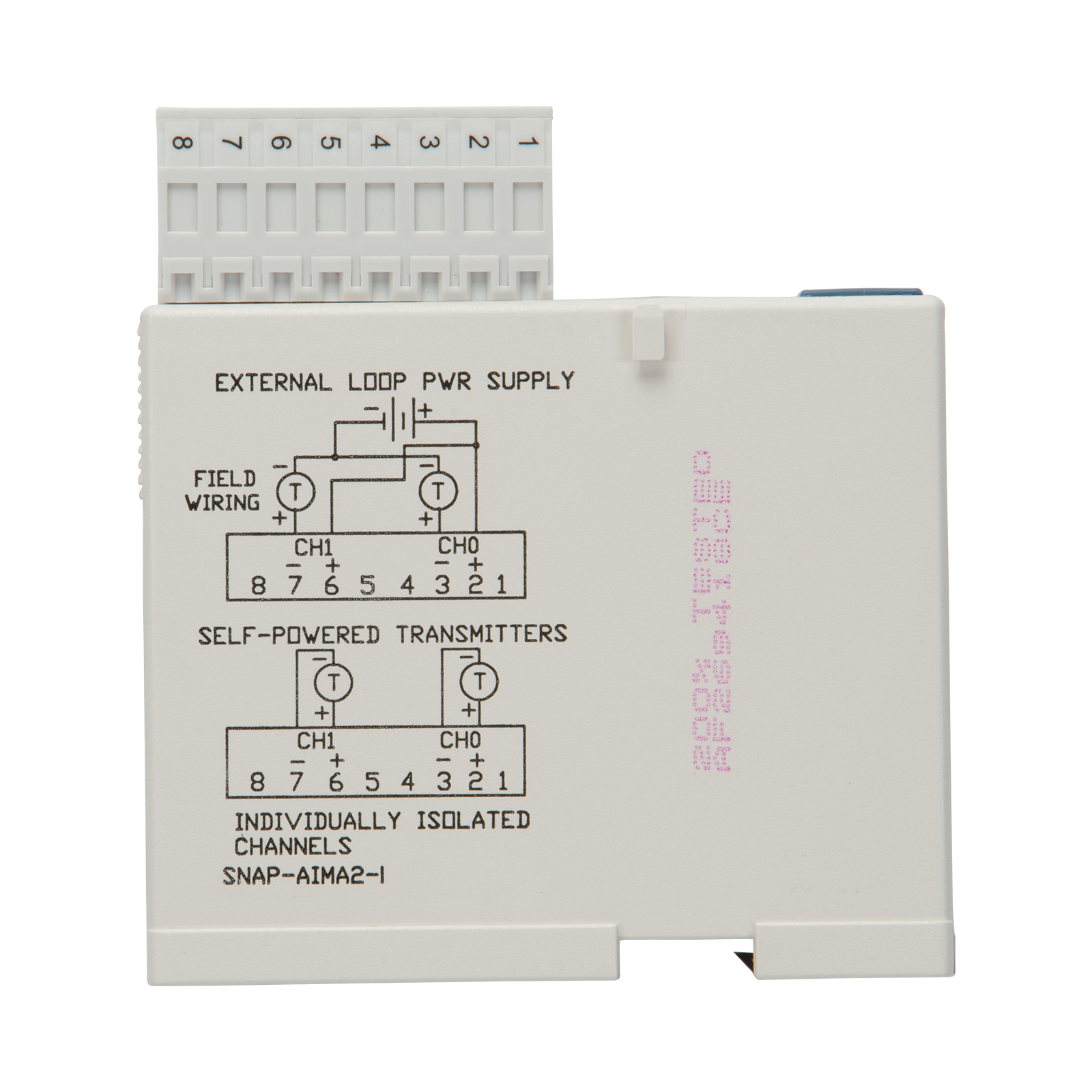

The SNAP-AIMA2-i module provides two isolated channels with an input range of -1 mA to +1 mA. This module does not supply loop excitation current.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Build your system in the SNAP I/O Configurator.

Input Range

-1 mA to +1 mA

Maximum Over Range

±10% (=± 27500 counts)

Resolution

0.04 µA

Input Response Time
(% of span/delta I/delta time)

99.9 %/19.9 µA/10 ms

Data Freshness

11 ms

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

11 mA or 28 VDC

Maximum Operating Common Mode Voltage

250 V

Accuracy

0.05% (0.05 µA)

DRIFT: Gain Temperature Coefficient

30 PPM/ °C

DRIFT: Offset Temperature Coefficient

15 PPM/ °C

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15 V) at 200 mA

Input Resistance

5 K ohms (each channel)

Ambient Temperature:
  Operating
  Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

CE, RoHS, DFARS

Warranty

Lifetime
