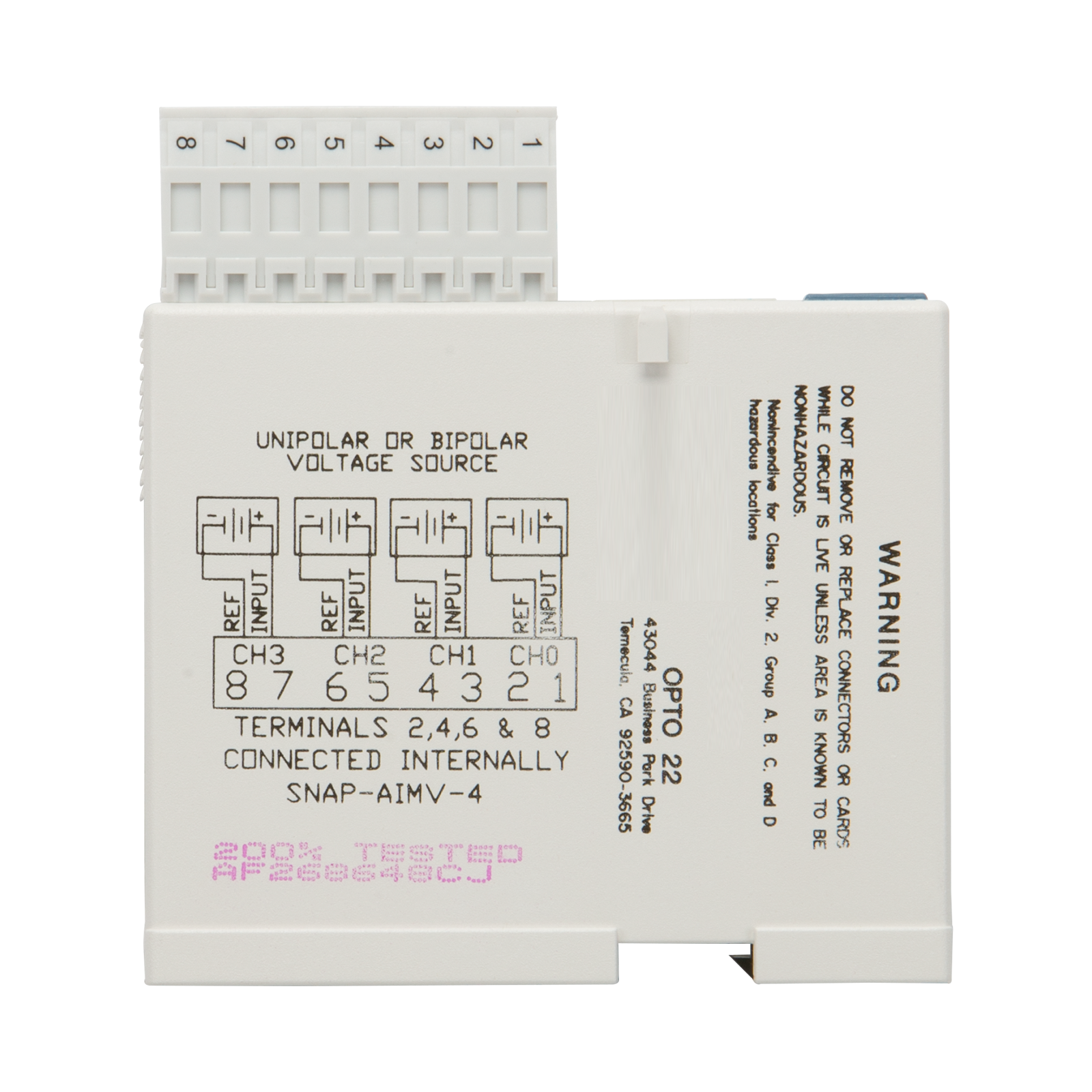

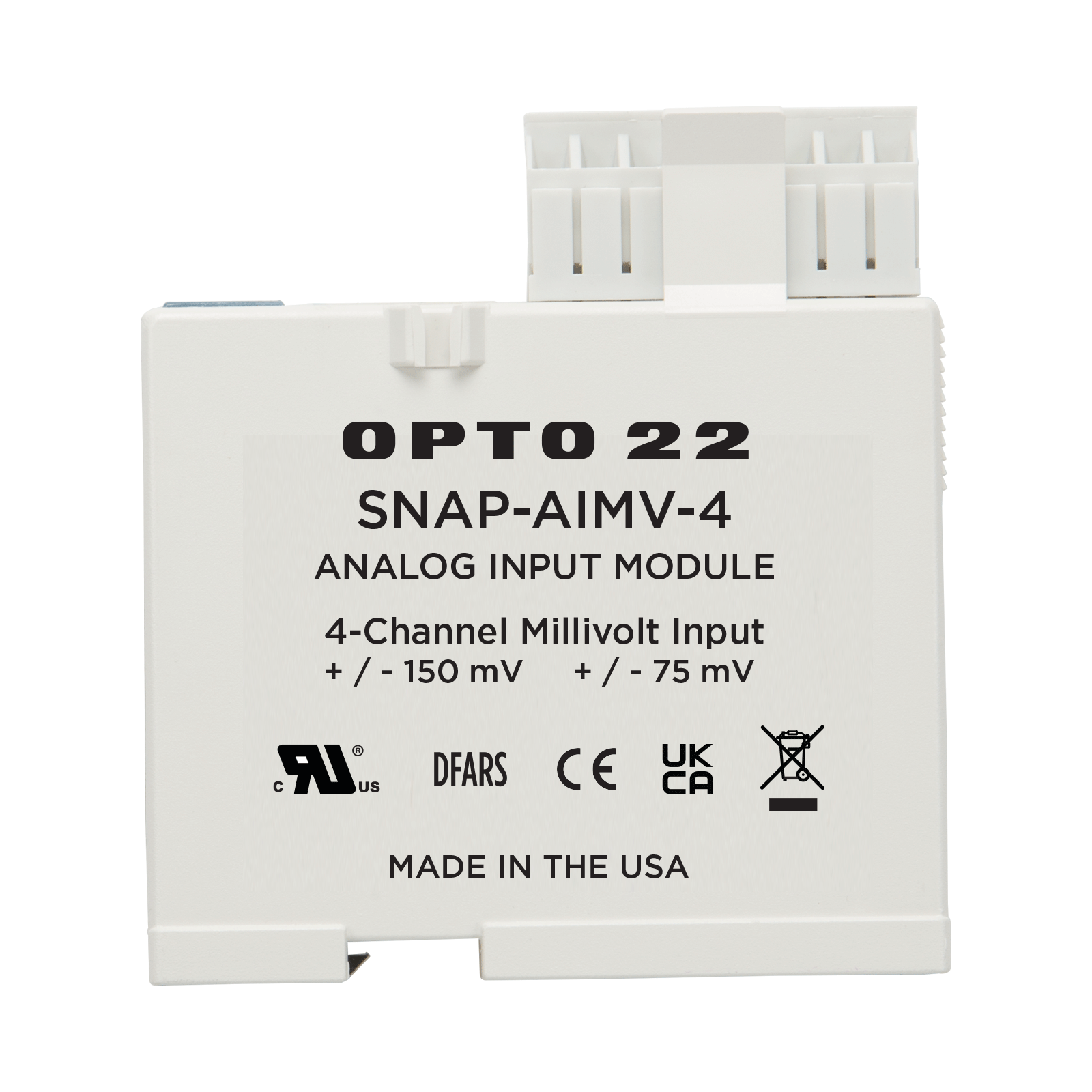

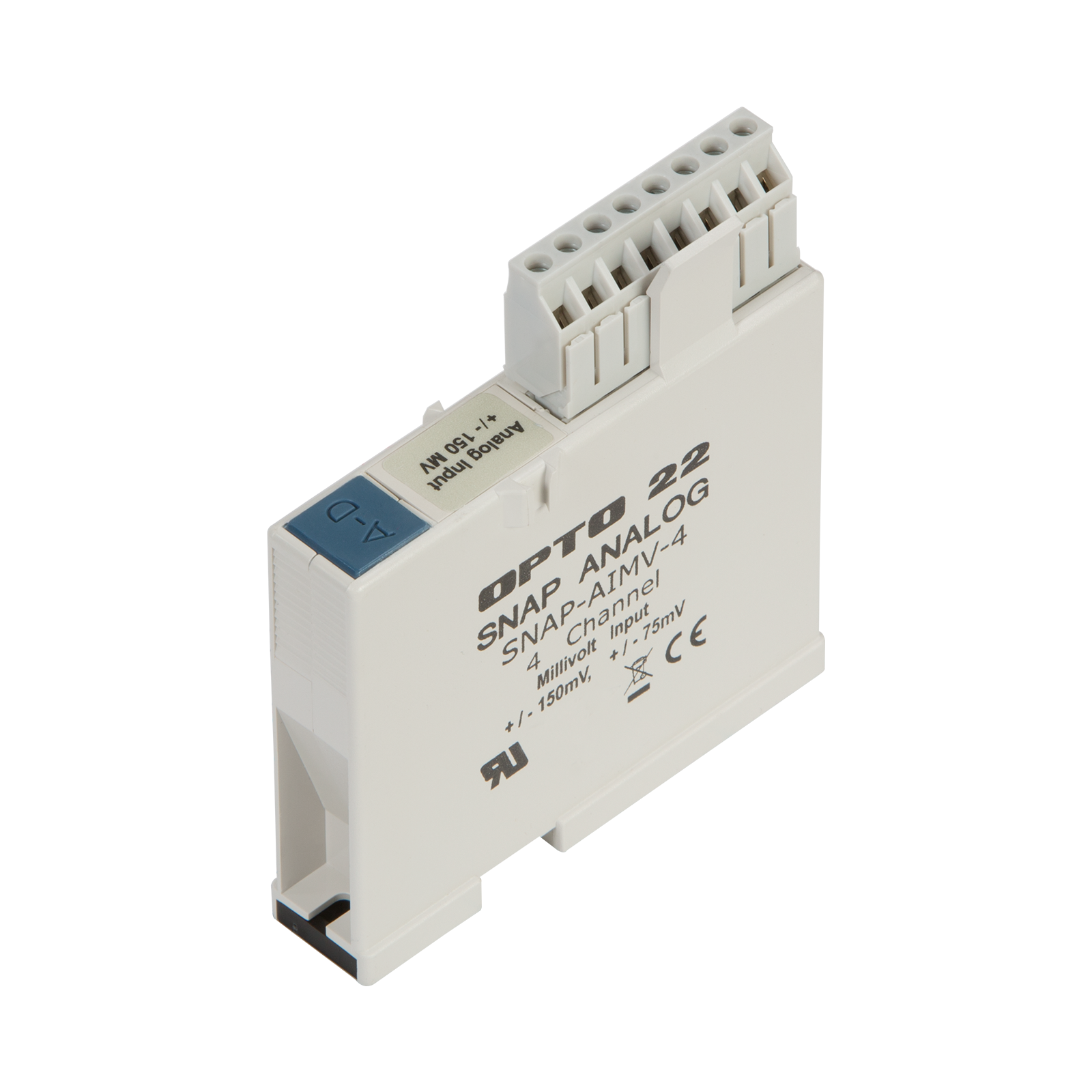

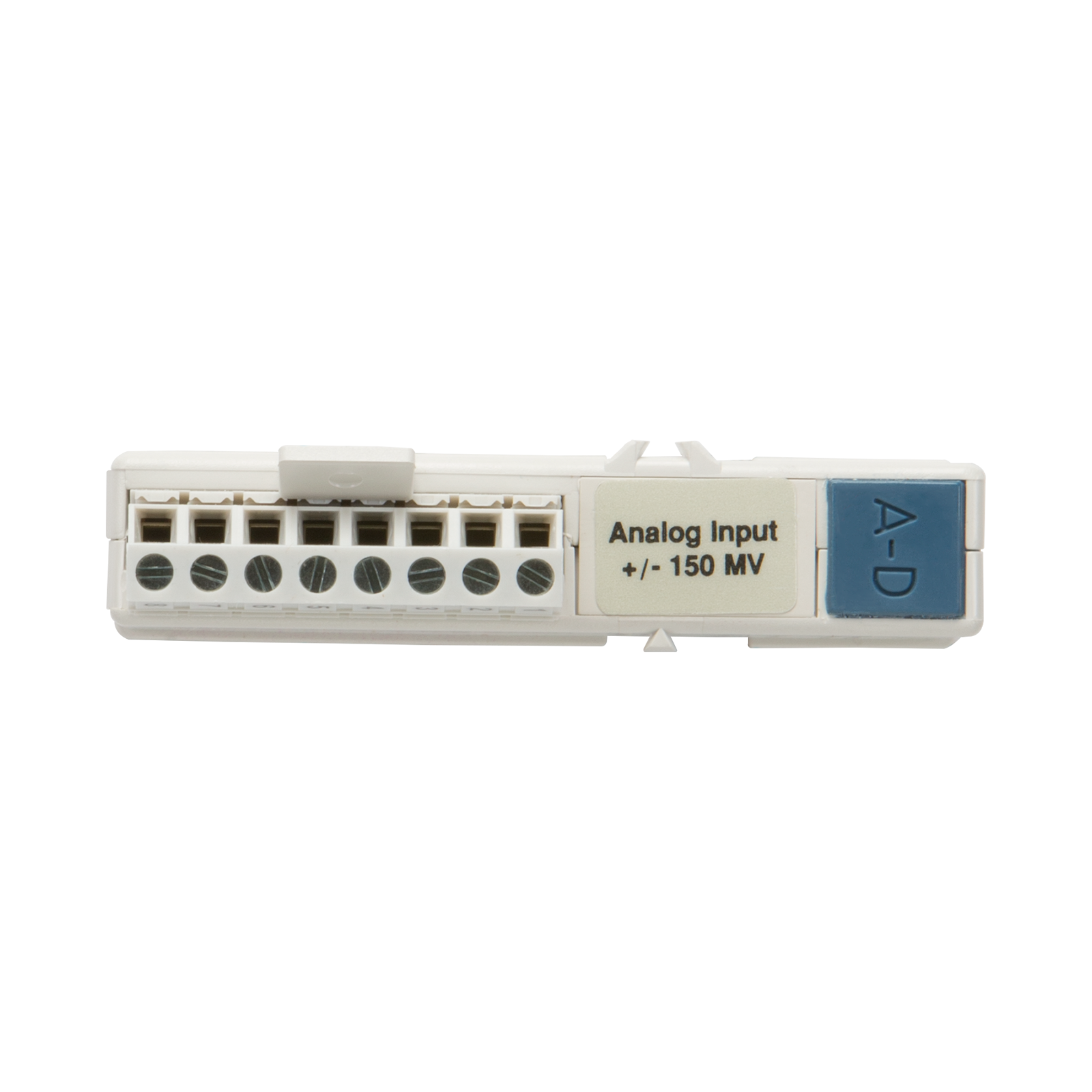

SNAP-AIMV-4
Hover over image to zoom in

SNAP-AIMV-4

$388.00 (USA and Canada only)

Availability: In stock
SNAP 4-Ch -150 to +150 mV Analog Input Module

Production Specification

The SNAP-AIMV-4 provides four channels of analog-to-digital conversion. Each channel can be configured for -150 mV DC to +150 mV DC or -75 mV DC to +75 mV DC. Although the four channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Compatibility: This module can be used with SNAP PAC brains and R-series controllers. It can also be used with legacy Ethernet-based brains.

Build your system in the SNAP I/O Configurator.

Input Range

From -150 mV to +150 mV
From -75 mV to +75m V

Over-Range Limits

From -165 to +165 mV
(+/-150 mV range)
From -82.5 to +82.5 mV
(+/-75 mV range)

Resolution

6 microvolts (-150 mV to +150 mV)
3 microvolts (-75 mV to +75 mV)

Input Filtering

-3 dB @ 7 Hz

Input Response Time (% of span/delta V/delta time)

63.2%/95 mV/23 ms

Data Freshness (Max)

335 ms (+/- 150 mV)
668 ms (+/- 75 mV)

DC Common Mode Rejection

>-120 dB

AC Common Mode
Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

±15 volts

Maximum Operating
Common Mode Voltage

250 V

Accuracy at Full Scale

0.06% (90 microvolts) @ 150 mV
0.1% (75 microvolts) @ 75 mV

Drift: Gain Temperature Coefficient

3 microvolts / °C

Drift: Offset Temperature Coefficient

2 microvolts / °C

Isolation

1500 V

Power Requirements

5 VDC (±0.15 ) @ 170 mA

Input Resistance - Single Ended

100 Megohms (each channel)

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Humidity

5-95%, non-condensing

Wire size

22 to 14 AWG

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime
