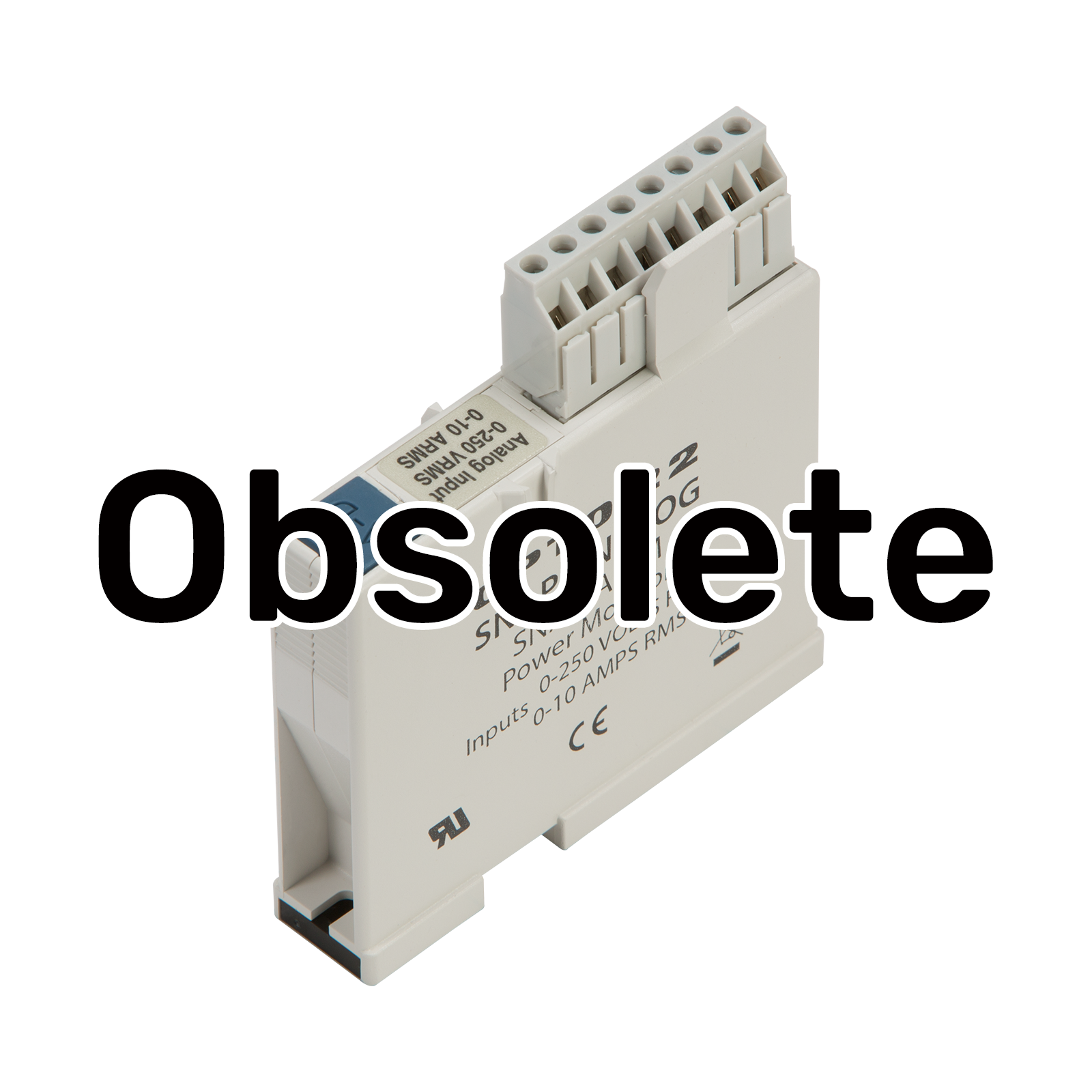

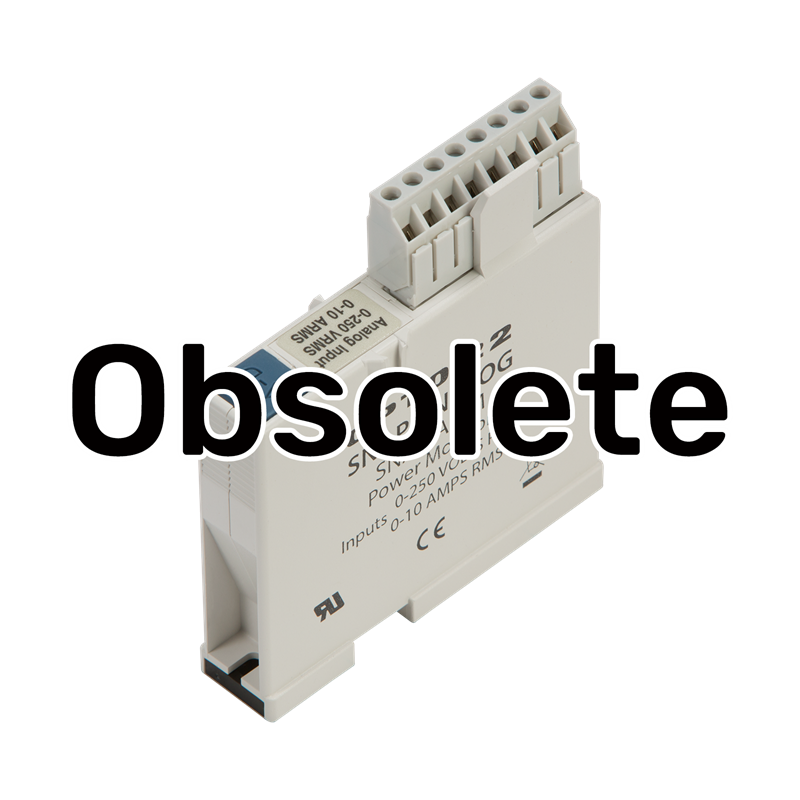

OBSOLETE Single-Phase Power Monitoring Module

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

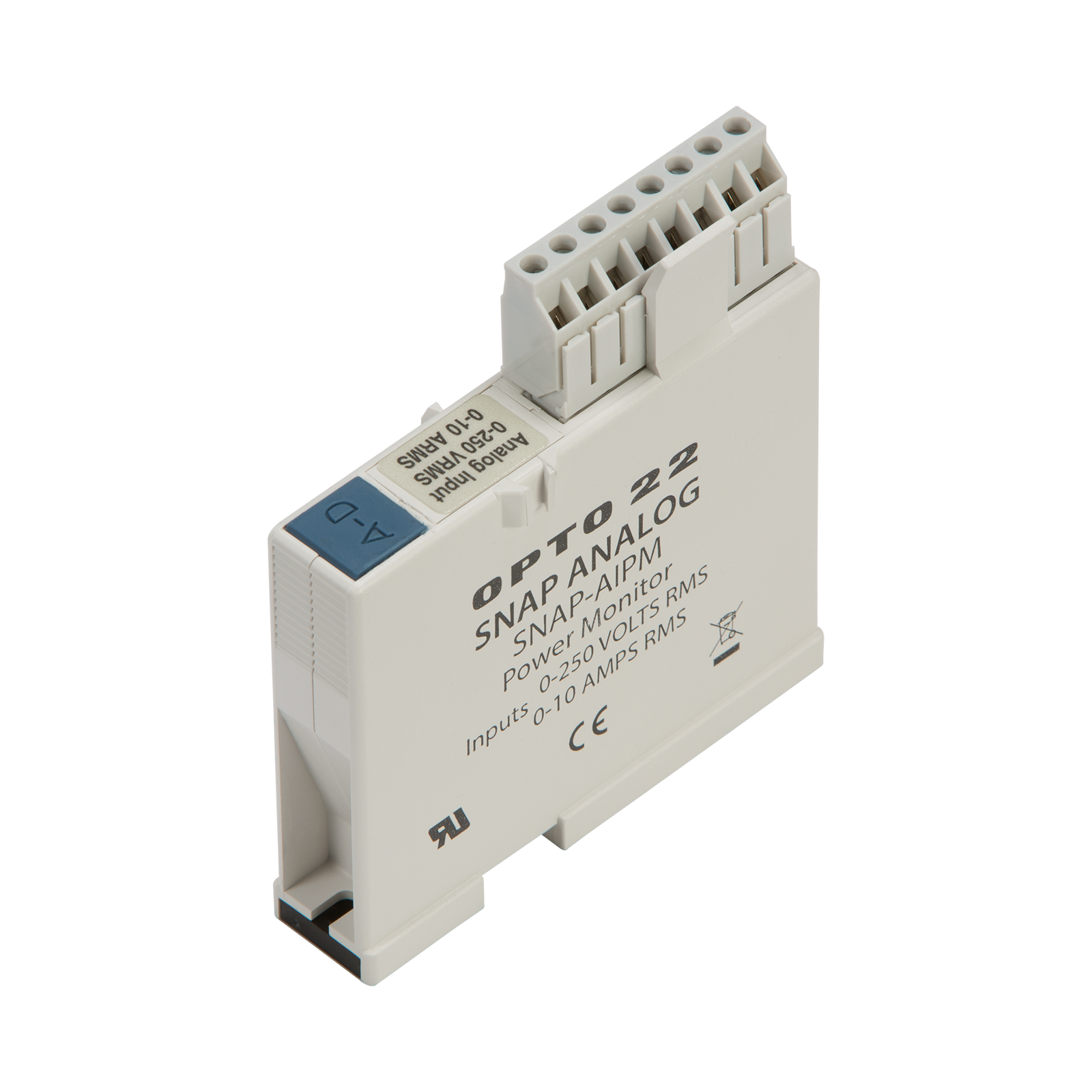

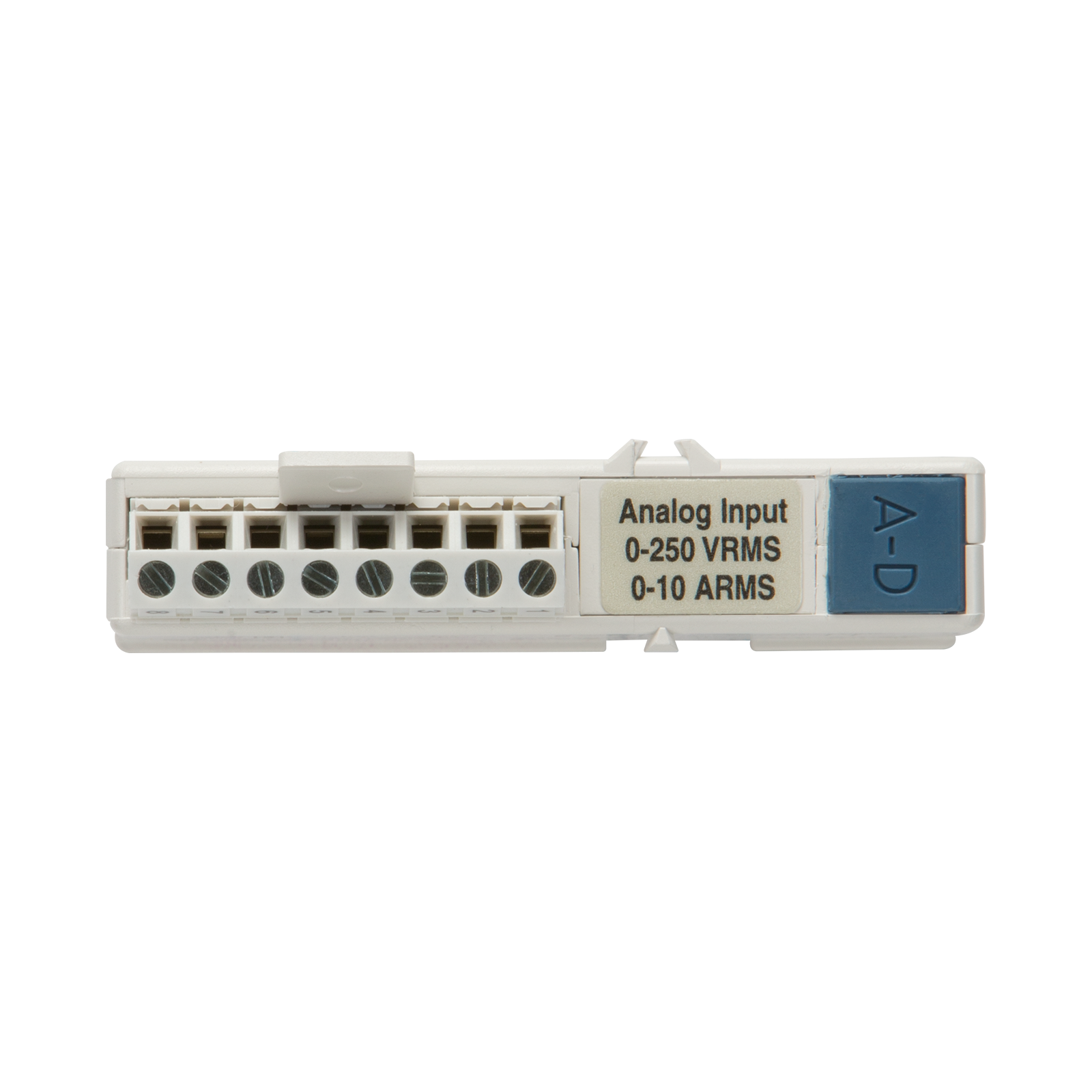

SNAP-AIPM analog input module helps you measure and control power usage in your facility. The SNAP-AIPM module simultaneously measures single-phase volts AC RMS and amps AC RMS and calculates true power and volt-amps. Leading or lagging power factor can then be calculated from true power and volt-amp values.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

When these modules are used as part of a SNAP PAC System running a PAC Control strategy, the strategy logic can automatically perform the calculations and respond to problems.

Compatibility: SNAP-AIPM modules work with SNAP PAC brains and R-series controllers. They also work with legacy SNAP Ethernet-based brains.

NOTE: If you need to monitor 3-phase power, see the SNAP-AIPM-3 and the SNAP-AIPM-3V.

Build your system in the SNAP I/O Configurator.



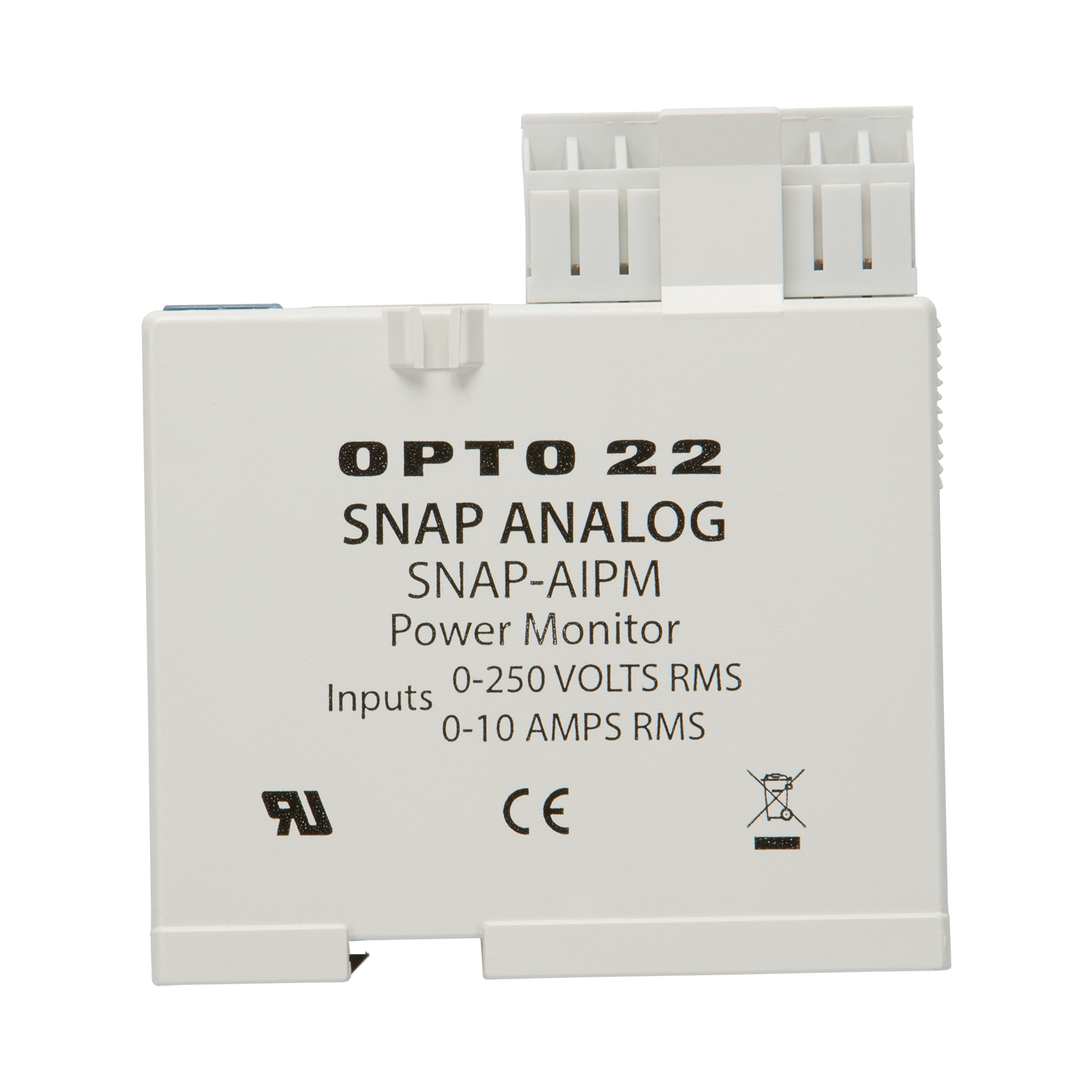

SNAP-AIPM

Voltage Inputs (each voltage channel)

Recommended Input Range
Scaled Input Range

85 to 250 VAC RMS
0 to 250 VAC RMS

Input Over Range

To 275 volts

Resolution

10 mV

Accuracy (47 to 63 Hz)

(When used within recommended range)
± 0.2 V plus ± 0.2% reading (at full scale = ± 0.7 V or 0.28%)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with current measurement)

Input Filtering

Time constant = 70 µs (analog front end)

(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Input Resistance - Single Ended

1 Megohm

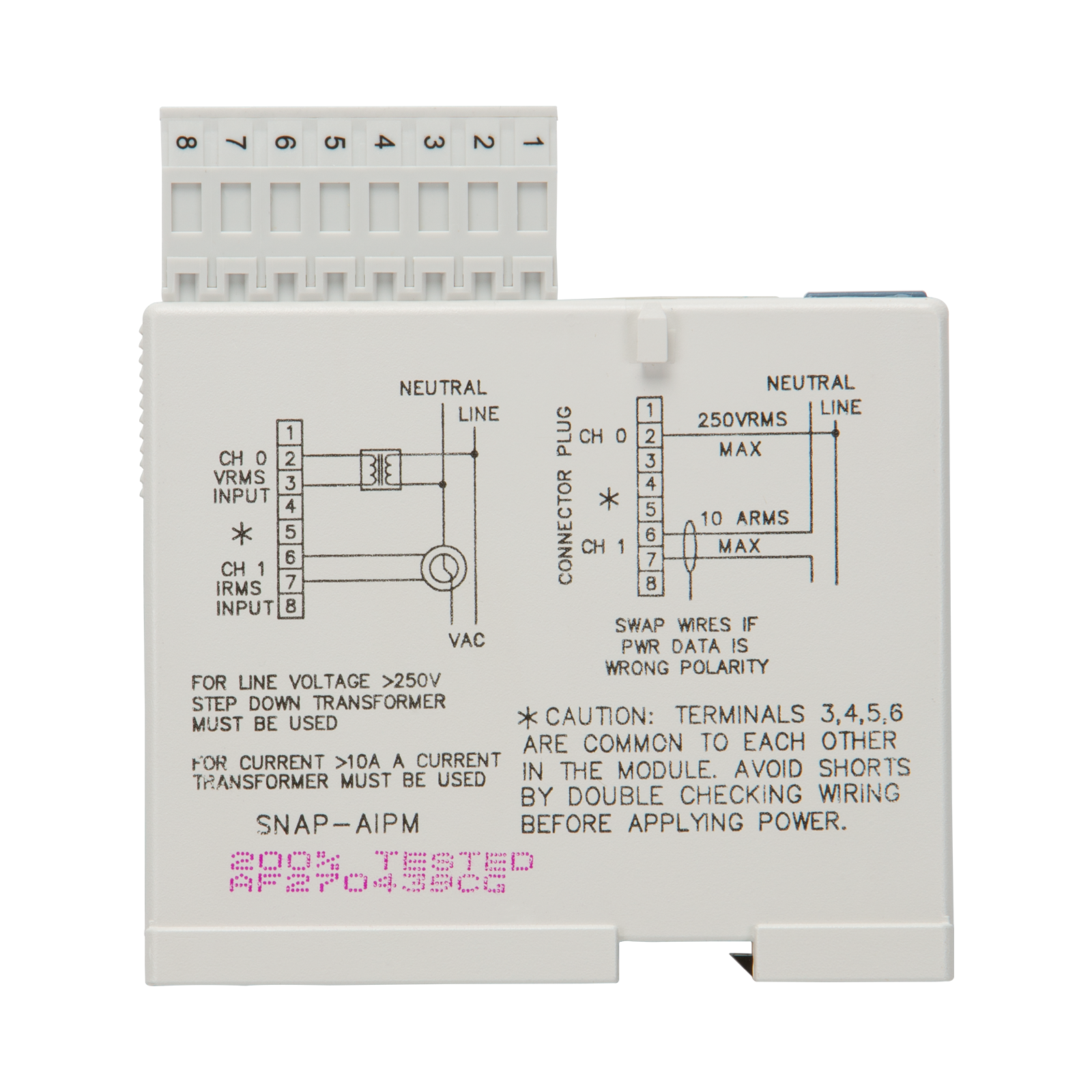

NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the current channel.

Maximum Input

300 V non-operating

Current Inputs (each current channel)

Input Range

0 to 10 AC amps RMS

Input Over Range

To 11 amps (Reading is not reliable over 11 A.)

Input Overload

15 A continuous, non-operating

Resolution

400 µA

Accuracy (47 to 63 Hz)

± 8 mA plus ± 0.2% reading (at full scale = ± 28 mA or 0.28%)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with voltage measurement)

Input Filtering

Time constant = 105 µs (analog front end)

(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Input Resistance - Single Ended

0.005 Ohm
NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the voltage channel.

Maximum Input

15 A continuous, non-operating

Calculated Channels

True Power and Volt-Amps Range

True power: 2500.0 Watts. Volt-amps: 2500.0 volt-amps (= 25,000 counts)
(inputs = 250 volts and 10 amps)

Over Range

2750 Watts true power or 2750 Volt-amps (= 27,500 counts)

Accuracy:



True Power
Volt-Amps

± 0.6% reading (at full scale = ± 15 Watts)
± 0.6% reading (at full scale = ± 15 VA)

Resolution

100 mW with default scaling

AC Common Mode Rejection

> -120 dB at 60 Hz

Maximum Operating Common Mode Voltage

250 VAC

Calculated Outputs

True Power

0-2500 W (from synchronous measurement of volts and amps)

Volt Amps

0-2500 VA (VRMS x ARMS)

General Specifications

Power Requirements

5.0 VDC ± 0.15 VDC at 100 mA

Ambient Temperature:

Operating
Storage



-20 to 70 °C
-40 to 85 °C

Humidity

5-95%, non-condensing

Wire size

22 to 14 AWG

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

CE, RoHS, DFARS

Warranty

Lifetime



SNAP-AIPM

Voltage Inputs (each voltage channel)

Recommended Input Range
Scaled Input Range

85 to 250 VAC RMS
0 to 250 VAC RMS

Input Over Range

To 275 volts

Resolution

10 mV

Accuracy (47 to 63 Hz)

(When used within recommended range)
± 0.2 V plus ± 0.2% reading (at full scale = ± 0.7 V or 0.28%)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with current measurement)

Input Filtering

Time constant = 70 µs (analog front end)

(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Input Resistance - Single Ended

1 Megohm
NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the current channel.

Maximum Input

300 V non-operating

Current Inputs (each current channel)

Input Range

0 to 10 AC amps RMS

Input Over Range

To 11 amps (Reading is not reliable over 11 A.)

Input Overload

15 A continuous, non-operating

Resolution

400 µA

Accuracy (47 to 63 Hz)

± 8 mA plus ± 0.2% reading (at full scale = ± 28 mA or 0.28%)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with voltage measurement)

Input Filtering

Time constant = 105 µs (analog front end)

(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Input Resistance - Single Ended

0.005 Ohm
NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the voltage channel.

Maximum Input

15 A continuous, non-operating

Calculated Channels

True Power and Volt-Amps Range

True power: 2500.0 Watts. Volt-amps: 2500.0 volt-amps (= 25,000 counts)
(inputs = 250 volts and 10 amps)

Over Range

2750 Watts true power or 2750 Volt-amps (= 27,500 counts)

Accuracy:



True Power
Volt-Amps

± 0.6% reading (at full scale = ± 15 Watts)
± 0.6% reading (at full scale = ± 15 VA)

Resolution

100 mW with default scaling

AC Common Mode Rejection

> -120 dB at 60 Hz

Maximum Operating Common Mode Voltage

250 VAC

Calculated Outputs

True Power

0-2500 W (from synchronous measurement of volts and amps)

Volt Amps

0-2500 VA (VRMS x ARMS)

General Specifications

Power Requirements

5.0 VDC ± 0.15 VDC at 100 mA

Ambient Temperature:

Operating
Storage



-20 to 70 °C
-40 to 85 °C

Humidity

5-95%, non-condensing

Wire size

22 to 14 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

CE, RoHS, DFARS

Warranty

Lifetime
