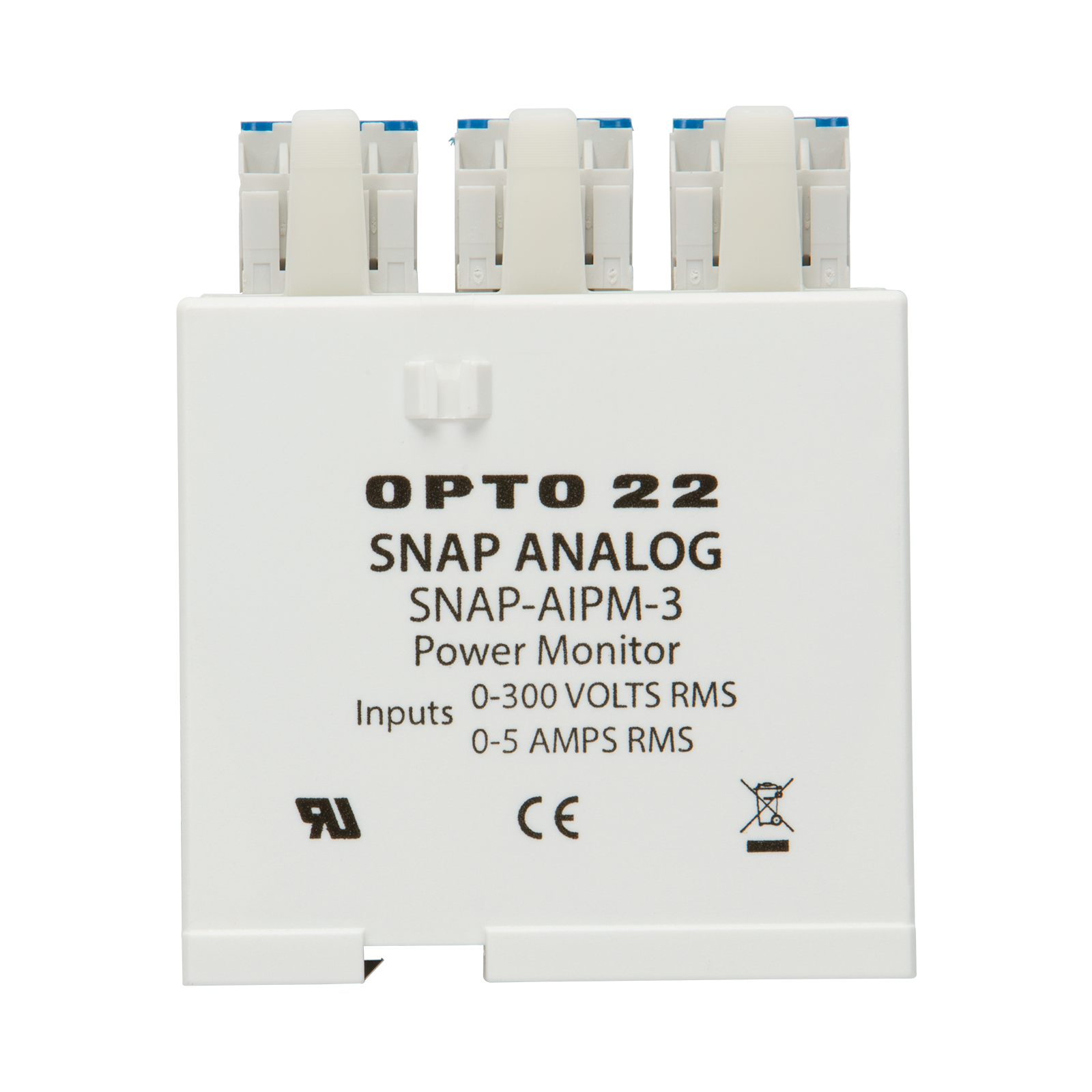

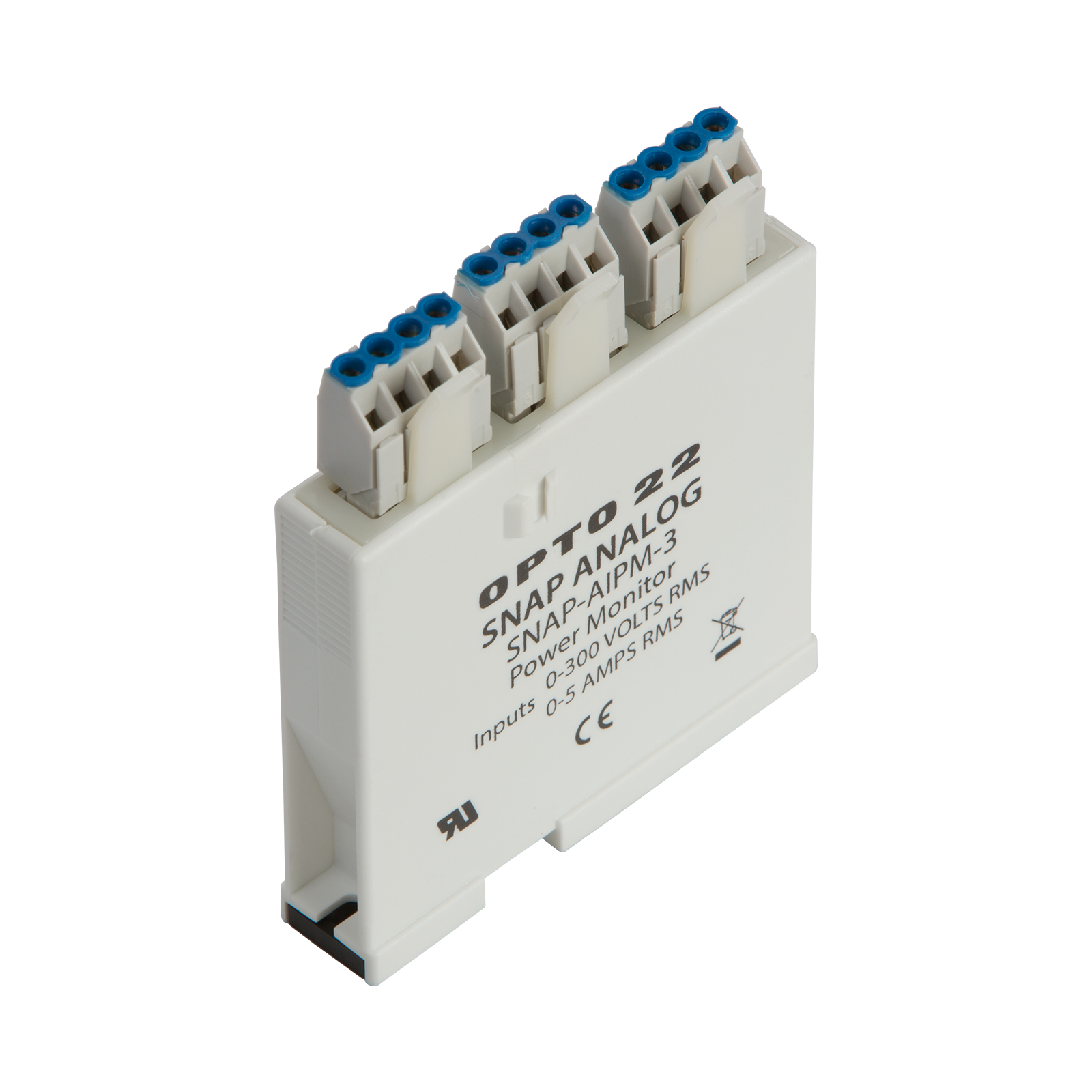

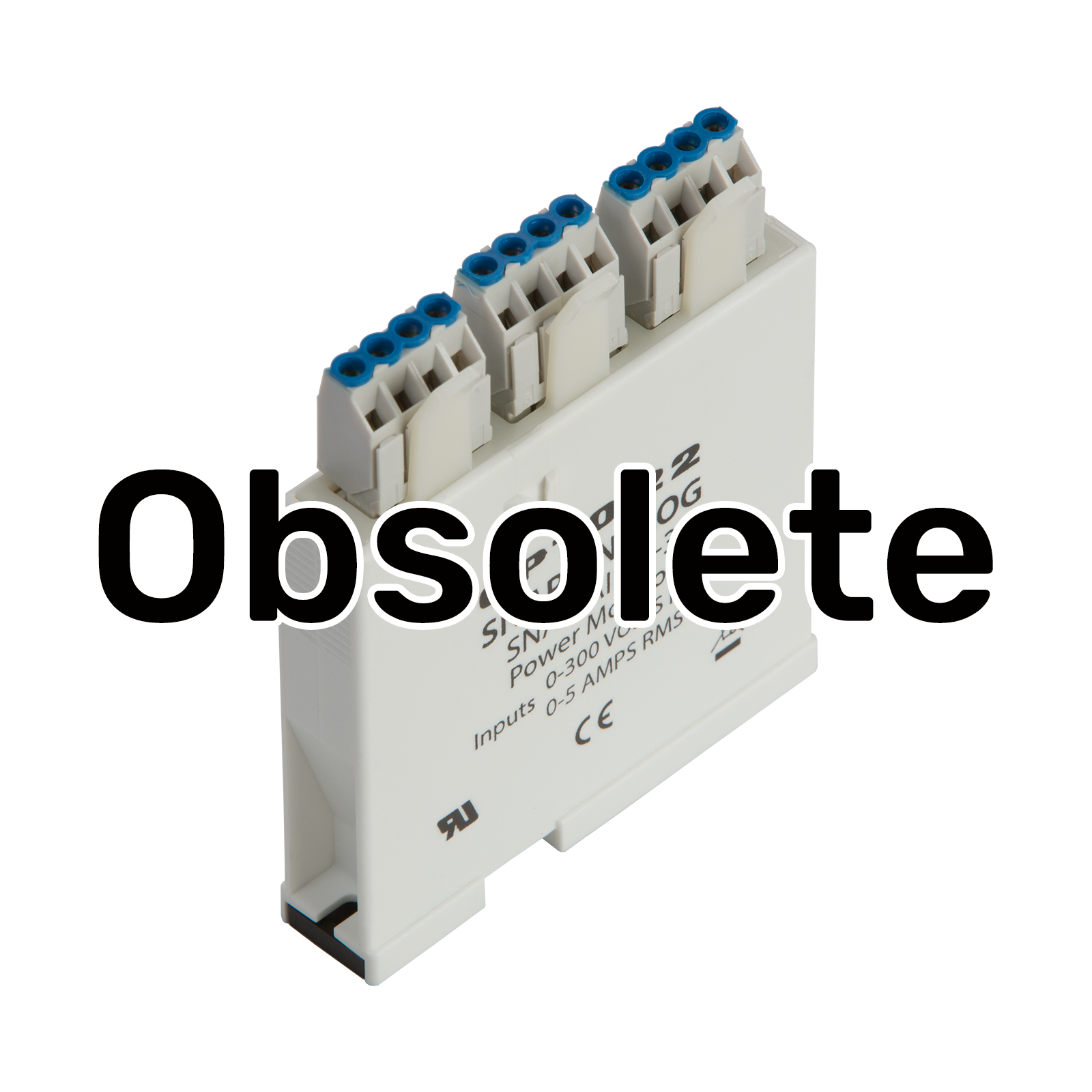

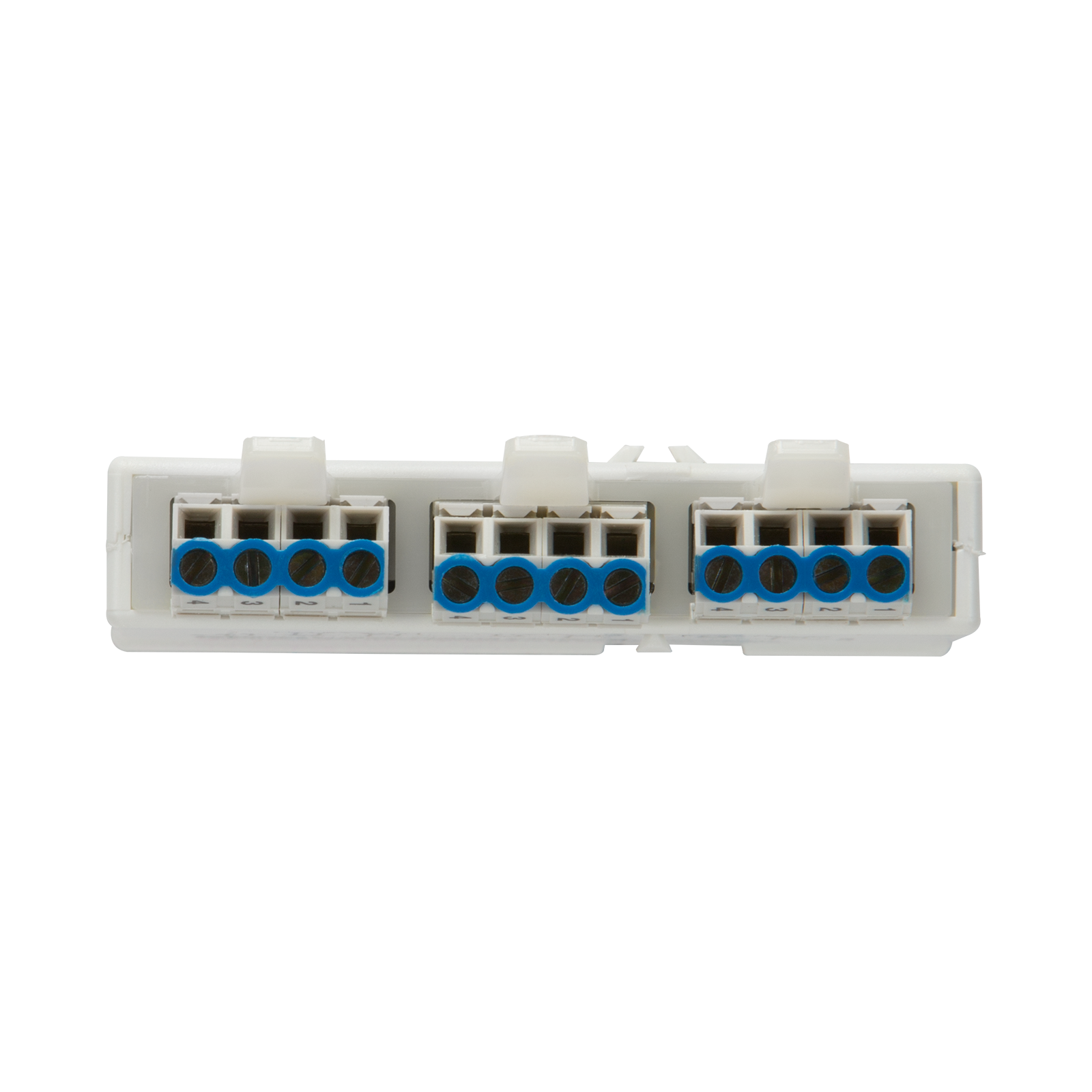

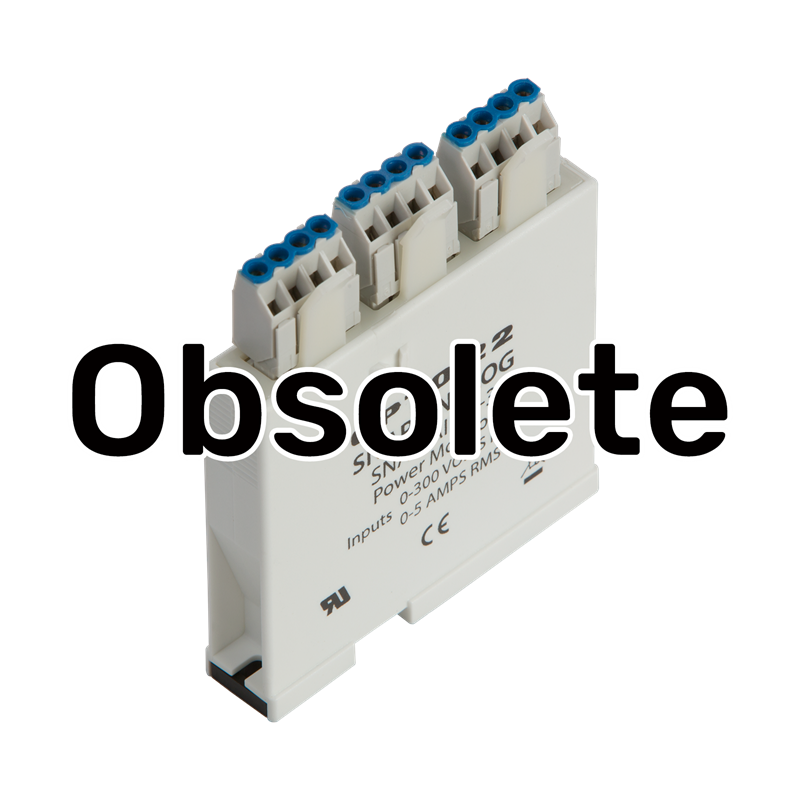

SNAP-AIPM-3
Hover over image to zoom in

SNAP-AIPM-3

$688.00 (USA and Canada only)

Availability: In stock
OBSOLETE Three-phase Power Monitoring Module, 85-300 V RMS and 0-5 A RMS Inputs for Each Phase

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

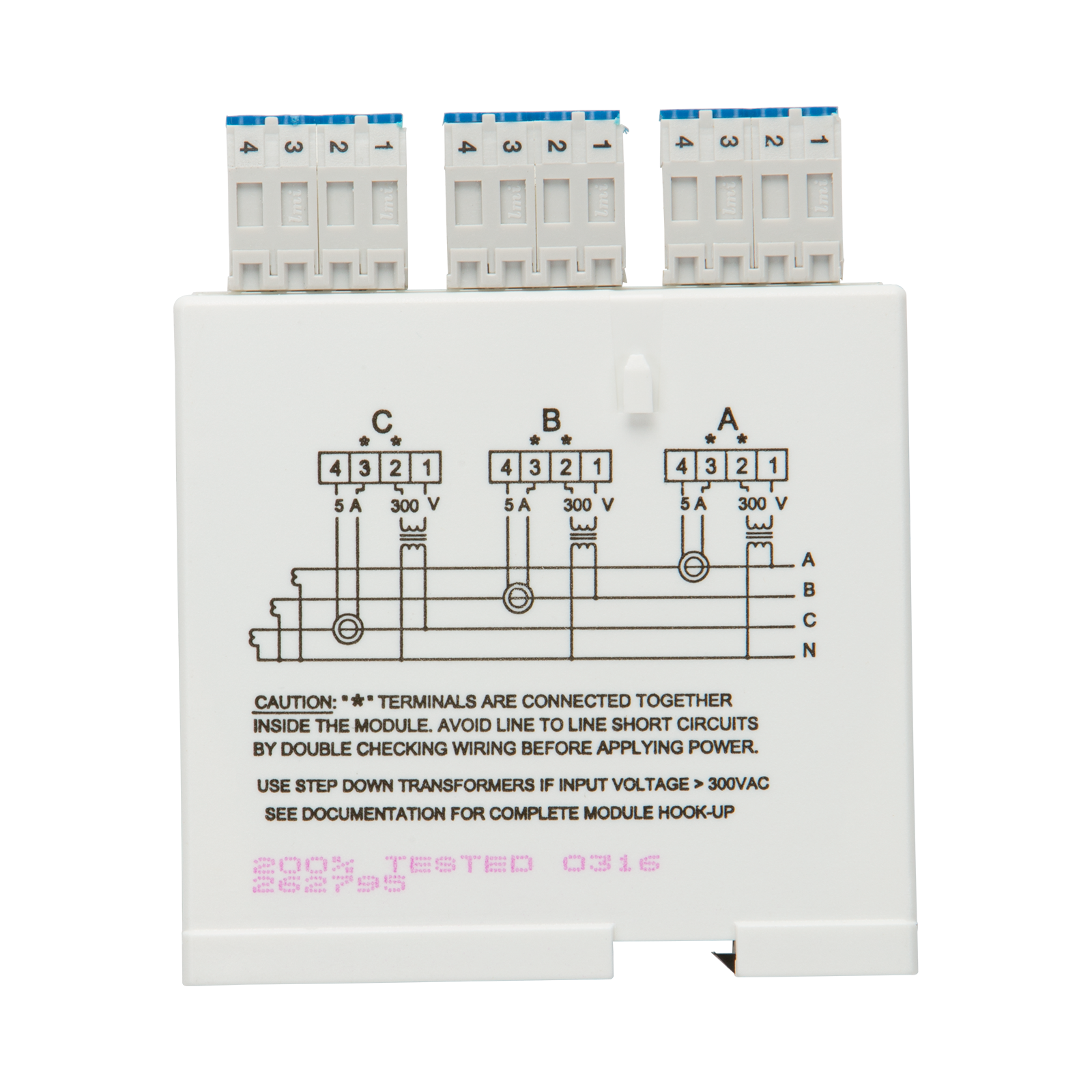

SNAP-AIPM-3 analog input module helps you measure and control power usage in your facility. The SNAP-AIPM-3 simultaneously measures volts AC RMS and amps AC RMS for each of the three phases, using current transformers (CTs) with a 1-5 amp secondary.

The module calculates true power and volt-amps for each phase and, in addition, calculates true power sums for all three phases.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

When these modules are used as part of a SNAP PAC System running a PAC Control strategy, the strategy logic can automatically perform the calculations and respond to problems.

Compatibility: SNAP-AIPM-3 modules work with SNAP PAC brains and R-series controllers. They require brain firmware version 9.1b or newer and PAC Project 9.1a or newer.

Also see the SNAP-AIPM-3V module, which uses CTs with a 0.333 VAC secondary.

If you need to monitor single-phase power, use the SNAP-AIPM instead.

NOTE: SNAP-AIPM-3 modules manufactured before April 2011 had different input ranges (0-250 VAC and 0-10 A). Specs were changed to allow connection to electrical systems and equipment at higher voltages (for example, lighting systems at 277 volts) and to double the resolution of current inputs. Before wiring or scaling any SNAP-AIPM-3, check the input range printed on the module. Scaling examples are in the data sheet. Older modules can be exchanged for newer ones; contact Product Support for information or answers to questions.

Build your system in the SNAP I/O Configurator.



SNAP-AIPM-3

SNAP-AIPM-3V

Voltage Inputs (each voltage channel)

Recommended Input Range
Scaled Input Range


85 to 300 VAC RMS*
0 to 300 VAC RMS


85 to 300 VAC RMS*
0 to 300 VAC RMS

Input Over Range

To 330 volts

To 330 volts

Resolution

12 mV

12 mV

Accuracy (47 to 63 Hz)

(When used within recommended range)
± 0.2 V plus ± 0.2% reading (at full scale = ± 0.7 V or 0.28%)

(When used within recommended range)
±0.2 V plus ±0.2% reading (at full scale = ±0.2 V + ±0.8 V = ±1.0 V)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with current measurement)

1000 ms (synchronous with current measurement)

Input Filtering

Time constant = 70 µs (analog front end)
(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Time constant = 70 µs (analog front end)
(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Input Resistance - Single Ended

1 Megohm
NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the current channel.

1 Megohm
NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the current channel.

Maximum Input

330 V non-operating

330 V non-operating

Current Inputs (each current channel)

Input Range

0 to 5 AC amps RMS*

0 to 0.333 VAC current transformer input

Input Over Range

To 5.5 amps (Reading is not reliable over 5.5 A)

To 0.366 VAC

Input Overload

15 A continuous, non-operating

5 VAC continuous, non-operating

Resolution

200 µA

13.3 µV AC

Accuracy (47 to 63 Hz)

± 4 mA plus ± 0.2% reading (at full scale = ± 28 mA or 0.28%)

± 266 microvolts plus 0.2% of reading (at full scale = 266 µV + 667 µV = 933 µV = 0.28%)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with voltage measurement)

1000 ms (synchronous with voltage measurement)

Input Filtering

Time constant = 105 µs (analog front end)
(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Time constant = 105 µs (analog front end)
(-0.2 dB at 660 Hz; -3 dB at 1.89 kHz) nominal

Input Resistance - Single Ended

0.005 Ohm
NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the voltage channel.

500 K Ohms
NOTE: Because both channels share the same reference terminal, polarity must be observed when connecting the voltage channel.

Maximum Input

15 A continuous, non-operating

5 VAC continuous, non-operating

Calculated Channels

True Power and Volt-Amps Range

True power: 1500.0 Watts. Volt-amps: 1500.0 volt-amps
(inputs = 300 volts and 5 amps)

True power and volt-amps are calculated from 300 volts and the full-scale current input of your 0.333 VAC output CT.

Over Range

1650 Watts true power or 16,500 counts volt-amps

Depends on CT selection

Accuracy:





True Power
Volt-Amps

± 0.6% reading (at full scale = ± 15 Watts)
± 0.6% reading (at full scale = ± 15 VA)

± 0.6% reading
± 0.6% reading

Resolution

100 mW with default scaling

Depends on CT selection

AC Common Mode Rejection

> -120 dB at 60 Hz

> -120 dB at 60 Hz

Maximum Operating Common Mode Voltage

300 VAC

300 VAC

Calculated Outputs

True Power

0-1500 W (from synchronous measurement of volts and amps)

W (from synchronous measurement of volts and amps)**

Volt Amps

0-1500 VA (VRMS x ARMS)

VA (VRMS x ARMS)**

1-second Energy Sum

0-4500 joules (true power sum ABC, signed)

Joules (true power sum ABC, signed)**

1-second abs Energy Sum

0-4500 joules (true power sum of absolute value of each A, B, and C, always positive)

Joules (true power sum of absolute value of each A, B, and C, always positive)**

General Specifications

Power Requirements

5.0 VDC ± 0.15 VDC at 100 mA

5.0 VDC ± 0.15 VDC at 100 mA

Ambient Temperature:

Operating
Storage



-20 to 70 °C
-40 to 85 °C



-20 to 70 °C
-40 to 85 °C

Humidity

5-95%, non-condensing

5-95%, non-condensing

Agency Approvals

CE, RoHS, DFARS

CE, RoHS, DFARS

Warranty

Lifetime

Lifetime

*Inputs on older modules were 0-250 V and for SNAP-AIPM-3, 0-10 A. Before wiring or scaling, check printed information on the module to make sure you are using the correct voltage and current. Contact Opto 22 Product Support with any questions.

**Values depend on CT selection.
