SNAP-AIR40K-4

$288.00 (USA and Canada only)

Availability: In stock

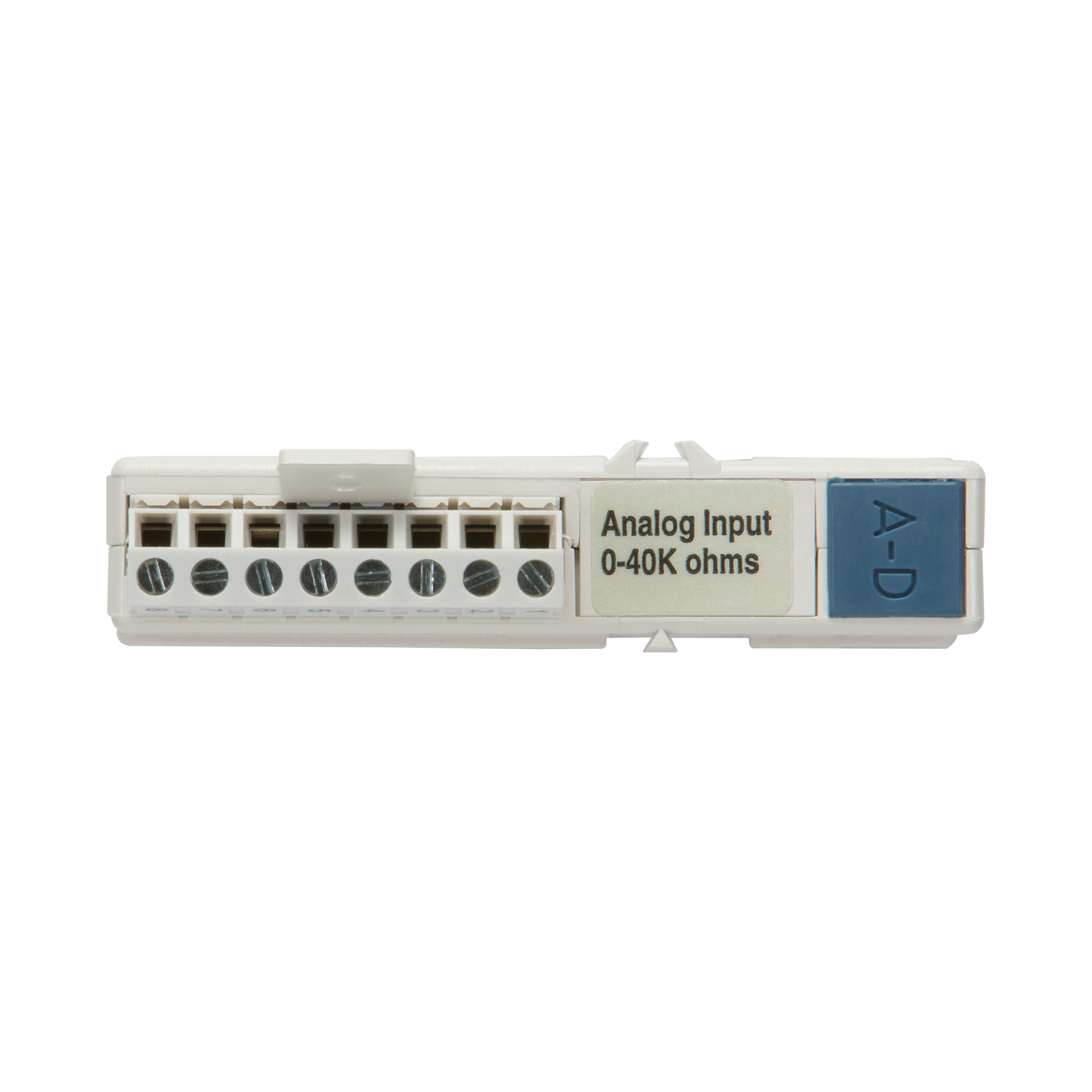

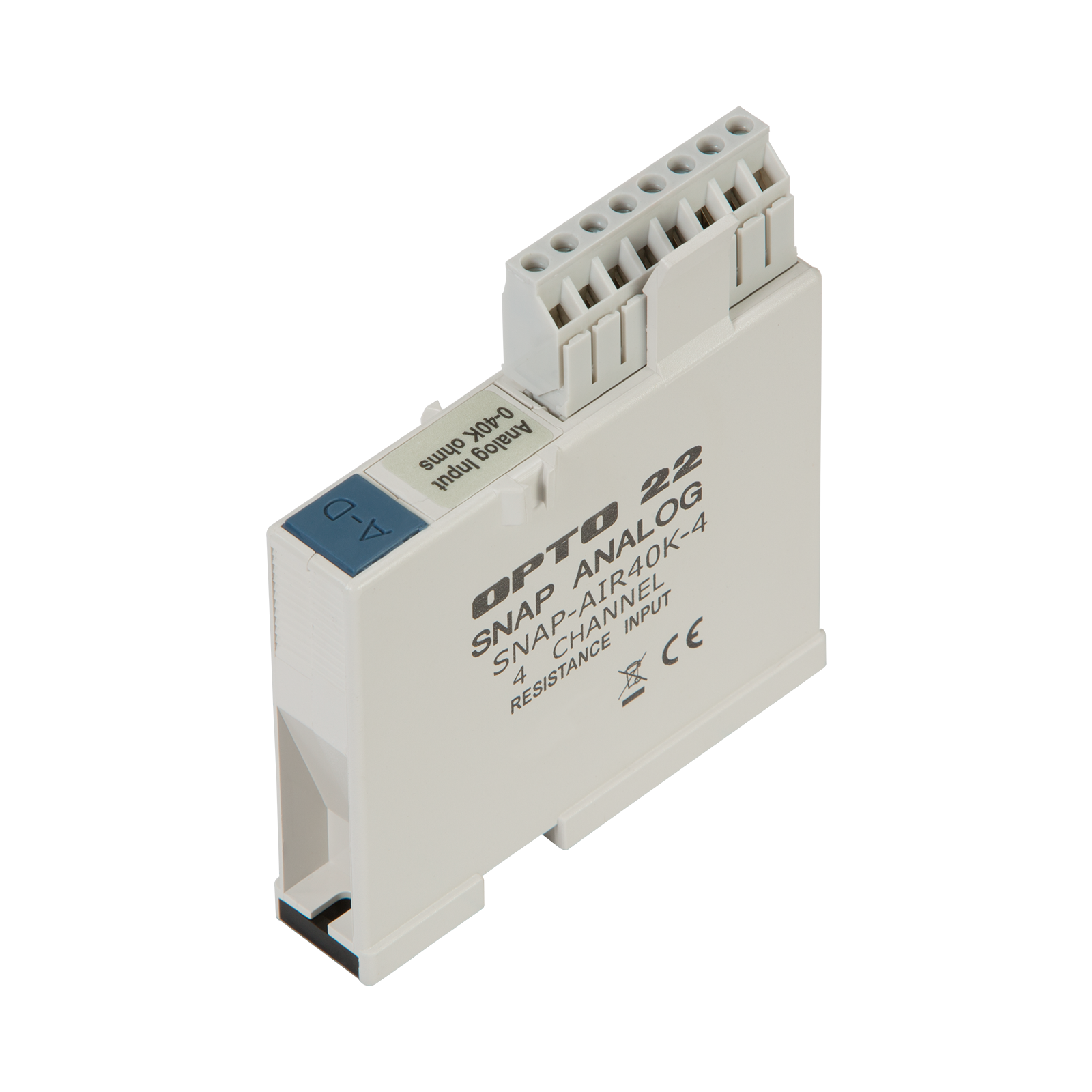

SNAP 4-Ch Analog Thermistor Input Module

Please call (800) 321-6786 to order.

SNAP-AIR40K-4

Production Specification

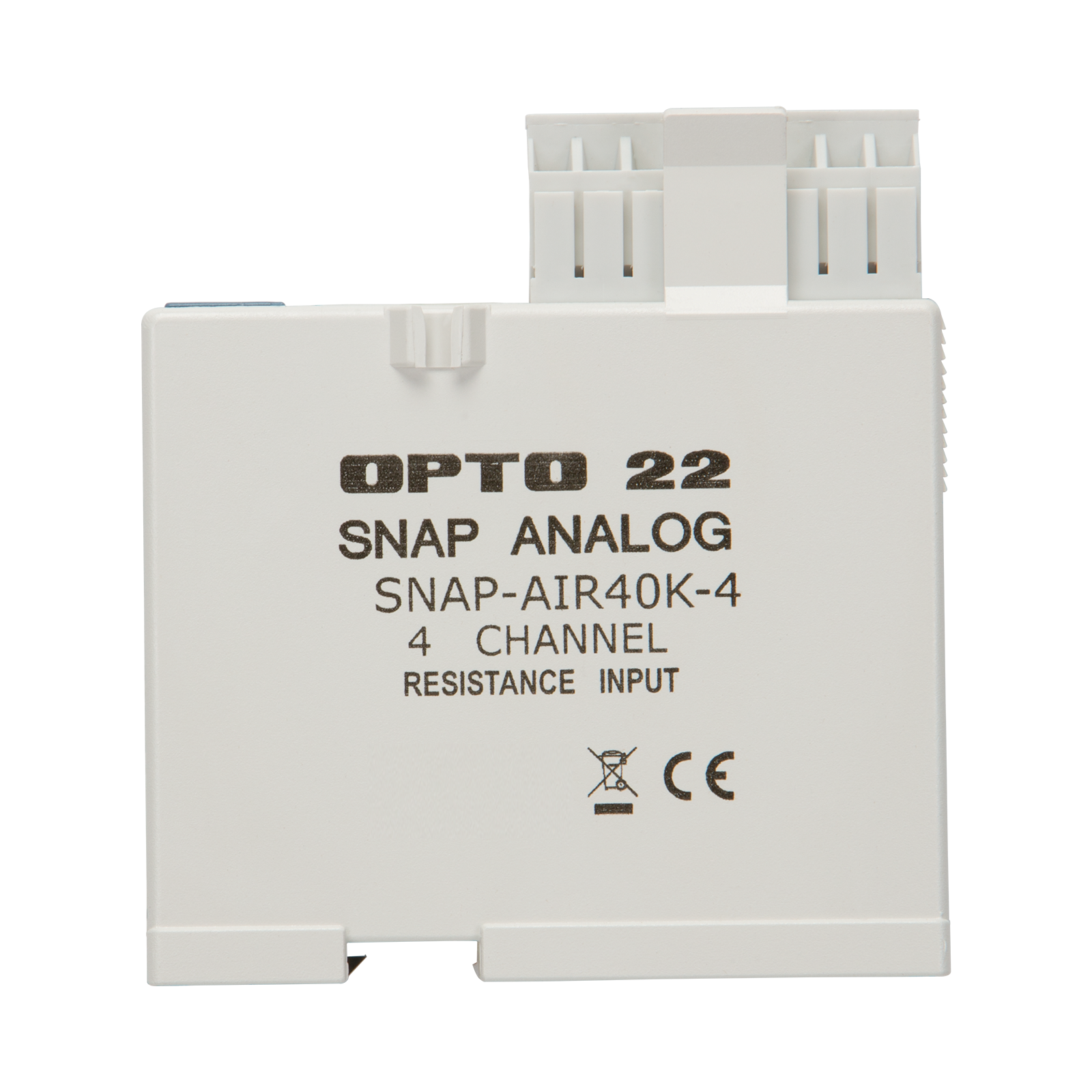

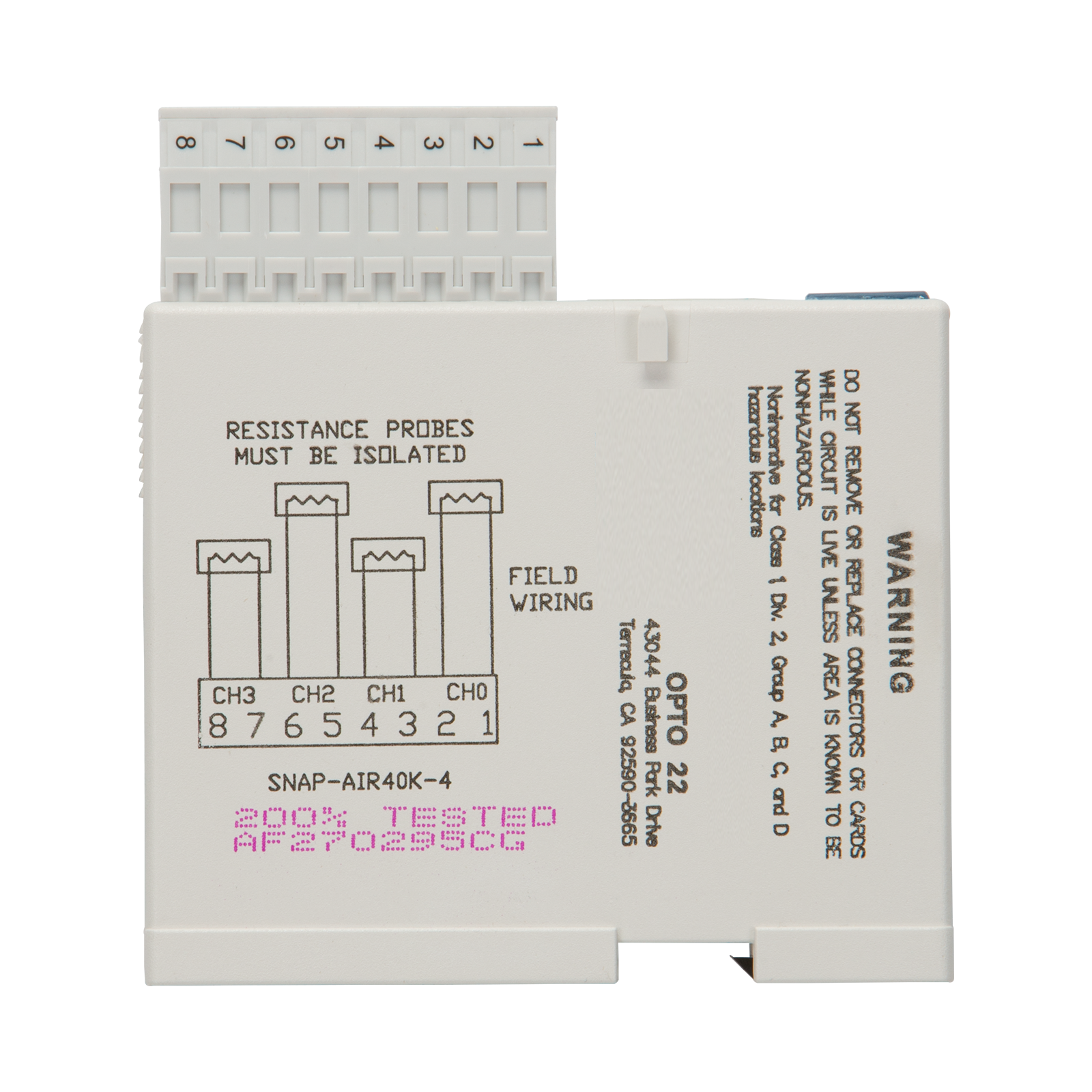

The SNAP-AIR40K-4 provides four channels of analog-to-digital conversion, ideal for thermistors used in HVAC applications or for reading the resistance of potentiometer input. Default range is 0-40 K Ohms; the module can also be configured for 0-20 K, 0-10 K, or 0-5 K Ohms. Resistance probes must be isolated from each other.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Compatibility: This module can be used with SNAP PAC brains and R-series controllers. It can also be used with legacy SNAP Ethernet-based brains.

Also see the 8-channel SNAP-AIR400K-8, ideal for NTC thermistors as well as PTC thermistors.

Build your system in the SNAP I/O Configurator.

Input Range

0 to 40,000 Ohms
0 to 20,000 Ohms
0 to 10,000 Ohms
0 to 5,000 Ohms

Maximum Over-Range

44 K (40 K Ohms range)
22 K (20 K Ohms range)
11 K (10 K Ohms range)
5.5 K (5 K Ohms range)

Resolution

1.6 Ohm @ 40 K Ohms
0.8 Ohm @ 20 K Ohms
0.4 Ohm @ 10 K Ohms
0.2 Ohm @ 5 K Ohms

Input Filtering

-3 dB @ 3.2 Hz

Data Freshness (Max)

100 (40 K Ohms)
200 (20 K Ohms)
400 (10 K Ohms)
800 (5 K Ohms)

DC Common Mode Rejec­tion

>-120 dB

AC Common Mode Rejec­tion

>-120 dB @ 60 Hz

Maximum Operating Com­mon Mode Voltage

250 V

Accuracy

0.1% ± 40 Ohms @ 40 K Ohms
0.1% ± 20 Ohms @ 20 K Ohms
0.1% ± 10 Ohms @ 10 K Ohms
0.1% ± 5 Ohms @ 5 K Ohms

DRIFT: Gain Temperature Coefficient

30 PPM/ °C

DRIFT: Offset Tempera­ture Coefficient

15 PPM/ °C

Isolation

1500 V

Power Requirements

5 VDC (±0.15 ) @ 190 mA

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Humidity

5-95%, non-condensing

Wire size

22 to 14 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

UL, FM, CE, RoHS, DFARS

Warranty

Lifetime
