SNAP-AITM
Hover over image to zoom in

SNAP-AITM

$289.00 (USA and Canada only)

Availability: In stock

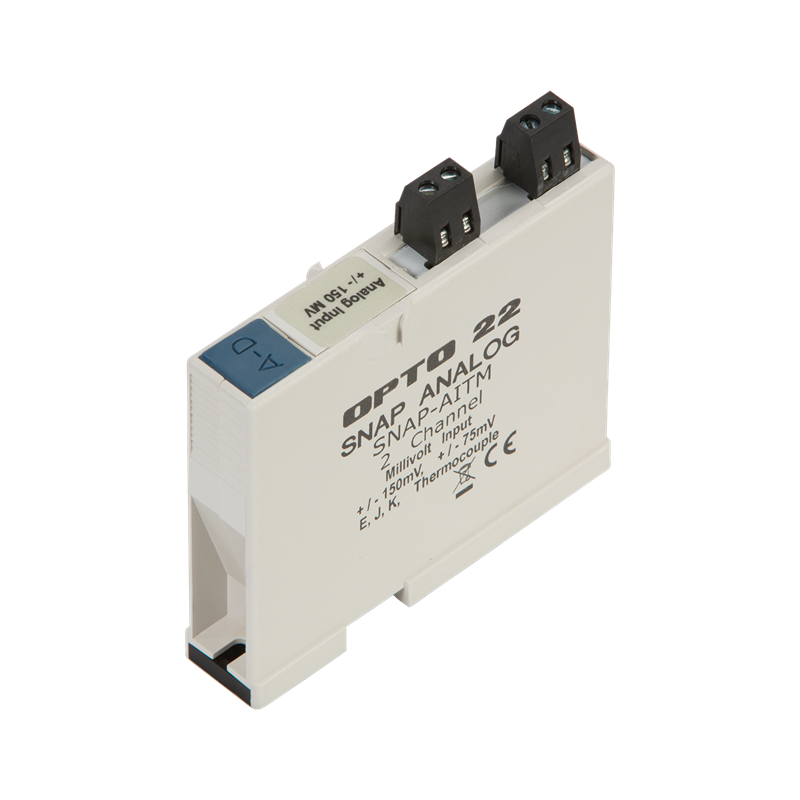

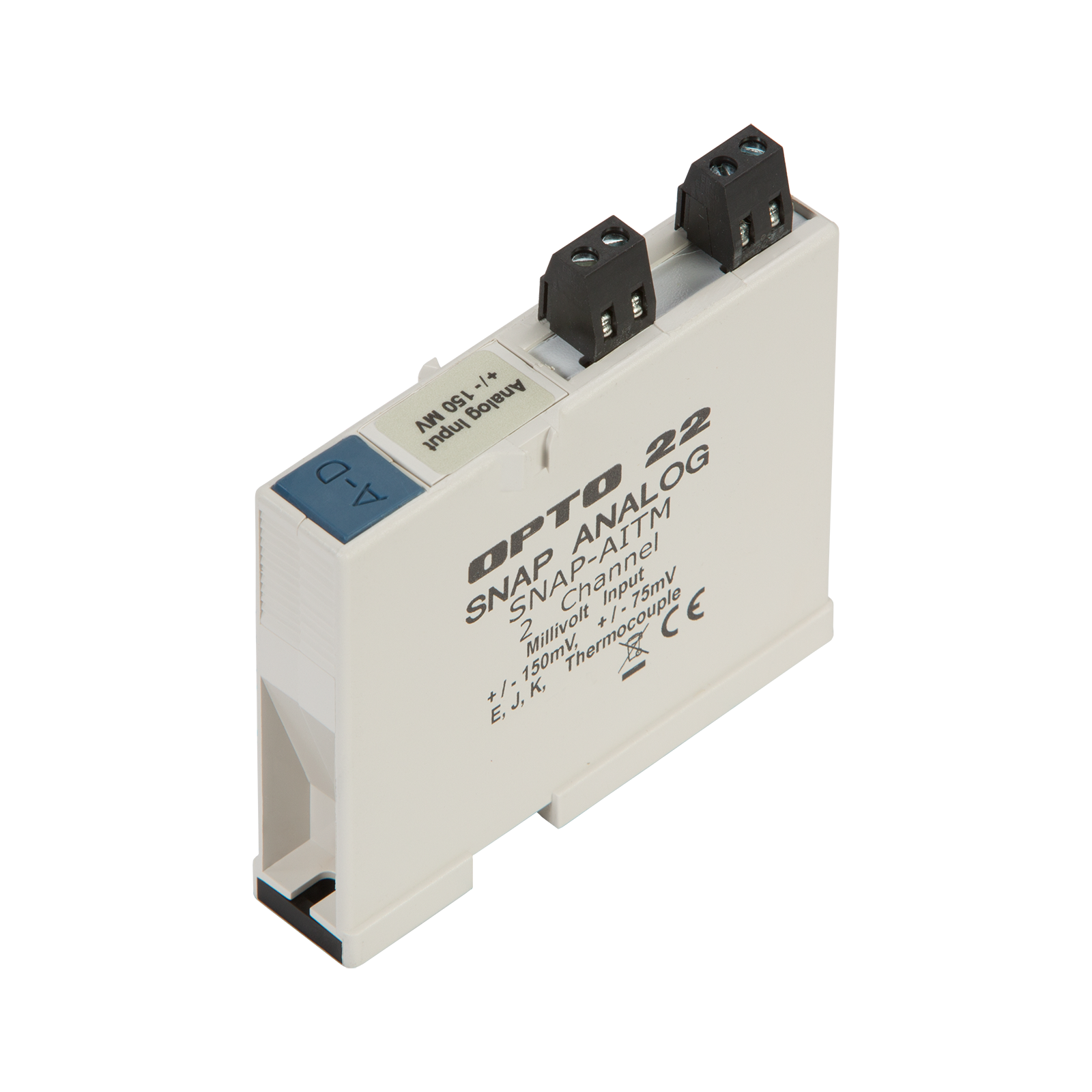

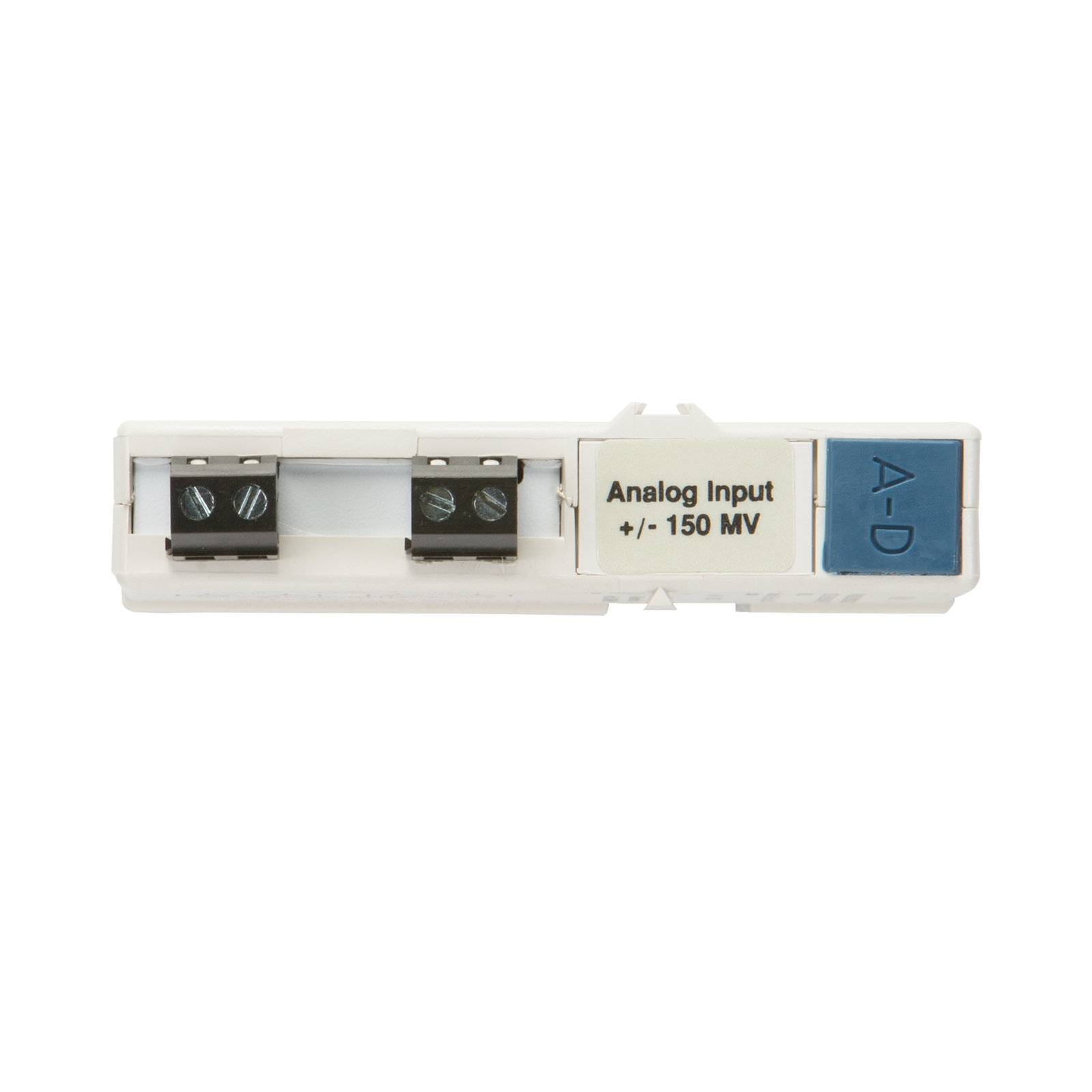

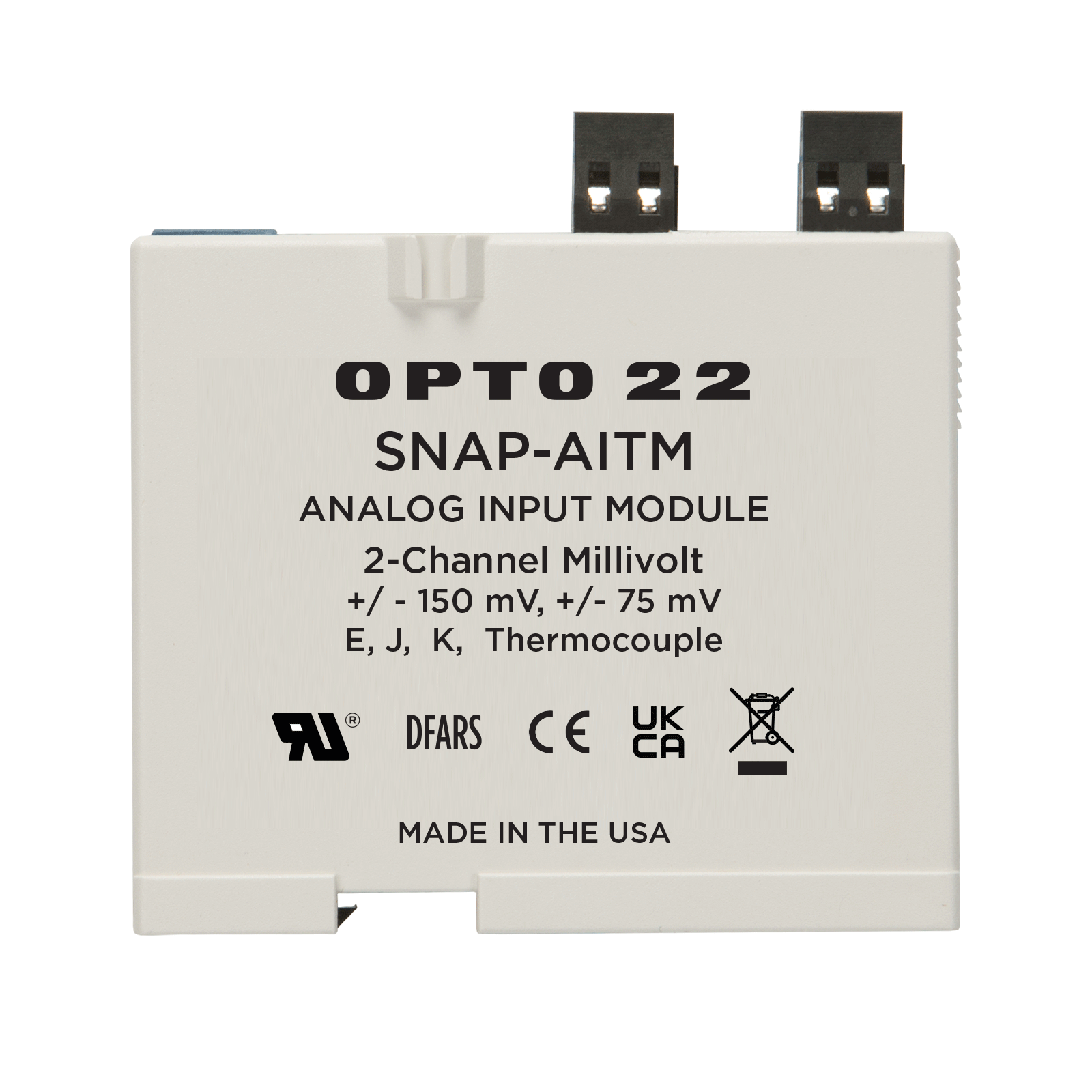

SNAP 2-Ch Type E, J, K Thermocouple or -150mV to +150mV Analog Input Module

Production Specification

The SNAP-AITM provides two channels of analog-to-digital conversion. Each channel can be configured for -150 to +150 mV DC or -75 to +75 mV DC, or for type E, J, or K thermocouple operation. Use isolated probes for thermocouple inputs.

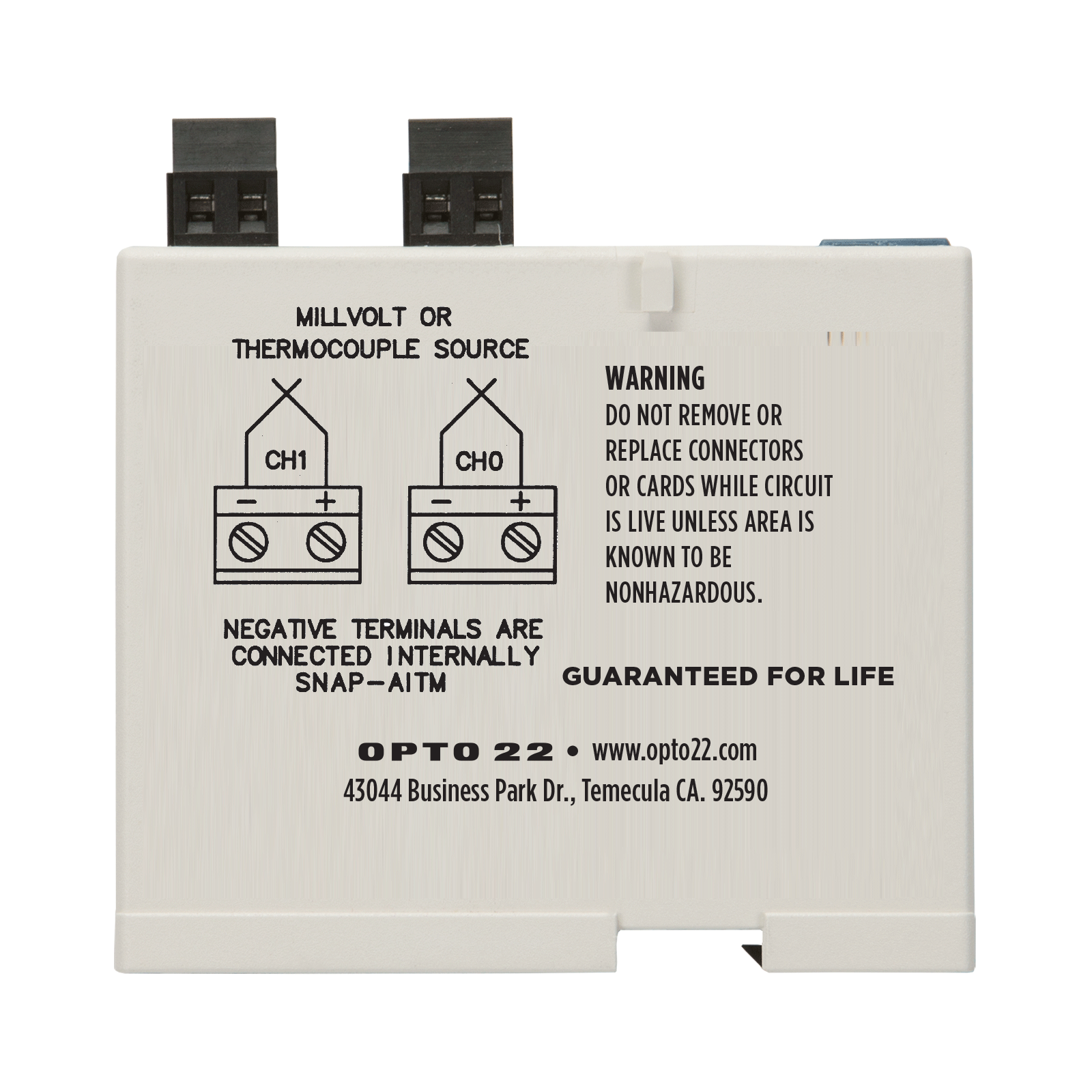

Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For a similar module offering eight channels, see SNAP-AITM-8.

For a similar module with channel-to-channel isolation, see SNAP-AITM-i.

Build your system in the SNAP I/O Configurator.

Input Range

From -150 mV to +150 mV
From -75 mV to +75 mV

Over-Range Limits

From -165 to +165 mV
(+/-150 mV range)
From -82.5 to +82.5 mV
(+/-75 mV range)

Resolution

6 microvolts from -150 to +150 mV
3 microvolts from -75 to +75 mV

Cold Junction Temperature Compensation

Automatic when used with
SNAP I/O processors

Input Filtering

-3 dB @ 7 Hz

Input Response Time
(% of span/delta V/delta time)

63.2%/95 mV/23 mS

Data Freshness (Max)

167 ms (+/-150 mV)
334 ms (+/-75 mV)

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

±15 volts

Maximum Operating Com­mon Mode Voltage

250 V

Accuracy at Full Scale

0.06% (90 microvolts) @ 150 mV
0.1% (75 microvolts) @ 75 mV

Drift: Gain Temperature
Coefficient

5 microvolts / °C

Drift: Offset Temperature Coefficient

2 microvolts / °C

Thermocouple Accuracy [°C]
  From factory
  After user gain and offset commands



± 2.0 (E, J, and K)

± 0.8

Isolation

1500 V

Power Requirements

5 VDC (±0.15) @ 170 mA

Input Resistance

100 Megohms (each channel)

Ambient Temperature:
  Operating
  Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

3 in-lb (0.34 N-m)

Agency Approvals

CE, RoHS, DFARS; UKCA

Warranty

Lifetime
