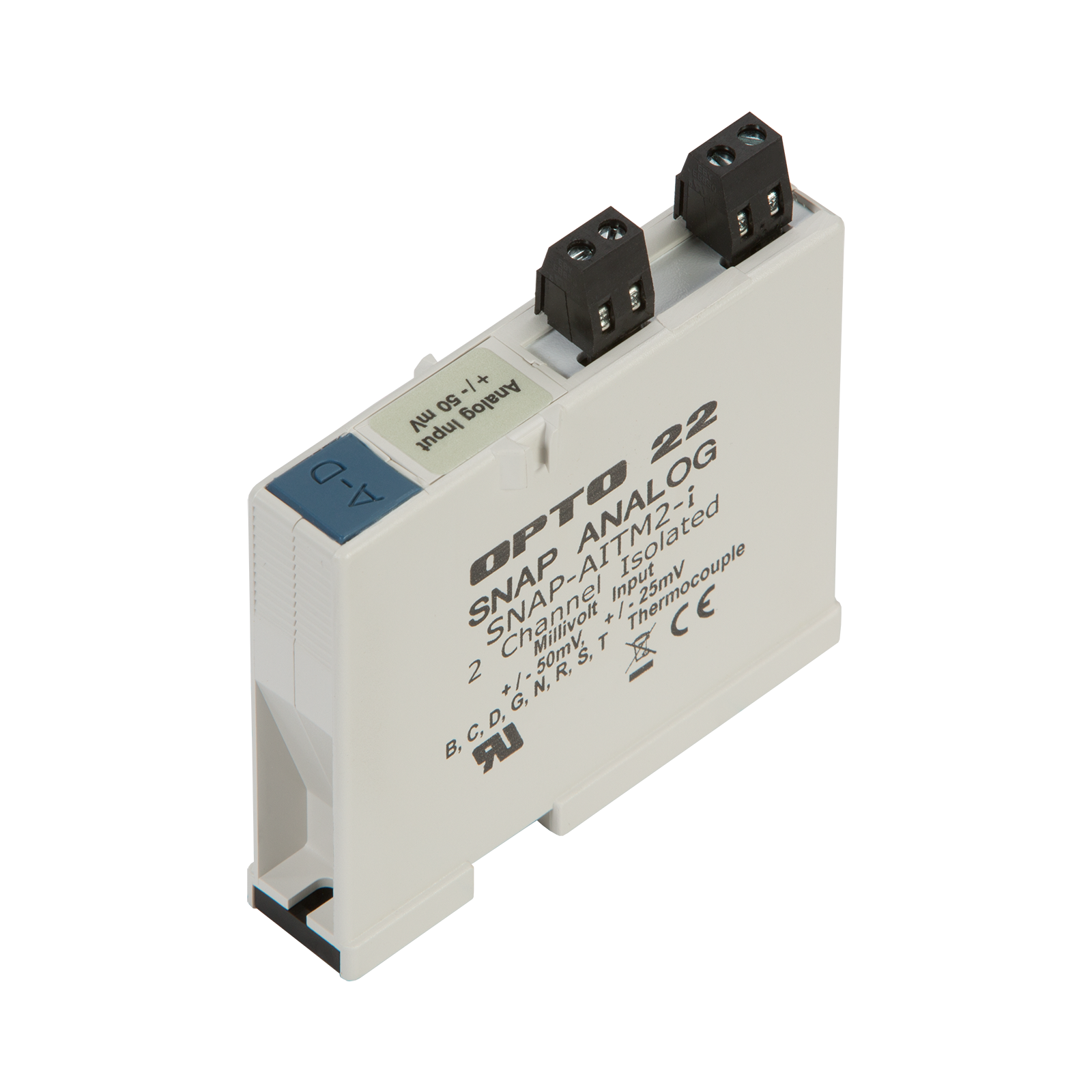

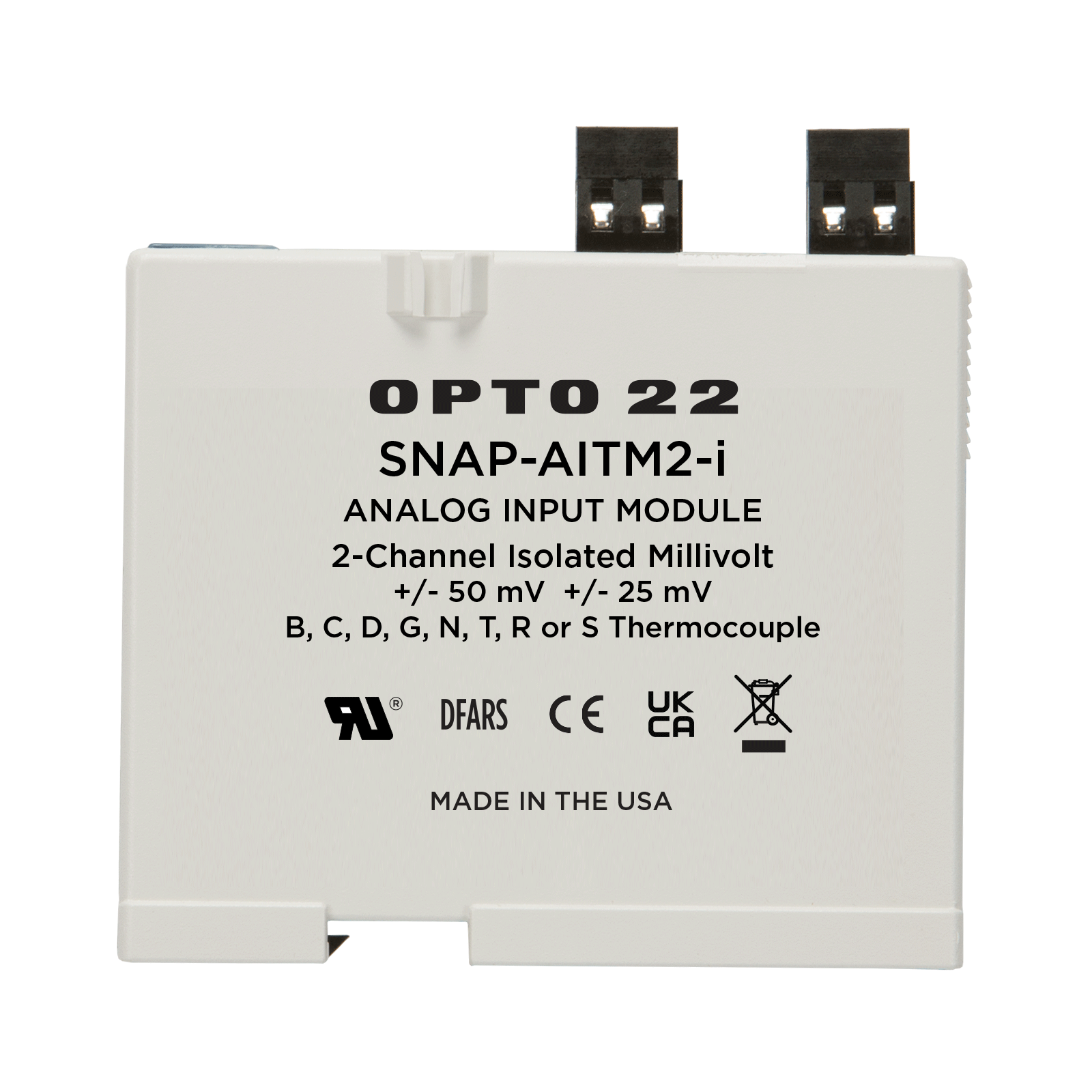

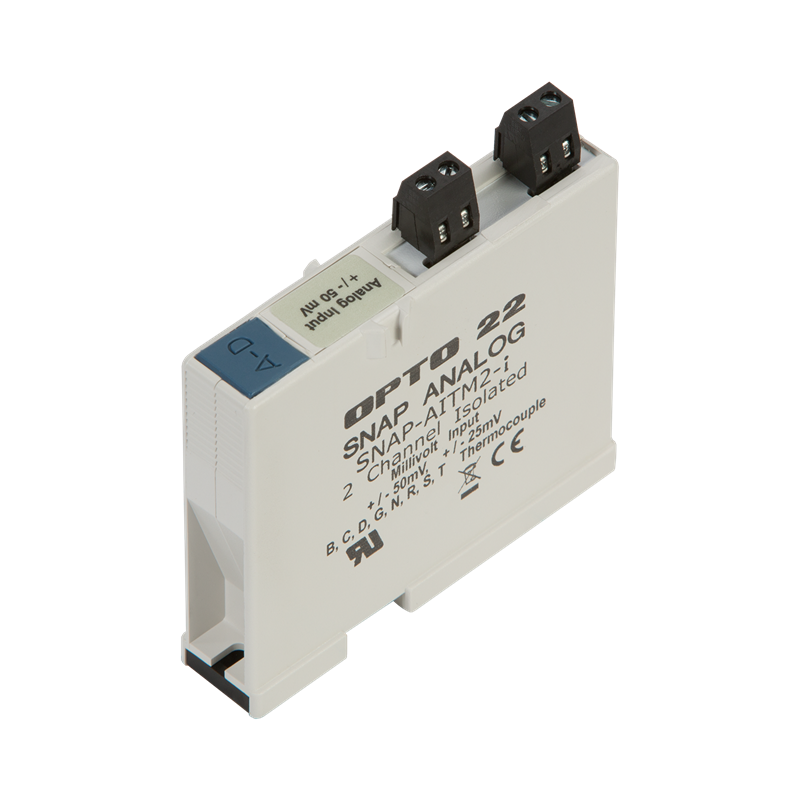

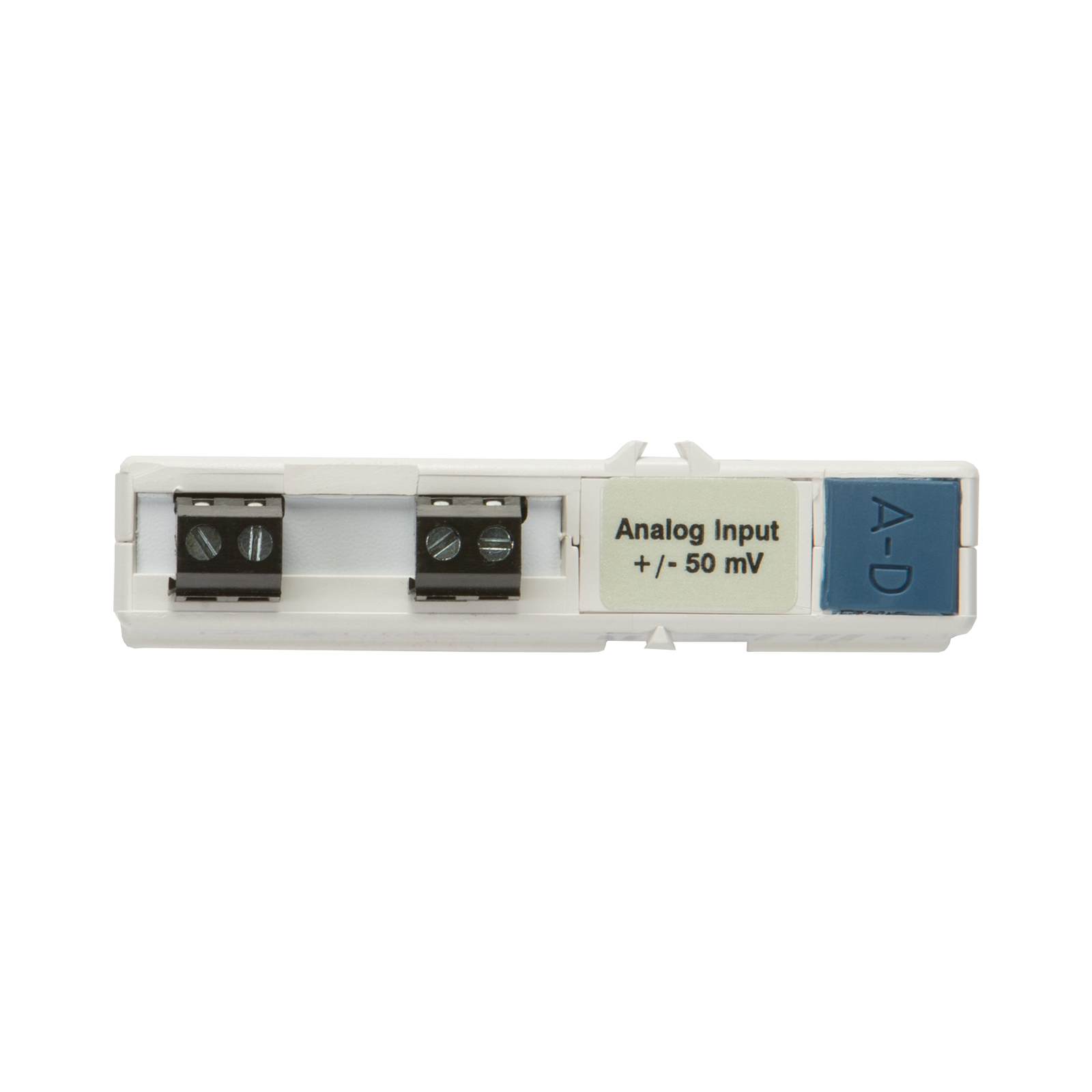

SNAP 2-Ch Isolated Type B,C,D,G,N,T,R, or S Thermocouple Analog Input Module

Production Specification

The SNAP-AITM2-i provides two isolated channels, each with an input range of -50 to +50 mV, -25 to +25 mV, or type B,C,D,G,N,T,R, or S thermocouple. In addition to having two channels isolated from each other, the module is also transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Build your system in the SNAP I/O Configurator.

Input Range

From -50 mV to +50 mVDC
From -25 mV to +25 mVDC

Maximum Over Range

± 10%
(= ± 27500 counts)


2 µV from -50 mV to +50 mV
1 µV from -25 mV to +25 mV

Cold Junction Temperature Compensation

Automatic when used with SNAP brains

Input Filtering

-3 dB @ 2.4 Hz

Input Response Time
(% of span/delta V/delta time)

63.2%/31.5 mV/66 ms

Data Freshness

65 ms for +/- 50 mV
130 ms for +/- 25 mV
130 ms for B-, R-, S-, and T-type thermocouples
65 ms for C-, D-, G-, and N-type thermocouples

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

±15 volts

Maximum Operating
Common Mode Voltage

250 V


0.1% (50 µV) @ 50 mV (full scale)
0.2% (50 µV) @ 25 mV (full scale)

Drift: Gain Temperature

5 µV / °C

Drift: Offset Temperature Coefficient

2 µV / °C

Thermocouple Accuracy [°C]
 From factory
 After user gain and offset commands

B, R, S    C, D, G    T, N
   ±5            ±4          ±3
   ±3            ±2          ±2


Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15 ) @ 200 mA

Input Resistance

100 megohms (each channel)

Ambient Temperature:


-20 °C to 70 °C
-40 °C to 85 °C


5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

3 in-lb (0.34 N-m)

Wire size range

22 to 14 AWG

Agency Approvals




SNAP PAC System Product Guide
