SNAP-AIV-4

Availability: In stock

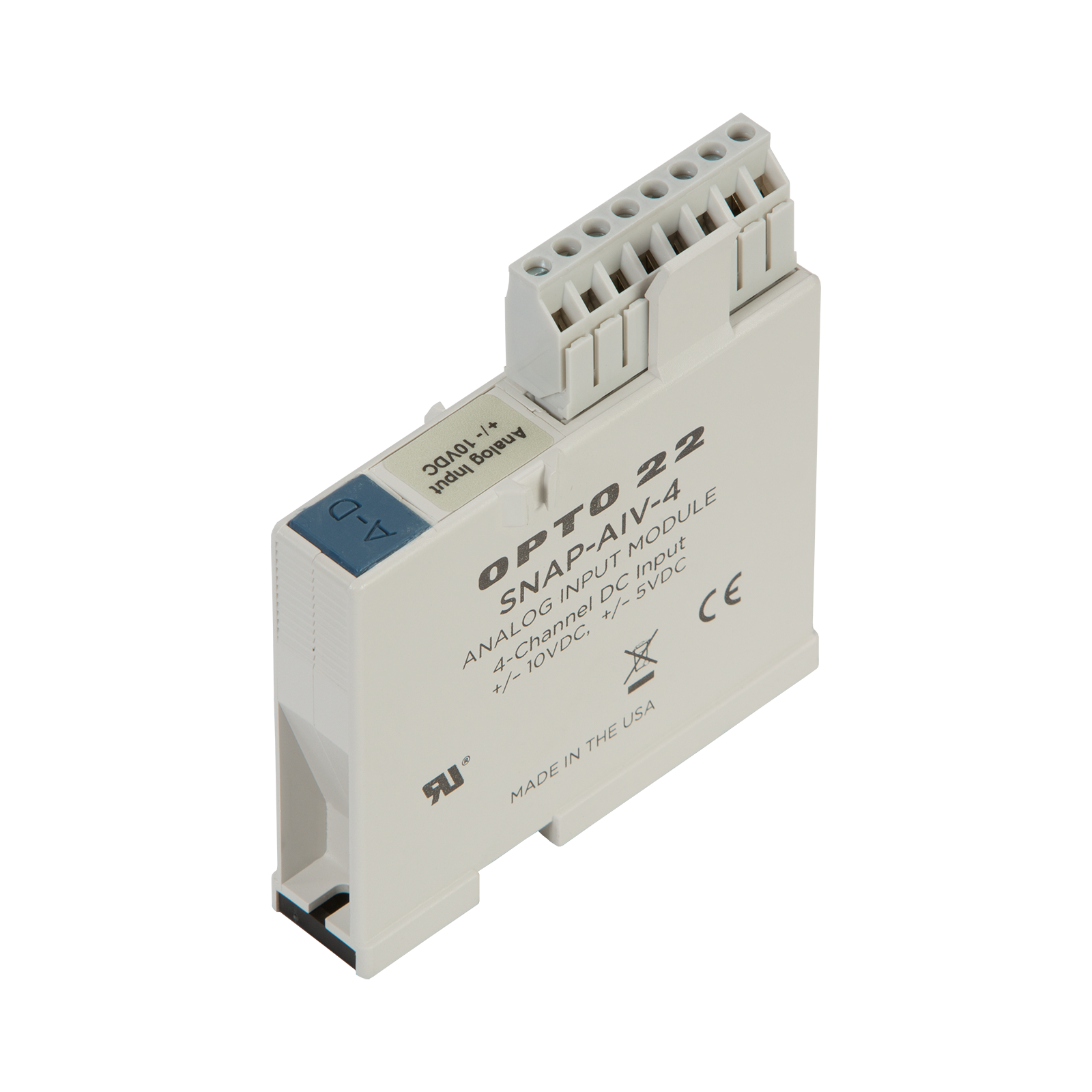

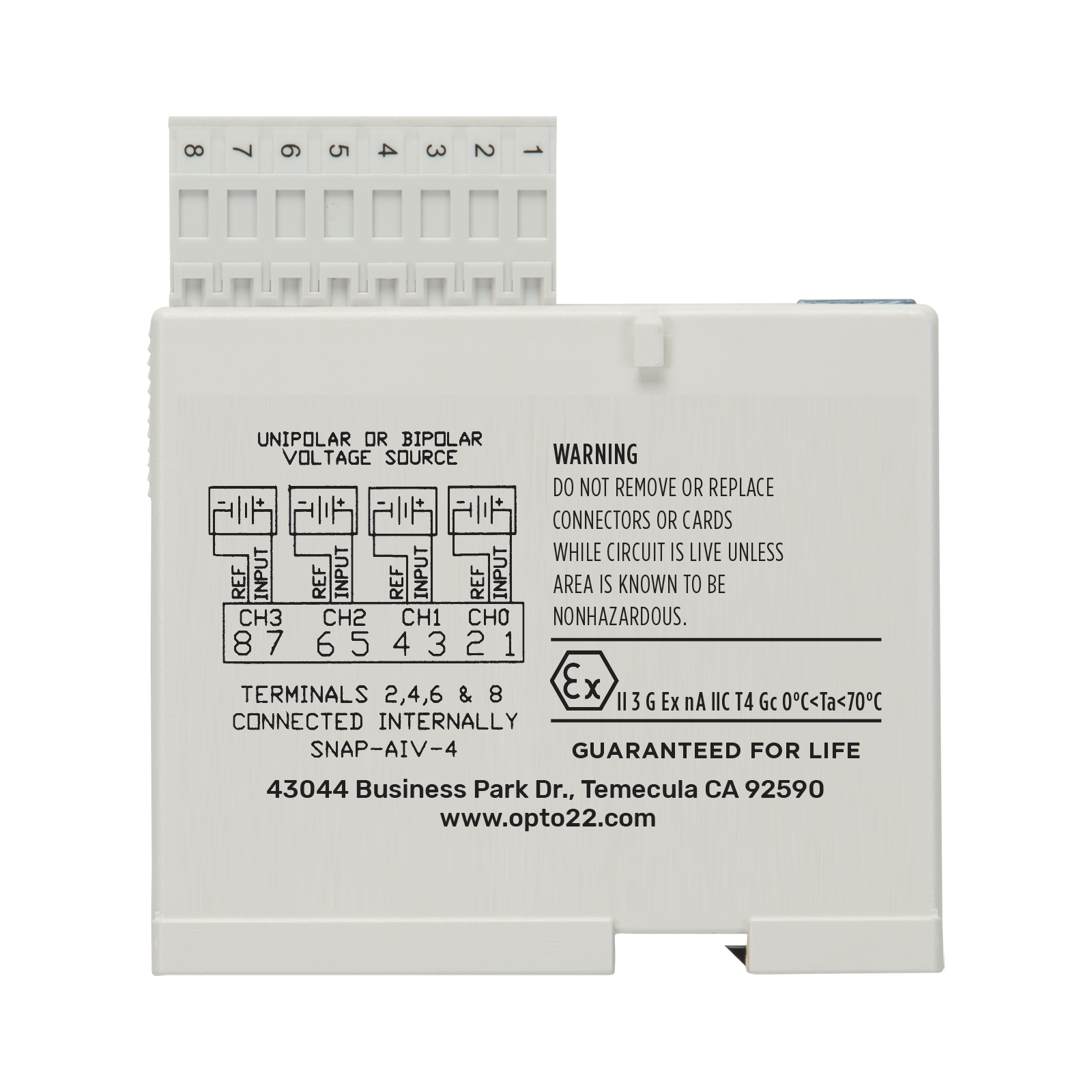

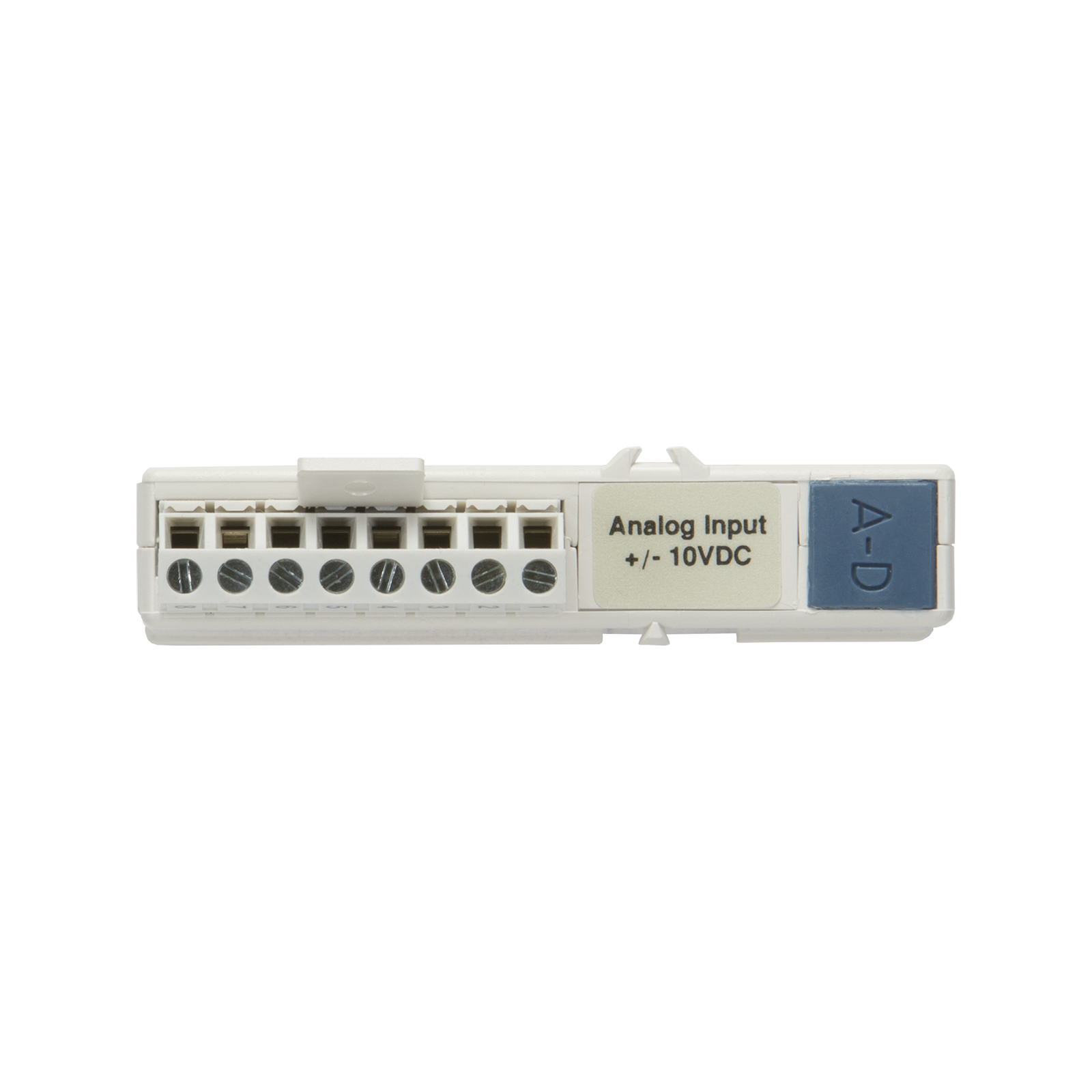

SNAP 4-Ch -10VDC to +10VDC Analog Input Module

Please call (800) 321-6786 to order.

SNAP-AIV-4

Production Specification

The SNAP-AIV-4 provides four channels of analog voltage input. Each channel can be configured for -10 to +10 VDC or -5 to +5 VDC operation. Although the four channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

In addition to SNAP PAC brains and R-series controllers, this module can also be used with legacy SNAP Ethernet-based brains.
Other options:
  • A similar module with channel-to-channel isolation (two channels only): SNAP-AIV-i.

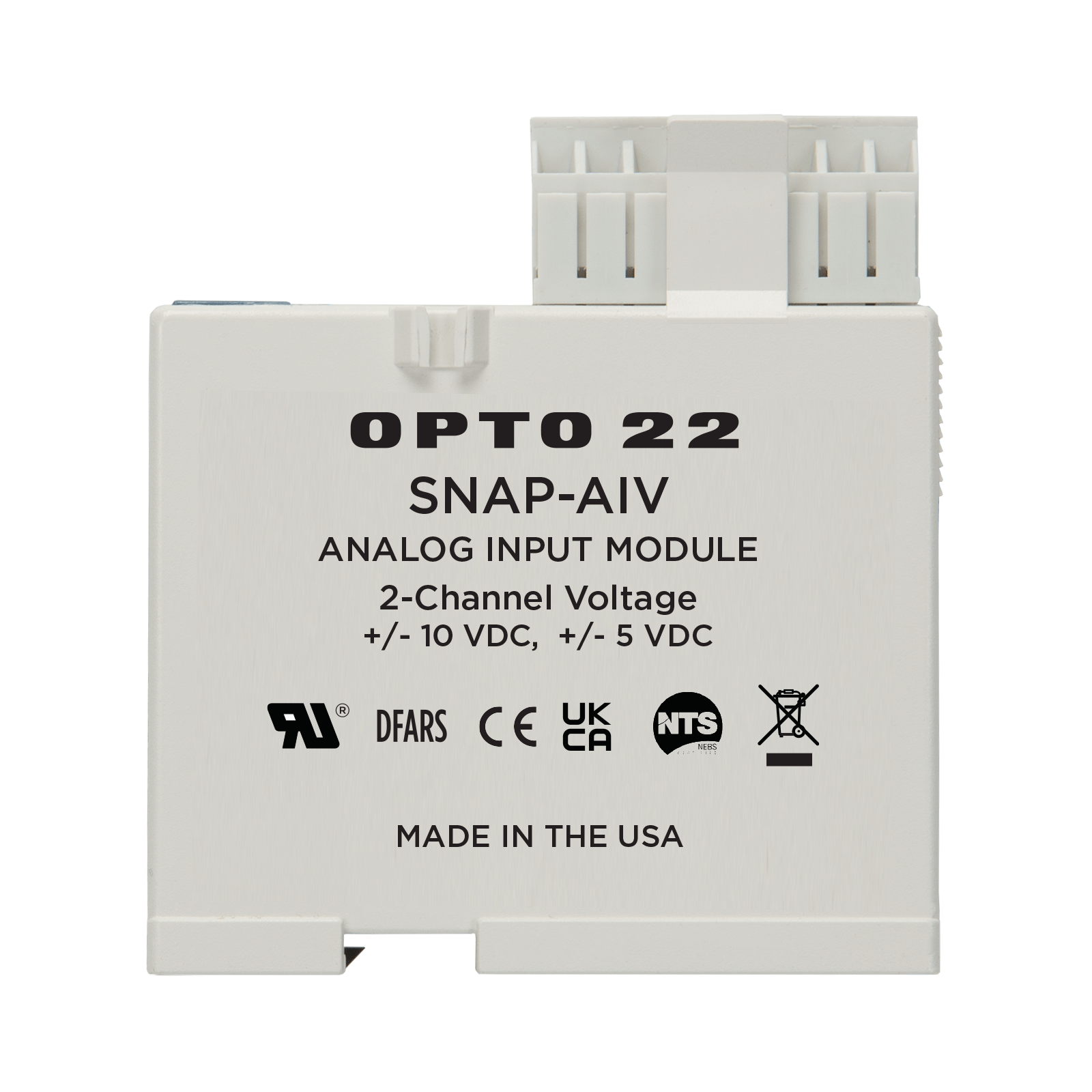

  • A similar two-channel module that can be used with SNAP serial brains: SNAP-AIV.
  • A 32-channel module that can be used with SNAP PAC brains and R-series controllers only: SNAP-AIV-32.
Build your system in the SNAP I/O Configurator.

Input Range

From -10 volts to +10 volts
From -5 volts to +5 volts

Over-Range Limits

From -11 to +11 volts (+/-10 V range)
From -5.5 to +5.5 volts (+/-5 V range)

Resolution

0.4 mV when configured -10 to +10 volts
0.2 mV when configured -5 to +5 volts

Input Filtering

-3 dB @ 64 Hz

Input Response Time
(% of span/ delta V / delta t)

63.2% / 6.7 V / 10 ms

Data Freshness (Max)

11.5 ms (2-channel, +/- 10 VDC)
23 ms (2-channel, +/- 5 VDC
23 ms (4-channel, +/- 10 VDC)
46 ms (4-channel, +/- 5 VDC

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

220 VAC or 300 VDC

Maximum Operating Com­mon Mode Voltage

250 V

Accuracy

0.05%, 5 mV @ 10 VDC
2.5 mV @ 5 VDC

Gain Temperature Coefficient

30 PPM/ °C

Offset Temperature Coeffi­cient

15 PPM/ °C

Isolation

1500 V

Power Requirements

5 VDC (±0.15) @ 170 mA

Input Resistance

1 M ohms (each channel; both channels share the same reference point)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Wire size

22 to 14 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

UL, FM, CE, ATEX, RoHS, DFARS

Warranty

Lifetime
