SNAP-AIV-HDB

$261.00 (USA and Canada only)

Availability: In stock
Breakout Board for SNAP-AIV-32 Analog Input Module

Please call (800) 321-6786 to order.

SNAP-AIV-HDB

Production Specification

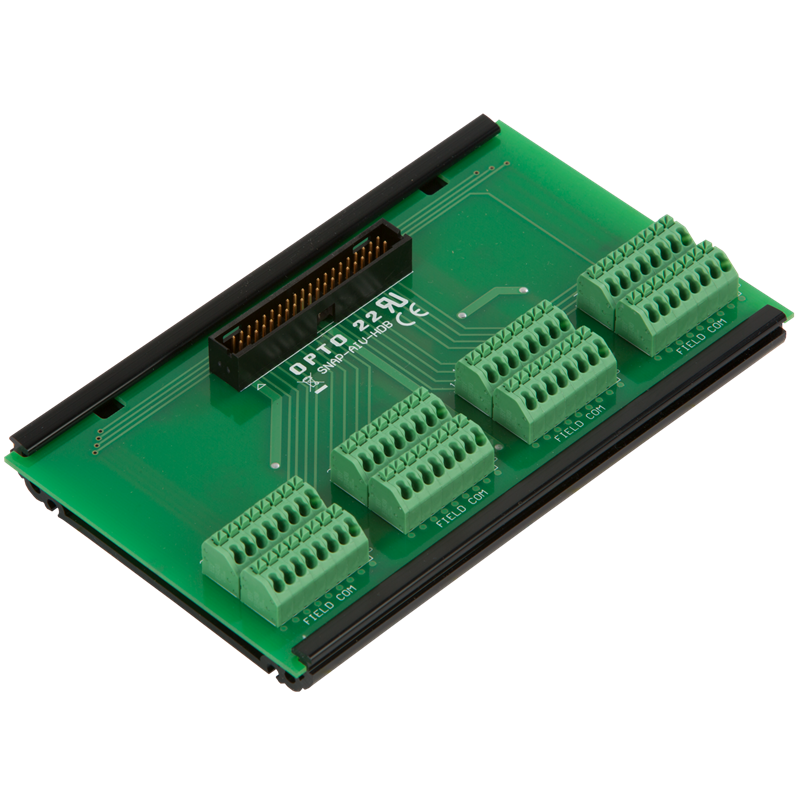

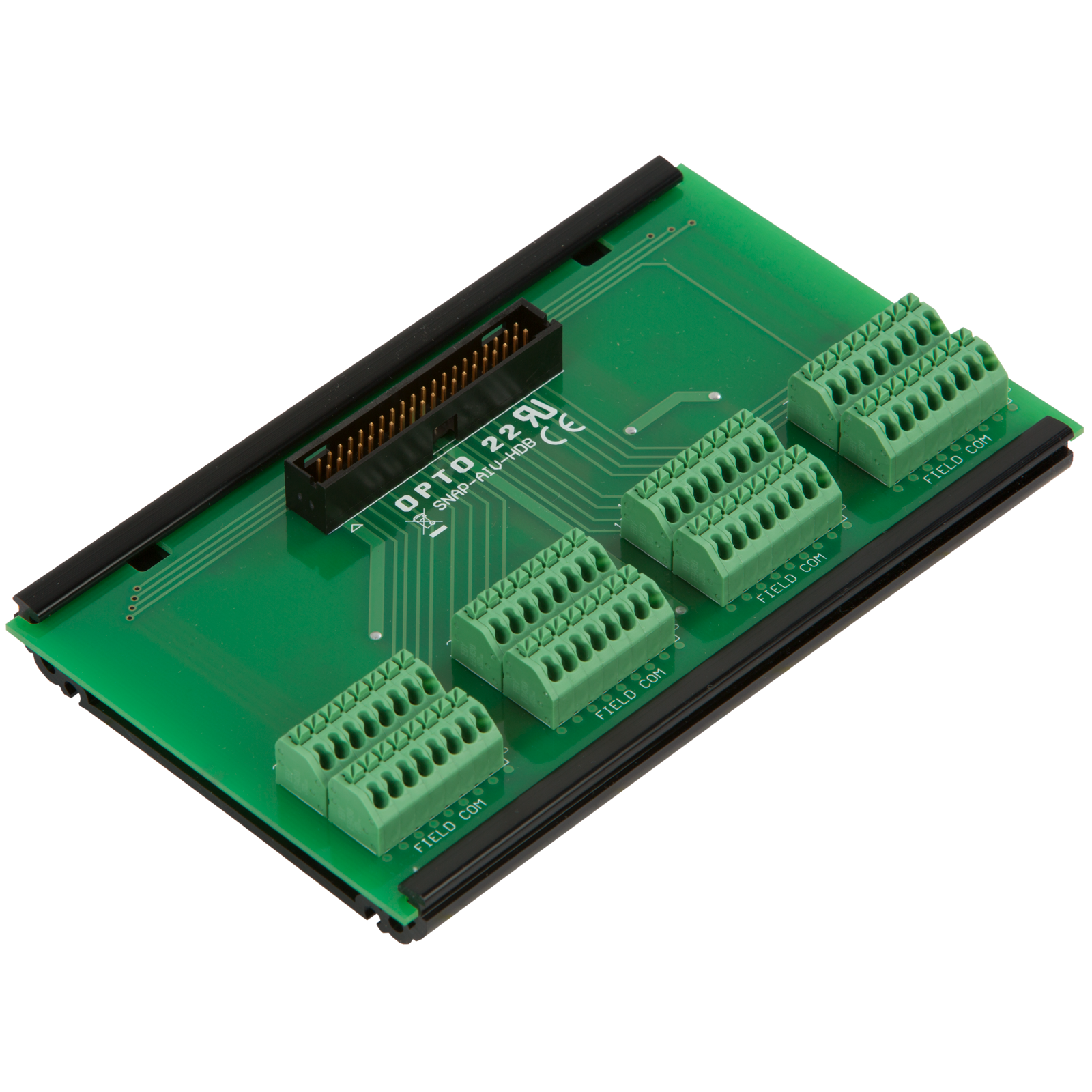

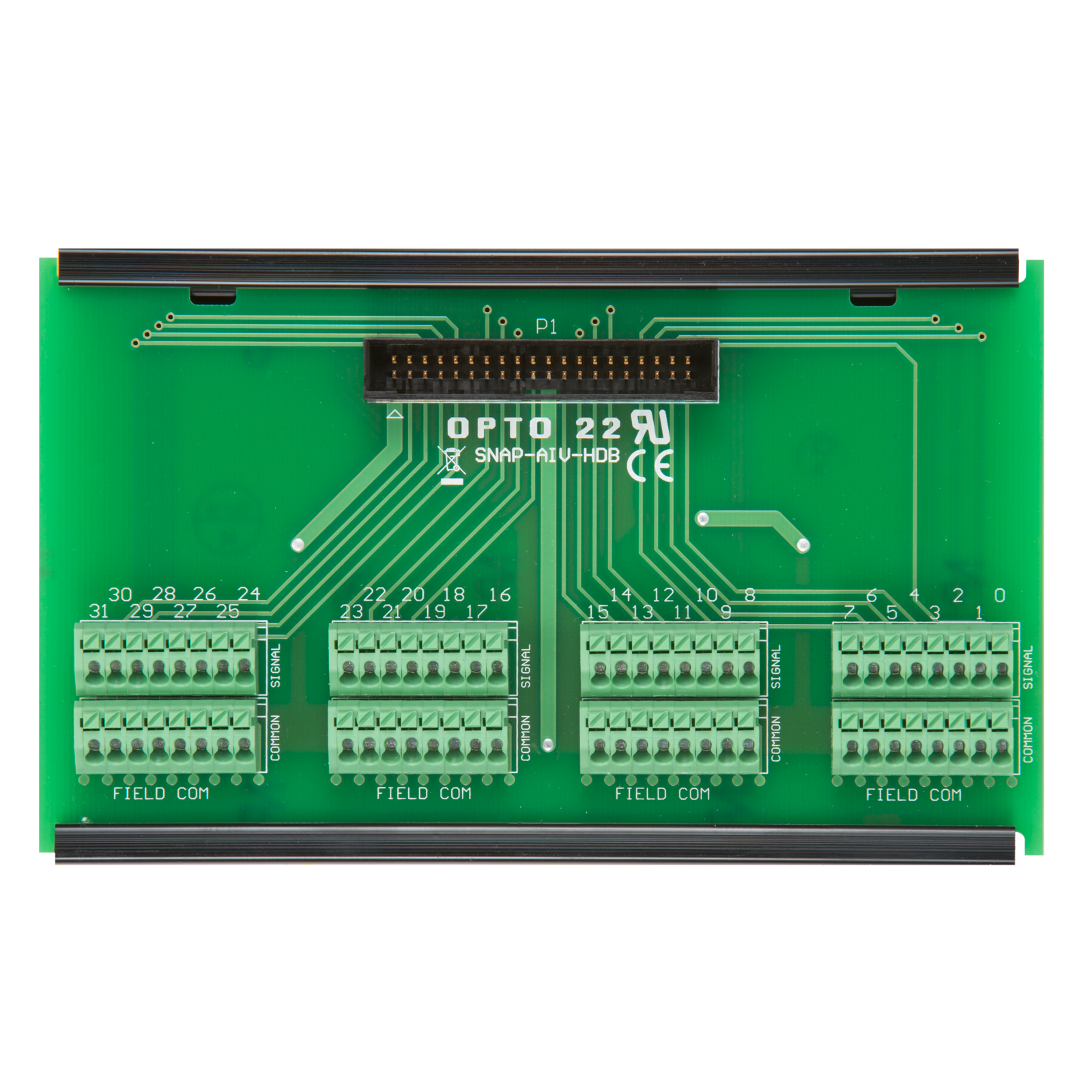

The SNAP-AIV-HDB is a convenient breakout board for wiring field devices to a 32-channel SNAP-AIV-32 analog input module.

Use the SNAP-HD-BF6 cable to connect the module to the breakout board.

If you need a Factory Mutual-approved version of the board, see the SNAP-AIV-HDB-FM.

For reference: Modules, Cables, and Breakout Boards Compatibility Charts

Build your system in the SNAP I/O Configurator.
Specifications are not currently available for this product.

SNAP TEX Cables and Breakout Boards Data Sheet
