SNAP 2-Ch Isolated -100VDC to +100VDC Analog Voltage Input Module

Please call (800) 321-6786 to order.

SNAP-AIV2-i

Production Specification

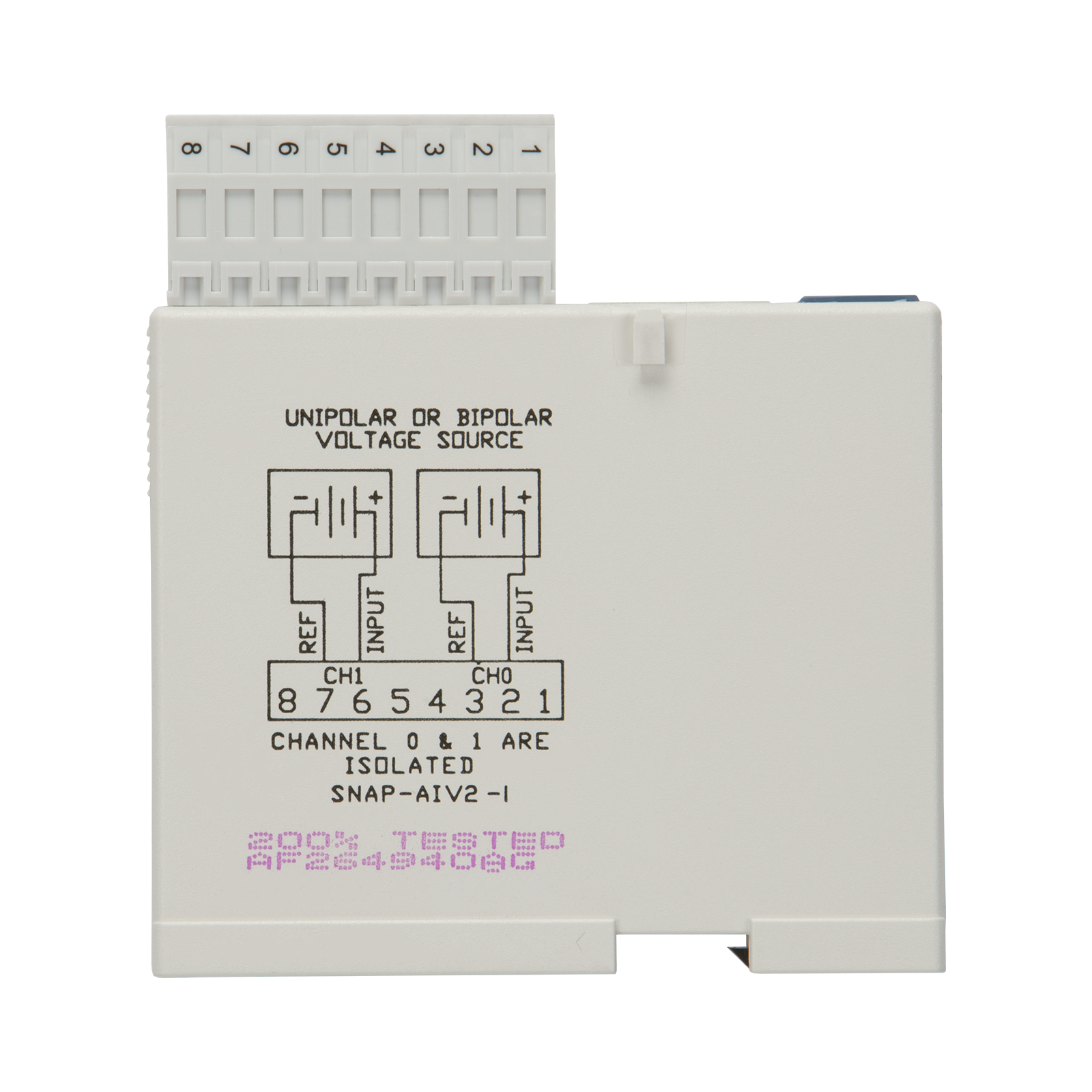

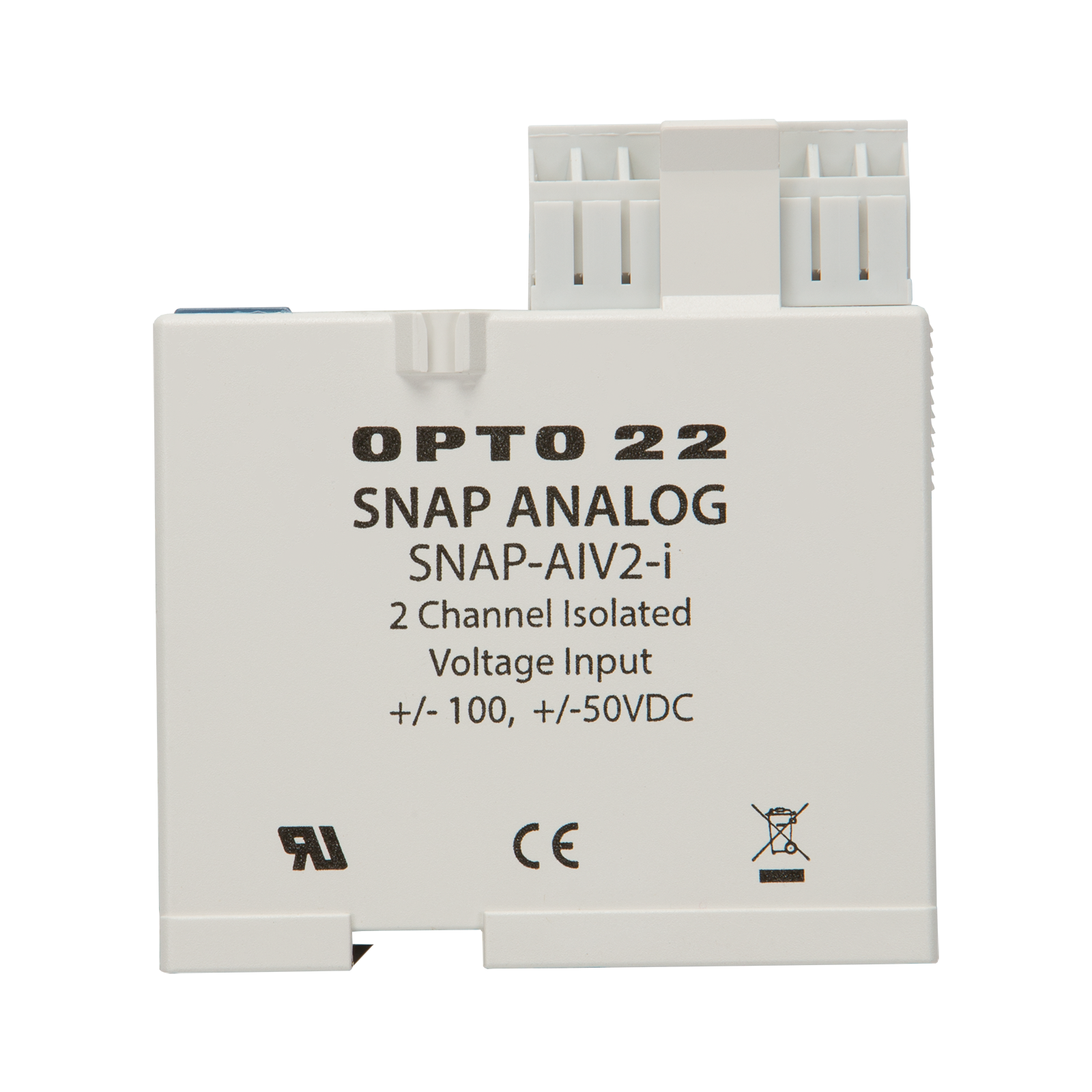

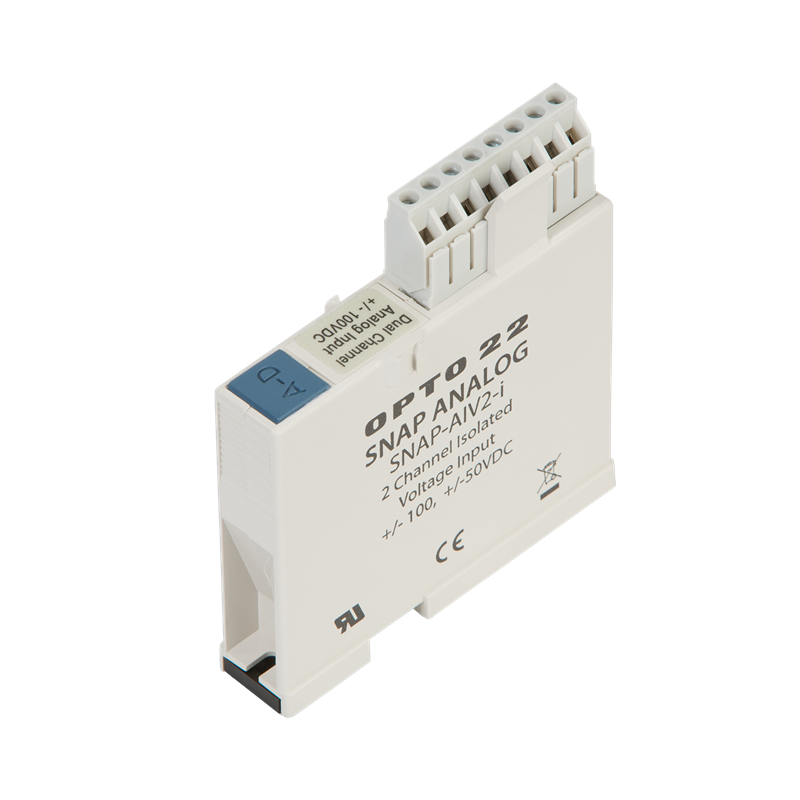

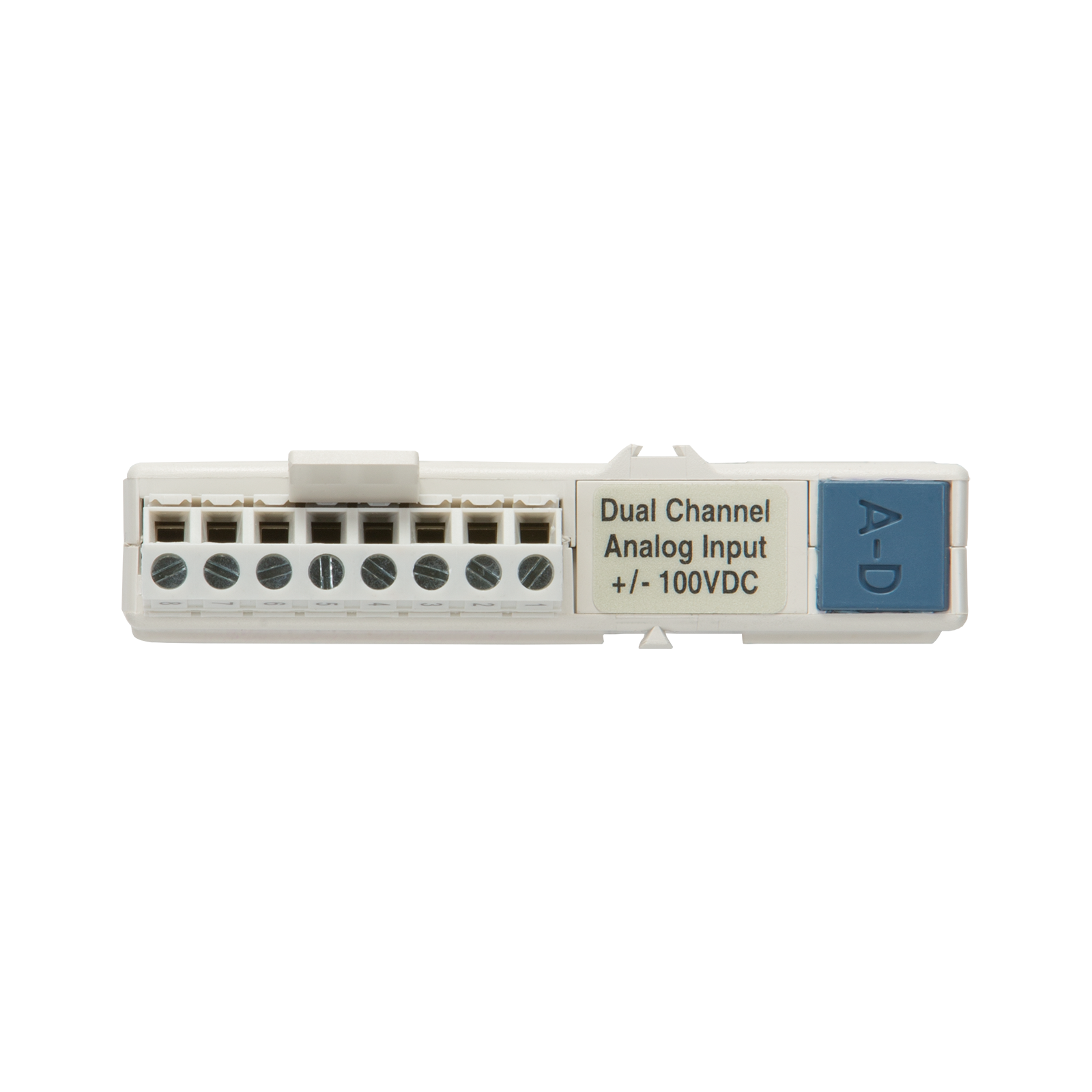

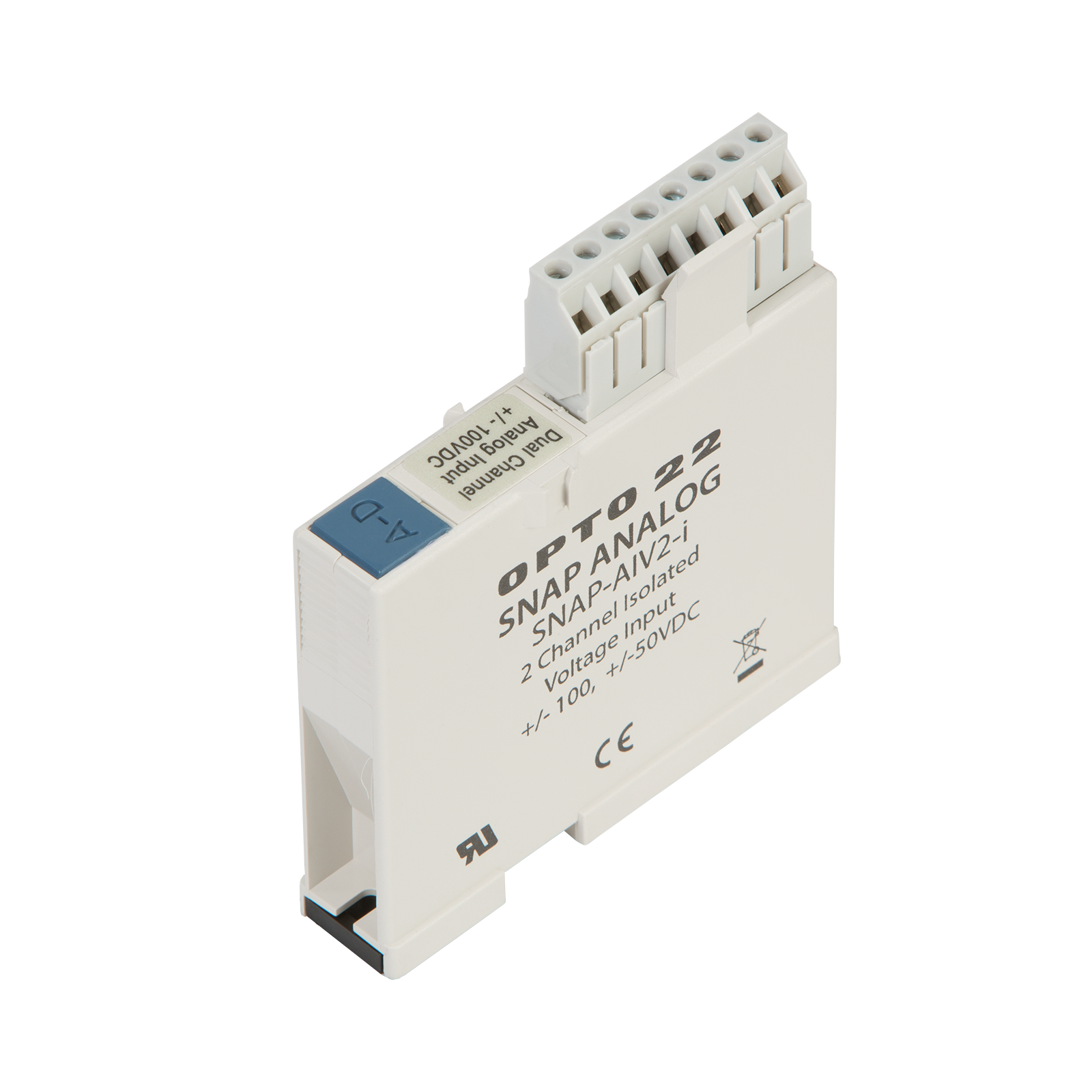

The SNAP-AIV2-i provides two isolated channels of analog voltage input, -100VDC to +100VDC. In addition to having two channels isolated from each other, the module is also transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Build your system in the SNAP I/O Configurator.

Input Range

From -100 volts to +100 volts
From -50 volts to +50 volts

Maximum Over Range

± 10%
(= ± 27500 counts)

Resolution

4.0 mV when configured -100 volts to +100 volts
2.0 mV when configured -50 volts to +50 volts

Input Filtering

-3 dB @ 64 Hz

Input Response Time
(% of span/ DV / Dt)

63.2% / 6.7 V / 10 mS

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

220 VAC or 300 VDC

Maximum Operating Common Mode Voltage

250 V

Accuracy

0.05%, 50 mV @ 100 VDC
25 mV @ 50 VDC

Gain Temperature Coefficient

30 PPM/ °C

Offset Temperature Coefficient

15 PPM/ °C

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15) @ 200 mA

Input Resistance

1 megohms (each channel)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

CE, RoHS, DFARS

Warranty

Lifetime
