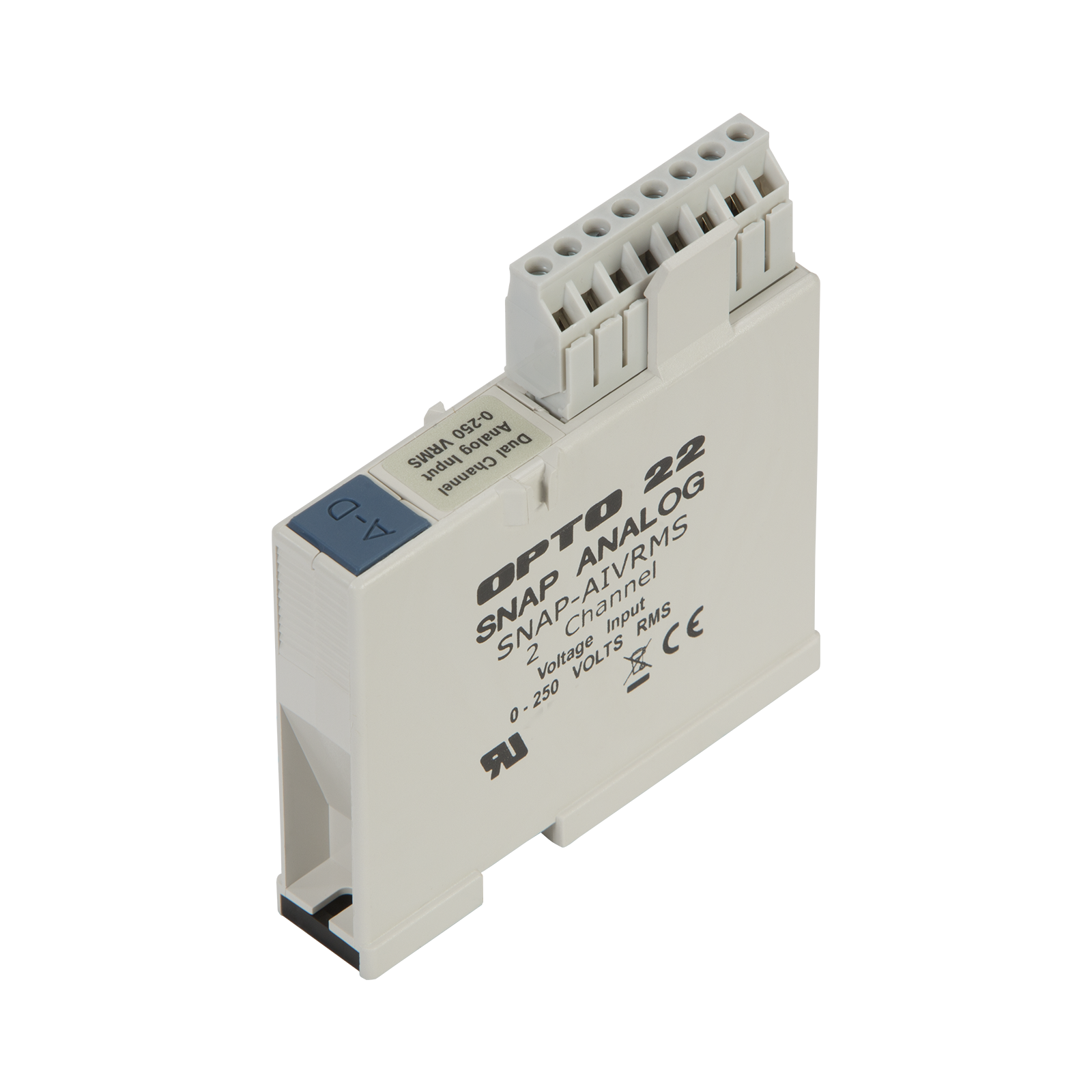

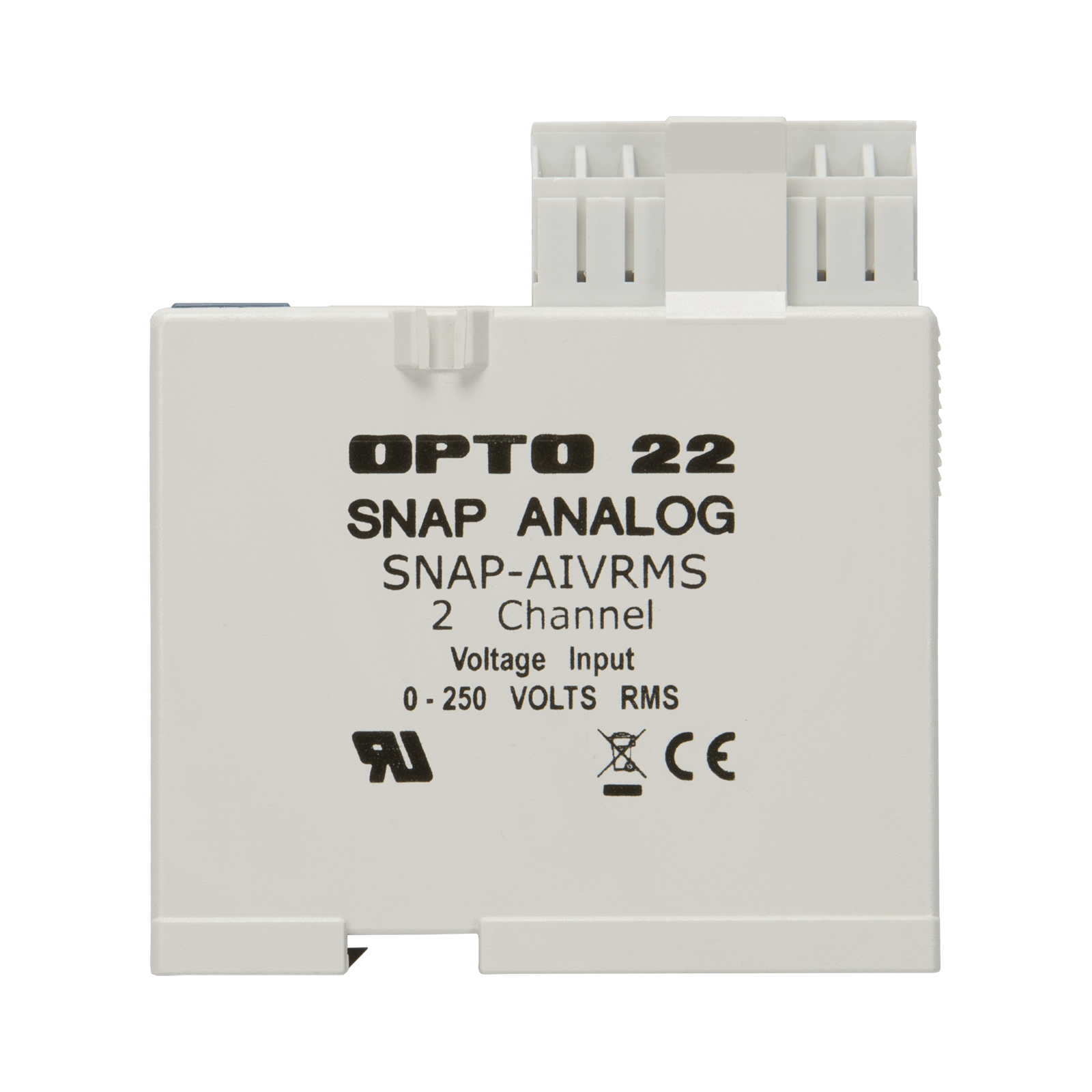

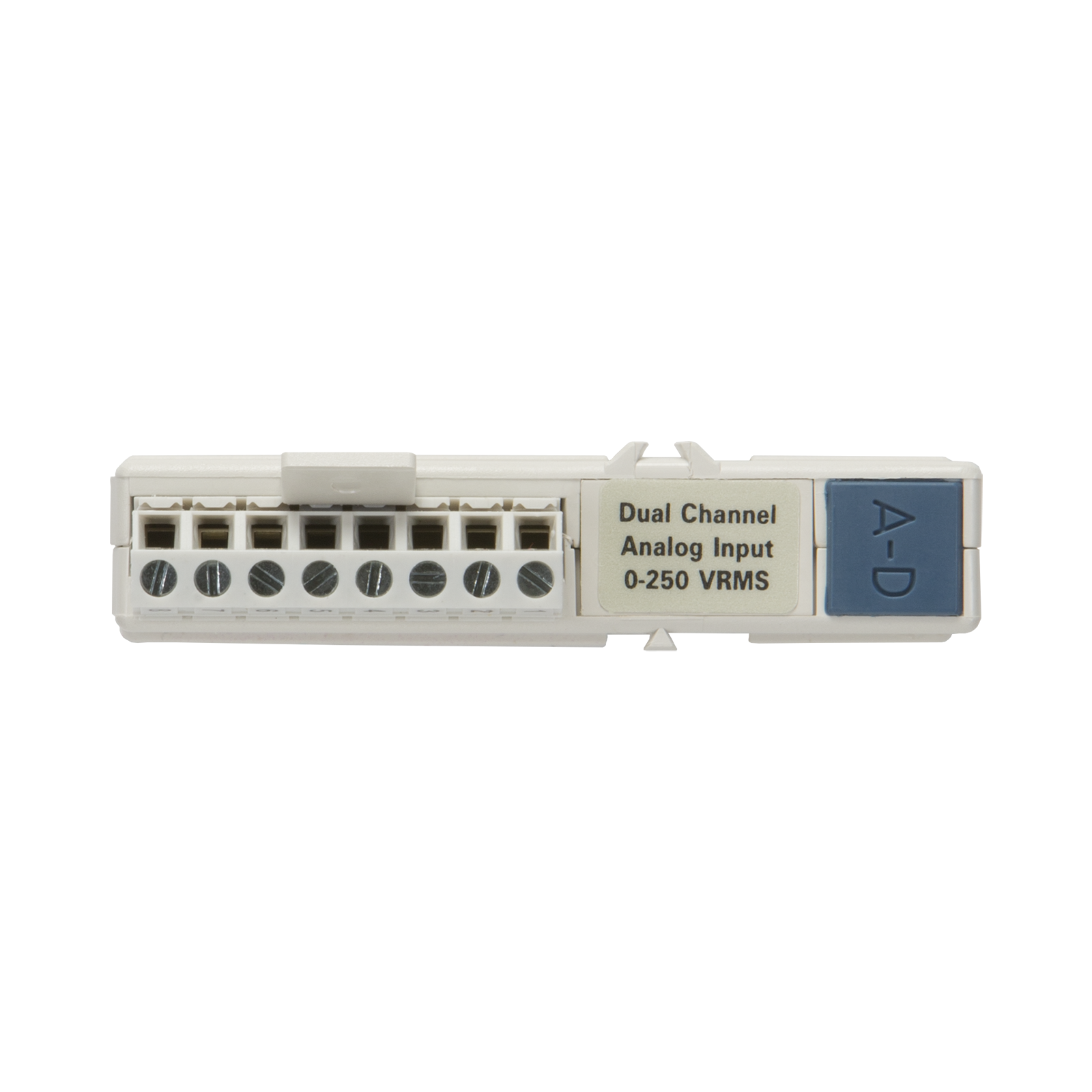

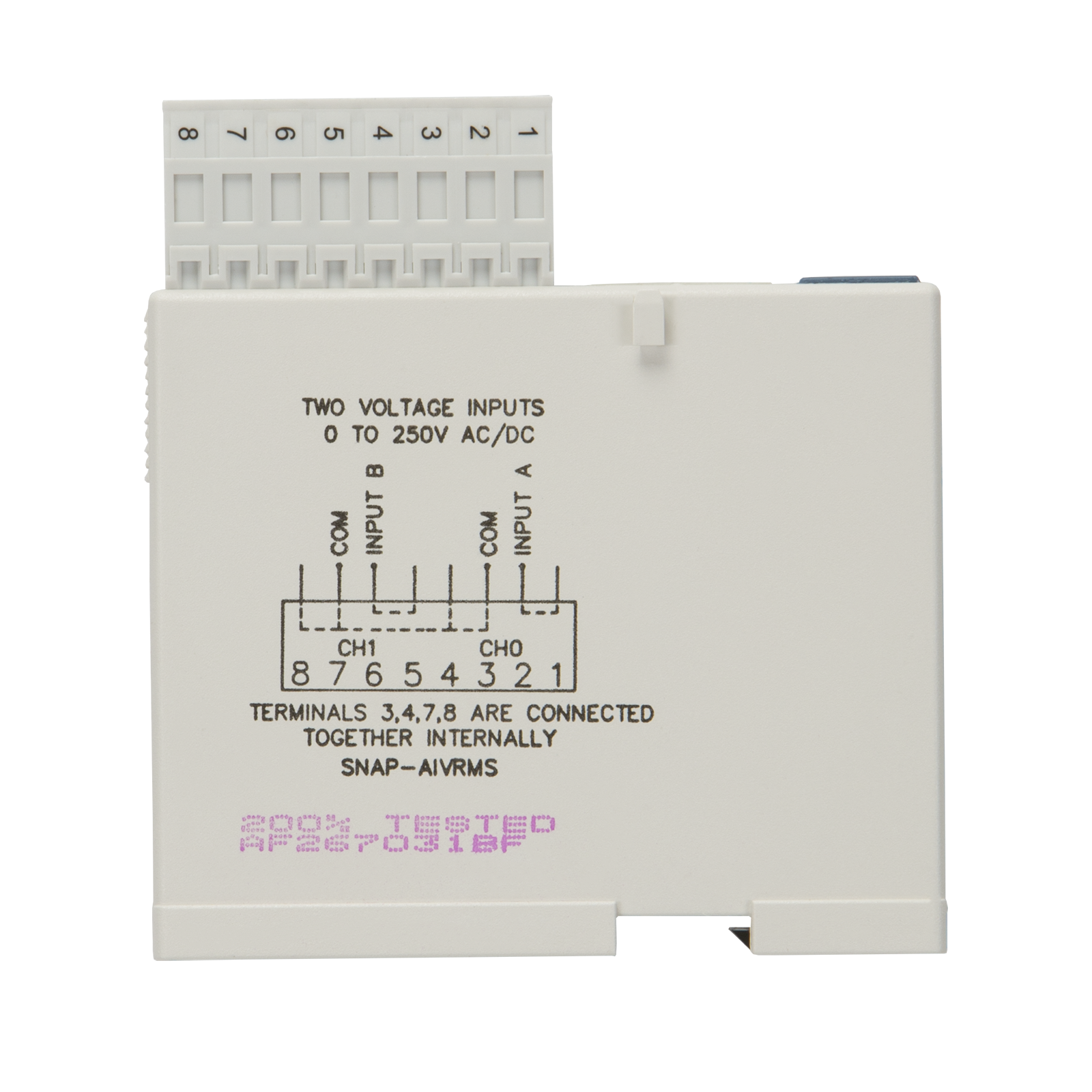

SNAP 2-Ch 0-250 V RMS AC/DC Analog Input Module

Please call (800) 321-6786 to order.

SNAP-AIVRMS

Production Specification

The SNAP-AIVRMS provides two channels of 0-250 V AC or DC analog input. It may be used to monitor 120/240-volt AC/DC and 12/24/48-volt AC/DC system voltage. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you need channel-to-channel isolation, see SNAP-AIVRMS-i.

Build your system in the SNAP I/O Configurator.

Input Range

0 to 250 V RMS AC/DC

Input Over-Range

To 275 V

Input Resistance

1 M ohms

Accuracy

±0.2 V and ±0.2% reading

Resolution

10 mV

DC Reversal

± 0.4 V (.16%)

Input Response Time
(Step Change)

5% (12.5 V) in 100 mS
63.2% (158 V) in 200 mS
99% (248 V) in 1200 mS

Data Freshness (Max)

32.3 ms

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Operating
Common Mode Voltage

250 V

Isolation

1500 V

Power Requirements

5 VDC (±0.15 V) at 170 mA

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Humidity

5-95%, non-condensing

Wire size

22 to 14 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

UL, FM, CE, RoHS, DFARS

Warranty

Lifetime
