SNAP-AIVRMS-i-FM

$397.00 (USA and Canada only)

Availability: In stock

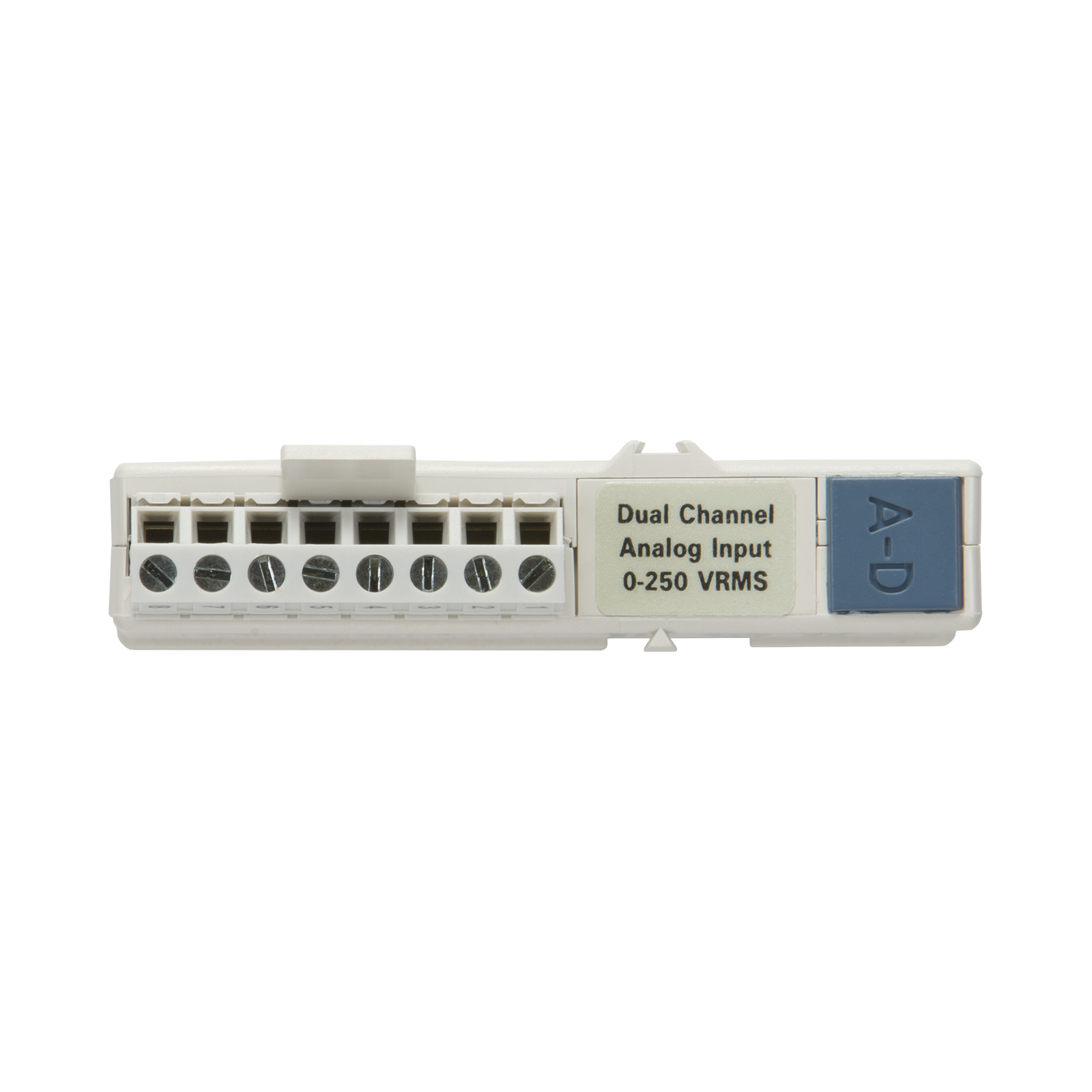

SNAP Isolated 2-Ch 0-250 V RMS AC/DC Analog Input Module, Factory Mutual Approved

Please call (800) 321-6786 to order.

SNAP-AIVRMS-i-FM

Production Specification

The SNAP-AIVRMS-i-FM module provides two isolated channels with an input range of 0 to 250 volts AC or DC. The SNAP-AIVRMS-i-FM module may be used to monitor 120/240-volt AC/DC and 12/24/48-volt AC/DC system voltage and is ideal for differential voltage measurements.

The two channels are isolated from each other; they do not share any field connection.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you do not need isolated channels, see SNAP-AIVRMS.

The SNAP-AIVRMS-i-FM is Factory Mutual approved. If you do not need FM approval, see the SNAP-AIVRMS-i instead.

Build your system in the SNAP I/O Configurator.

Input Range

0 to 250 V RMS AC/DC

Input Over Range

To 275 V

Input Resistance

1 megohms

Accuracy

±0.2 V and ±0.2% reading

Resolution

10 mV

DC Reversal

± 0.2 V (0.08%)

Input Response Time
(Step Change)

63.2% (158 V) in 50 ms
99% (248 V) in 75 ms

Data Freshness

0.025 s

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Operating
  Voltage Between Channels
  Common Mode Voltage



250 V
250 V

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15 V) at 200 mA

Ambient Temperature:
  Operating
  Storage



-20 °C to 70 °C
-40 °C to 85 °C

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

CE, RoHS, DFARS

Warranty

Lifetime
