SNAP-AOA-23
Hover over image to zoom in

SNAP-AOA-23

$451.00 (USA and Canada only)

Availability: Call for Availability

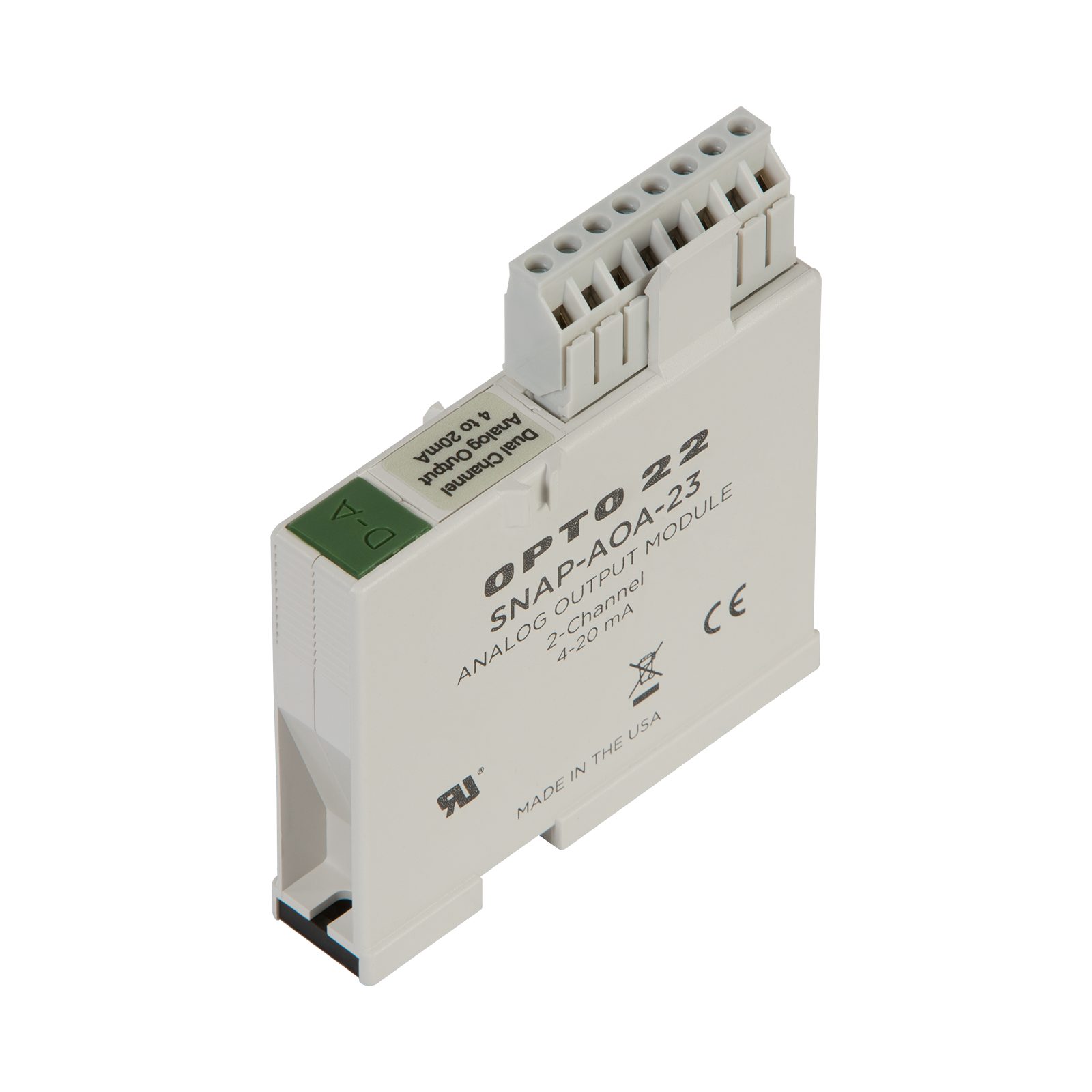

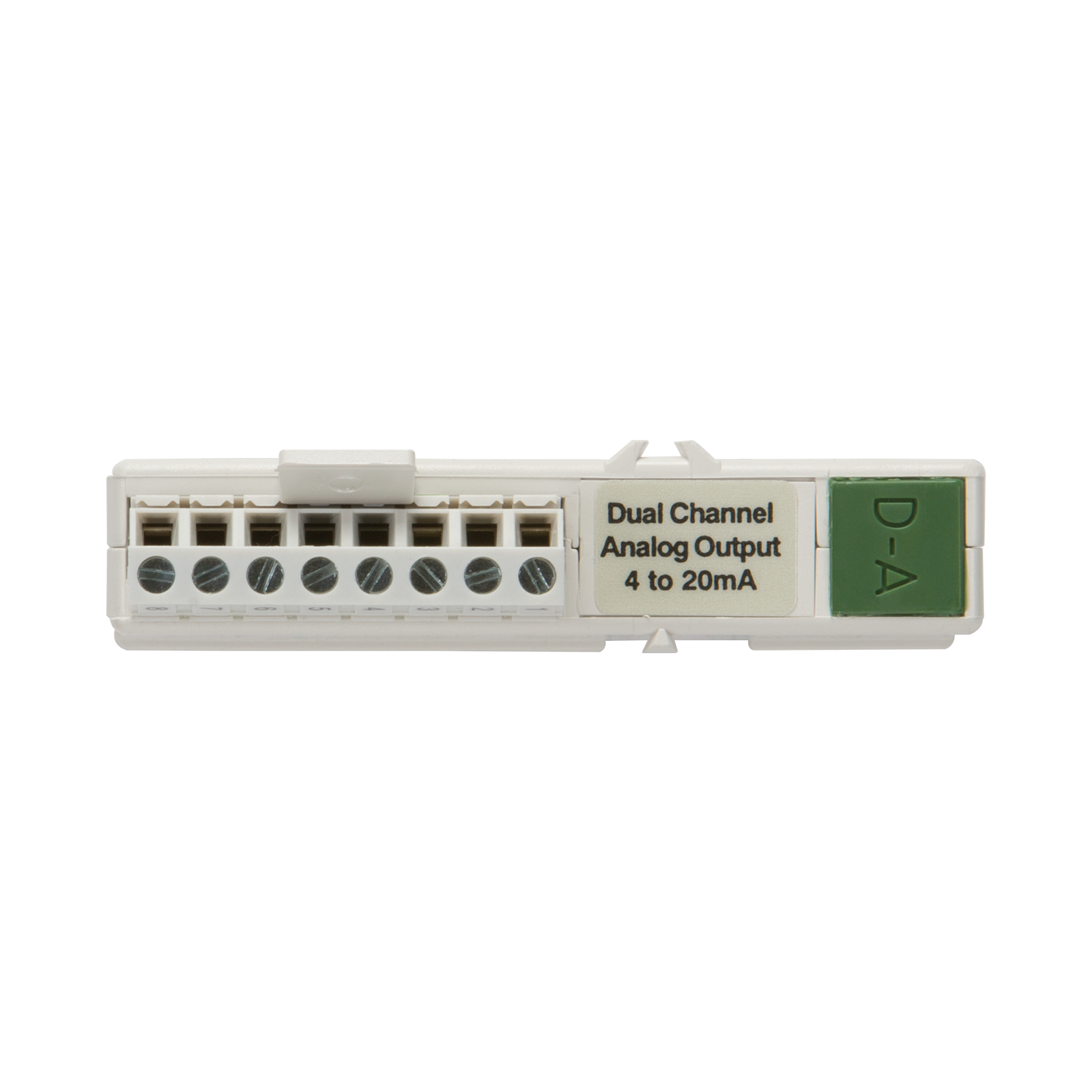

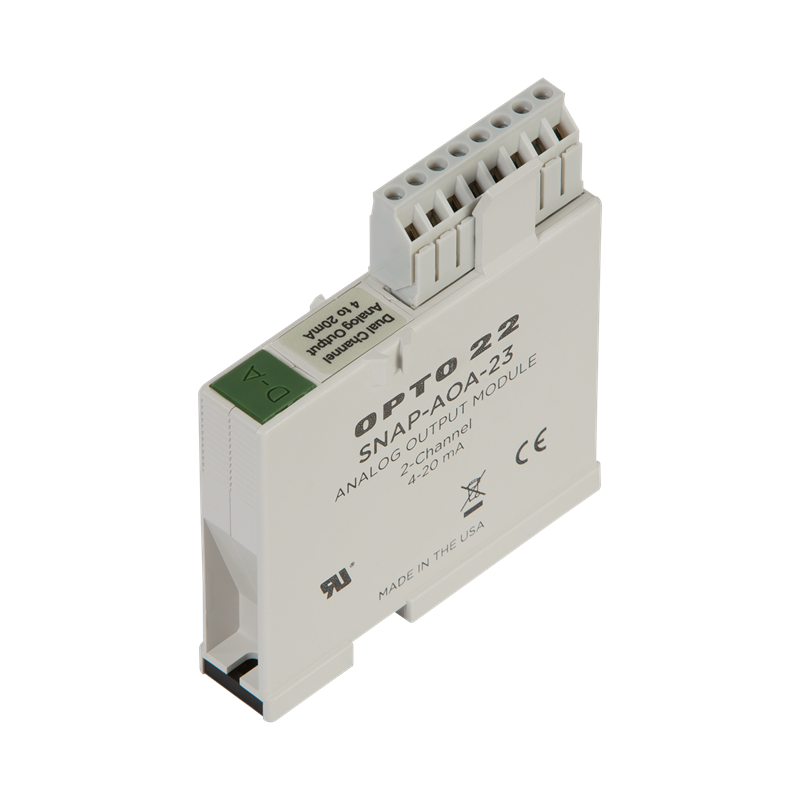

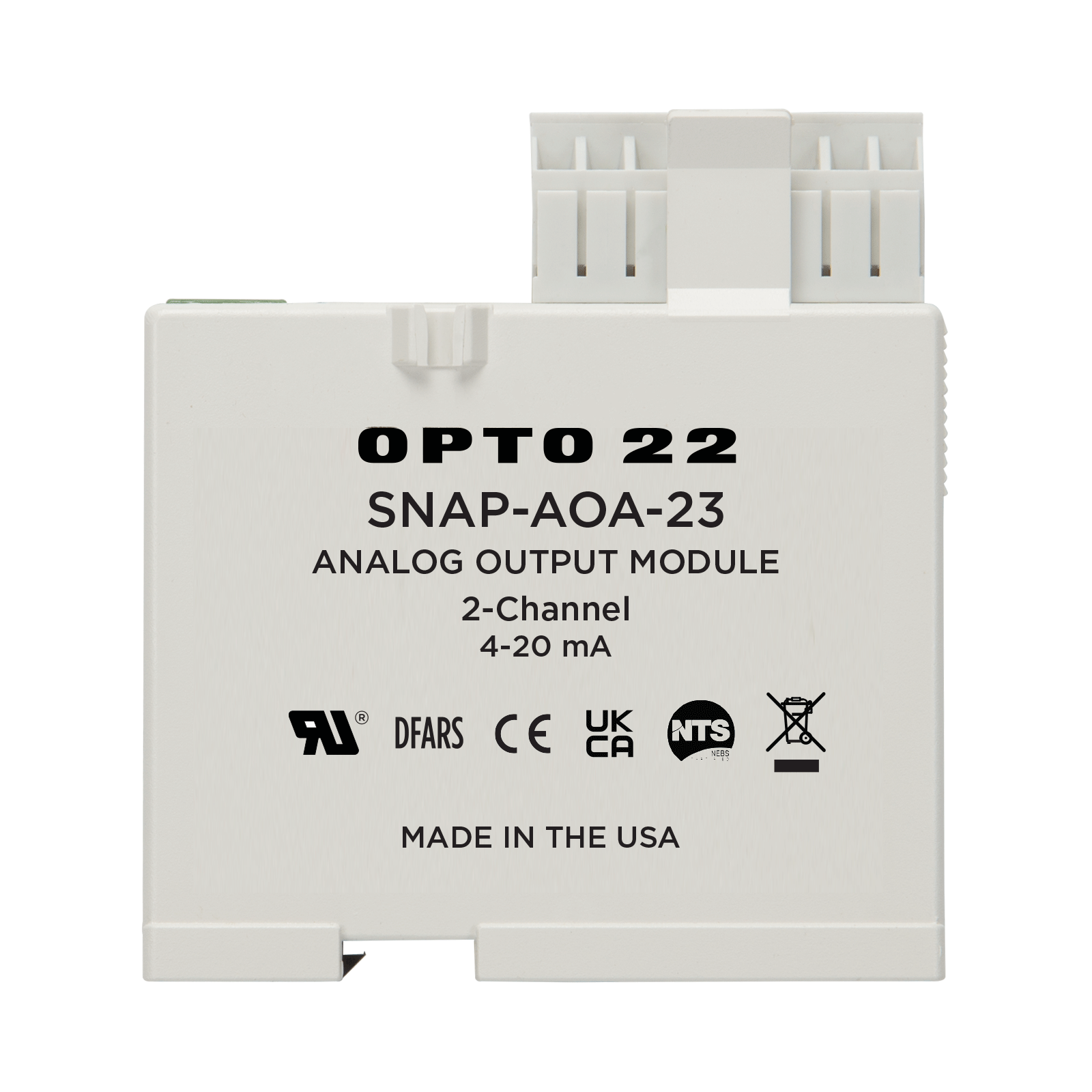

SNAP 2-Ch 4-20 mA Current Loop Analog Output Module

Production Specification

The SNAP-AOA-23 provides two channels of analog current output at a nominal range of 4-20 mA. An external loop power source is required for the current loops. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices. The module is factory calibrated.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you need channel-to-channel isolation and loop sourcing, see SNAP-AOA-23-iSRC.
7/18/18

Input

12-bit serial data
(each channel)

Outputs

4 to 20 mA (each channel)

Span

16 mA

Resolution

3.9 microamps

Response Time
(% of span/delta I/ delta time)

99.9%/15.98 mA/3 mS

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Operating Common Mode Voltage

250 V

Common Mode Resistance

>1000 Megohms

Accuracy

0.1% of Span

Gain Temperature Coefficient

50 PPM/°C

Offset Temperature Coefficient

20 PPM/°C

Module Power Requirements

5 Volts DC (±0.15) @ 150 mA

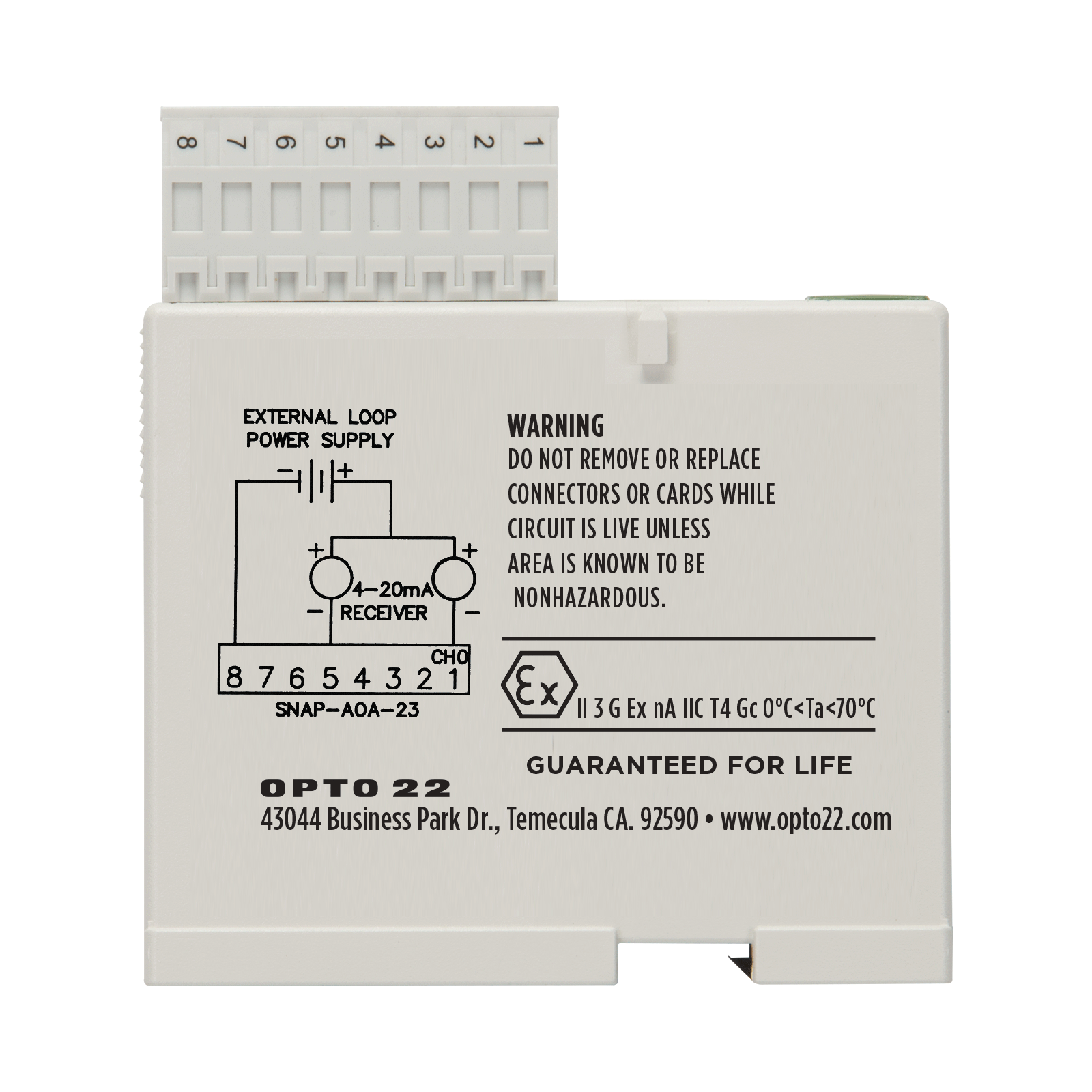

Loop Power Requirements

8 VDC (min) to
32 Volts DC (max)

Max. Loop
Resistance (Ohms)
@ Loop Supply



250
8V



450
12V



650
15V



1050
24V



1450
32V

Max. Loop Resistance formula

(Loop Voltage - 3)
 0.02

Ambient Temperature:
Operating
Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

UL, CE, RoHS, DFARS; UKCA, NEBS

Warranty

Lifetime
