SNAP-AOA-23-iSRC-FM
Hover over image to zoom in

SNAP-AOA-23-iSRC-FM

Availability: Obsolete

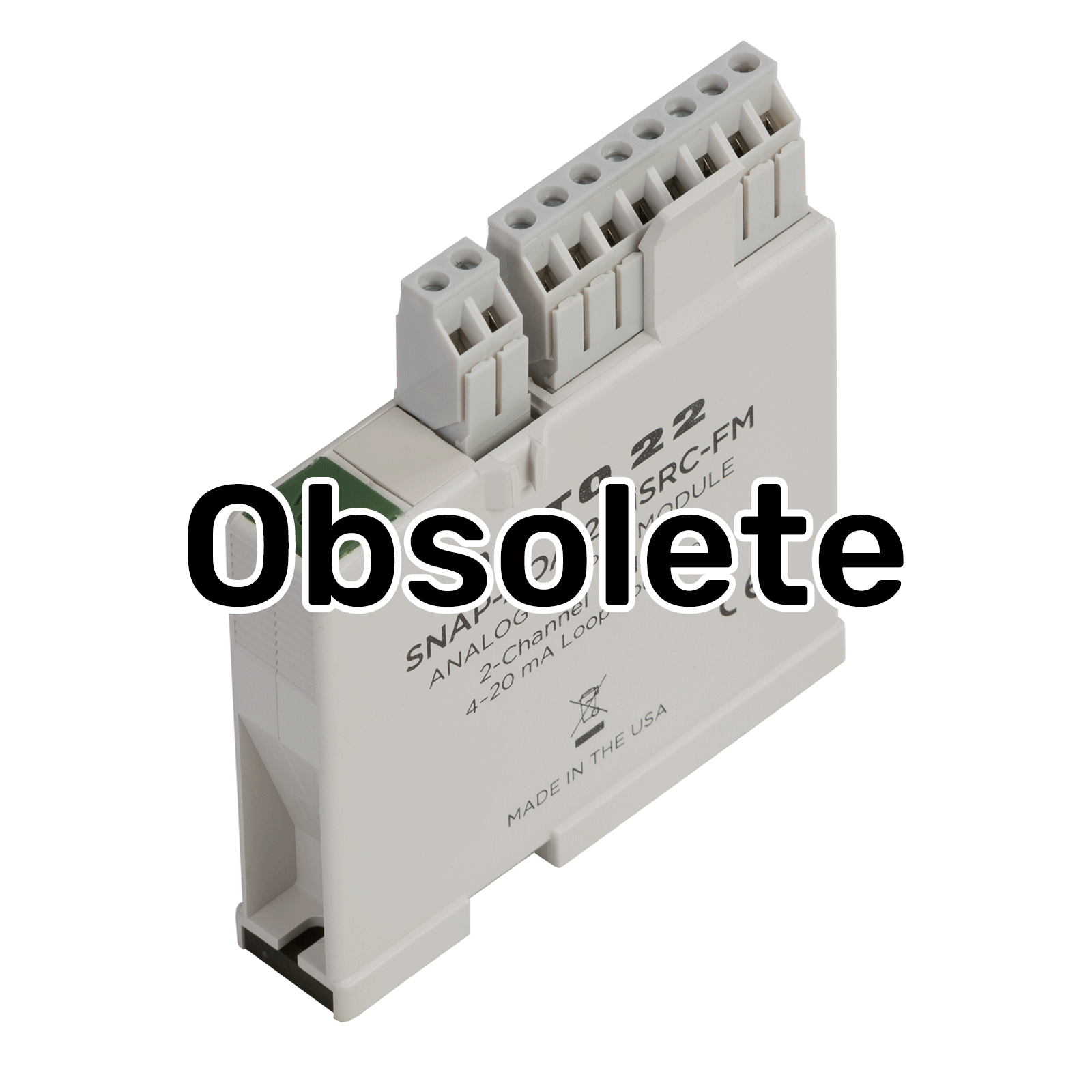

OBSOLETE Isolated SNAP 2-Ch 4-20 mA Current Loop Analog Output Module, with Loop Sourcing
Data Sheet

Production Specification

*** NOTE: This part is OBSOLETE and no longer available. ***
Please consider SNAP-AOA-23-iSRC or contact Opto 22 Pre-Sales engineers for more information.

The SNAP-AOA-23-iSRC-FM module provides two channels of current output with a nominal output range of 4 mA to 20 mA. The module includes built-in loop sourcing capability.

With the connection of a single 24 V power supply, the module sources two 24 V loops. The loop sources are internally connected to the individual outputs. The two channels and their loop sources are isolated from each other; they do not share any field connection. In addition, each loop source is current limited so that an external fault on one loop will not affect the other.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.
*** NOTE: This part is OBSOLETE and no longer available. ***

Input

12-bit serial data (each channel)

Outputs

4 to 20 mA (each channel)

Span

16 mA

Resolution

3.9 microamps

Response Time
(% of span/delta I/ delta time)

99.9%/15.98 mA/3 mS

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Operating
Common Mode Voltage

250 V

Common Mode Resistance

>1000 Megohms

Accuracy

0.1% of Span

Gain Temperature Coefficient

50 PPM/°C

Offset Temperature Coeffi­cient

20 PPM/°C

Max. Loop Resistance
@ Loop Supply

950 Ohms

Ambient Temperature:
Operating
Storage



-20 °C to 70 °C
-25 °C to 85 °C

Humidity

5-95%, non-condensing

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 Volts DC (±0.15) @ 200 mA

Power Requirements -
Loop Power (Input)

From separate field connector;
24 VDC nominal (70 mA max)
@ 24 V input, both loops
@ 20 mA), 30 VDC maximum

Loop Power (Output)

24 VDC (±1.5 V) @ 20 mA
Open loop: 30 V maximum
Shorted loop: 24 mA nominal

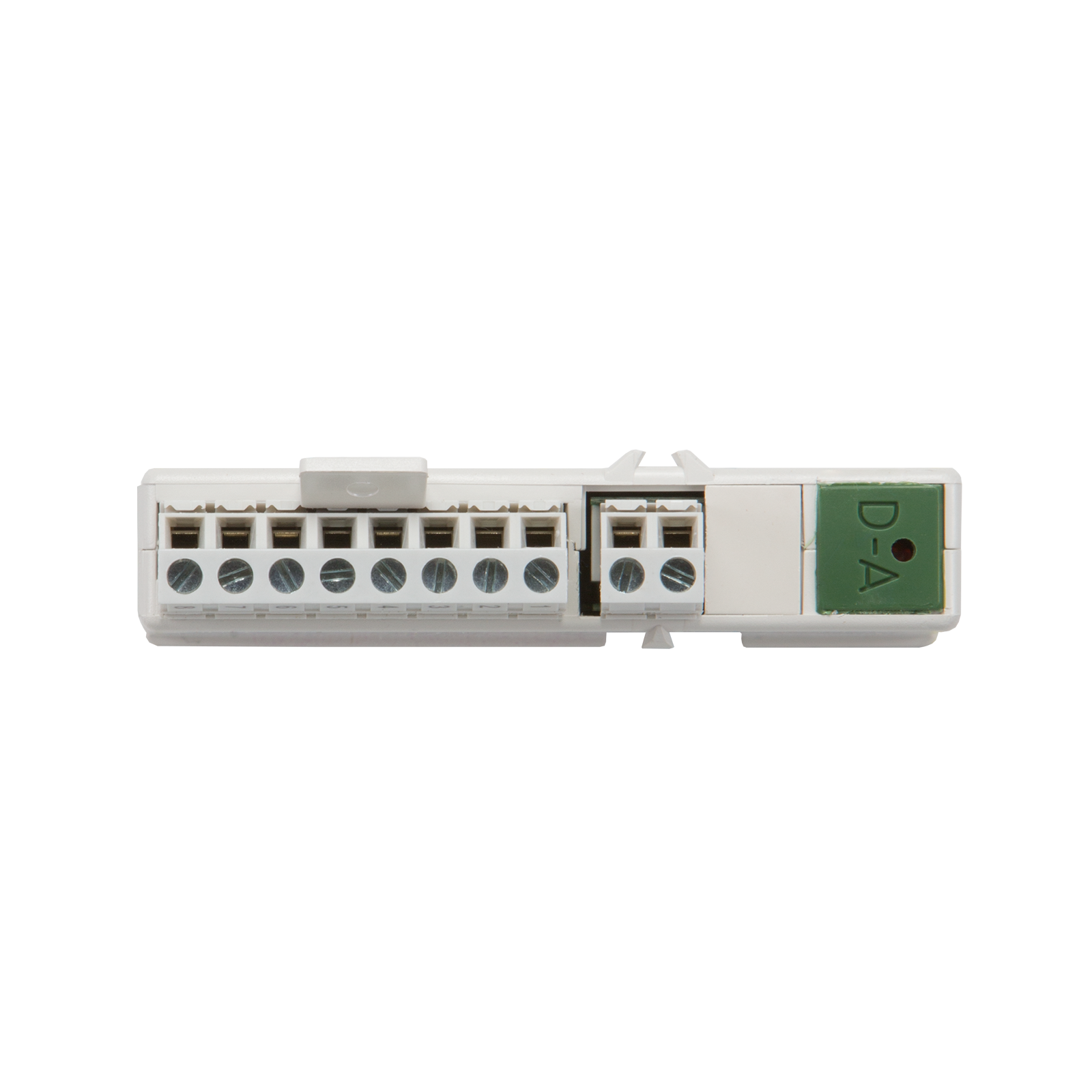

LED on top of module

Indicates that there is power to the 24v source supply 2-pin connector

Agency Approvals

CE, RoHS, DFARS; UKCA, ATEX

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Warranty

Lifetime
