SNAP 1-Ch 4-20 mA Current Loop Analog Output Module

Please call (800) 321-6786 to order.

SNAP-AOA-3

Production Specification

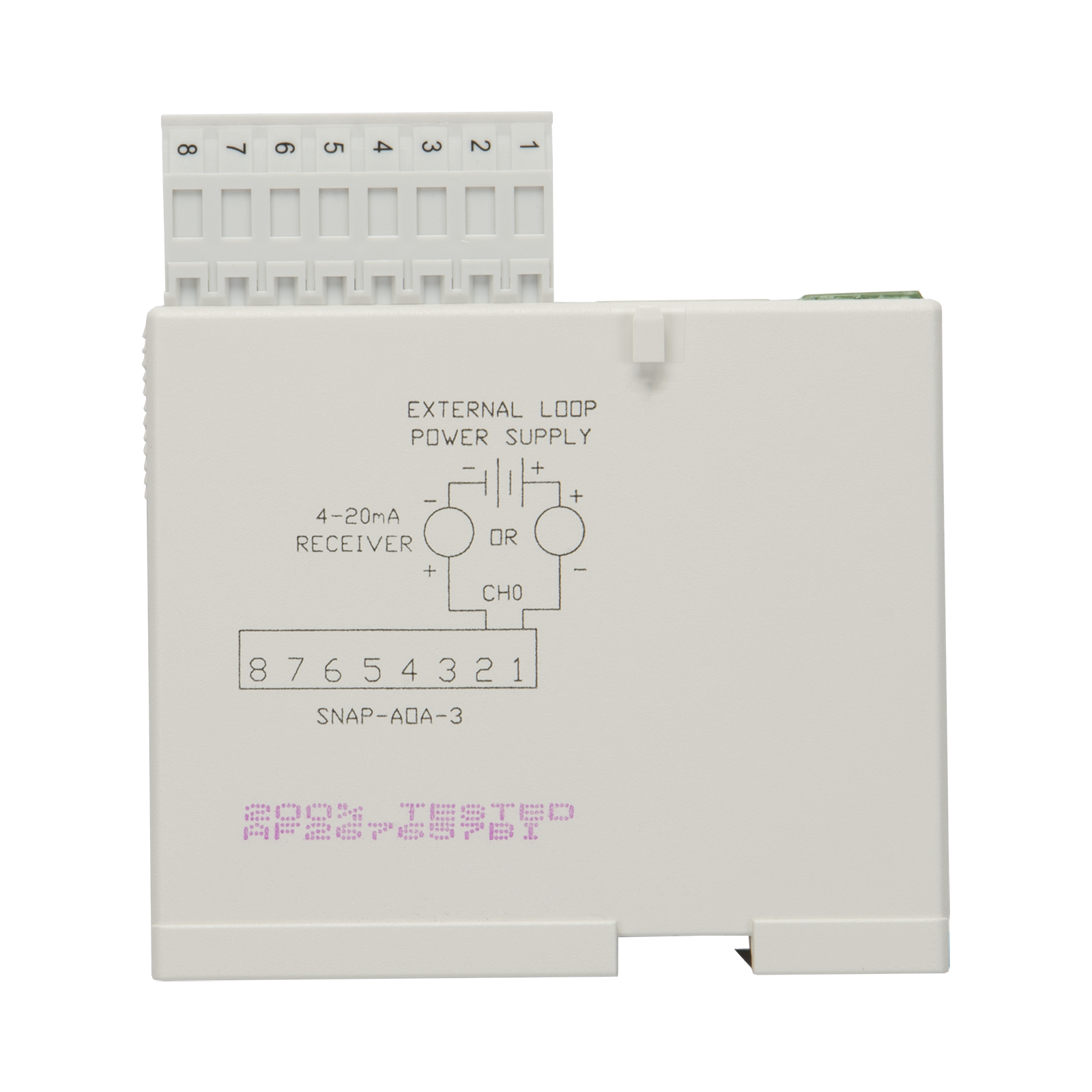

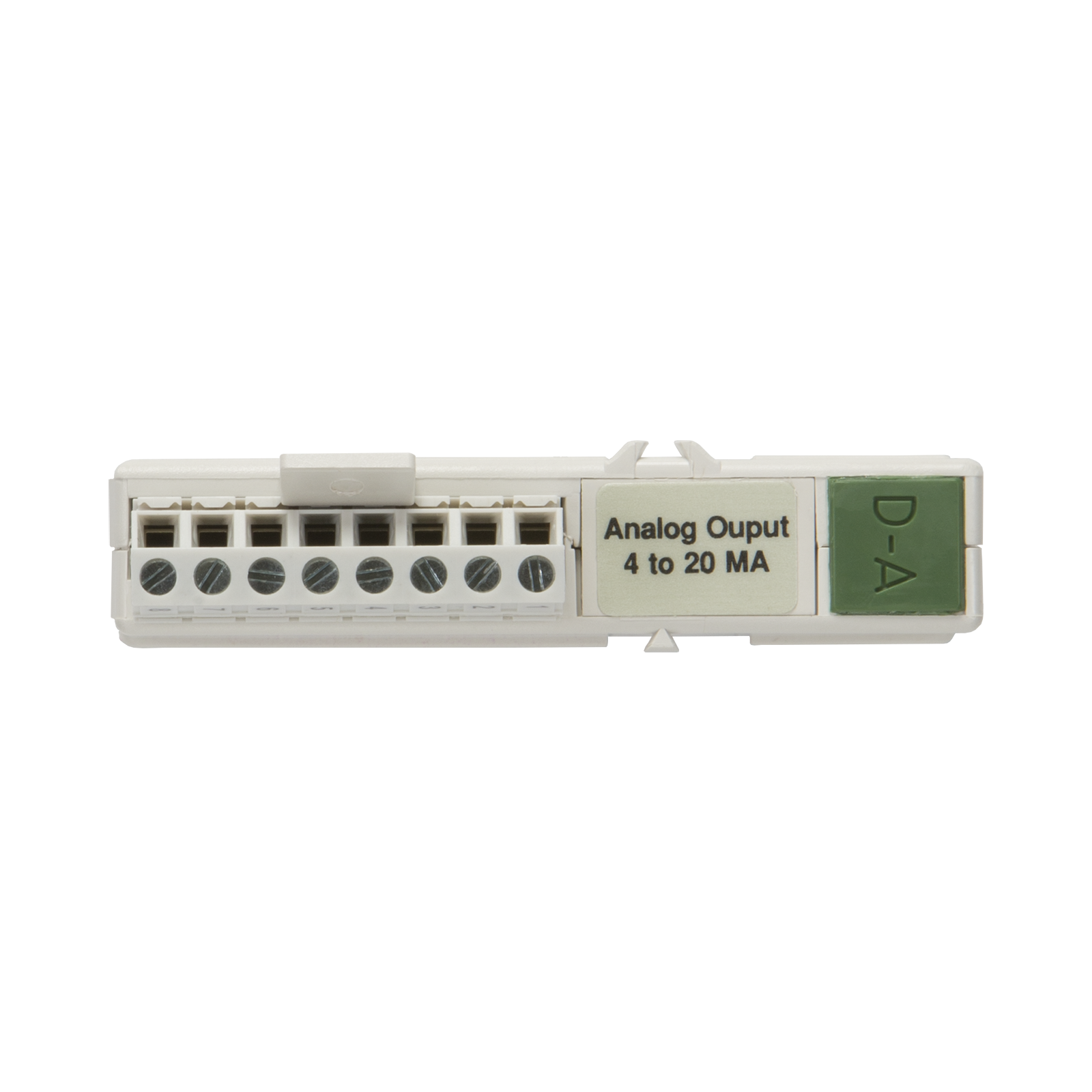

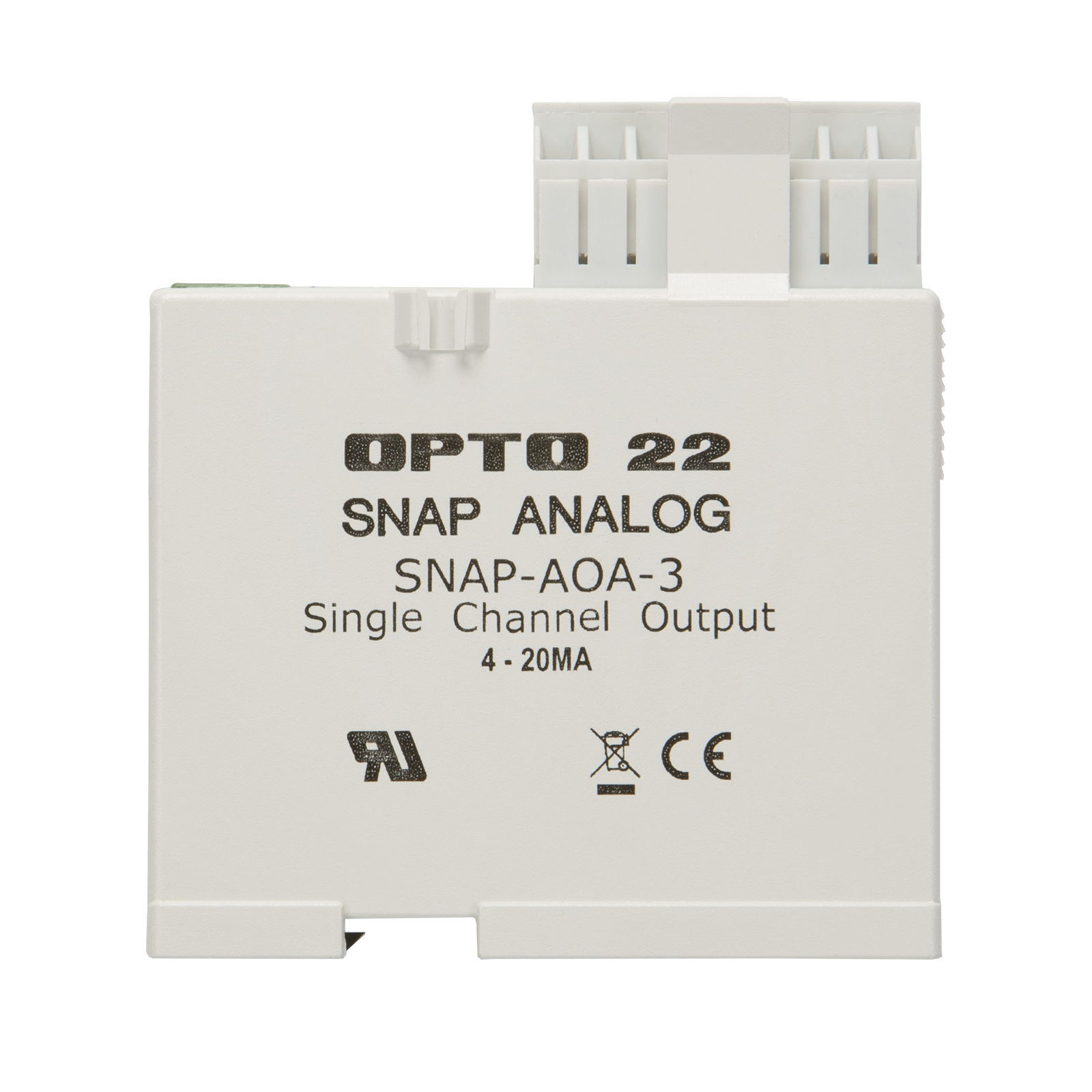

The SNAP-AOA-3 provides a single channel of digital-to-analog conversion. The module has a true differential (floating) output that eliminates ground loops and has a nominal output range of 4-20 mA. The module is transformer isolated and optically isolated from other modules and devices, and is factory calibrated.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For a similar module with two channels, see SNAP-AOA-23.

Input

12-bit serial data

Output

4 to 20 mA (floating)

Span

16 mA

Resolution

3.9 microamps

Response Time
(% of span/delta I/ delta time)

99.9%/15.98 mA/3 mS

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Operating Common Mode Voltage

250 V

Common Mode Resistance

>1000 M W

Accuracy

0.1% of span

Gain Temperature Coefficient

50 PPM/ °C

Offset Temperature Coefficient

20 PPM/ °C

Module Power Requirements

5 Volts DC (±0.15 ) @ 140 mA

Loop Power Requirements

10 Volts DC (min) to
32 Volts DC (max)

Max. Loop Resistance
(Ohms)
@ Loop Supply



250
10V



350
12V



950
24V



1350
32V

Max. Loop Resistance formula

(Loop Voltage - 5)
0.02

Ambient Temperature:
Operating
Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

UL, CE, RoHS, DFARS

Warranty

Lifetime
