SNAP-AOD-29

$212.00 (USA and Canada only)

Availability: In stock

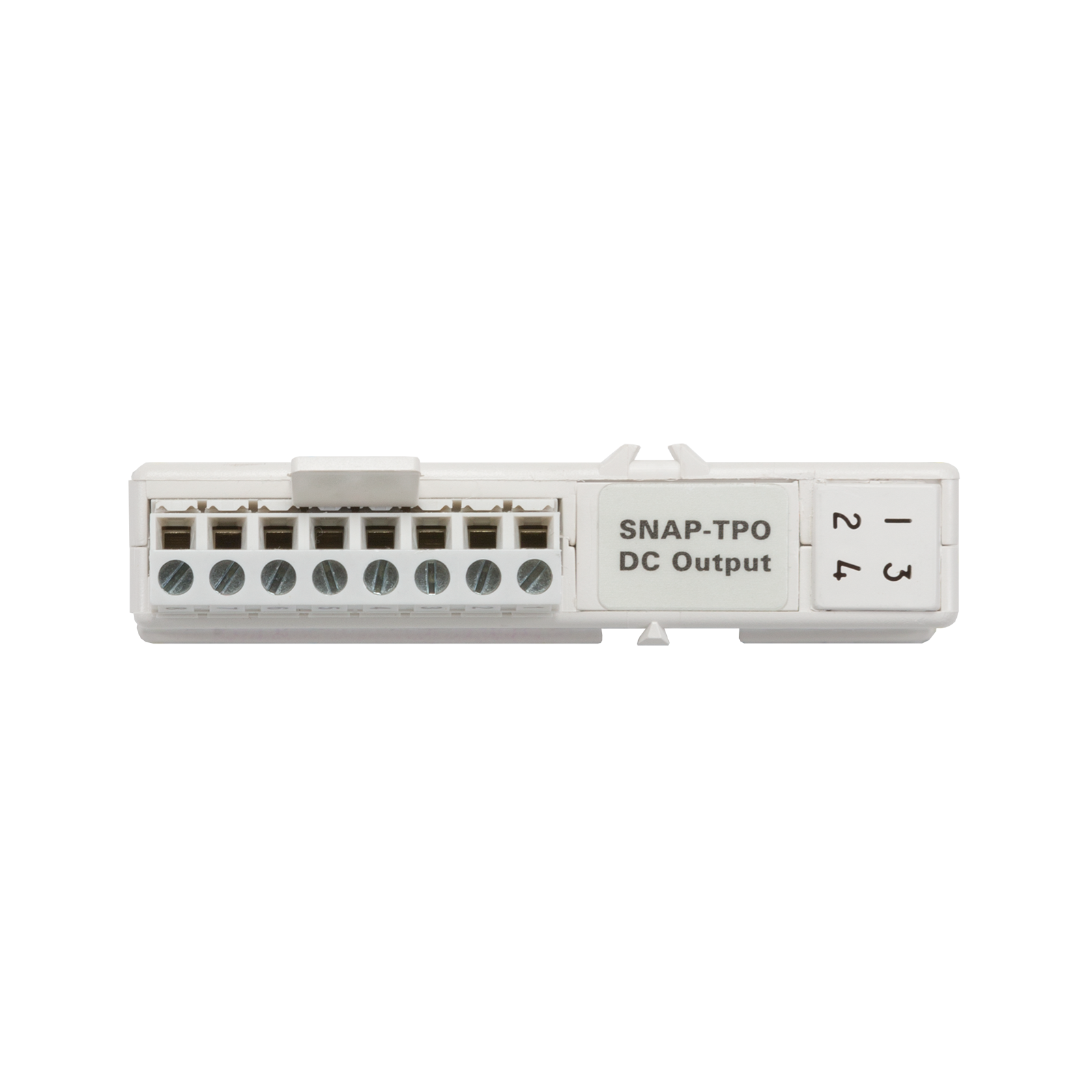

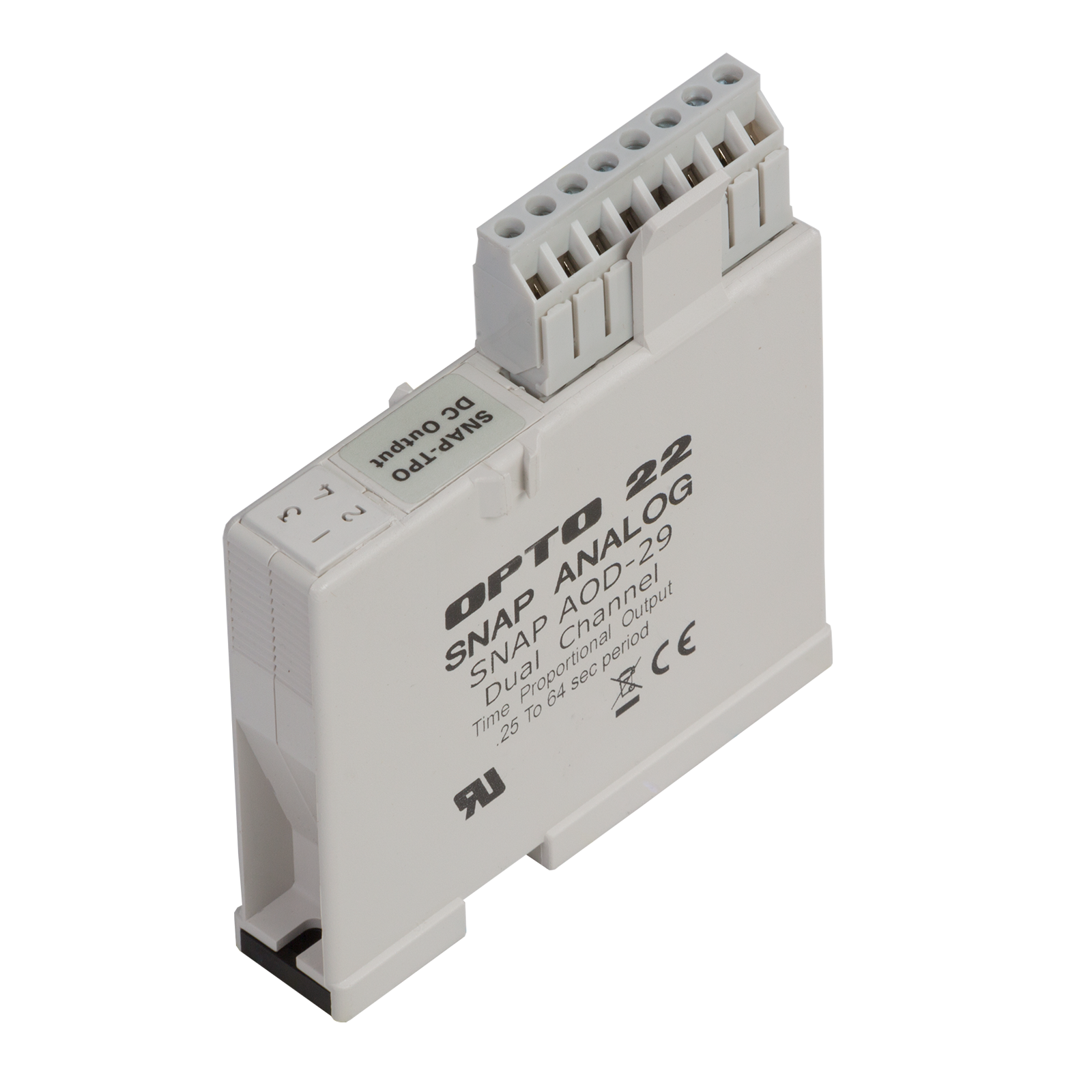

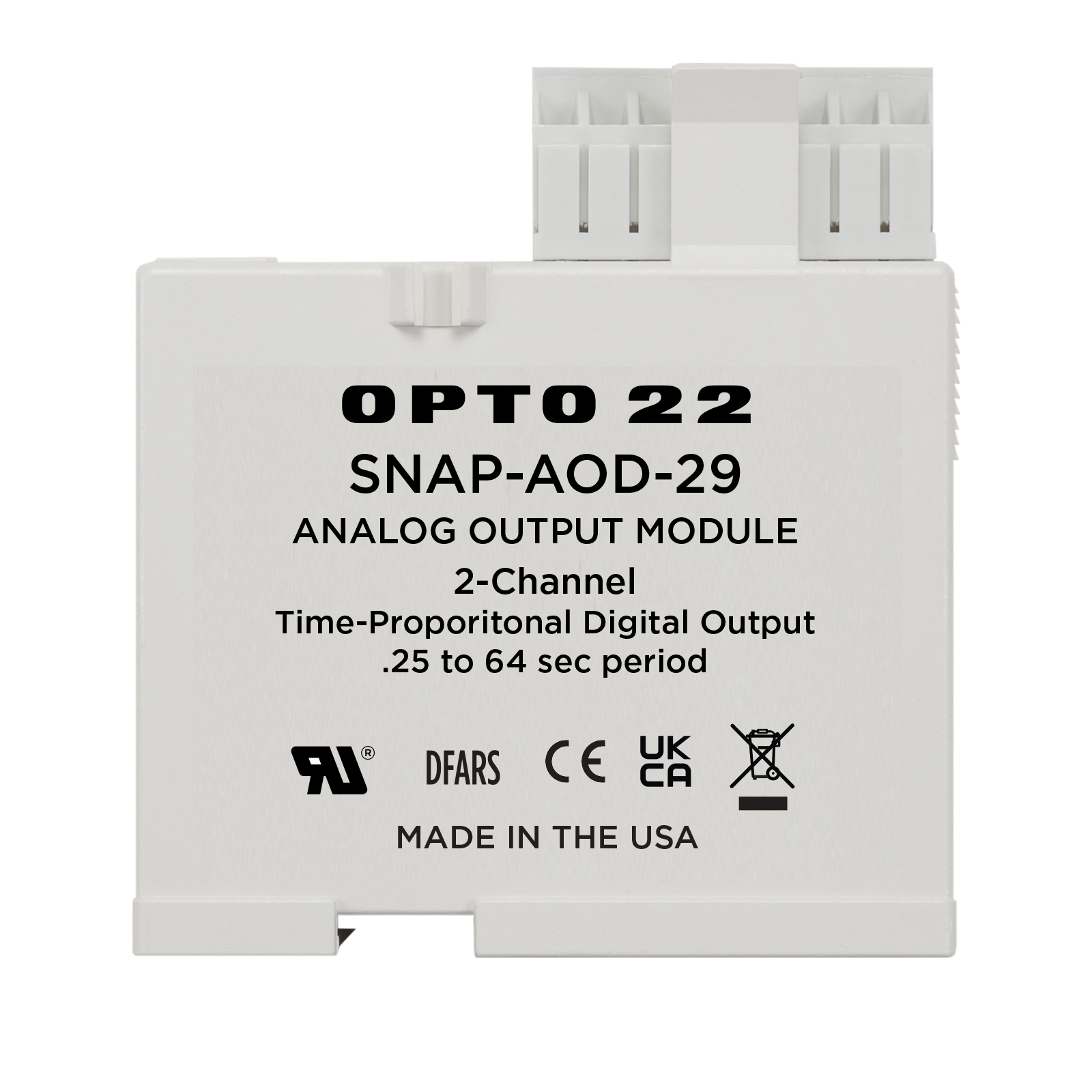

SNAP 2-Ch 5-60 VDC Time-Proportional Digital Output Module

Please call (800) 321-6786 to order.

SNAP-AOD-29

Production Specification

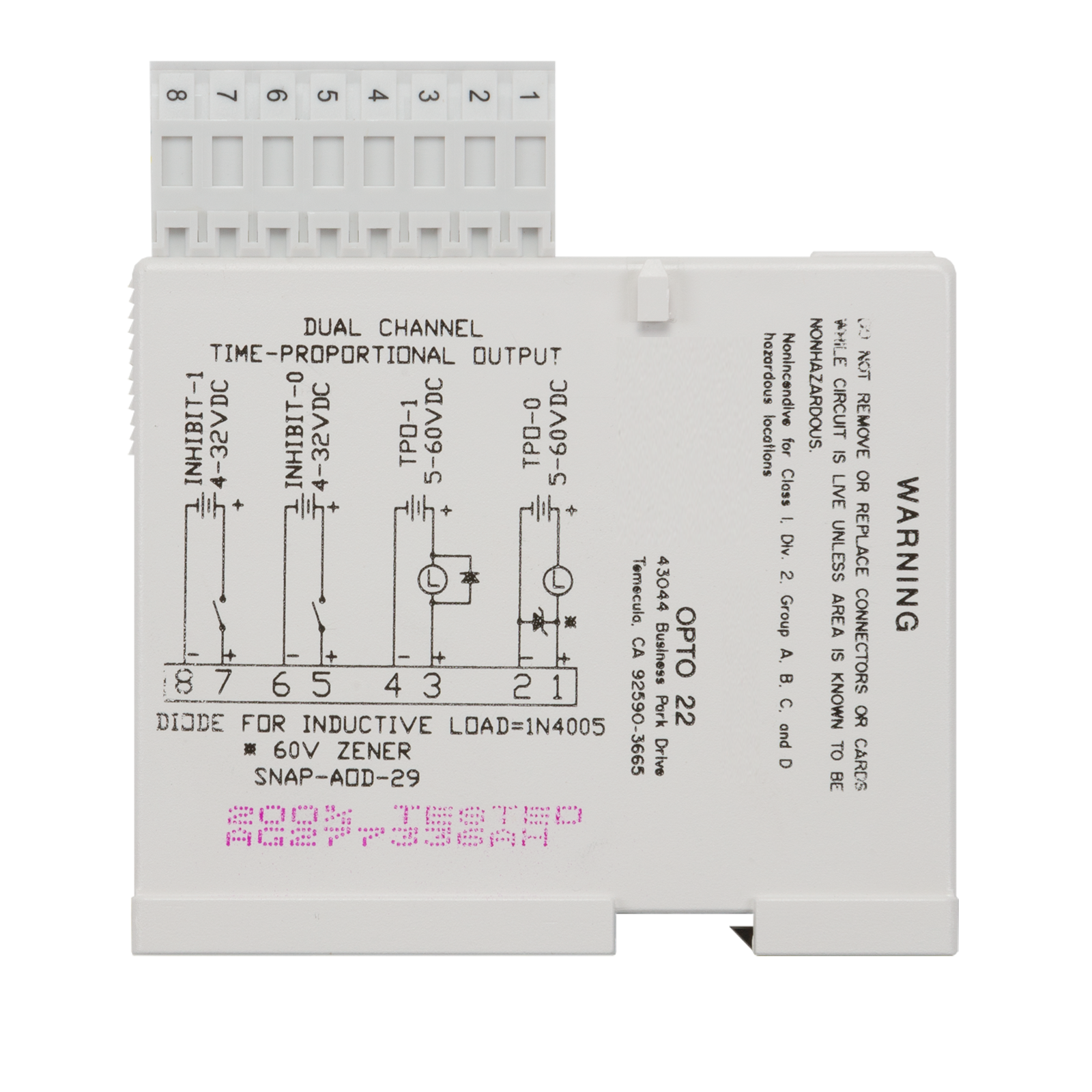

The SNAP-AOD-29 module provides two channels of time-proportional output (TPO). The module converts an analog value, such as a PID loop output, to a digital on/off output. The outputs are used to switch or control DC loads such as lamps or indicators, solenoids, relay coils, and PLC logic.

Each TPO channel can switch 0.5 A of load current ranging from 5 VDC to 60 VDC, over a period range of .25 seconds to 64.25 seconds.

If your application requires high-speed output, see the SNAP-AOD-29-HFi.

NOTE: The SNAP-AOD-29 module is not needed for intelligent remote SNAP I/O used with Allen-Bradley PLC systems (IO4AB). Instead, use the built-in TPO function in the brain itself.

Input

12-bit serial data (each channel)

Switched Output
  at 45 °C Ambient
  at 70 °C Ambient

5 to 60 Volts DC
0.5 A
0.2 A

TPO Resolution

12-bit
Each bit = Period/4095
1 millisecond/bit default

Period Range

0.251 sec. to 64.25 sec.
(0.251 sec for Ethernet-based
I/O units)
0.251 seconds module default

Period Accuracy

± 0.5%

Period Resolution

.251 second

Inhibit Inputs
On

Off



4.0 Volts DC at 1.0 mA
(32 Volts DC max.
1.0 Volt DC

Maximum Operating Common
Mode Voltage

250 V

Common Mode Resistance

>1,000 Megohms

Timebase Temperature Coeffi­cient

50 PPM/°C

Power Requirements

5 Volts DC (±0.15) @ 150 mA

Ambient Temperature:
Operating
Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

UL, FM, CE, RoHS, DFARS

Warranty

Lifetime
