SNAP-AOV-25

$212.00 (USA and Canada only)

Availability: In stock

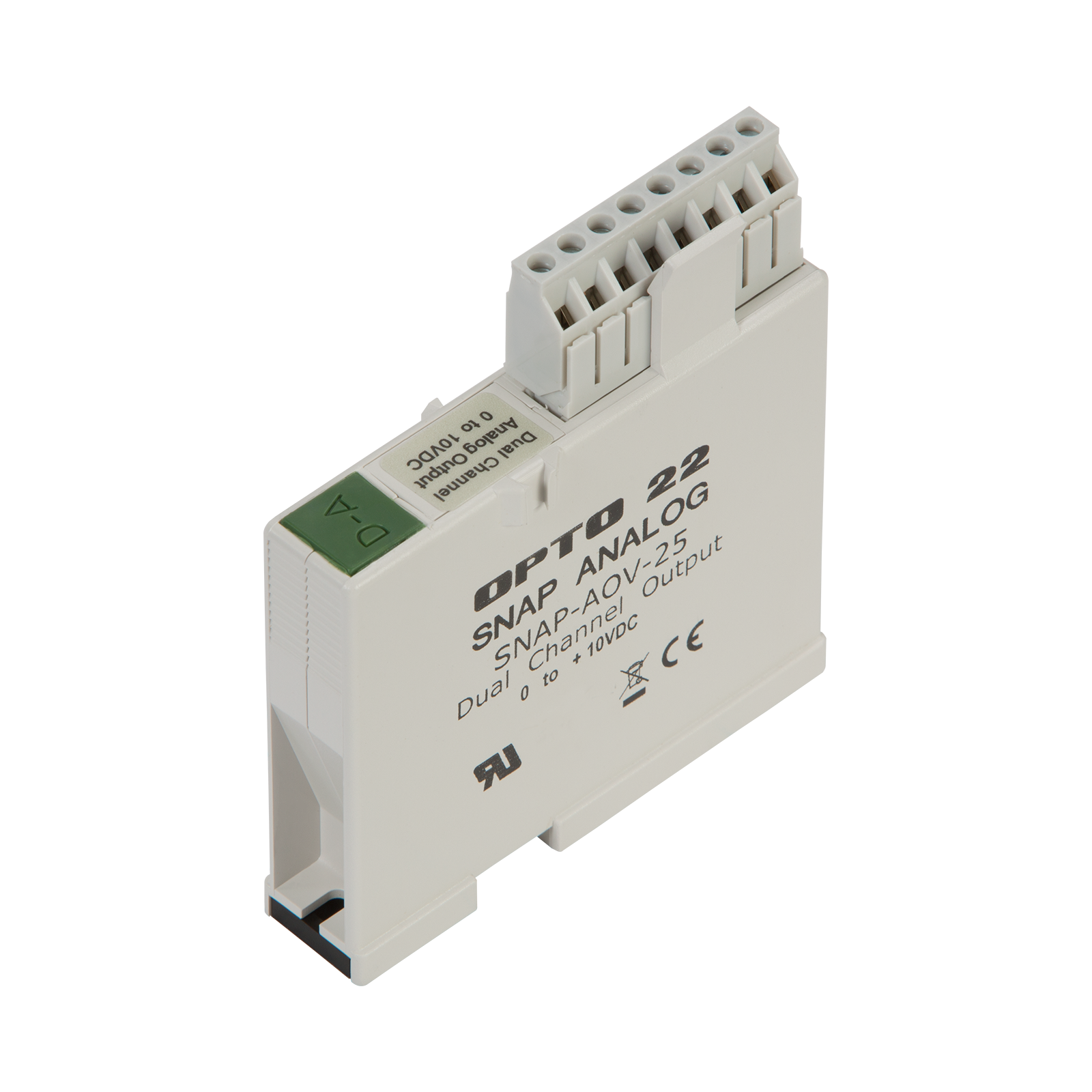

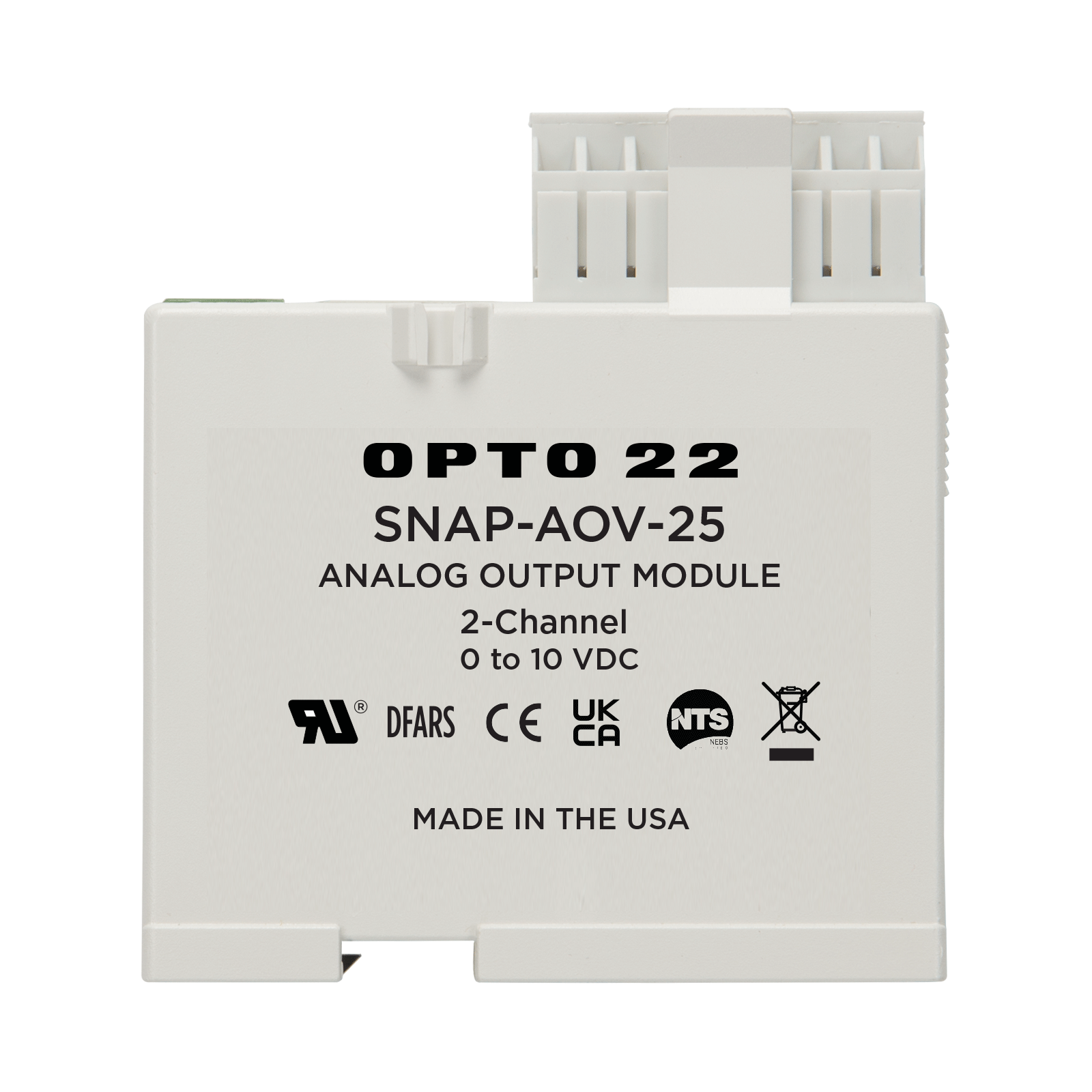

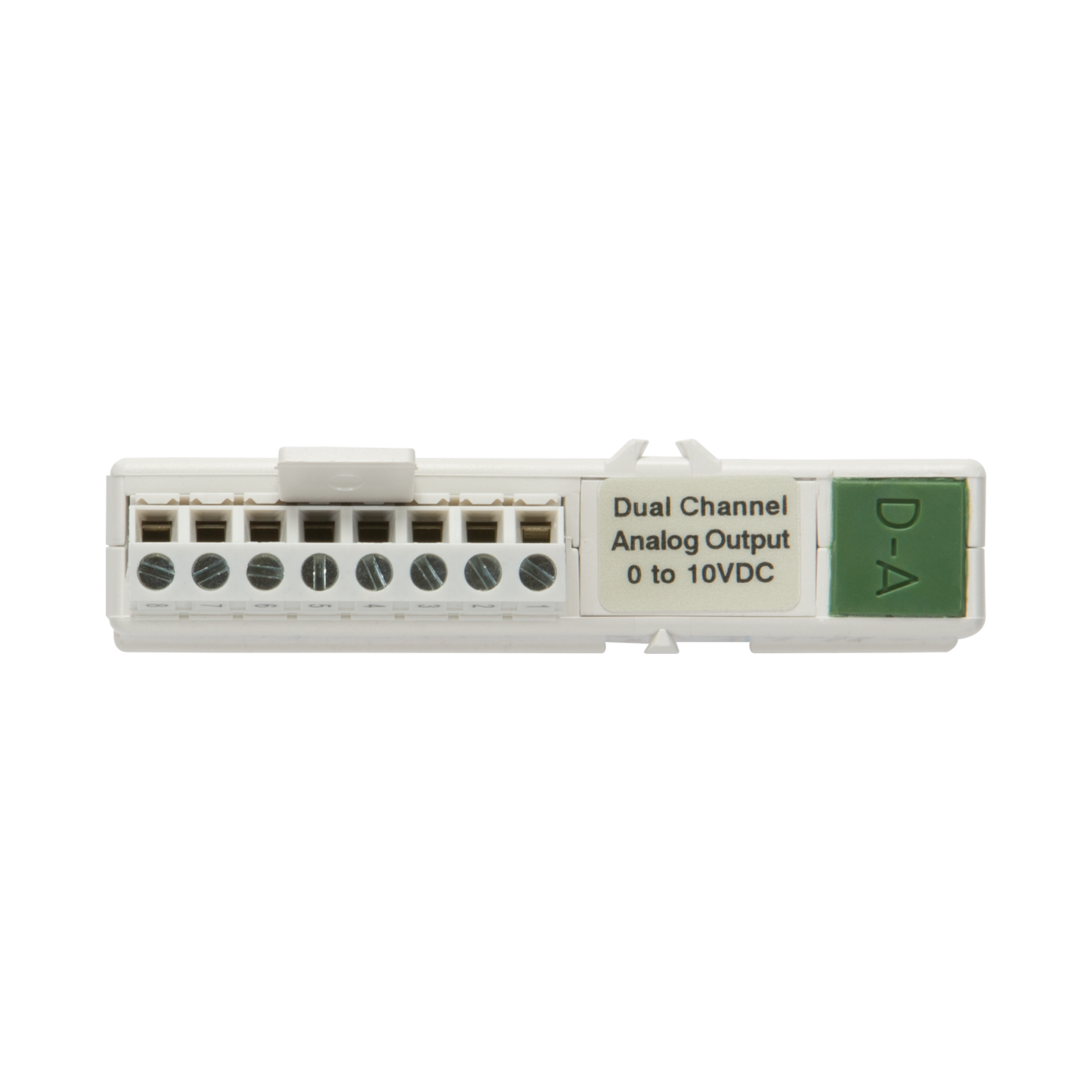

SNAP 2-Ch 0-10 VDC Analog Voltage Output Module

Please call (800) 321-6786 to order.

SNAP-AOV-25

Production Specification

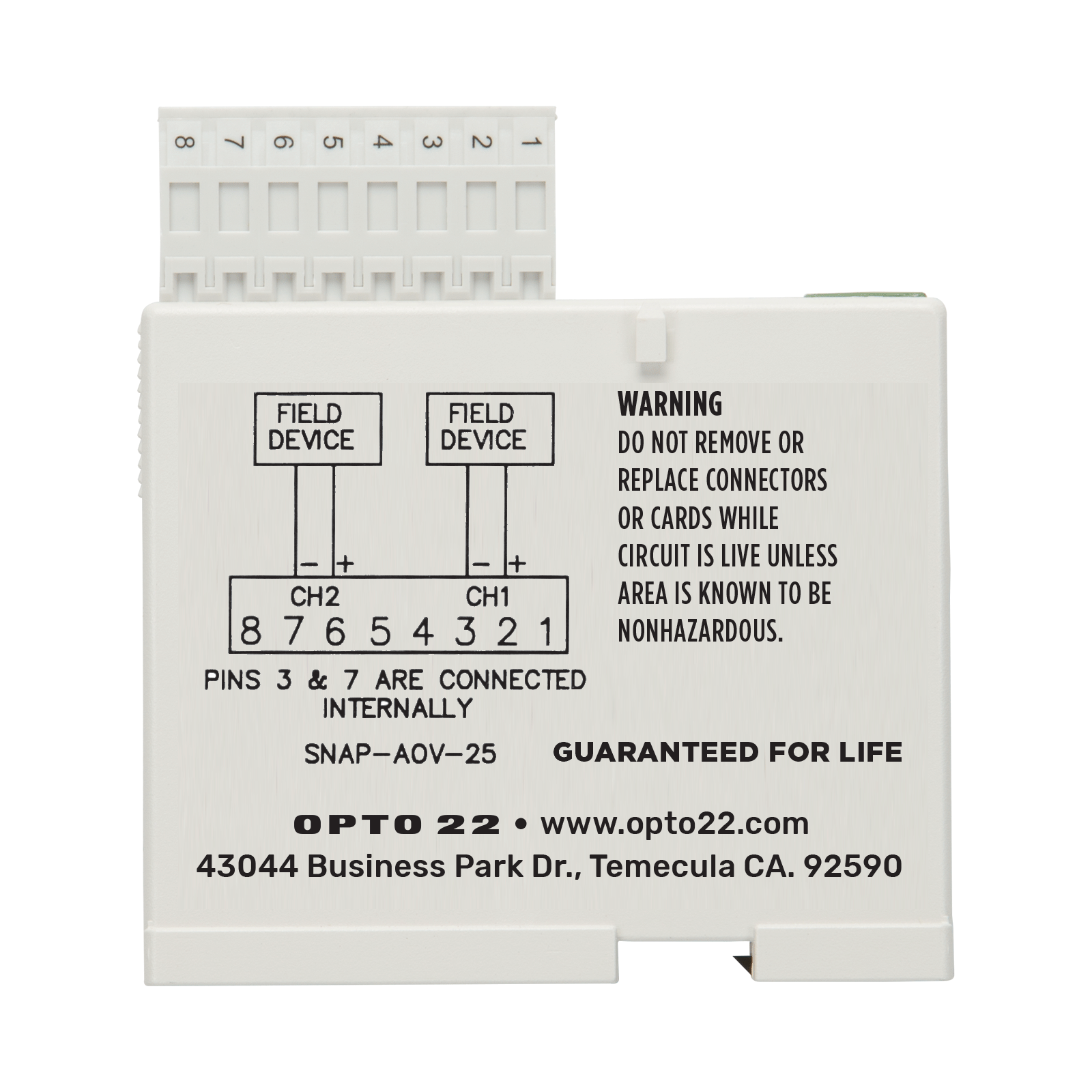

The SNAP-AOV-25 provides two channels of analog voltage output at a nominal range of 0-10 volts. Each channel can supply +5 mA of load current. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices. The module is factory calibrated.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Input

12-bit serial data
(each channel)

Outputs

0 to +10 Volts DC

Span

10 Volts

Resolution

2.44 mV

Response Time
(% of span/delta V/delta time)

99.9%/19.98 V/3 mS

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Operating Common Mode Voltage

250 V

Common Mode Resistance

>1,000 Megohms

Load Current (nominal)

5 mA (each channel)

Short Circuit Output Current Continu­ous

40 mA per channel

Accuracy

0.1% of Span

Gain Temperature Coefficient

50 PPM/°C

Offset Temperature Coefficient

20 PPM/°C

Isolation

1500 V

Power Requirements

5 Volts DC (±0.15) @ 150 mA

Ambient Temperature:
Operating
Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

UL, CE, FM, RoHS, DFARS

Warranty

Lifetime
