SNAP-AOVA-8
Hover over image to zoom in

SNAP-AOVA-8

$867.00 (USA and Canada only)

Availability: In stock
SNAP 8-ch analog multifunction output, voltage or current
Data Sheet

Production Specification

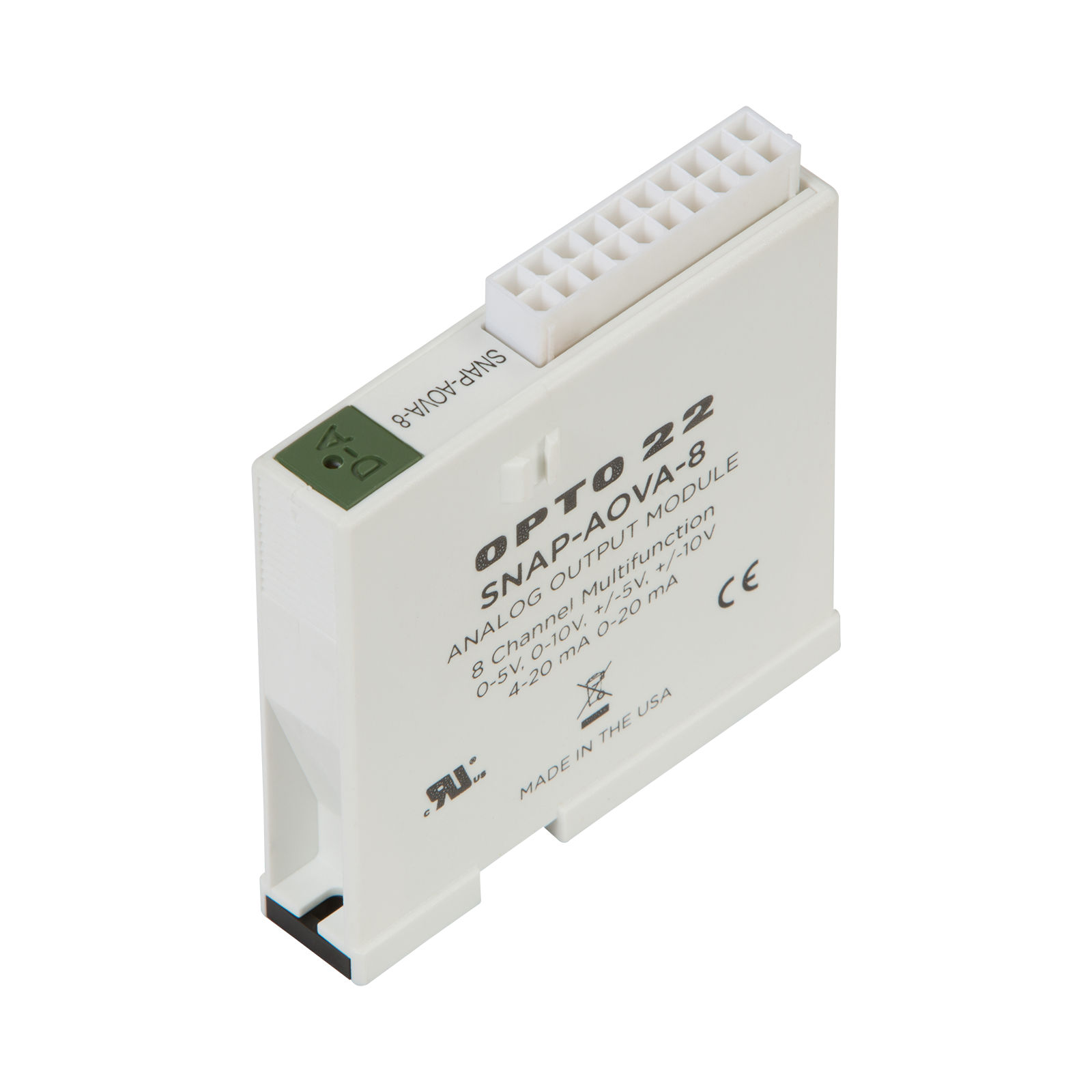

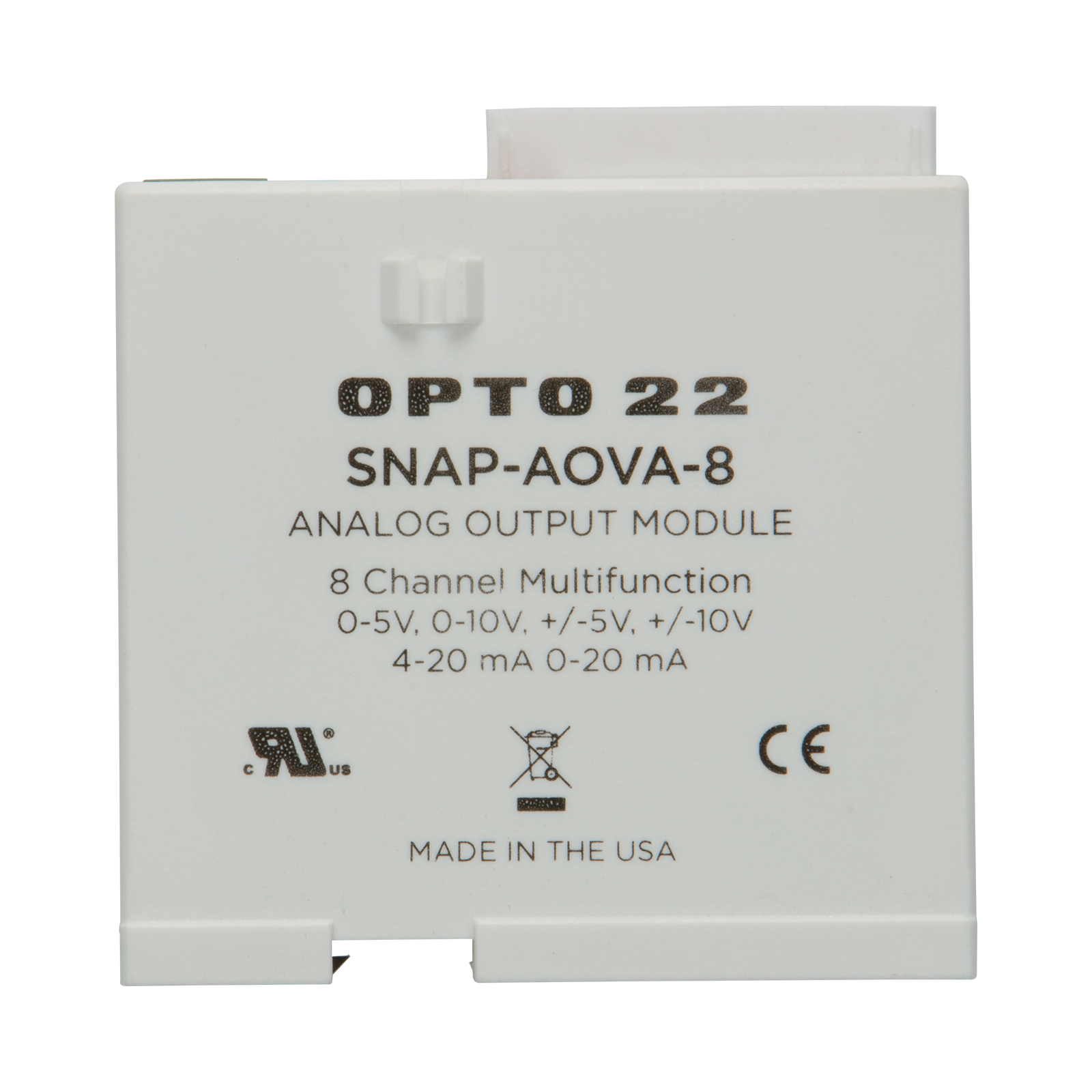

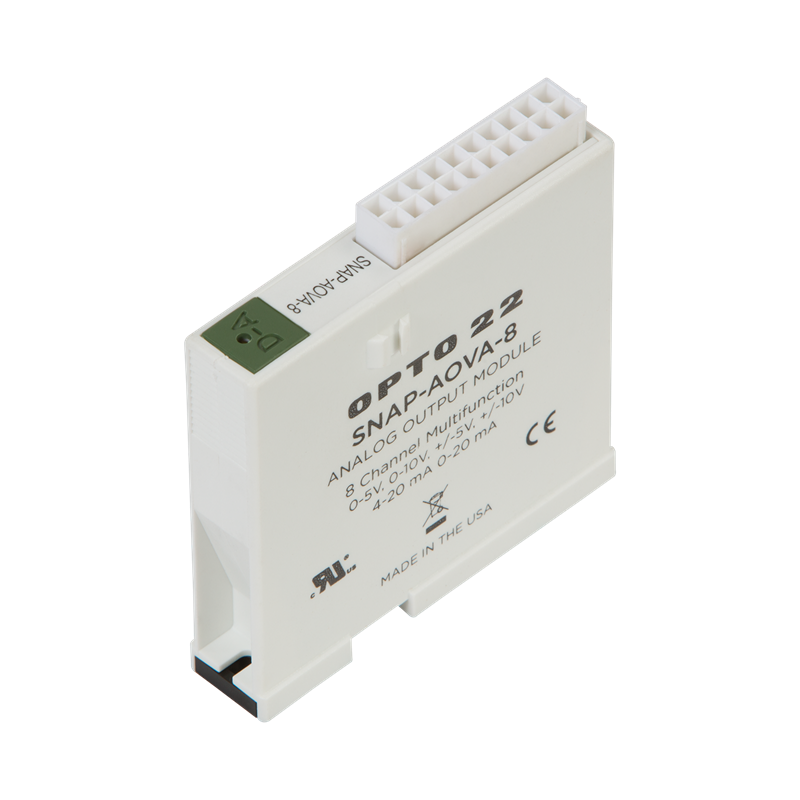

The SNAP-AOVA-8 analog output module has 8 channels, each individually configurable for any one of six voltage or current output ranges.

Voltage:
0 to 5 VDC
0 to 10 VDC
-5 to +5 VDC
-10 to +10 VDC

Current:
4 to 20 mA
0 to 20 mA

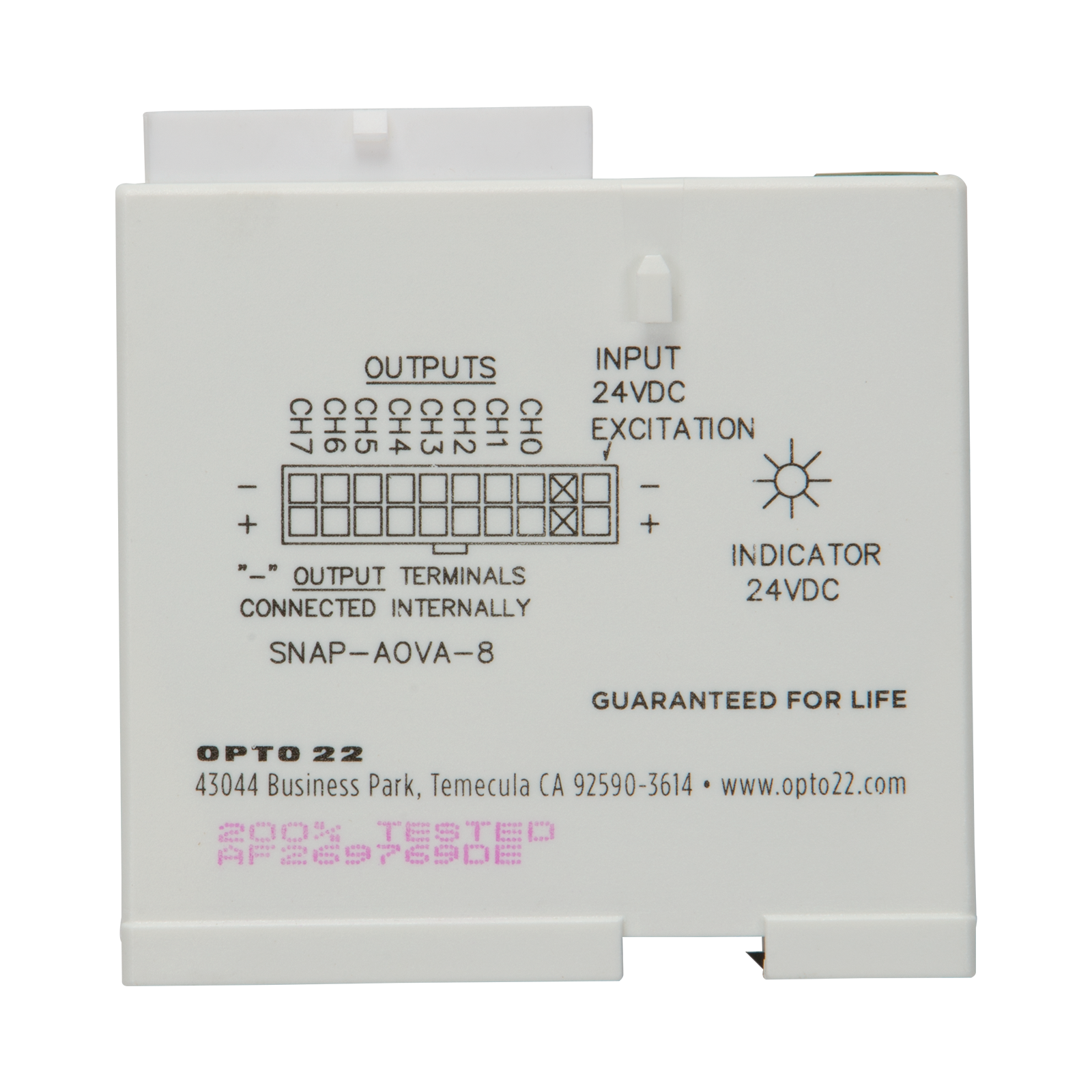

The SNAP-AOVA-8 requires a 24 VDC excitation voltage brought in through the field connector on the top of the module. This voltage is internally isolated with transformer and digital data isolators, and then used to source all channels.

Because all current is sourced from within the module using the 24 VDC excitation, current outputs cannot be used with an external loop supply. Current outputs are self-sourcing and cannot be used in loops that are loop-powered or already have a self-sourcing device in the loop.

The SNAP-AOVA-8 mounts on a SNAP PAC rack alongside other I/O modules (digital, analog, and serial). This module requires a SNAP PAC brain or rack-mounted controller with firmware version R9.4b or higher. It cannot be used with legacy controllers or brains.

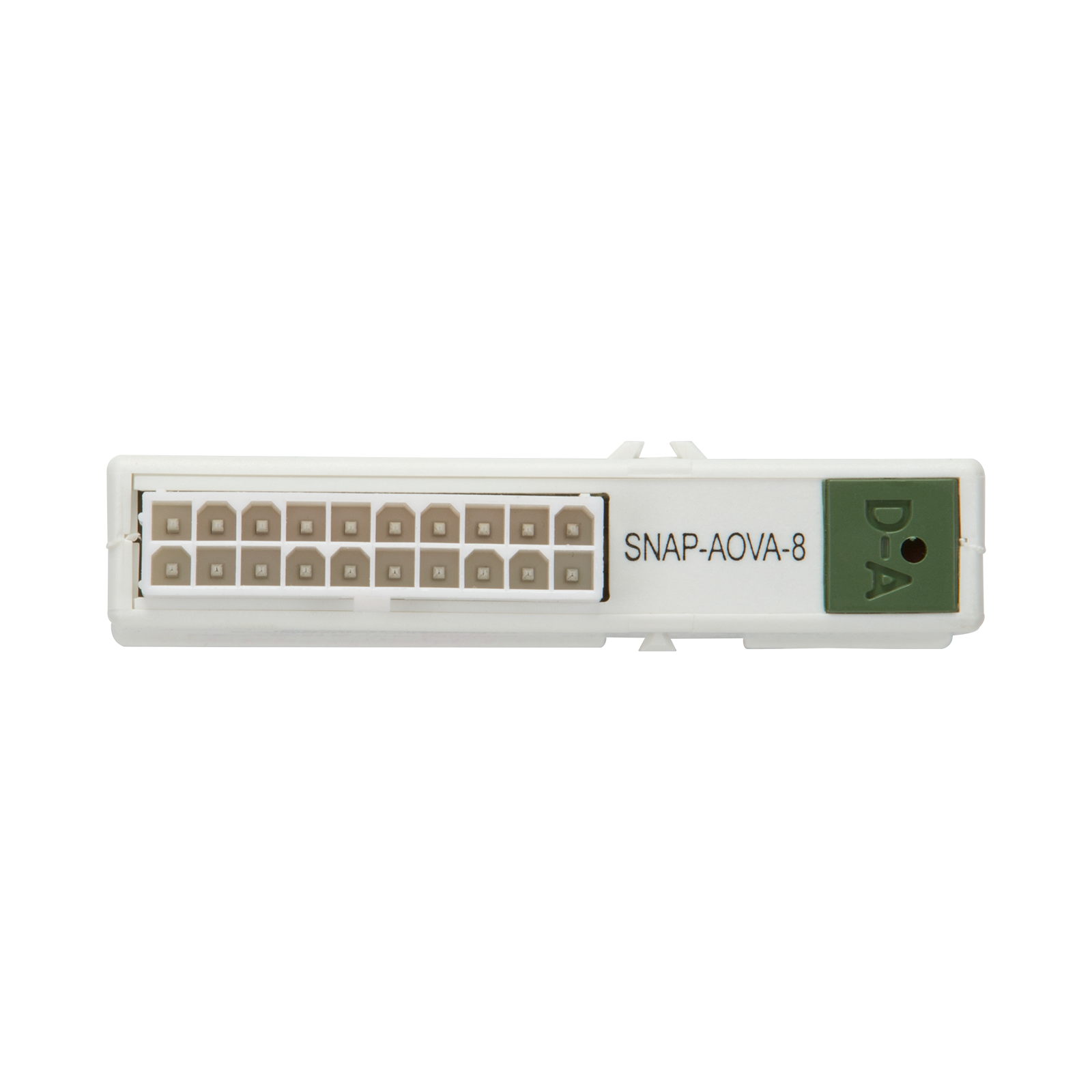

To wire the module, a 6-foot-long SNAP-HD-20F6 cable is required. The cable has a 20-pin connector at the module end and flying leads for wiring to field devices.

Excitation Range

18 TO 32 VDC

Excitation Current Required

200mA @ 32VDC, 250mA @ 24VDC, 350mA @ 18VDC

24V Excitation Fault Recovery Time

15 mS nominal

Power Requirement (from the rack)

5 VDC (±0.15) @ 150 mA

Maximum Operating Common Mode Voltage

250 volts

Isolation

1500 V (transient)

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Data Refresh Time

9 mS nom (update 1 ch/ms)

Ambient Temperature:
 Operating
 Storage



-20 to 70 °C
-40 °C to 85 °C

Humidity



5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime

Voltage Outputs

Output Range (Resolution)

0 to 5 VDC (1.22 mV)
0 to 10 VDC (2.44 mV)
-5 to +5 VDC (2.44 mV)
-10 to +10 VDC (4.88 mV)

Load Current

+/-10 mA min. each voltage output channel)

Short Circuit Current

16 mA Typ.

Accuracy

0.1% of span

Drift:
Gain Temperature Coefficient
Offset Temperature Coefficient



30 PPM / °C
15 PPM / °C

Current Outputs

Output Range (Resolution)

4 to 20 mA (4 microamps)
0 to 20 mA (5 microamps)

Maximum Loop Resistance

750 Ohms (each current out­put channel )

Open Circuit Volts

27 VDC max.
(24 VDC typical)

Accuracy

0.1% of span

Drift:
Gain Temperature Coefficient
Offset Temperature Coefficient



30 PPM / °C
15 PPM / °C
