SNAP-BRS
Hover over image to zoom in

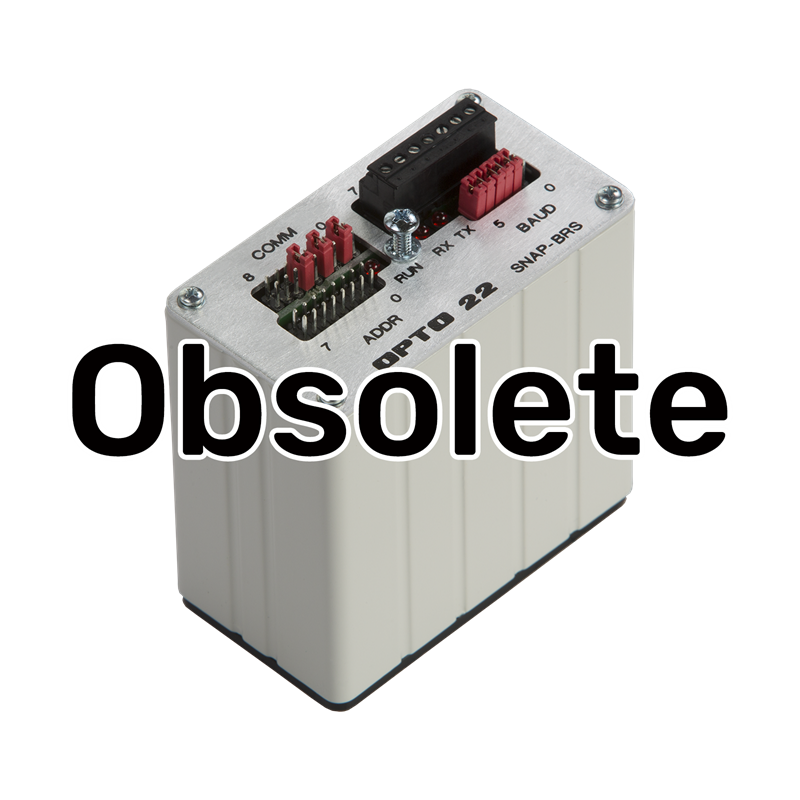

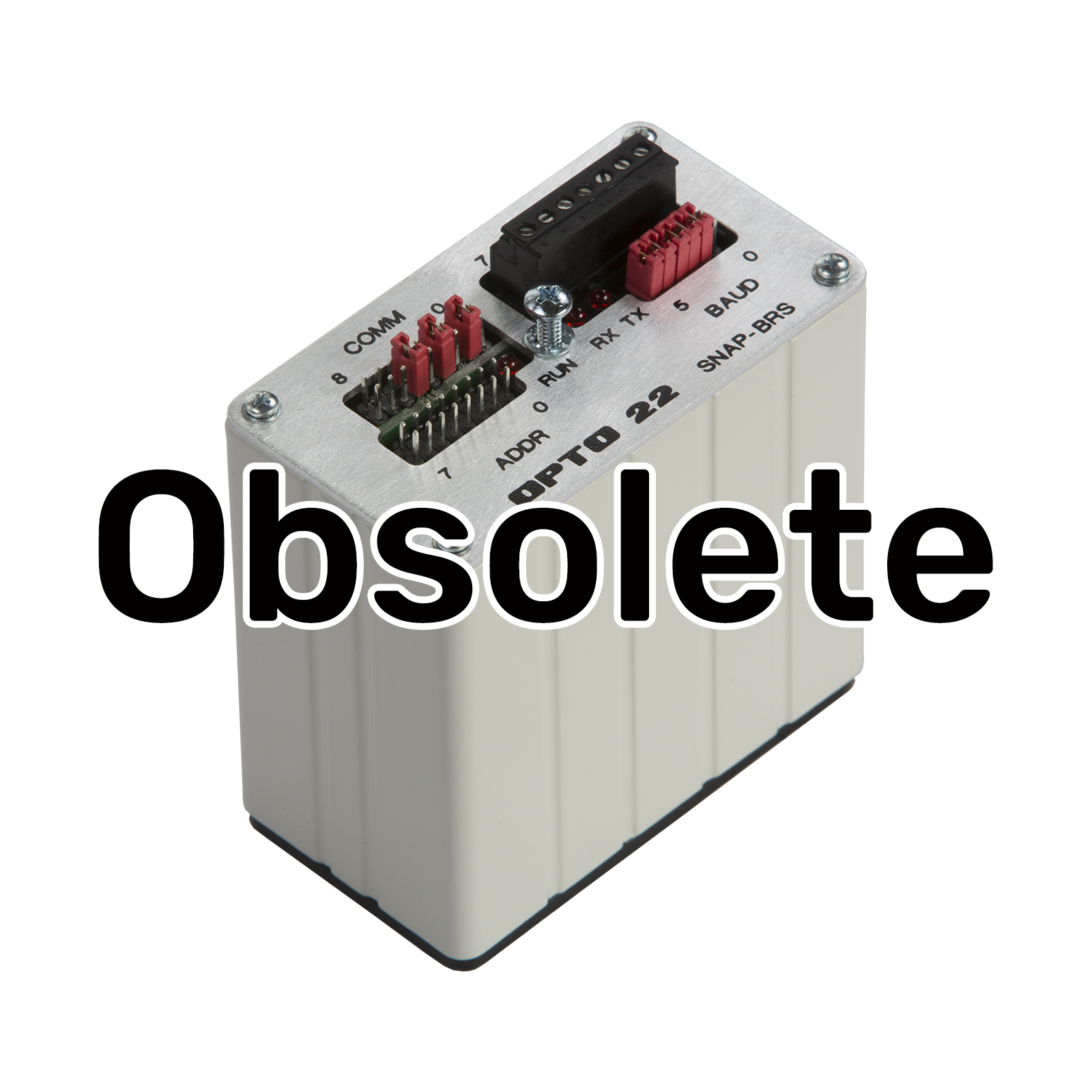

SNAP-BRS

Availability: Obsolete
OBSOLETE 32-channel Mistic Protocol Remote Digital Brain Board
Data Sheet

Production Specification

*** NOTE: This part is OBSOLETE and no longer available. ***

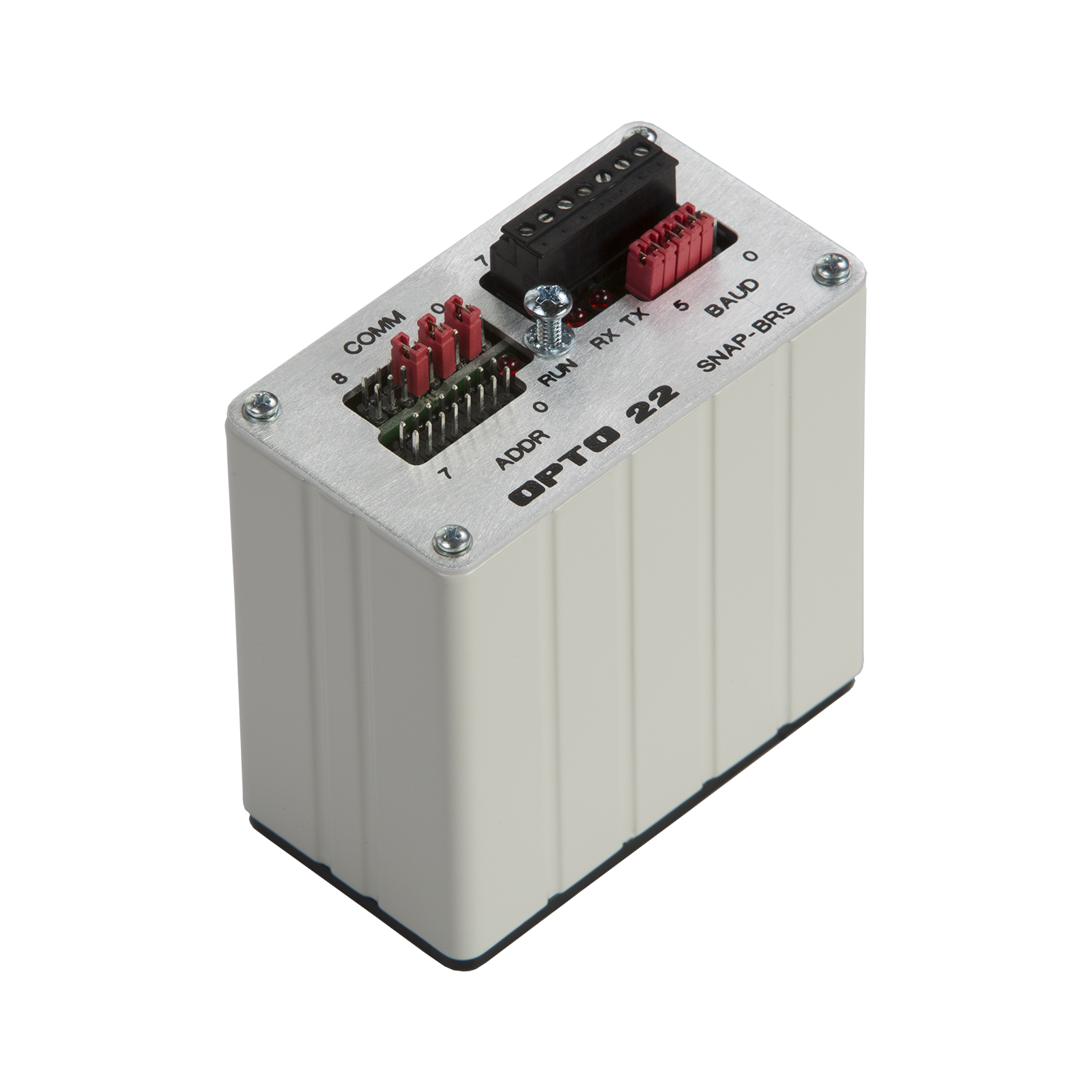

The SNAP-BRS brain is a high-performance processor used to remotely control up to 32 digital SNAP I/O points on an eight-position B-series rack. The brain communicates with a host controller or computer via an RS-485 serial link, using the Mistic protocol.

NOTE: Not all SNAP I/O modules are compatible with this brain.  See Legacy and Current Product Comparison and Compatibility Charts to determine compatibility.

SNAP-BRS

Power Requirements

5.0 - 5.2 VDC VDC @ 1.0A max.

Operating Temperature

0 to 70 °C, 95% humidity, non-condensing

CPU

8-bit 8051 processor

Communications Interface

Supports 2-wire or 4-wire RS-485 using
twisted pair cable with shield

Data Rates

300, 600, 1200, 2400, 4800, 9600, 19200,
38400, 57600, 76800, and 115200 baud

Range: (Multidrop)

Up to 3,000 feet and 32 stations maximum
between repeaters

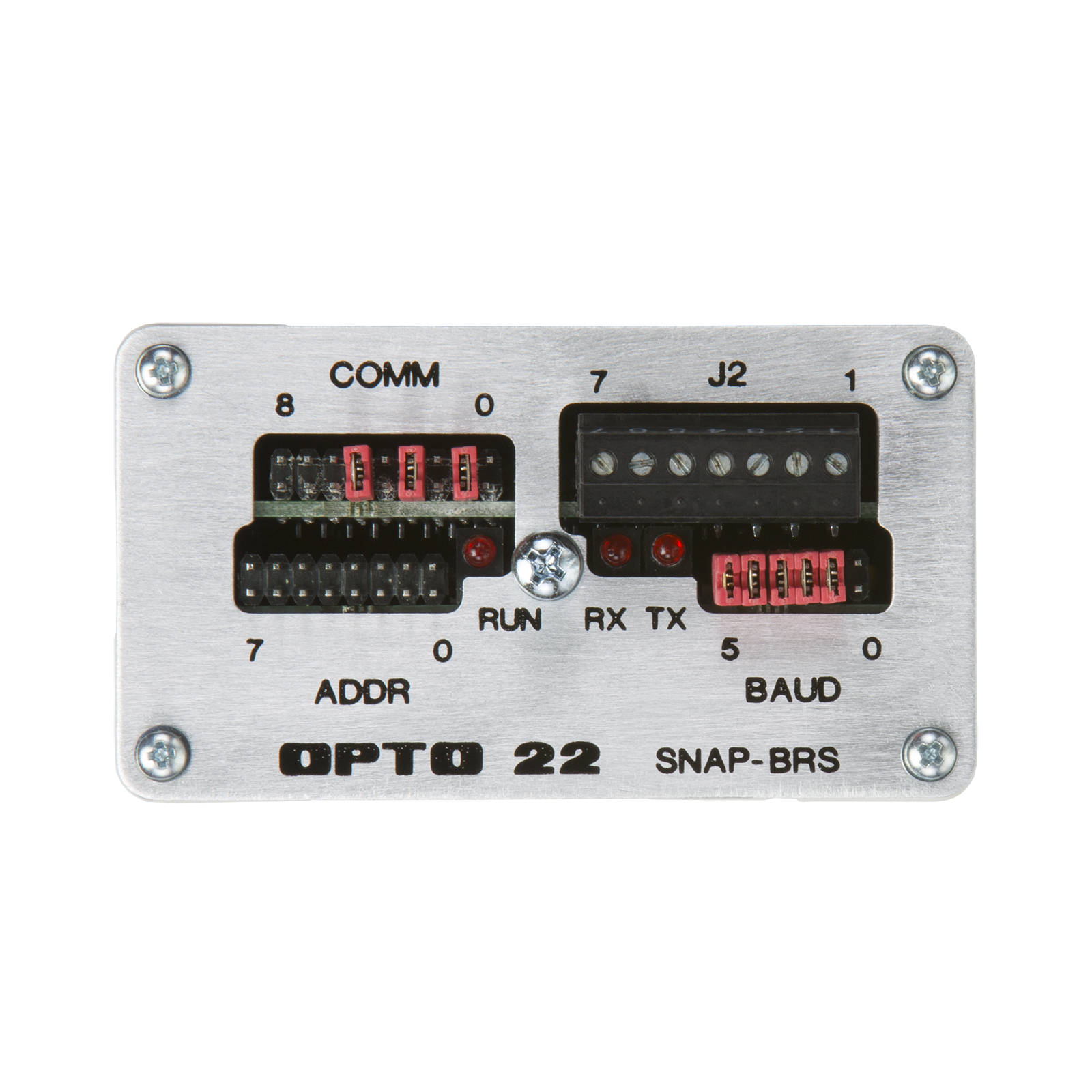

LED Indicators

RUN (Power On), RCV (Receive), XMT
(Transmit)

Options: Jumper Selectable

Address, communication, baud rate,
CRC/Checksum, Binary/ASCI



0956

SNAP Remote Digital Brain Board Data Sheet

*** This product is obsolete and no longer available. ***
The SNAP-BRS brain board is a high-performance digital I/O processor used to remotely control up to 32 digital I/O modules using Opto 22's SNAP B-Series I/O mounting racks.

View

RM_SNAP_PAC_FW

SNAP PAC Controllers and Brains Firmware README

This README file lists revision changes made to the firmware used in SNAP PAC S-series, R-series, and SoftPAC controllers; SNAP PAC EB-series and SB-series brains; and G4EB2 and G4D32EB2 brains.

View

1688

SNAP PAC System Migration Technical Note

This document describes migration options for customers integrating the SNAP PAC System with older Opto 22 systems. It explains the SNAP PAC System's similarities and differences with earlier systems, defines legacy products, and shows how to mix old and new hardware.

Customers moving to the SNAP PAC System may also want to consult form #1693, Legacy and Current Product Comparison and Compatibility Charts.

View

host60.zip

Mistic I/O is a serial (RS422/485) protocol allowing up to 4,096 I/O points (per serial link) to be connected to a computer or Mistic controller used with Mistic-protocol brains and brain boards such as the B100, B200, and B3000. For use with Mistic controllers and I/O.

View

Mistic I/O Scanning Utility

Mistic I/O is a serial (RS422/485) protocol allowing up to 4,096 I/O points (per serial link) to be connected to a computer or Mistic controller used with Mistic-protocol brains and brain boards such as the B100, B200, and B3000. For Microsoft Windows 95/Windows NT users.

View
