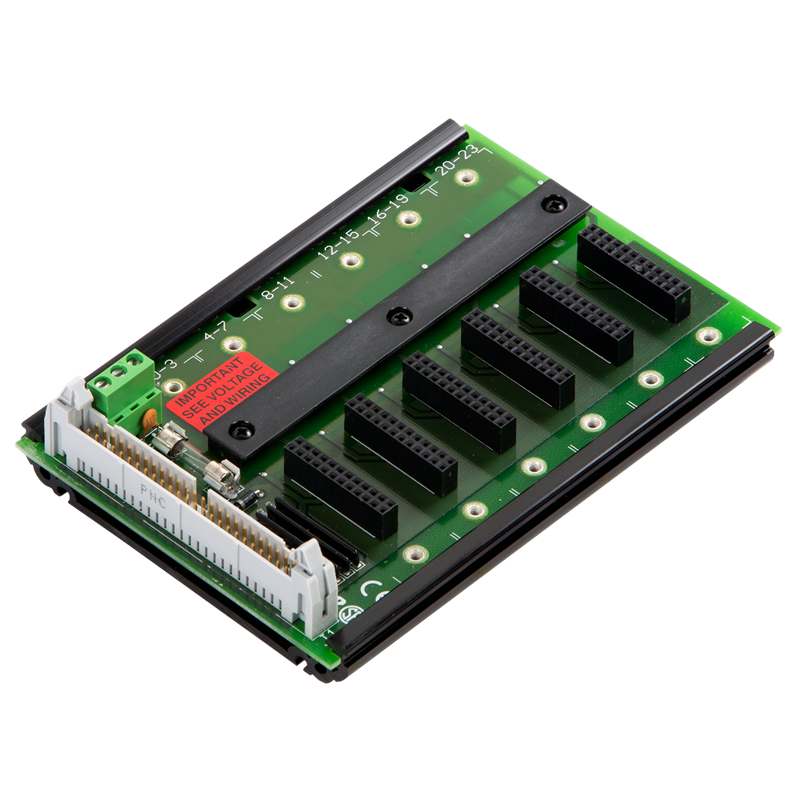

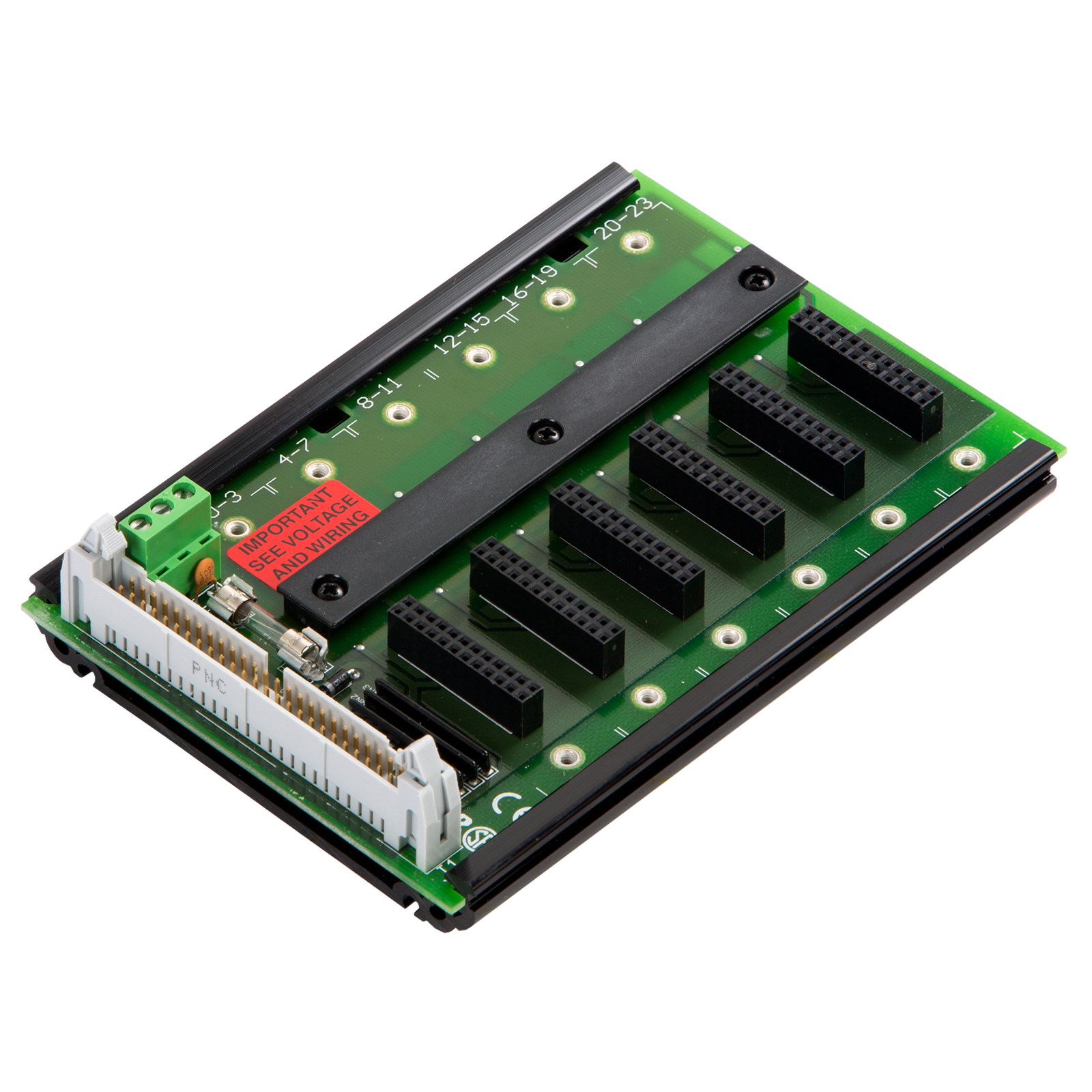

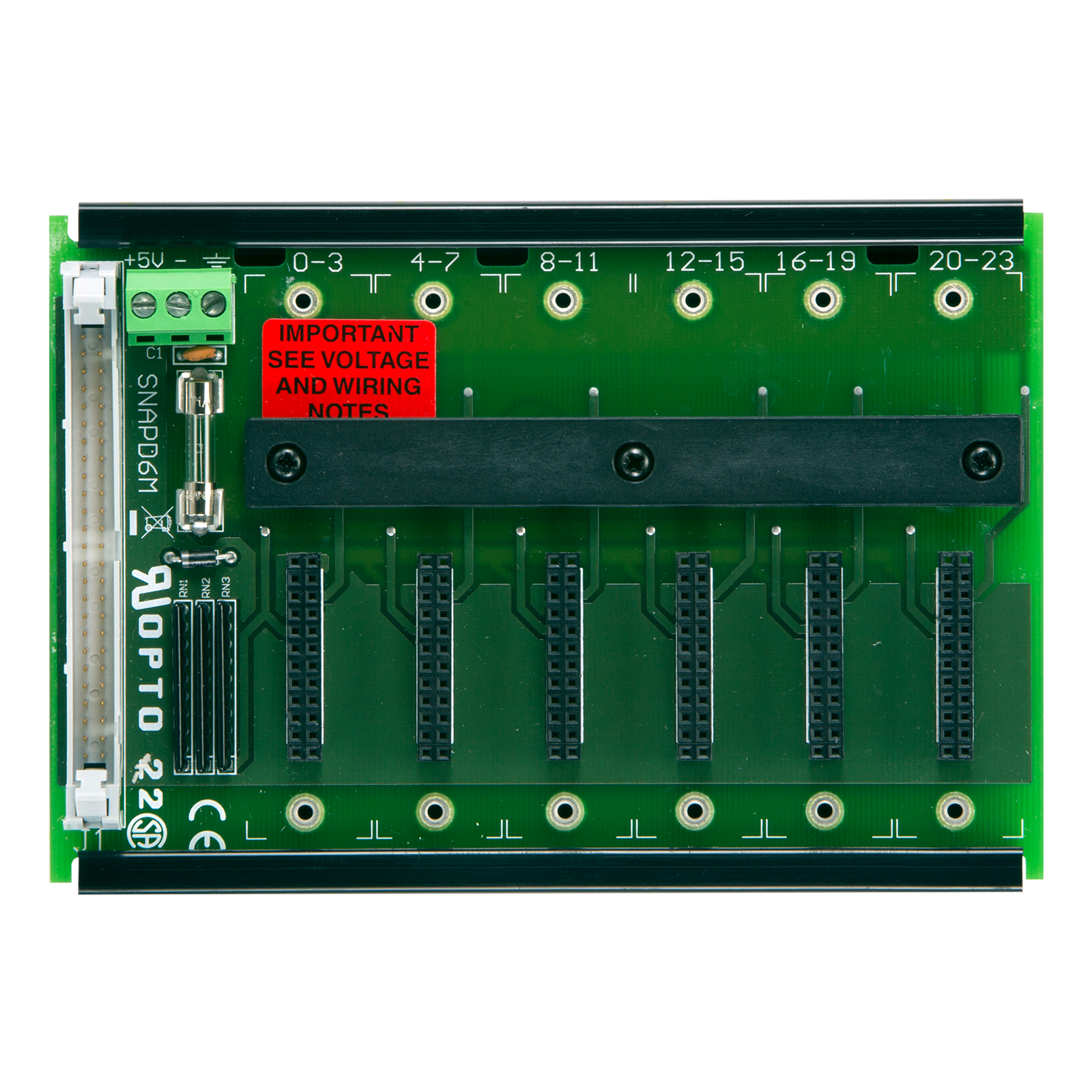

SNAP D-Series 6-module Rack

Production Specification

SNAP D-Series 6-module Rack

SNAP D Series



SNAP-D4M

SNAP-D6M

SNAP-D8M

SNAP-D12M

Description

4-module rack

6-module rack

8-module rack

12-module rack

Power Requirements

5 VDC ± 0.25 VDC
@ 200mA max.
(700mA with brain board)

5 VDC ± 0.1 VDC
@ 300mA max.

5 VDC ± 0.1 VDC
@ 400mA max.

5 VDC ± 0.1 VDC
@ 1200mA max.

Operating Temperature Range

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

Relative Humidity

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

Length (inches)

4.19

5.74

7.74

10.74

Length (mm)

106.43

145.8

196.6

272.8

Center to Center Length

1.98”

3.53”

5.53”

4.26”

# of Center Positions

2

2

2

3

Agency Approvals UL, DFARS UL, CE, RoHS, DFARS; UKCA UL, DFARS UL, CE, RoHS, DFARS; UKCA



SNAP D Series Racks Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. This data sheet applies to:

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

Using Power Supplies with Opto 22 Systems

This technical note gives an overview of power supplies for use with many Opto 22 control systems and recommends types of power supplies for Opto 22 mounting racks.

This note applies to SNAP, mistic, Optomux, Pamux, and direct I/O. It does NOT apply to groov EPIC systems, which have their own integrated power supplies.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

AutoCAD Drawings

This file contains AutoCAD drawings of Opto 22 products dating from 1988 to 2003. These are the same drawings that have been available on our BBS. Included is an Excel file describing the file names and relevant Opto 22 part numbers.

Video: Verifying Voltage at the I-O Rack

Verifying the voltage level at the I/O rack is very important for equipment safety and point value accuracy. This is the proper technique for reading the voltage level at the rack.
