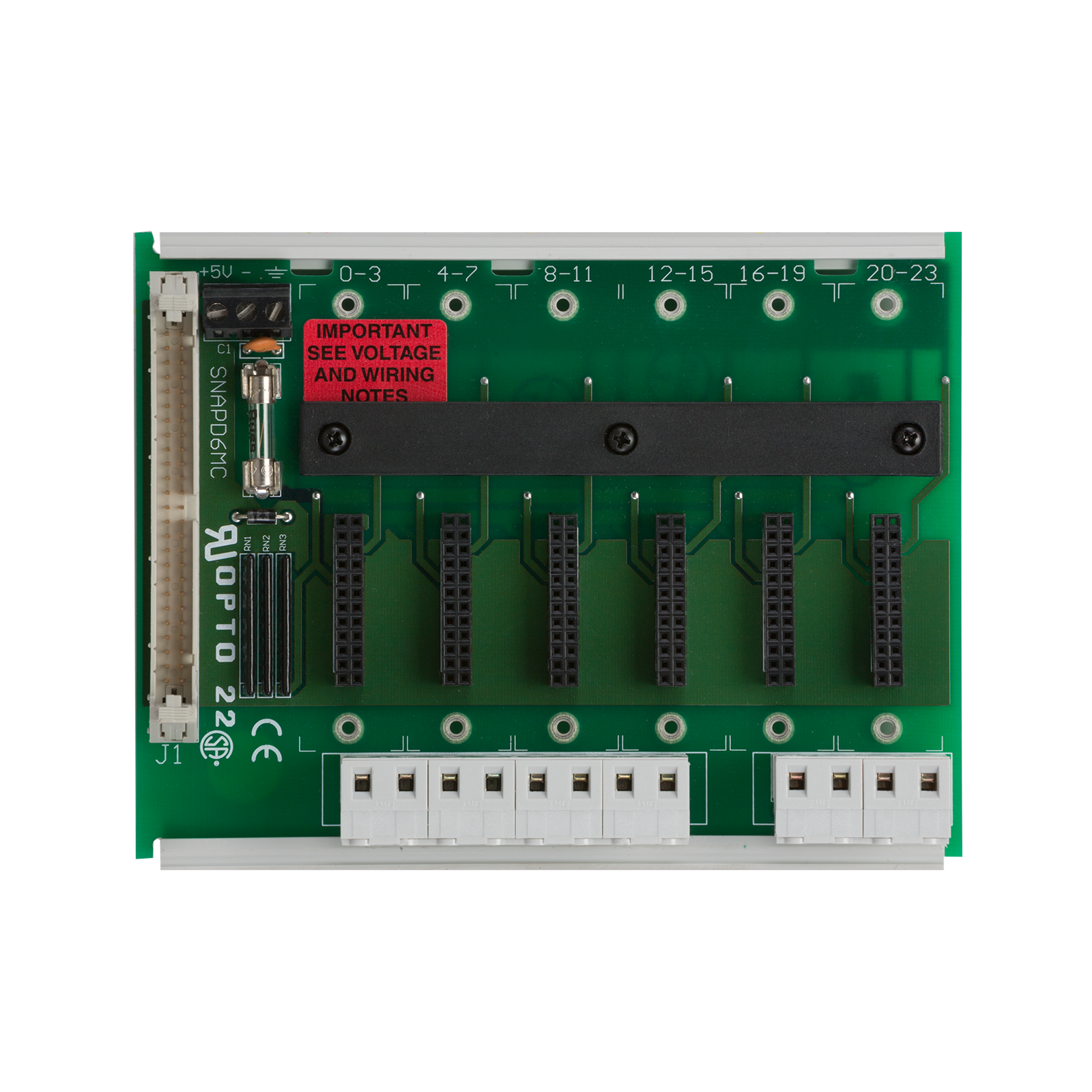

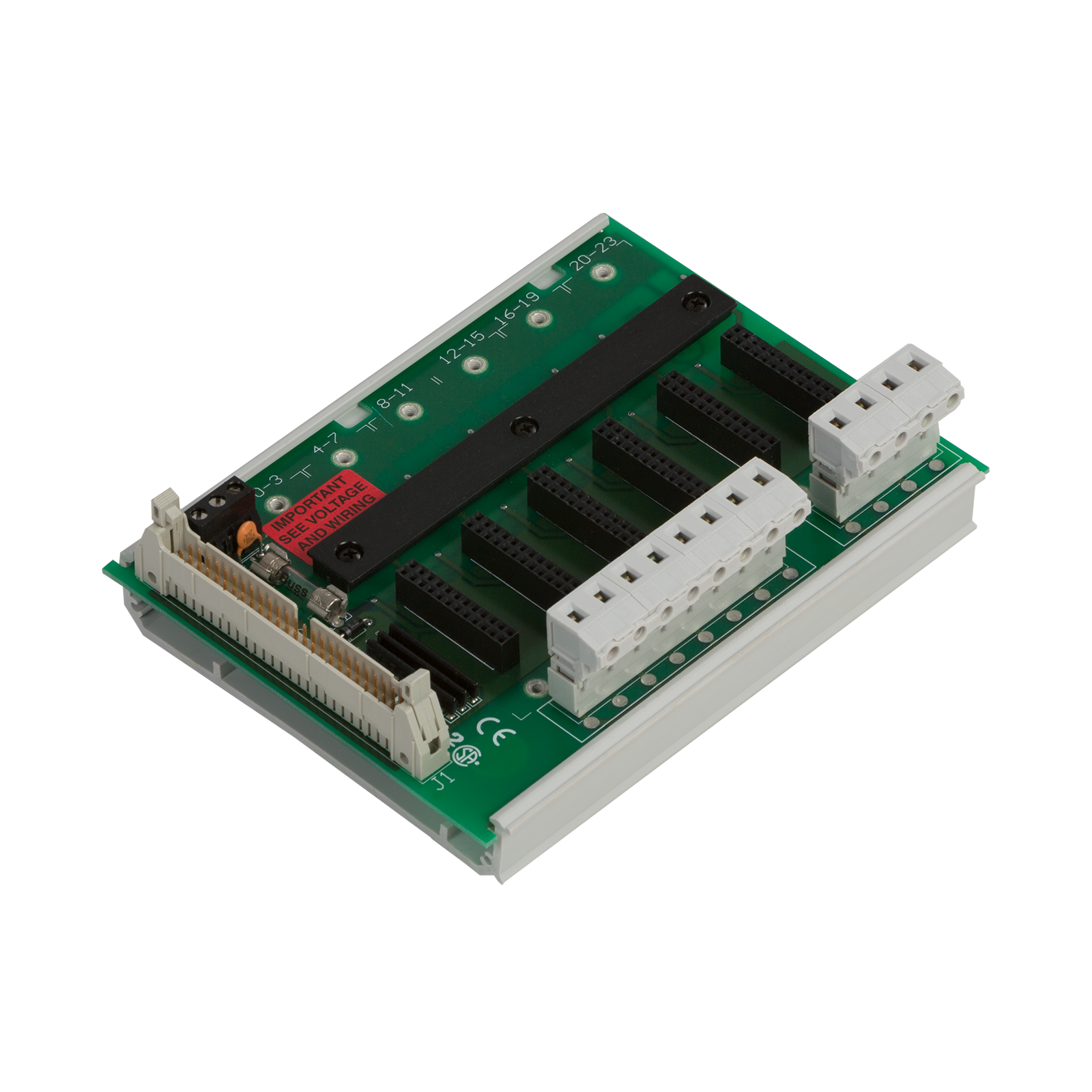

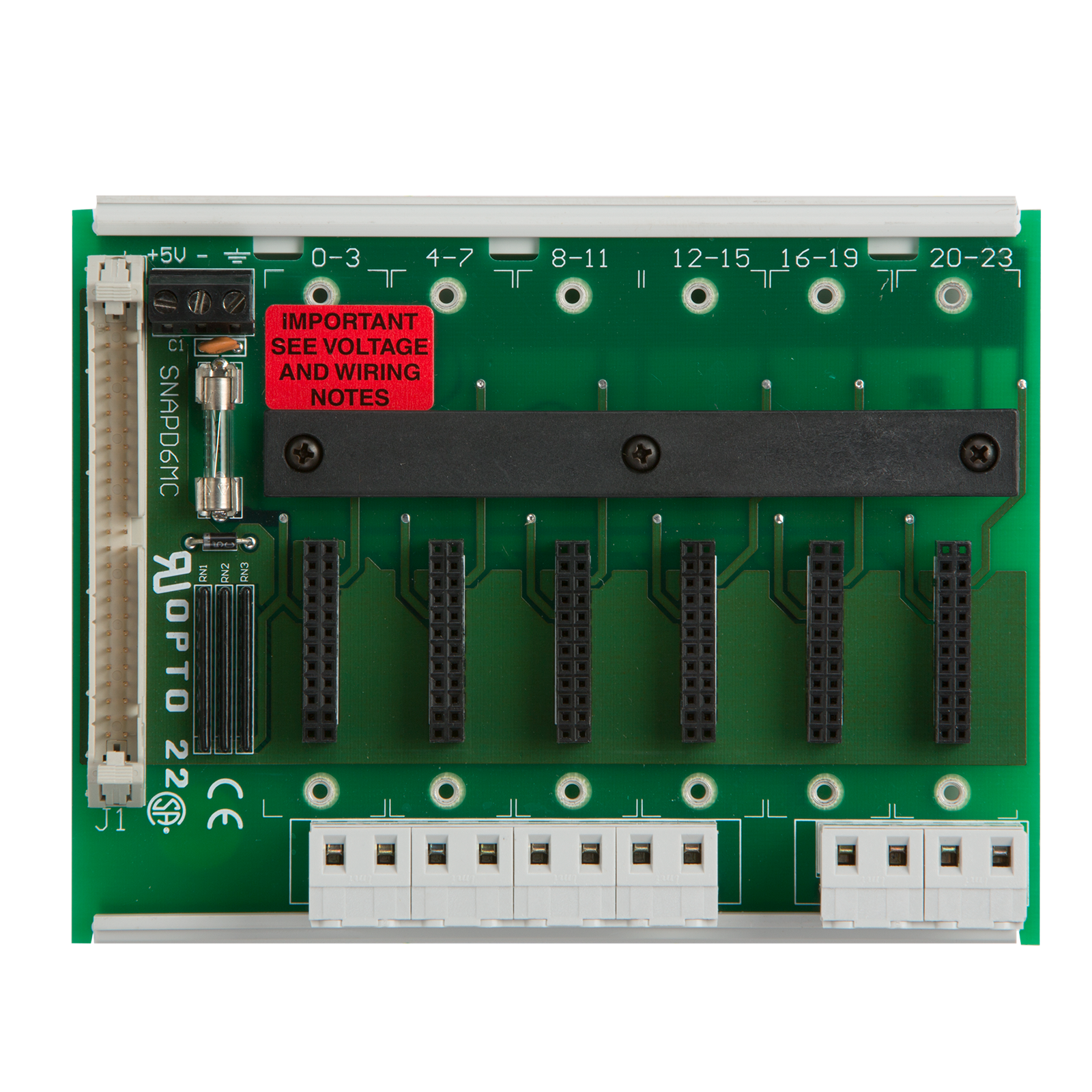

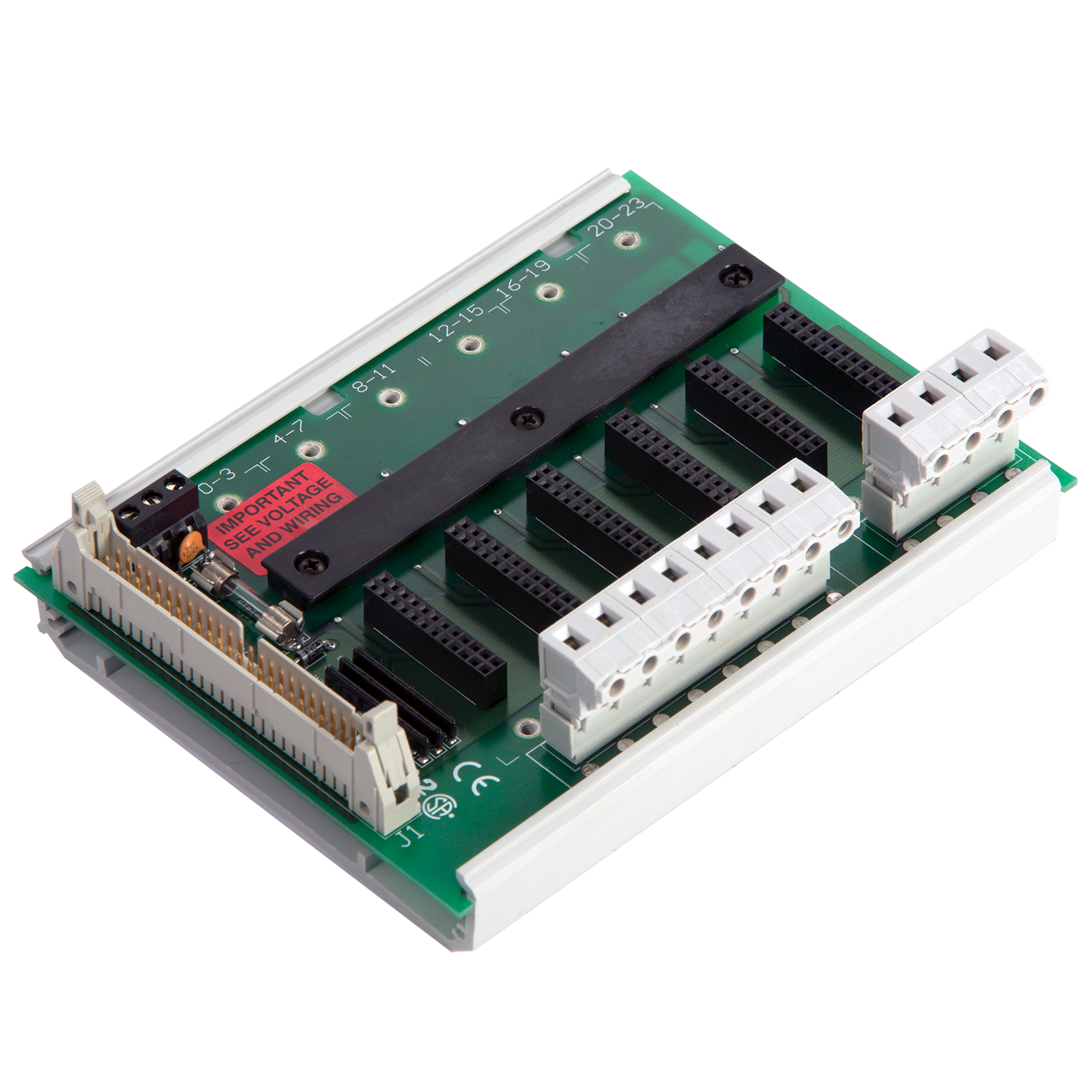

SNAP D-Series 6-module Rack With Extra Terminal Block

Production Specification

SNAP D-Series 6-module Rack With Extra Terminal Block For Field Wiring

SNAP D Series (with Auxiliary Terminal Strip)



SNAP-
D4MC

SNAP-
D4MC-P

SNAP-
D6MC

SNAP-
D6MC-P

SNAP-
D8MC

SNAP-
D8MC-P

SNAP-
D12MC

SNAP-
D12MC-P

Description

4-module rack with extra terminal block for field wiring

4-module rack rack with extra terminal block for field wiring, pluggable

6-module rack with extra terminal block for field wiring

6-module rack with extra terminal block for field wiring, pluggable

8-module rack with extra terminal block for field wiring

8-module rack with extra terminal block for field wiring, pluggable

12-module rack with extra terminal block for field wiring

12-module rack with extra terminal block for field wiring, pluggable

Power
Requirements

5 VDC ± 0.1 VDC
@ 200mA max.
(700mA with brain board)

5 VDC ± 0.1 VDC
@ 200mA max.
(700mA with brain board)

5 VDC ± 0.1 VDC
@ 300mA max.

5 VDC ± 0.1 VDC
@ 300mA max.

5 VDC ± 0.1 VDC
@ 400mA max.

5 VDC ± 0.1 VDC
@ 400mA max.

5 VDC ± 0.1 VDC
@ 1200mA max.

5 VDC ± 0.1 VDC
@ 1200mA max.

Operating
Temperature
Range

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

0 to 70 °C

Relative
Humidity

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

95%, non-condensing

Lenght (inches)

4.19

4.19

5.74

5.74

7.74

7.74

10.74

10.74

Length (mm)

106.43

106.43

145.8

145.8

196.6

196.6

272.8

272.8

Center to
Center Length

1.98”

1.98”

3.53”

3.53”

5.53”

5.53”

4.26”

4.26”

# of Center
Postions

2

2

2

2

2

2

3

3

Agency Approvals UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA UL, DFARS UL, DFARS UL, CE, RoHS, DFARS; UKCA UL, CE, RoHS, DFARS; UKCA



SNAP D Series Racks (with Terminal Strip) Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. These MC and MC-P model racks provide a screw-type terminal strip for additional wiring requirements. This data sheet applies to these parts:
