SNAP-FUSE1AB

$29.00 (USA and Canada only)

Availability: In stock

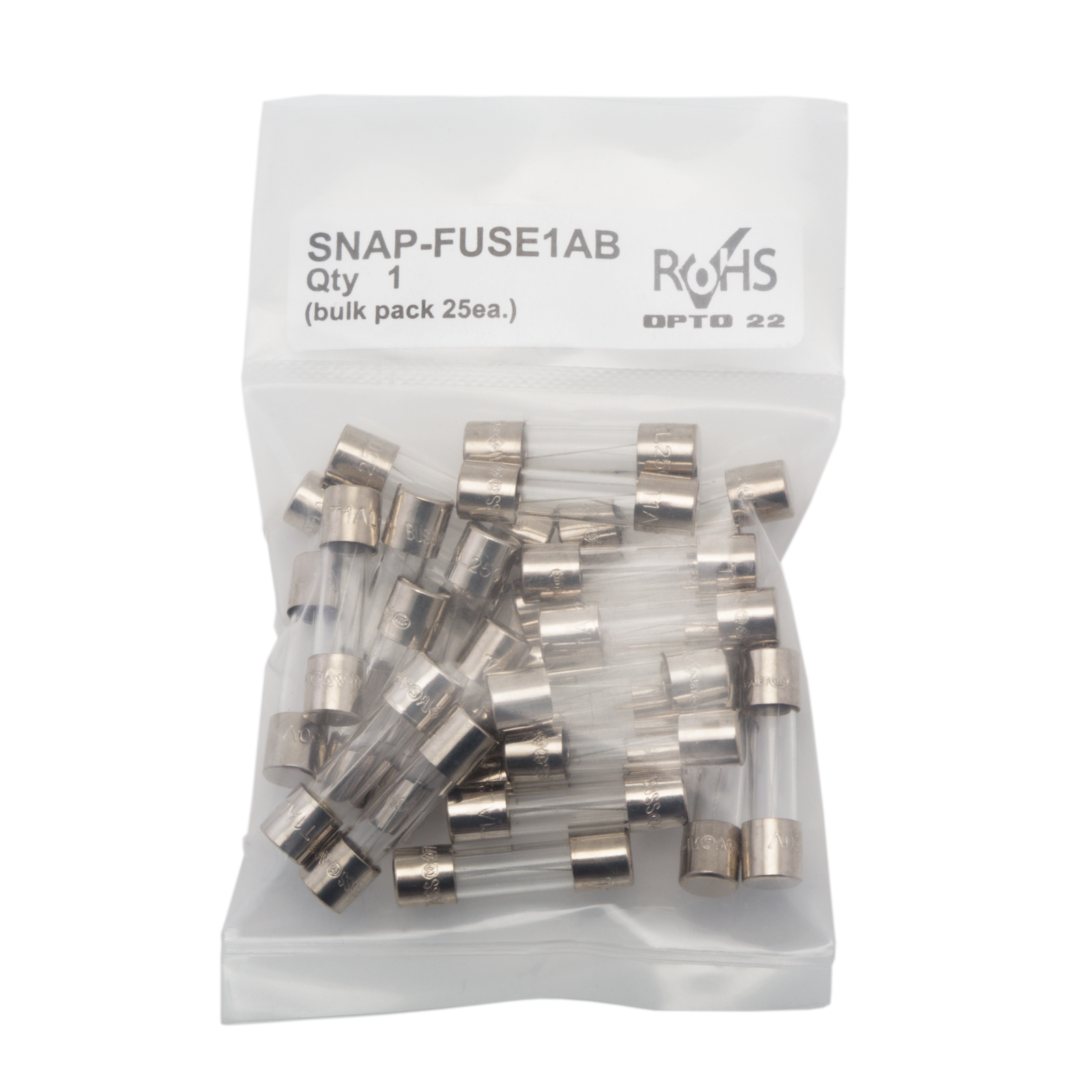

SNAP 1-Amp Fuse, 25 Pack

Please call (800) 321-6786 to order.

SNAP-FUSE1AB

Production Specification

The SNAP-FUSE1AB is a pack of 25 1-amp fuses for use with SNAP D-series racks and power supplies.

See the Fuses data sheet (pdf) to determine which fuse to use with your Opto 22 part number.
1 amp
Package of 25

SNAP Racks Assembly Instructions

This legacy document describes how to install a legacy rack extrusion and how to install or remove a circuit board. It includes a list of SNAP rack accessories.

SNAP I/O Racks Data Sheet

SNAP B-series mounting racks are designed to hold an intelligent SNAP I/O processor (either a SNAP brain or an on-the-rack controller) and several I/O modules.

This data sheet includes detailed information and specifications for SNAP B-series racks as well as the digital-only SNAP-D64RS rack. Rack fuses and DIN-rail adapters are also included in the data sheet.

B-series racks are used with serial and some Ethernet I/O processors.

  • With Ethernet processors such as the SNAP-B3000-ENET, B-series racks hold analog, digital, and serial modules.
  • With serial processors such as the serial B3000 brain, they hold analog and digital modules.

NOTE: For racks to use with SNAP PAC brains and rack-mounted controllers, or with SNAP-UP1-M64 and SNAP Simple brains, see Form #1684, the SNAP PAC Racks Data Sheet.

SNAP D Series Racks (with Terminal Strip) Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. These MC and MC-P model racks provide a screw-type terminal strip for additional wiring requirements.

SNAP D Series Racks Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules.

Opto 22 Fuses (for All Products) Data Sheet

Describes fuses used in Opto 22 racks, modules, power supplies, and other Opto 22 products.

Declaration of Conformity (EMC, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

No downloads are available for this product.
No videos or demos are available for this product.
