$34.75 (USA and Canada only)

Availability: In stock

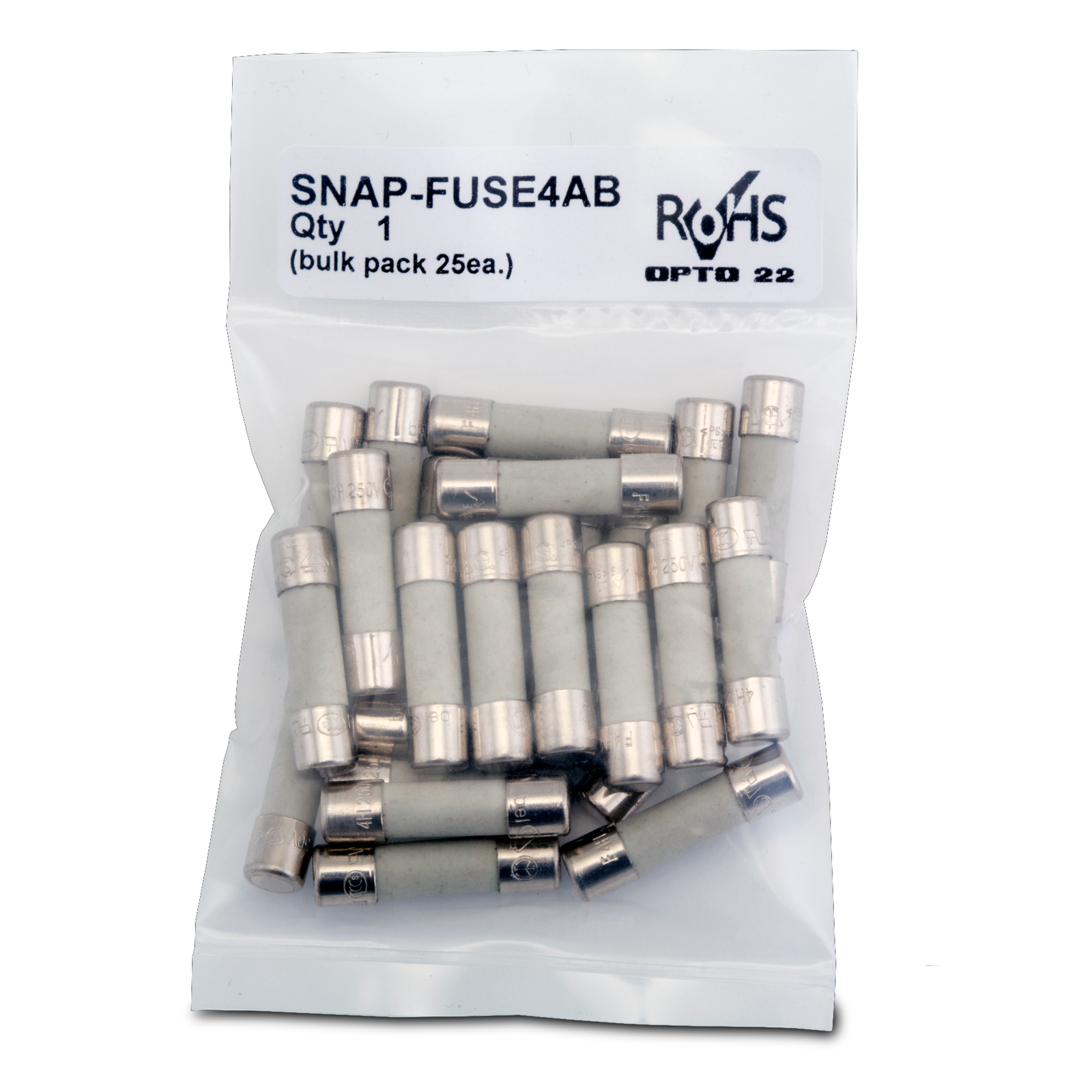

SNAP 4-Amp Fuse, 25 Pack

Production Specification

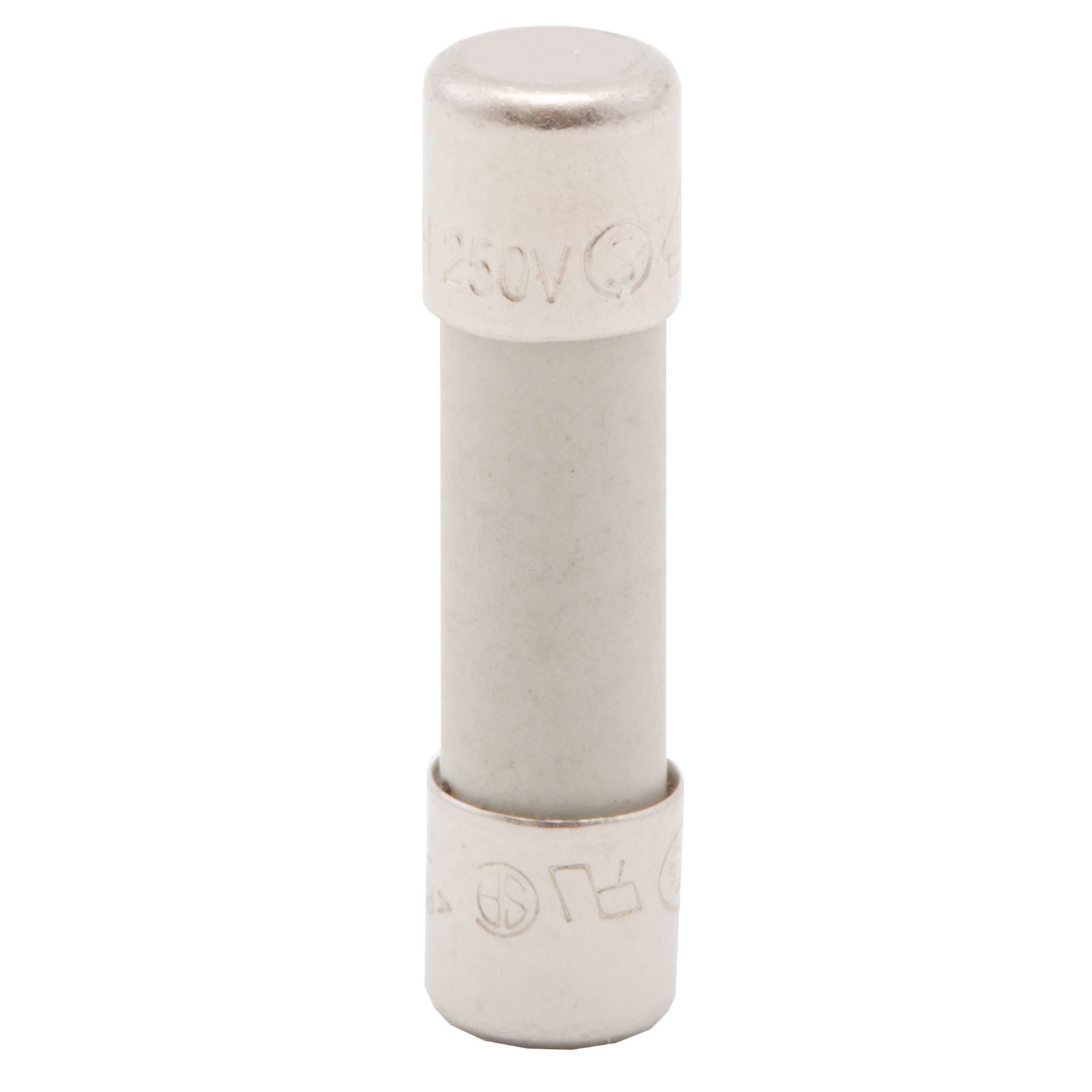

The SNAP-FUSE4AB is a pack of 25 4-amp fuses for use with SNAP B-series racks and power supplies.

See the Fuses data sheet (pdf) to determine which fuse to use with your Opto 22 part number.
4 amps
Pack of 25

SNAP Racks Assembly Instructions

This legacy document describes how to install a legacy rack extrusion and how to install or remove a circuit board. It includes a list of SNAP rack accessories and applies to these parts:

SNAP I/O Racks Data Sheet

SNAP B-series mounting racks are designed to hold an intelligent SNAP I/O processor (either a SNAP brain or an on-the-rack controller) and several I/O modules.

This data sheet includes detailed information and specifications for SNAP B-series racks as well as the digital-only SNAP-D64RS rack. Rack fuses and DIN-rail adapters are also included in the data sheet.

B-series racks are used with serial and some Ethernet I/O processors.

  • With Ethernet processors such as the SNAP-B3000-ENET, B-series racks hold analog, digital, and serial modules.
  • With serial processors such as the serial B3000 brain, they hold analog and digital modules.
This document applies to these parts: NOTE: For racks to use with SNAP PAC brains and rack-mounted controllers, or with SNAP-UP1-M64 and SNAP Simple brains, see Form #1684, the SNAP PAC Racks Data Sheet.

Opto 22 Fuses (for All Products) Data Sheet

Describes fuses used in Opto 22 racks, modules, power supplies, and other Opto 22 products. The fuses in this data sheet work with groov EPIC, G1, G4, and SNAP products and include:

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
