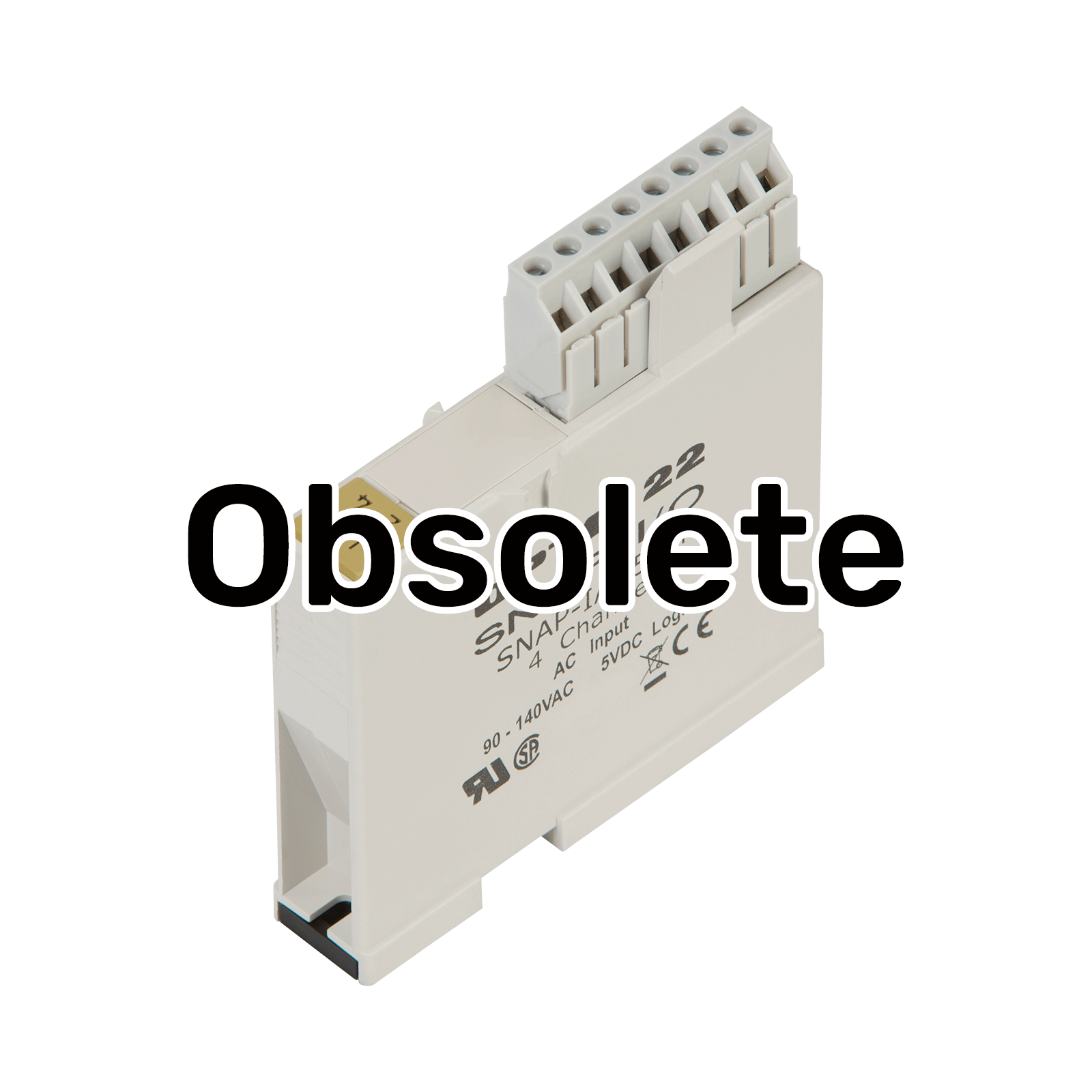

SNAP 4-Ch 90-140 VAC/VDC Digital (Discrete) Input Module, Factory Mutual approved

Please call (800) 321-6786 to order.

Production Specification

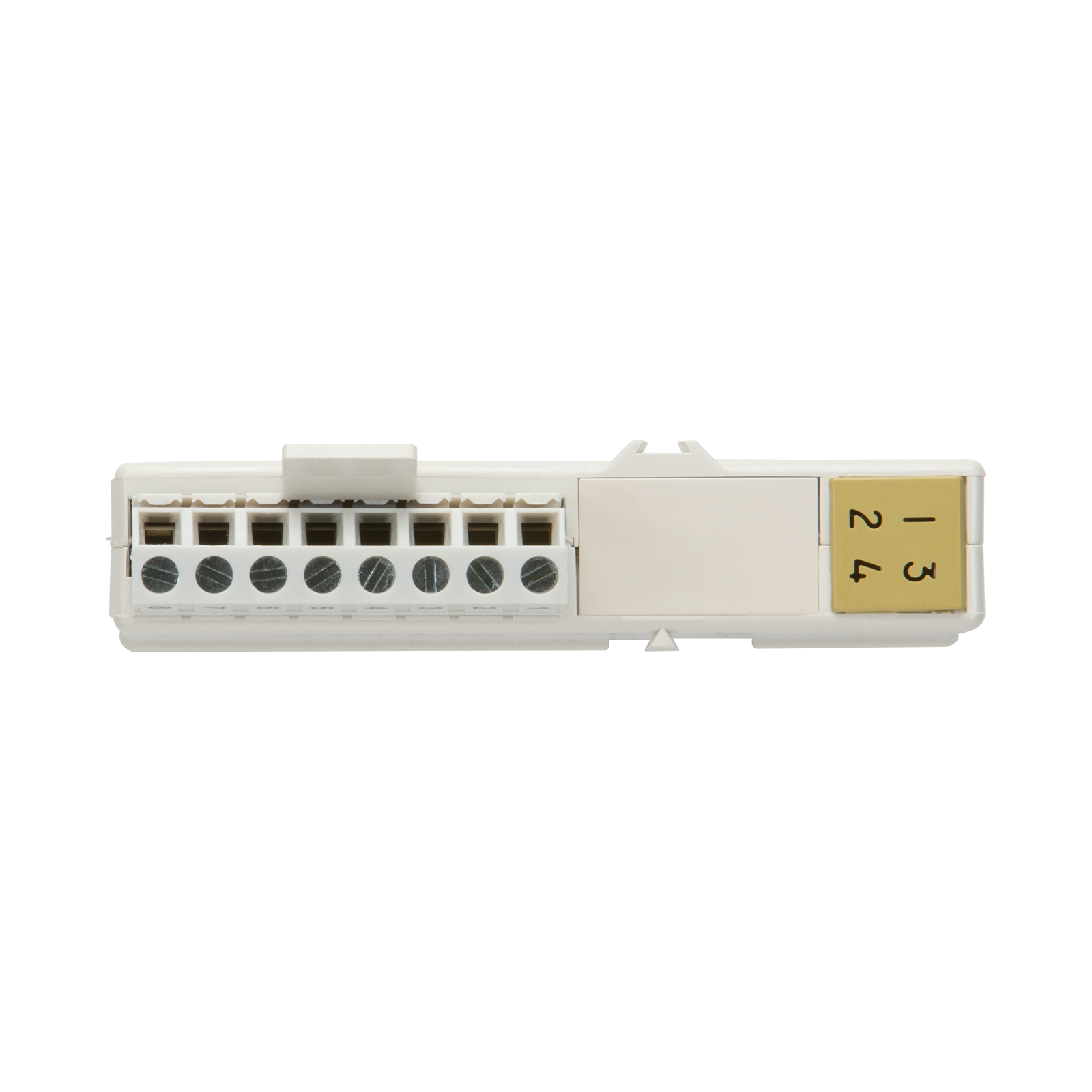

The SNAP-IAC5FM provides four channels of 90-140 VAC/VDC digital input. Each channel senses the on/off status for AC (or DC) voltages from sources such as proximity switches, push buttons, or auxiliary contacts. It has removable top-mounted connectors for easy access to field wiring, as well as channel-specific LEDs for convenient troubleshooting.

This module is Factory Mutual approved.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-IAC5FM

SNAP-IAC5AFM

SNAP-IDC5FM

SNAP-IDC5DFM

Key Feature

Factory Mutual approved

Factory Mutual approved

Factory Mutual approved

Factory Mutual approved

Wire size

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

Field Side Ratings (each channel)

Nominal Input Voltage

120 VAC/VDC

240 VAC/ VDC

24 VAC/VDC

5 VDC

Channel-to-channel
isolation

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

Input Voltage Range

90–140 VAC/VDC

180–280 VAC/VDC

10–32 VAC/VDC

2.5–28 VDC

Turn-on Voltage

90 VAC/VDC

180 VAC/VDC

10 VAC/VDC

2.5 VDC

Turn-off Voltage

35 VAC/VDC

35 VAC/VDC

3 VAC/VDC

1 VDC

Input Resistance

169 K ohms (nominal)

305 K ohms (nominal)

15 K ohms (nominal)

3 K ohms (nominal)

Logic Side Ratings

Logic Output Voltage

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

Logic Supply Voltage*

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

50 mA maximum

50 mA maximum

Negative True Logic
Output Drive

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

Module Ratings

Number of Channels
Per Module

4

4

4

4

Turn-on Time

30 msec

30 msec

5 msec

1 msec

Turn-off Time

30 msec

30 msec

15 msec

1 msec

Optical Isolation
(Field Side to
Logic Side)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 to 70 °C, operating
-40 to 85 °C, storage

-20 to 70 °C, operating
-40 to 85 °C, storage

-20 to 70 °C, operating
-40 to 85 °C, storage

-20 to 70 °C, operating
-40 to 85 °C, storage

Agency Approvals

CE, FM, RoHS, DFARS

CE, FM, RoHS, DFARS

CE, FM, RoHS, DFARS

CE, FM, RoHS, DFARS

Warranty

Lifetime

Lifetime

Lifetime

Lifetime

*When used with an I/O processor (brain or on-the-rack controller), the processor requires 5.0 to 5.2 VDC.
