SNAP-LCE

$817.00 (USA and Canada only)

Availability: In stock
SNAP Ethernet compact industrial controller for ioProject systems

Please call (800) 321-6786 to order.

SNAP-LCE

Production Specification

NOTE: Although fully supported and still in production, this is a legacy product and not recommended for new designs. For new designs, see the standalone SNAP-PAC-S1 and the rack-mounted SNAP-PAC-R1 controllers. SNAP PAC controllers provide more power and additional network connections. SNAP PACs run PAC Control strategies; ioControl strategies can be simply upgraded to PAC Control.

To compare product features, see Legacy and Current Product Comparison and Compatibility Charts.

------------

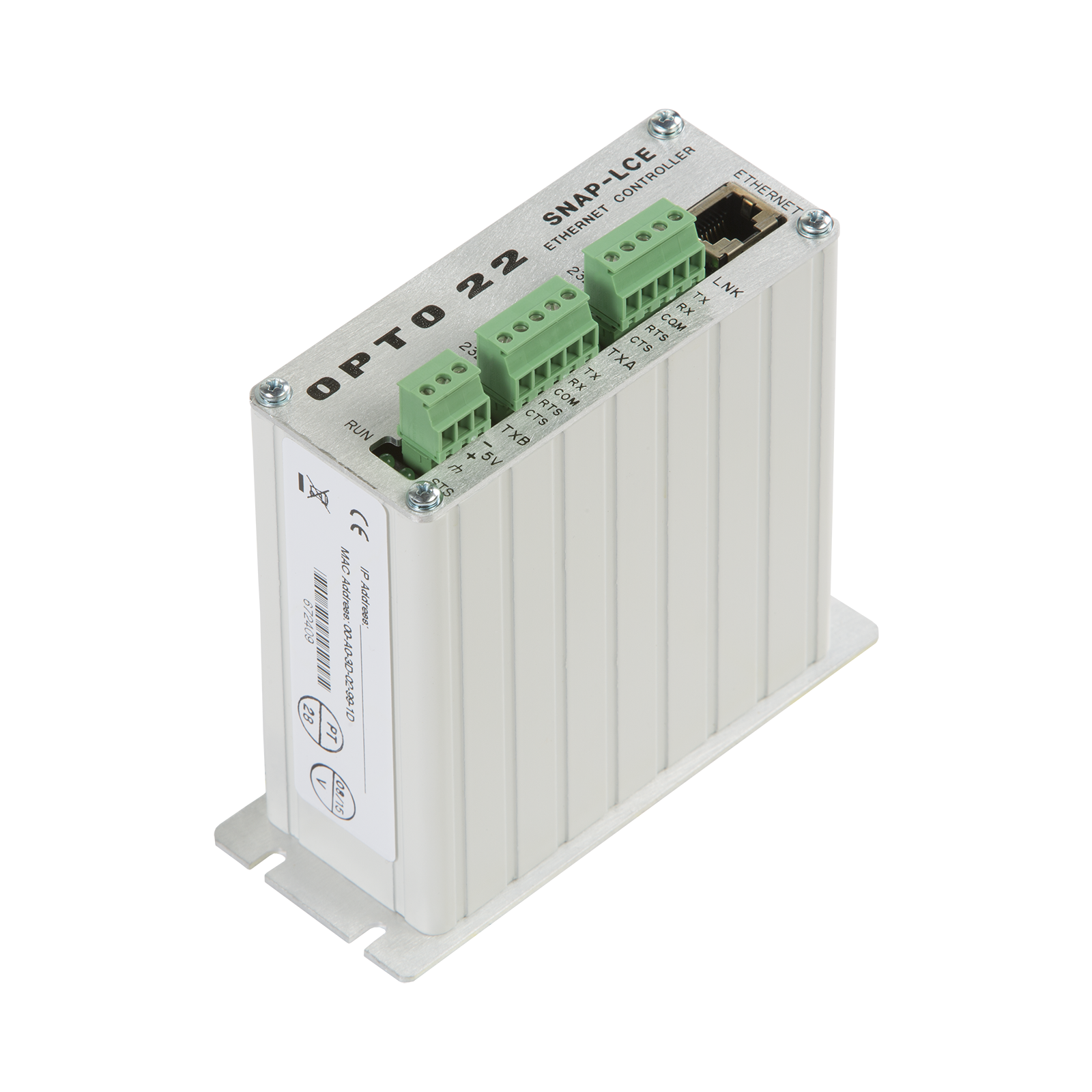

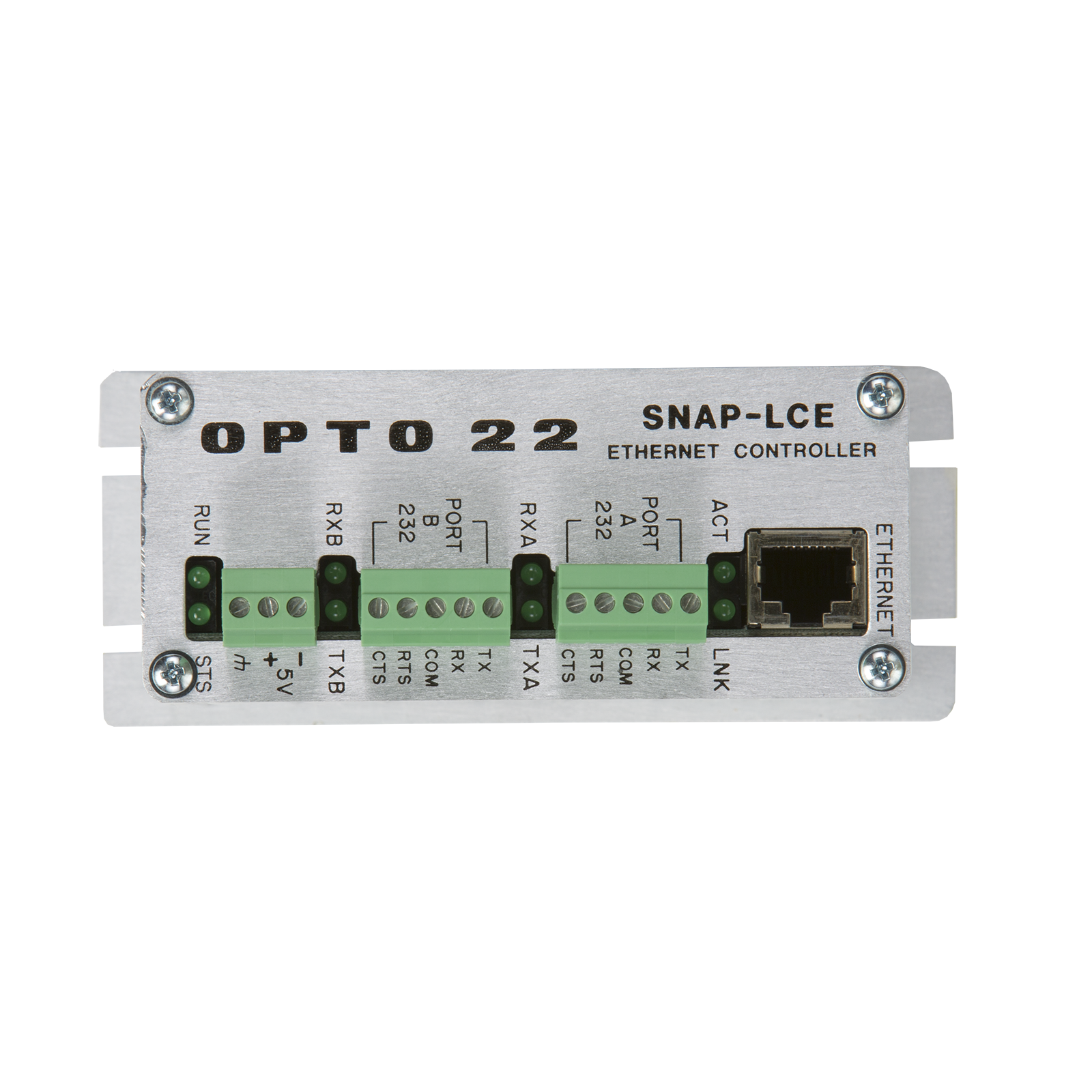

The SNAP-LCE is a stand-alone, small-footprint, Ethernet industrial controller designed for use with SNAP Ethernet I/O units and the ioProject software suite. The SNAP-LCE provides real-time control and is used primarily in industrial control applications. It is programmed with the included ioControl.

NOTE: The SNAP-LCE controller is NOT compatible with FactoryFloor.

SNAP-LCE

Processor

32-bit ColdFire® 5407

Memory
   Total RAM
   Battery-backed RAM
   Flash EEPROM



16 MB
512 KB
8 MB (7 MB with firmware version 7.2)

Backup battery

3-volt CR2032 Lithium, user replaceable.
Typical service life with power off: 5 years.

Host communication

Ethernet (10/100 Mbps) or PPP (dial-up and radio modem)

I/O communication

Ethernet (10/100 Mbps)

I/O unit compatibility

Opto 22 SNAP Simple I/O, SNAP Ethernet I/O, and SNAP Ultimate I/O units

Serial ports

Two RS-232 ports. Baud rate is soft-selectable from 150–115,200 kBd.

Power requirements

5.0–5.2 VDC at 1.2 A

Operating temperature

0 oC to 60 oC

Storage temperature

-40 oC to 85 oC

Humidity

0% to 95% relative humidity, non-condensing

Software

ioProject software suite (ioControl, ioDisplay, ioManager)
Purchase OptoOPCServer separately to communicate using OPC.

Other features

FTP server/client with file system
Real-time clock



ioProject Software Suite Data Sheet

This data sheet describes Opto 22's legacy ioProject software suite, which provides control and HMI development tools for a SNAP Ethernet-based control system. The ioProject suite includes ioControl, ioDisplay, OptoOPCServer, and ioManager.

NOTE: For new development, use a SNAP PAC controller and PAC Project software.

SNAP-LCE Data Sheet

The SNAP-LCE, part of Opto 22's SNAP Ethernet Systems family, is a older, standalone, small-footprint, industrial controller designed for use with SNAP Ethernet-based I/O units and ioProject software. It is used primarily in industrial control applications. The SNAP-LCE provides real-time control and is programmed with the included ioControl, a flowchart-based control programming software.

NOTE: The SNAP-LCE and ioProject are not recommended for new development. For new development, use a SNAP PAC controller and PAC Project software.

SNAP Ultimate I/O Firmware README

This README file lists revision changes made to the SNAP Ultimate I/O firmware used in SNAP Ultimate brains.

ioProject Readme Notes

Readme for ioProject Basic and Professional, the legacy versions of PAC Project. Includes information on features, enhancements, and bug fixes for each ioProject application: ioControl, ioDisplay, OptoOPCServer, ioManager, and ioUtilities.

Allen-Bradley DF1 Integration Kit For ioControl Users Guide

The Allen-Bradley DF1 Integration Kit (Part # IOP-INT-ABDF1) provides users of Opto 22’s ioControl software(version 6.0 and above) an easy method of communicating with Allen-Bradley drivers or PLCs using the DF1 protocol. Opto 22 controllers can act as either a “master” or a “slave” device. They can be connected directly to the serial port on an Allen-Bradley PLC or to Data Highway networks using standard Data Highway interface devices.

SNAP-LCE User's Guide

NOTE:This document covers a legacy product which is not recommended for new development. For new development, we recommend SNAP PAC S-series or R-series controllers.

The SNAP-LCE is a stand-alone, small-footprint, industrial controller designed for use with SNAP Ethernet-based I/O units. It is used primarily in industrial control applications. The SNAP-LCE provides real-time control and is programmed with the included ioControl.

OptoMMP Protocol Guide

This guide is for programmers who are writing custom applications to communicate with Opto 22 memory-mapped devices. These devices include SNAP PAC controllers and SNAP PAC EB and SB brains; G4EB2 brains; SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O; E1 and E2 brain boards, and SNAP-LCE controllers.

The guide describes how to use the IEEE 1394-based OptoMMP memory-mapped protocol for programming. The guide also contains the complete memory map for all Opto 22 memory-mapped devices.

NOTE: This guide replaced previous individual programming guides for SNAP Ultimate I/O (form #1312) and SNAP Ethernet I/O (form #1227). This document was formerly called the "SNAP Ethernet-Based I/O Units Protocols and Programming Guide."

ioManager User's Guide

ioManager is the software tool used to assign IP addresses and configure I/O points and system functions on most Opto 22 Ethernet-based hardware, including SNAP-LCE controllers: SNAP Ethernet, SNAP Ultimate, SNAP Simple, E1, and E2 I/O units; and SNAP-IT units. ioManager can also be used to directly read or write to these devices.

ioControl Commands Quick Reference Card

Quick reference card for using ioControl, including all standard ioControl commands and their OptoScript equivalents. ioControl is part of the ioProject software suite.

ioControl Command Reference

This command reference describes in detail all ioControl programming commands, or instructions. Use with form #1300, the ioControl User's Guide. ioControl is part of the ioProject software suite.

ioControl User's Guide

The ioControl User's Guide includes programming instructions and tips for developing control strategies to run on SNAP Ultimate controller/brains and SNAP-LCE controllers. ioControl is part of the ioProject software suite.

SNAP PAC System Migration Technical Note

This document describes migration options for customers integrating the SNAP PAC System with older Opto 22 systems. It explains the SNAP PAC System's similarities and differences with earlier systems, defines legacy products, and shows how to mix old and new hardware.

Customers moving to the SNAP PAC System may also want to consult form #1693, Legacy and Current Product Comparison and Compatibility Charts.

SNAP-PSDIN Installation Note

This document describes how to install a SNAP DIN-RAIL mounting assembly.

SNAP-LCE Controller Firmware

This download contains current firmware for the SNAP-LCE controller.

Allen-Bradley DF1 Integration Kit for ioControl

The Allen-Bradley DF1 Integration Kit provides users of Opto 22’s ioControl software (version 6.0 and above) an easy method of communicating with Allen-Bradley drivers or PLCs using the DF1 protocol. Opto 22 controllers can act as either a “master” or a “slave” device. They can be connected directly to the serial port on an Allen-Bradley PLC or to Data Highway networks using standard Data Highway interface devices.

Controller Time Synchronization Application

This software application updates the internal clock for an Ethernet-connected Opto 22 controller. The application runs in Windows at the command prompt, and can update controller clocks regularly or just once.

This application is used with the following Opto 22 controllers:

  • SNAP PAC S- and R-Series
  • Ultimate I/O (UIO)
  • SNAP-LCE
  • SNAP-LCM4
  • M4
  • M4RTU
  • M4IO
This download is freeware. Before downloading, read the Legal Agreement.

Optomation Systems ioControl Functions

A piecewise linear interpolator function PLI under ioControl 5.1. The ioScript version can be easily copied to your program. It can be used for any of the following applications:

  • Calculating volume from tank level measurement (PV=Level Q=Volume)
  • Setpoint Generator (PV=Elapsed Time Q=Required Setpoint, eg Temp or Flow)
  • Flow rate profiling (PV=Dif Pressure Q=Flow Rate)
  • Split Range Control (PV=Common Output Q=Valve1 profile)
  • Adaptive Gain (PV=Secondary Variable Q=PID Gain Value)

No videos or demos are available for this product.
