SNAP-OAC5MA
Hover over image to zoom in

SNAP-OAC5MA

$177.00 (USA and Canada only)

Availability: In stock

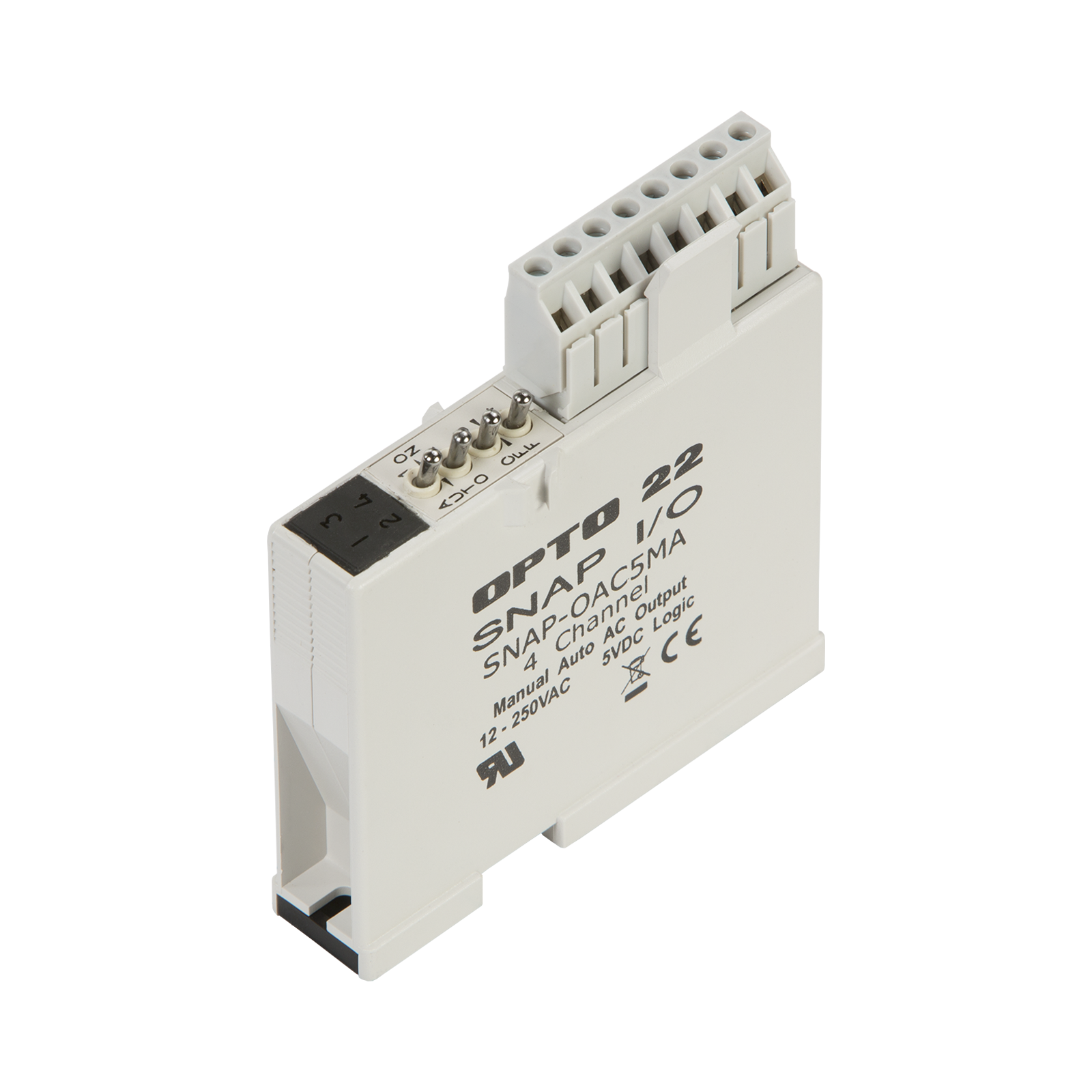

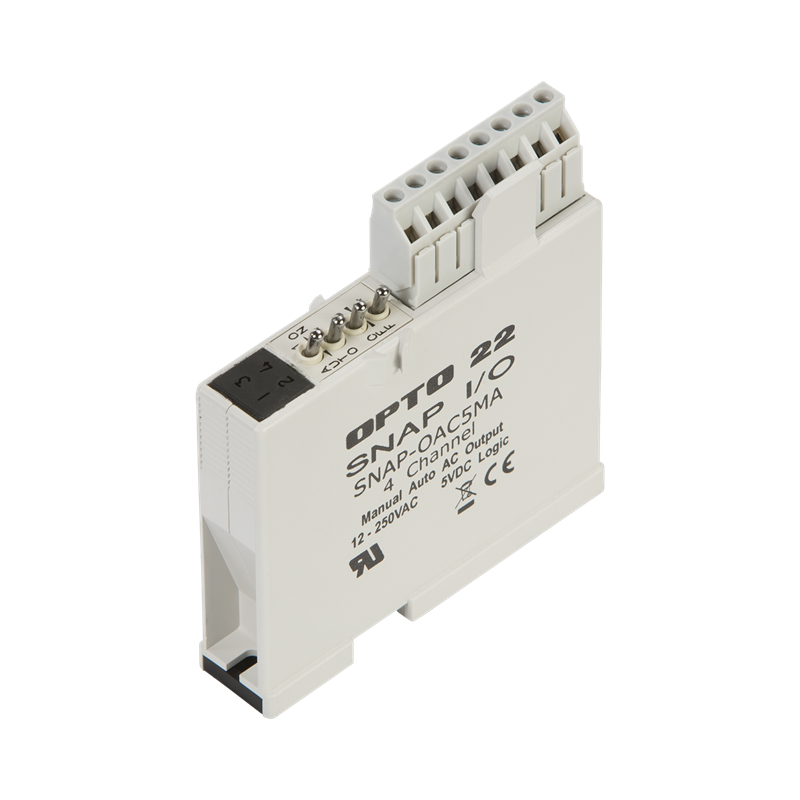

SNAP 4-Ch Isolated 12-250 VAC Digital (Discrete) Output Module with Manual/Auto Switches

Production Specification

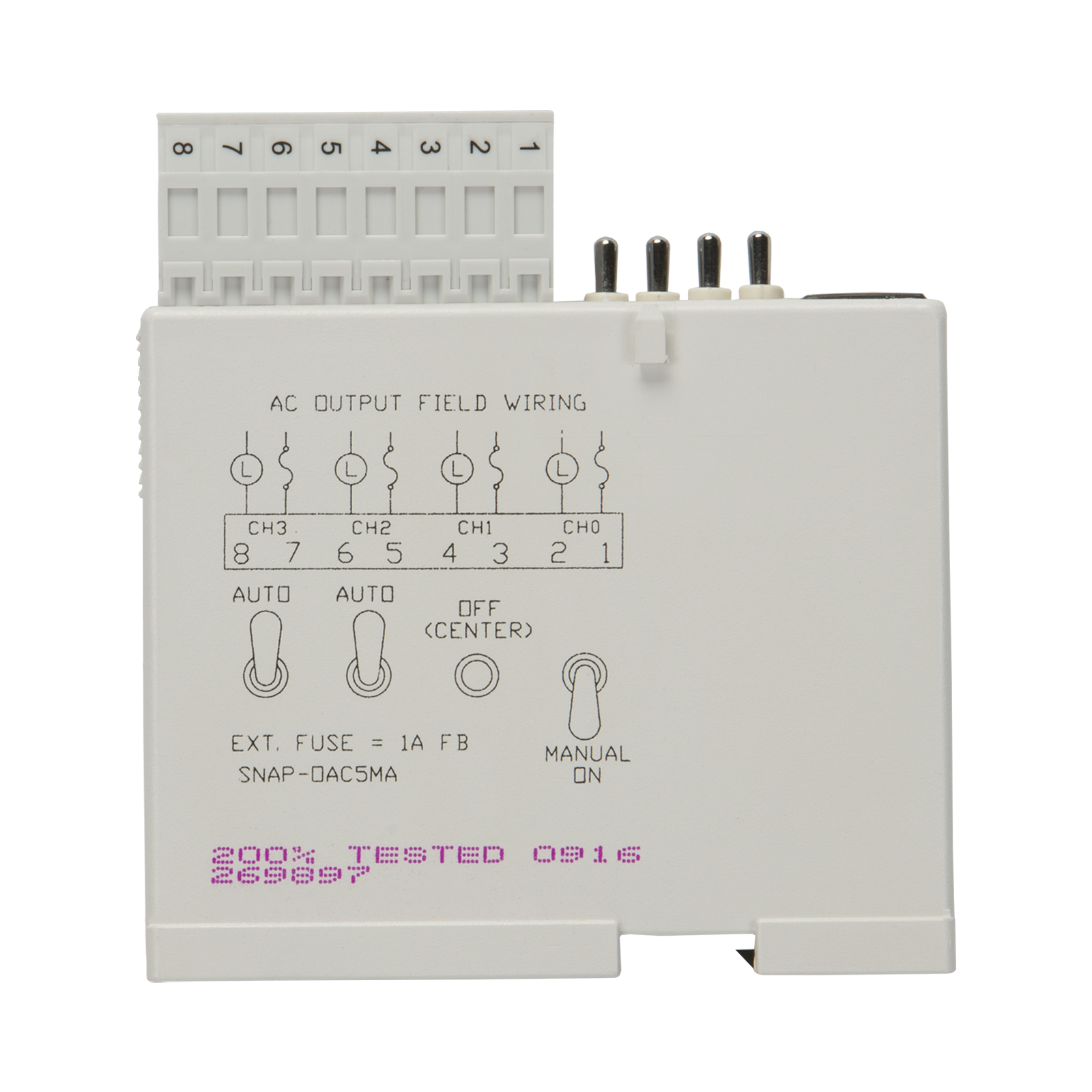

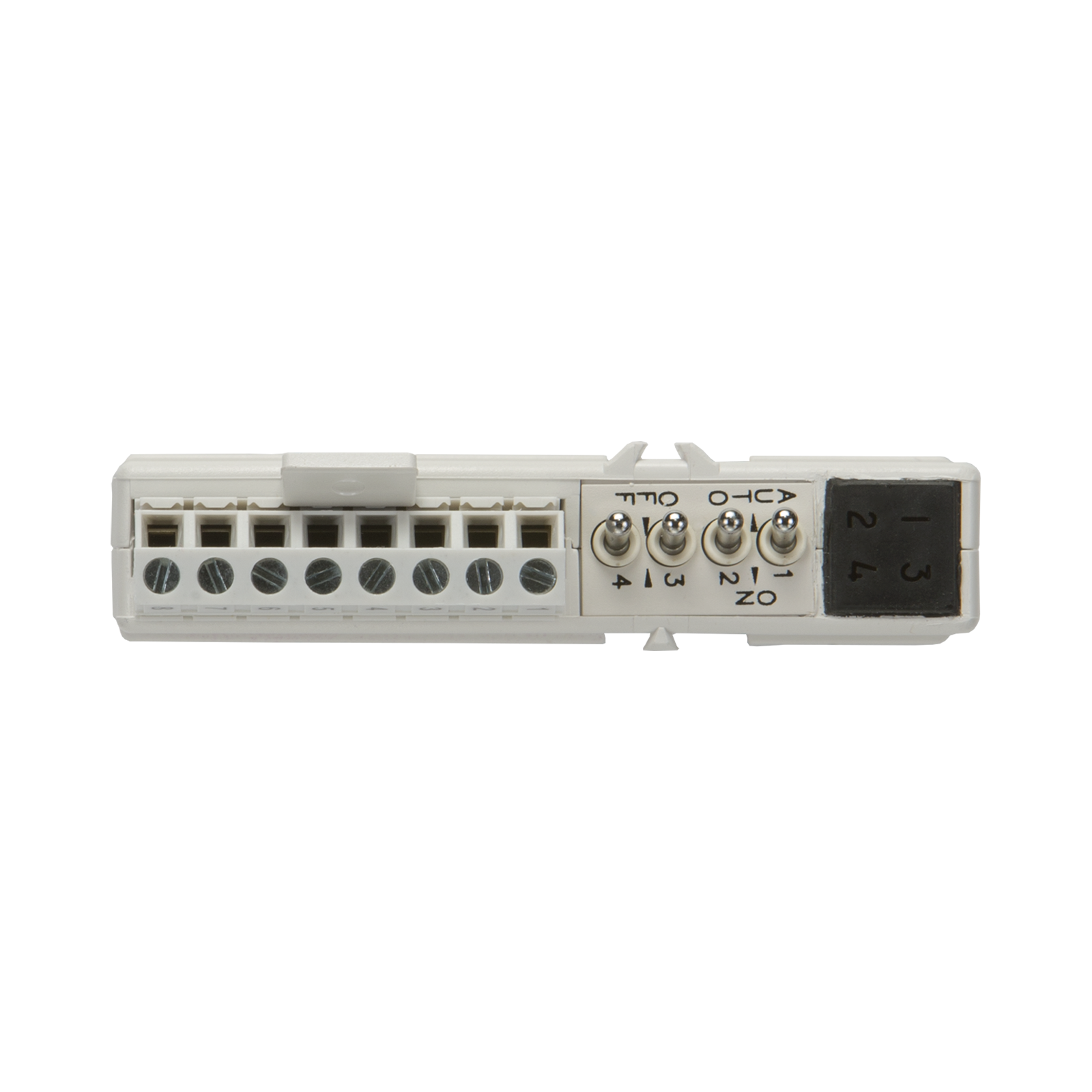

The SNAP-OAC5MA provides four isolated channels of 12-250 VAC digital output, each switching a separate AC load. AC outputs use zero voltage turn on and zero current turn off for transient-free switching. The module features manual-on/manual-off/automatic switches that override output from the application and are ideal for testing field device wiring.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-OAC5

SNAP-OAC5MA

SNAP-OAC5-i

Key Feature

--

Diagnostic switches
Four isolated channels

Four isolated channels

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

Field Side Ratings (each channel)

Line Voltage - Range

12–250 VAC

12–250 VAC

12–250 VAC

Line Voltage - Nominal

120/240 VAC

120/240 VAC

120/240 VAC

Current Rating
0 °C to 70 °C Ambient

3 amps per module

3 amps per module

3 amps per module

One Cycle Surge

80 amps peak (50/60 Hz)

80 amps peak (50/60 Hz)

80 amps peak (50/60 Hz)

Minimum Load Current

20 mA

20 mA

20 mA

Output Voltage Drop

1.6 volts max.@ 0.75 amps

1.6 volts max.@ 0.75 amps

1.6 volts max.@ 0.75 amps

Off-state Leakage at
Nominal Voltage - 60 Hz

2.5 mA @ 240 VAC
1.25 mA @ 120 VAC

2.5 mA @ 240 VAC
1.25 mA @ 120 VAC

2.5 mA @ 240 VAC
1.25 mA @ 120 VAC

Peak Blocking Voltage

500 V

500 V

500 V

Operating Frequency

25–65 Hz

25–65 Hz

25–65 Hz

dV/ dt - Off-state

200 volts/msec

200 volts/msec

200 volts/msec

dV/ dt - Commutating

Snubbed for rated 0.5 power factor load

Snubbed for rated 0.5 power factor load

Snubbed for rated 0.5 power factor load

Fuse
(Common to all Channels)

250 VAC - 4A 5x20 mm
Fast-acting Bell Fuse Part: BEL 5HF4
Opto 22 Part: SNAP-FUSE4AB

Has four isolated channels.
User must provide own fus­ing.

Has four isolated channels.
User must provide own fus­ing.

Channel-to-channel isolation

Not applicable

300 VAC
(1500 V transient)

300 VAC
(1500 V transient)

Logic Side Ratings

Pickup Voltage

4 V @ 5.5 mA

4 V @ 5.5 mA

4 V @ 5.5 mA

Dropout Voltage

1 VDC

1 VDC

1 VDC

Control Resistance

220 ohms

220 ohms

220 ohms

Logic Supply Voltage

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

50 mA maximum

Module Ratings

Number of Channels Per Module

4

4

4

Turn-on Time

0.5 cycle maximum
(zero volts crossover)

0.5 cycle maximum
(zero volts crossover)

0.5 cycle maximum
(zero volts crossover)

Turn-off Time

0.5 cycle maximum
(zero current crossover)

0.5 cycle maximum
(zero current crossover)

0.5 cycle maximum
(zero current crossover)

Isolation (Field Side to Logic Side)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

Wire size range

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

Agency Approvals

UL, CE, CSA, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime

30 months

Lifetime
