SNAP-ODC-32-SRC-FM

$343.00 (USA and Canada only)

Availability: Call for Availability

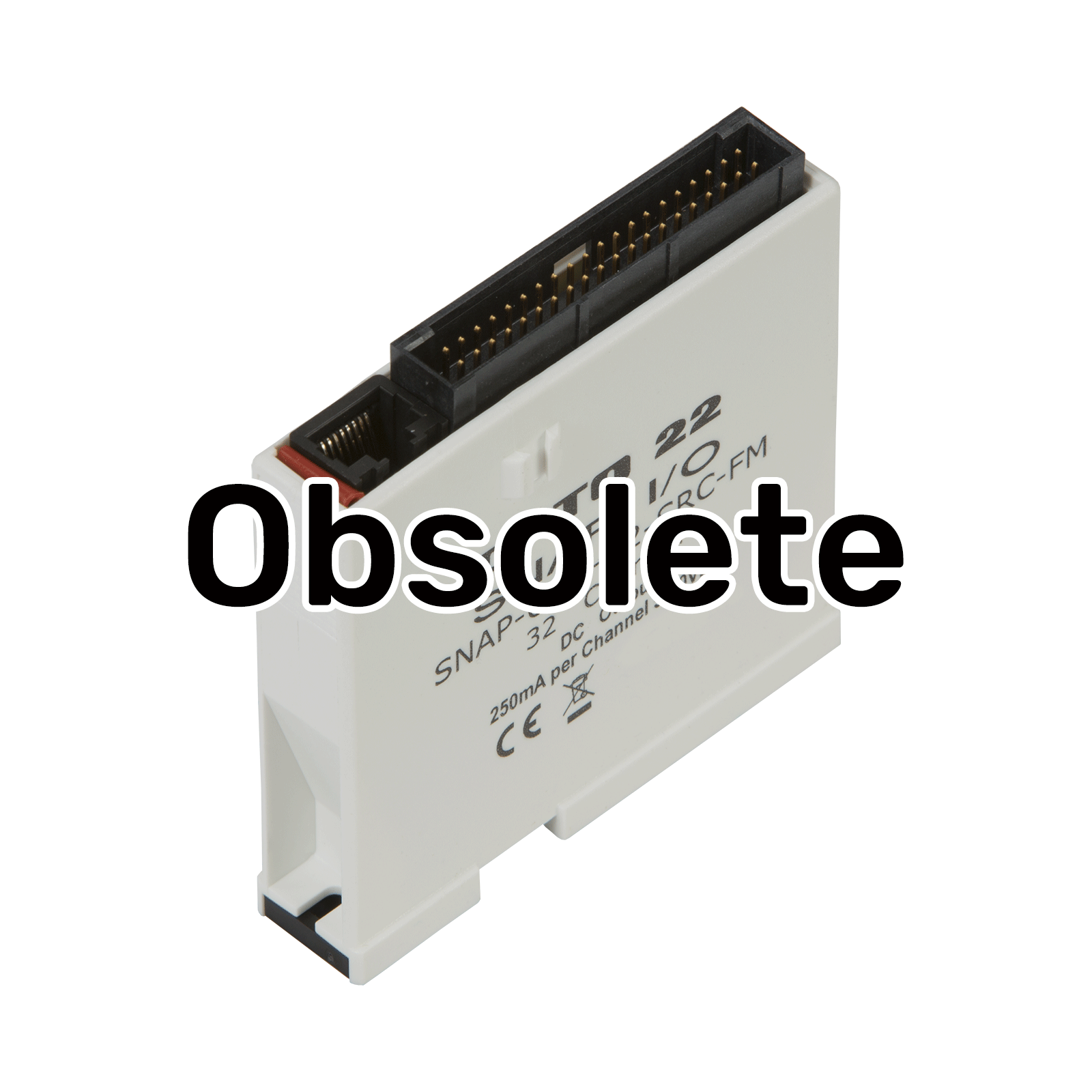

SNAP 32-channel Digital (Discrete) Output Module, 5-60 VDC Load Sourcing, Factory Mutual Approved

Please call (800) 321-6786 to order.

SNAP-ODC-32-SRC-FM

Production Specification

The SNAP-ODC-32-SRC-FM digital output module (load sourcing) provides 32 digital output channels in one compact SNAP module. This module is ideal for OEMs and others with applications with high point counts, or for those requiring a large number of digital output channels on one SNAP I/O rack. The high-density configuration reduces per-point costs of digital I/O systems by providing up to eight times as many I/O channels in the same space.

If you're unsure whether you need a sinking or sourcing module, see the sinking/sourcing demo or watch the brief Sinking vs. Sourcing video.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easy field wiring, use the SNAP-ODC-HDB-FM breakout rack and the SNAP-HD-BF6 header cable. A wiring harness with flying leads (SNAP-HD-CBF6) is also available.

NOTE: The SNAP-ODC-32-SRC-FM is Factory Mutual approved. If you don't need FM approval, see the SNAP-ODC-32-SRC instead.

Reference Charts: Build your system in the SNAP I/O Configurator.



SNAP-ODC-32-SRC
SNAP-ODC-32-SRC-FM

SNAP-ODC-32-SNK
SNAP-ODC-32-SNK-FM

Switching Voltage

5–60 VDC

5–60 VDC

Nominal Switching Voltage

12–24 VDC

12–24 VDC

Logic Voltage and Current

5 VDC ± 0.1 @ 150 mA

5 VDC ± 0.1 @ 150 mA

Maximum Off State Voltage

60 VDC

60 VDC

Output Leakage, Typical

<10 microamps per channel (60 V, 70 °C)

<10 microamps per channel (60 V, 70 °C)

Maximum Load per Point

0.25 A

0.25 A

Voltage Drop

0.15 VDC @ 0.25 A

0.15 VDC @ 0.25 A

Surge (1 sec.)

1 A

1 A

Output Arrangement

32 output channels; 4 groups of 8 outputs each. Points in each group share a common positive connection.

32 output channels; 4 groups of 8 outputs each. Points in each group share a common negative connection.

Maximum Operating
Common Mode Voltage

250 V

250 V

Isolation: Field to Logic

1500 V

1500 V

Output Turn-On/Off Time

100 microseconds

100 microseconds

Polling time from I/O proces­sor to module1

2–30 ms typical2

2–30 ms typical2

Indicators

None; use optional OptoTerminal-G20 diag­nostic display or breakout rack.

None; use optional OptoTerminal-G20 diagnostic display or breakout rack.

Maximum Number of HDD Modules on One Mounting Rack

16

16

Torque, hold-down screws

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

Operating Temperature

-20 to 70 °C

-20 to 70 °C

Storage Temperature

-40 to 85 °C

-40 to 85 °C

Agency Approvals

SNAP-ODC-32-SRC: UL, CE, RoHS, DFARS

SNAP-ODC-32-SRC-FM: CE, FM, RoHS, DFARS

SNAP-ODC-32-SNK: UL, CE, RoHS, DFARS

SNAP-ODC-32-SNK-FM: CE, FM, RoHS, DFARS

Warranty

Lifetime

Lifetime

1 Affects turn-on and turn-off determination
2 Time varies based on the SNAP PAC I/O processor (brain or on-the-rack controller), processor configuration, and Ethernet host communication activity.
