SNAP-ODC5-I
Hover over image to zoom in

SNAP-ODC5-I

$96.75 (USA and Canada only)

Availability: Call for Availability

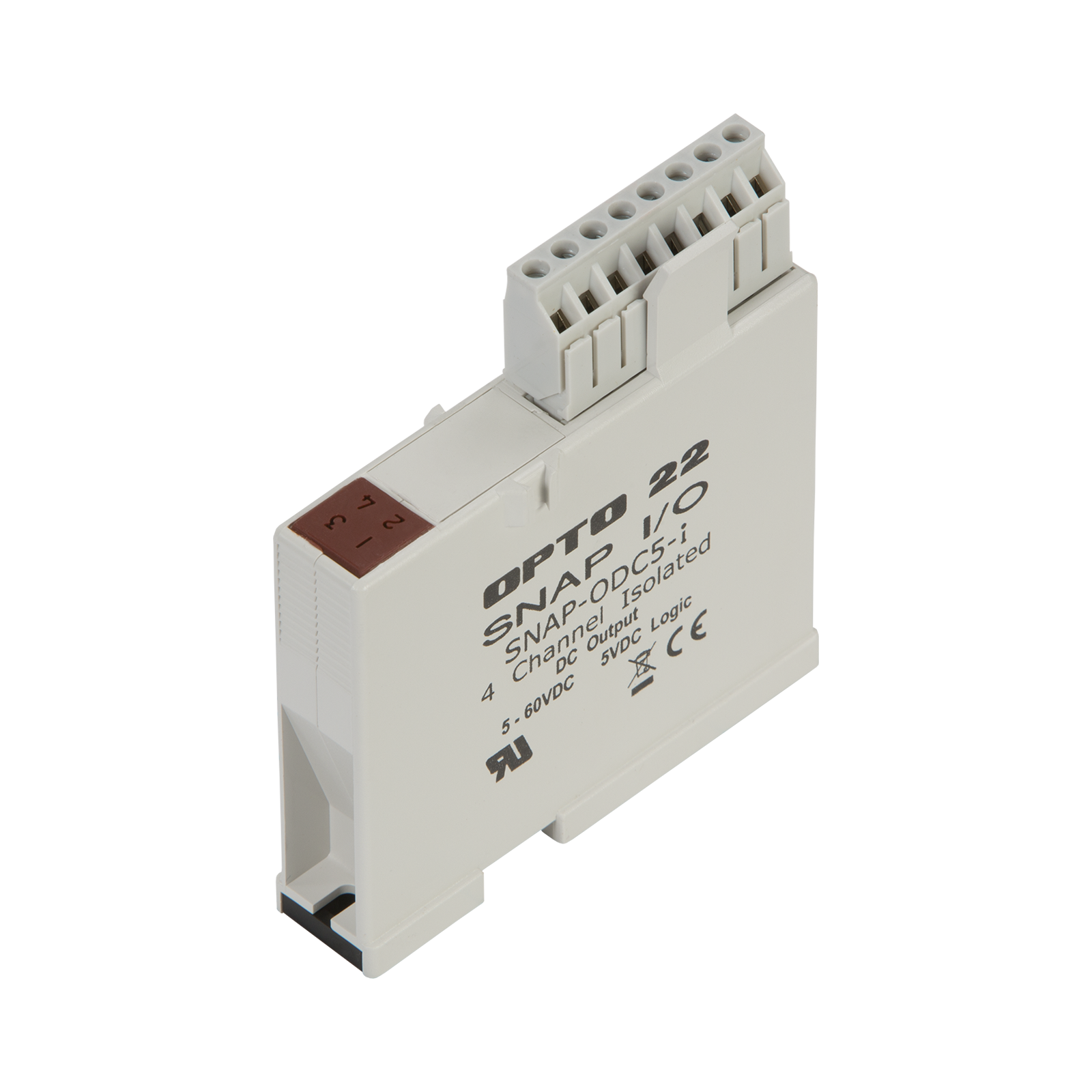

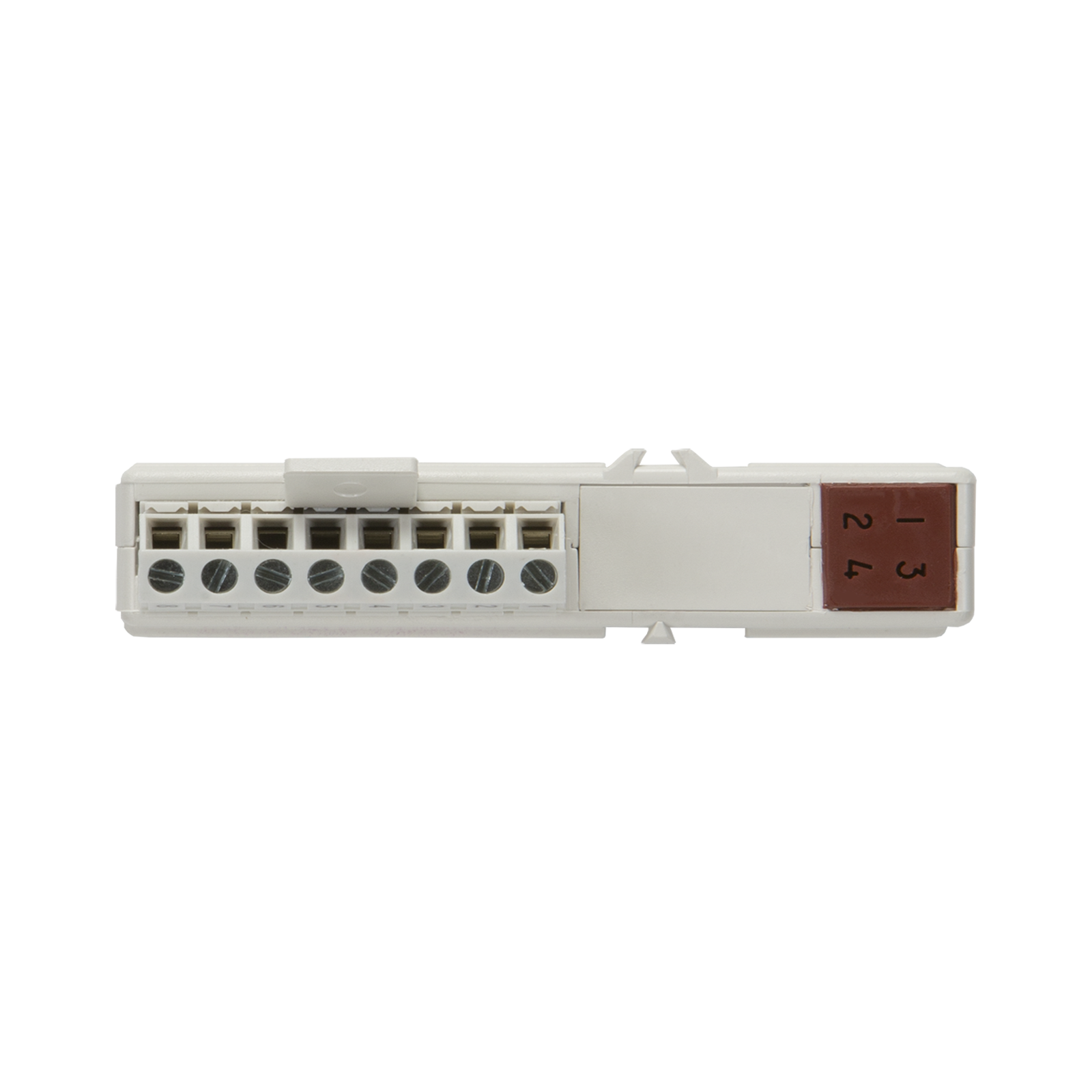

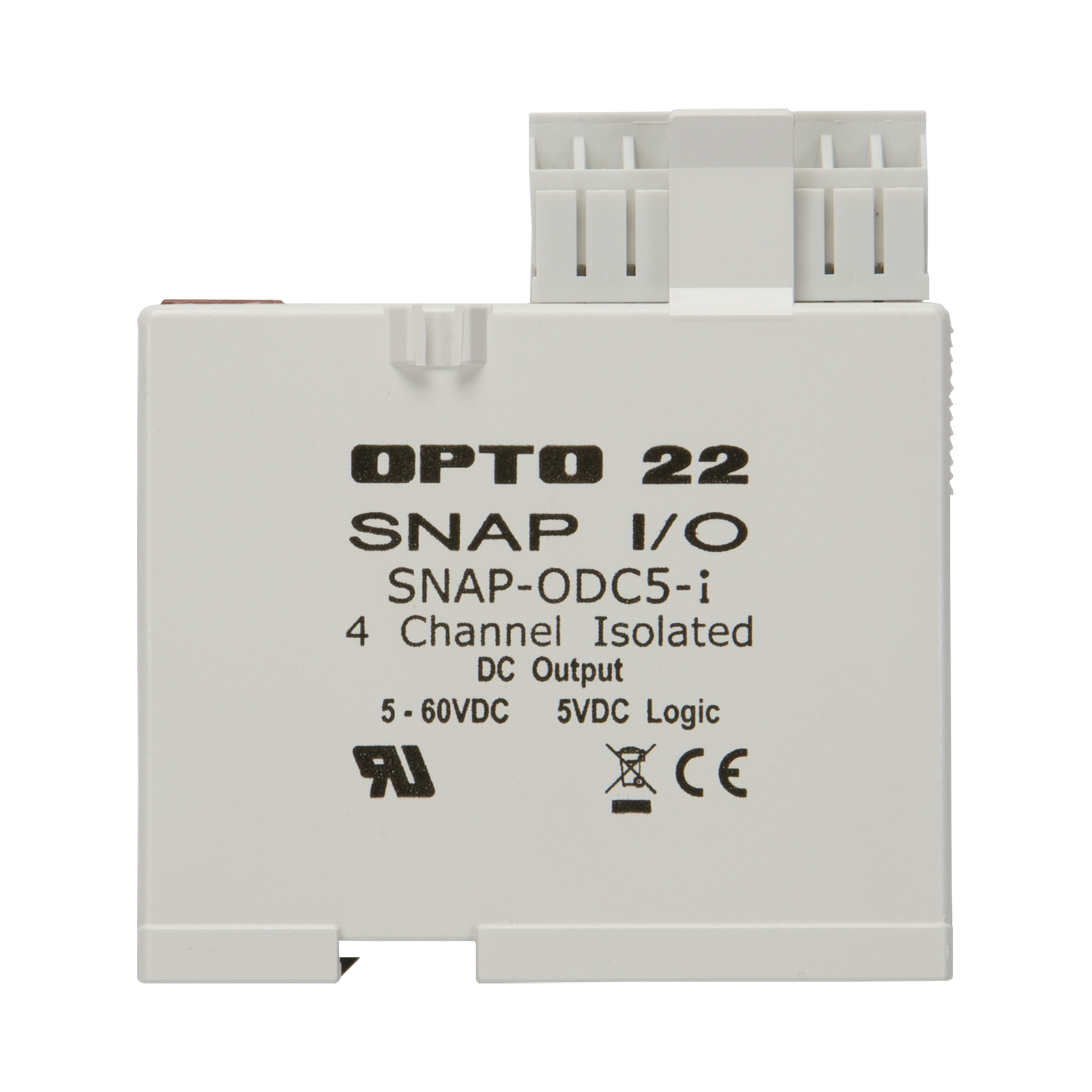

SNAP 4-Ch Isolated 5-60 VDC Digital (Discrete) Output Module

Production Specification

The SNAP-ODC5-i provides four isolated channels of 5-60 VDC digital output, each switching a separate DC load. The module features channel-specific LEDs for troubleshooting and includes a connector clamp to prevent sparks.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-ODC5MA

SNAP-ODC5-i

SNAP-ODC5A-i

SNAP-ODC5ASNK

Key Feature

Diagnostic switches
Four isolated channels

Four isolated channels

Four isolated channels

Load sinking

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

Field Side Ratings (each channel)

Line Voltage - Range

5–60 VDC

5–60 VDC

5–200 VDC

5–200 VDC

Line Voltage - Nominal

5–48 VDC

5–48 VDC

5–200 VDC

5–200 VDC

Current Rating
0 °C to 70 °C Ambient

2 amps per module
0.5 amps per channel

3 amps per module

3 amps per module

3 amps per module

Surge Current

1.5 amps peak for
1 second

5 amps peak for
1 second

5 amps peak for
1 second

5 amps peak for
1 second

Minimum Load

20 mA

20 mA

20 mA

20 mA

Output Voltage Drop

1.6 volts max.@ 0.75 amps

1.6 volts max.@ 0.75 amps

1.6 volts max.@ 0.75 amps

1.6 volts max.@ 0.75 amps

Off-state Leakage

1 mA @ 60 VDC

1 mA @ 60 VDC

1 mA @ 200 VDC

1 mA @ 200 VDC

Peak Blocking Voltage

60 VDC

60 VDC

200 VDC

200 VDC

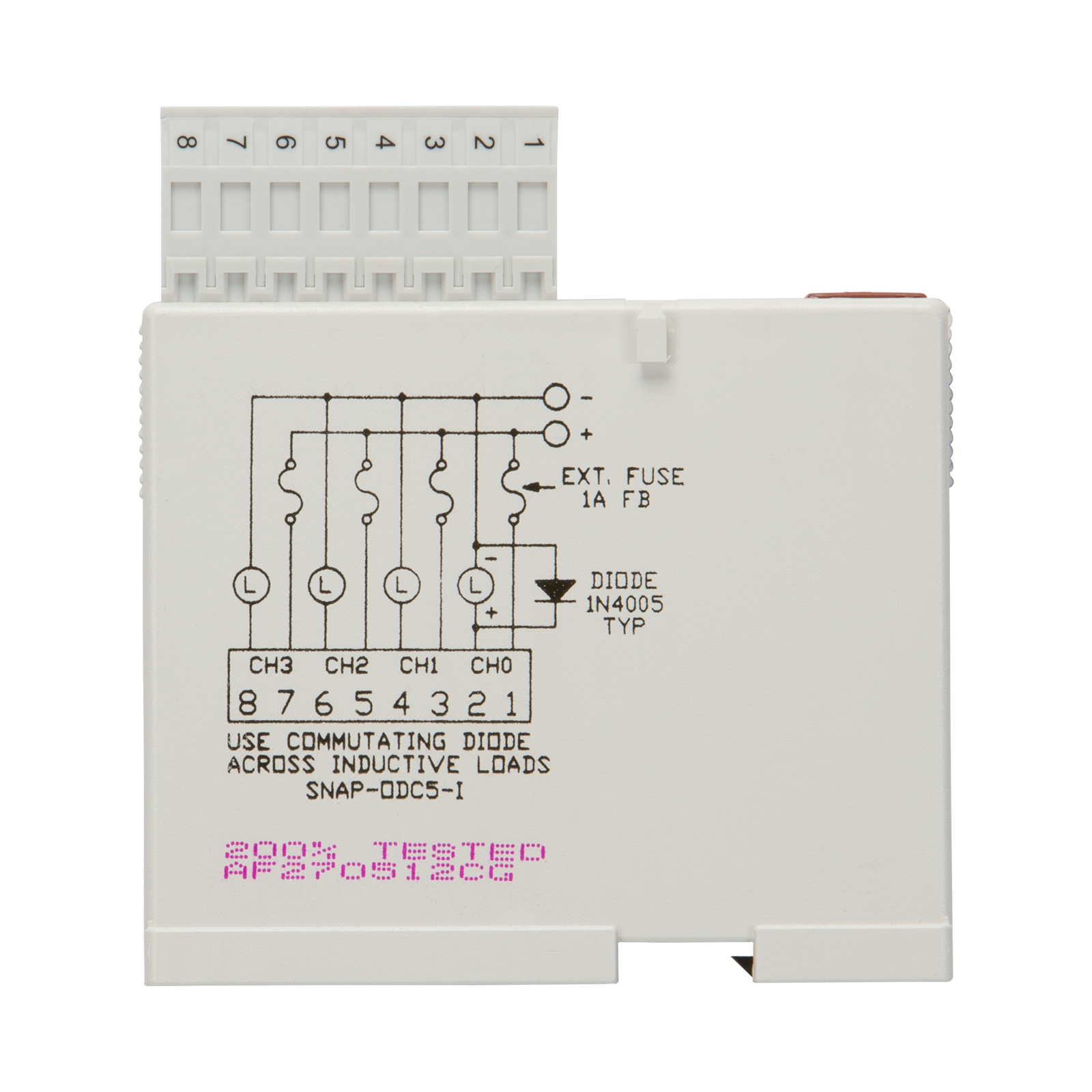

Fuse
(Common to all Channels)

Has four isolated
channels. User must provide own fusing.

Has four isolated
channels. User must provide own fusing.

Has four isolated
channels. User must provide own fusing.

250 VAC - 4A 5x20 mm
Fast-acting Bell Fuse Part: BEL 5HF4
Opto 22 Part: SNAP-FUSE4AB

Channel-to-channel
isolation

300 VAC
(1500 V transient)

300 VAC
(1500 V transient)

300 VAC
(1500 V transient)

Not applicable

Logic Side Ratings

Pickup Voltage

4 V @ 5.5 mA

4 V @ 5.5 mA

4 V @ 5.5 mA

4 V @ 5.5 mA

Dropout Voltage

1 VDC

1 VDC

1 VDC

1 VDC

Control Resistance

220 ohms

220 ohms

220 ohms

220 ohms

Logic Supply Voltage

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

50 mA maximum

50 mA maximum

Module Ratings

Number of Channels Per Module

4

4

4

4

Turn-on Time

100 usec

100 usec

100 usec

100 usec

Turn-off Time

750 usec

750 usec

750 usec

750 usec

Isolation (Field Side to Logic Side)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

-20 ° to 70 °C, operating
-40 ° to 85 °C, storage

Wire size range

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

Warranty

30 months

Lifetime

Lifetime

Lifetime
