SNAP 4-Ch 5-60 VDC Digital (Discrete) Output Module, Load Sourcing

Please call (800) 321-6786 to order.

SNAP-ODC5SRC

Production Specification

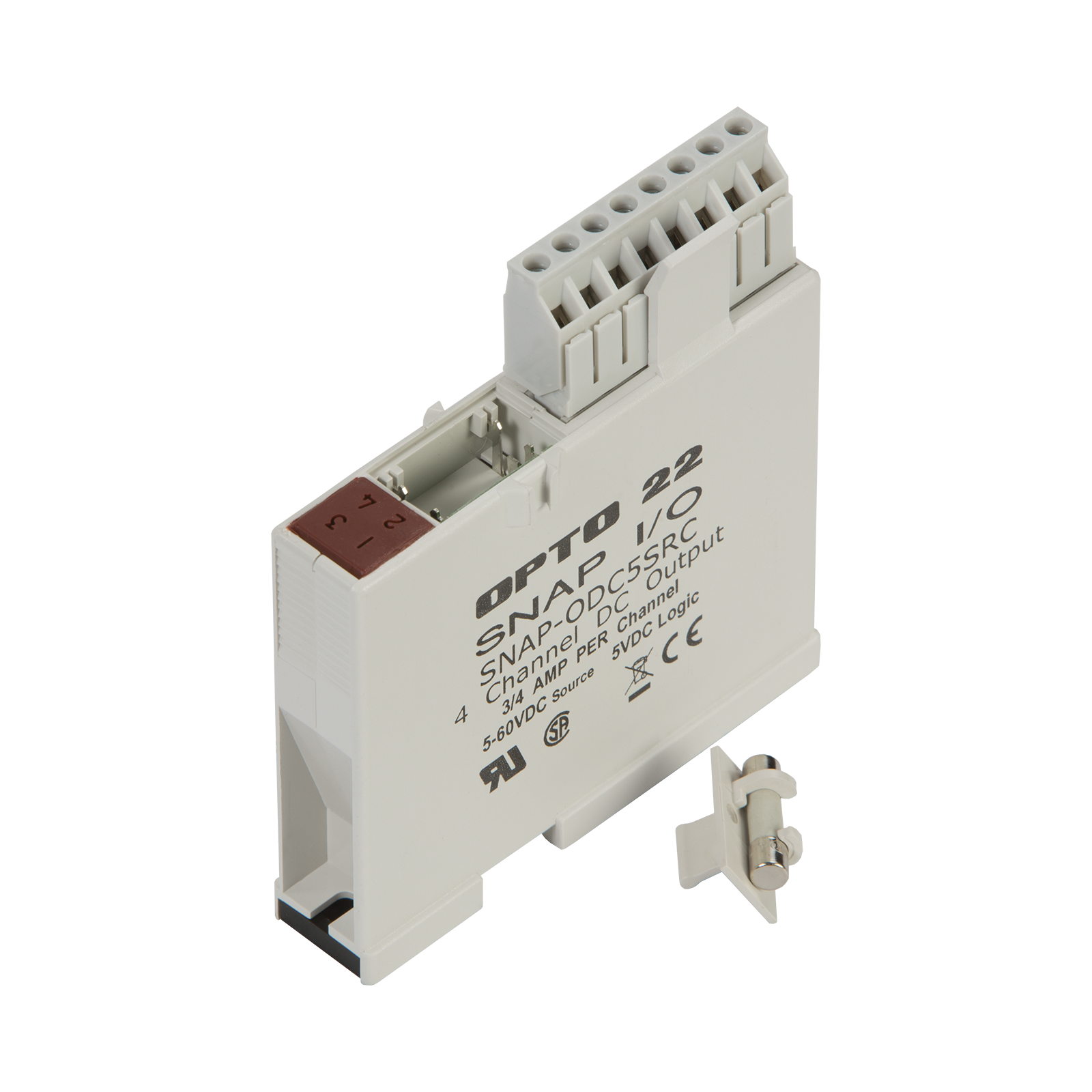

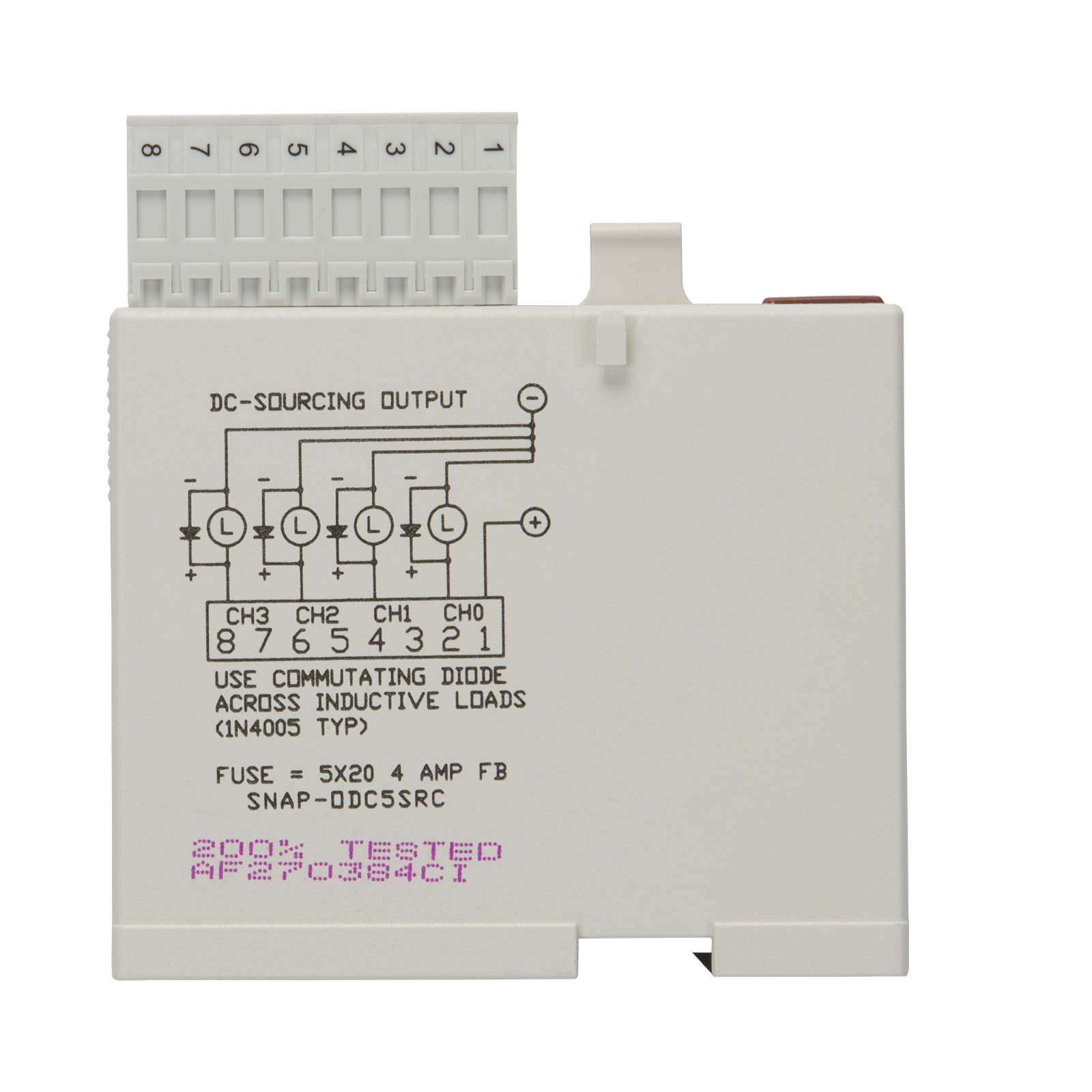

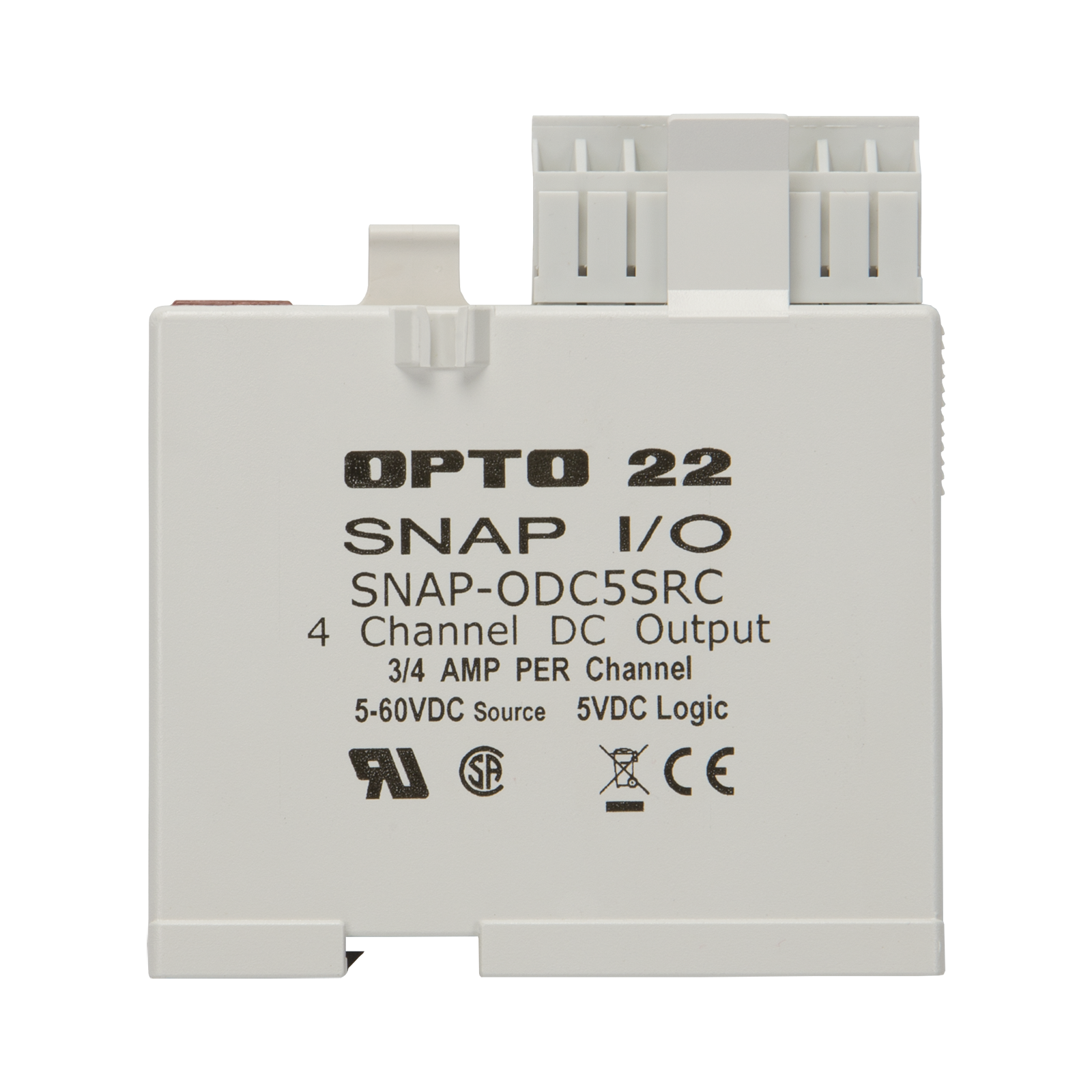

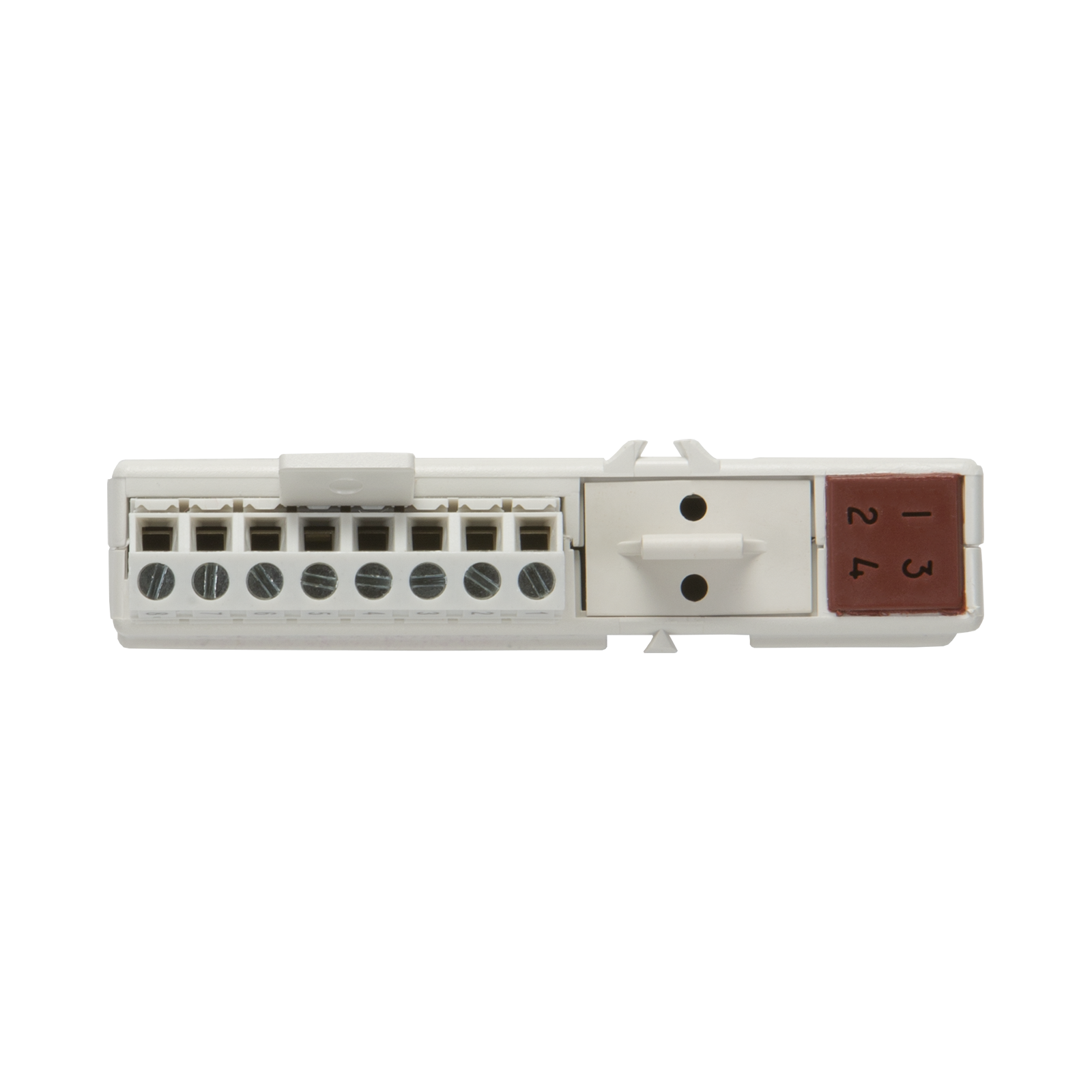

The SNAP-ODC5SRC provides four channels of 5-60 VDC digital output in a source configuration, each channel switching a separate DC load. The module features a removable top-mounted connector for easy access to field wiring and channel-specific LEDs for troubleshooting.

If you're unsure whether you need a sinking or sourcing module, see the sinking/sourcing demo or watch the brief Sinking vs. Sourcing video.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you need Factory Mutual approved modules, see SNAP-ODC5SRCFM.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-ODC5SRC

SNAP-ODC5SNK

Key Feature

Load sourcing

Load sinking

Torque, hold-down screws

4 in-lb (0.45 N-m)

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

5.26 in-lb (0.6 N-m)

Field Side Ratings (each channel)

Line Voltage - Range

5–60 VDC

5–60 VDC

Line Voltage - Nominal

5–48 VDC

5–48 VDC

Current Rating 0 °C to 70 °C Ambient

3 amps per module

3 amps per module

Surge Current

5 amps peak for
1 second

5 amps peak for
1 second

Minimum Load

20 mA

20 mA

Output Voltage Drop

1.6 volts max.@ 0.75 amps

1.6 volts max.@ 0.75 amps

Off-state Leakage

1 mA @ 60 VDC

1 mA @ 60 VDC

Peak Blocking Voltage

60 VDC

60 VDC

Fuse
(Common to all Channels)

250 VAC - 4A 5x20 mm
Fast-acting Bell Fuse Part No. BEL 5HF4
Opto 22 Part SNAP-FUSE4AB

250 VAC - 4A 5x20 mm
Fast-acting Bell Fuse Part No. BEL 5HF4
Opto 22 Part SNAP-FUSE4AB

Channel-to-channel isolation

Not applicable

Not applicable

Logic Side Ratings

Pickup Voltage

4 V @ 5.5 mA

4 V @ 5.5 mA

Dropout Voltage

1 VDC

1 VDC

Control Resistance

220 ohms

220 ohms

Logic Supply Voltage

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

Module Ratings

Number of Channels Per Module

4

4

Turn-on Time

100 usec

100 usec

Turn-off Time

750 usec

750 usec

Isolation (Field Side to Logic Side)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 to 70 °C, operating
-40 to 85 °C, storage

-20 to 70 °C, operating
-40 to 85 °C, storage

Wire size range

22 to 14 AWG

22 to 14 AWG

Agency Approvals

UL, CE, CSA, RoHS, DFARS

UL, CE, CSA, RoHS, DFARS

Warranty

Lifetime

Lifetime
