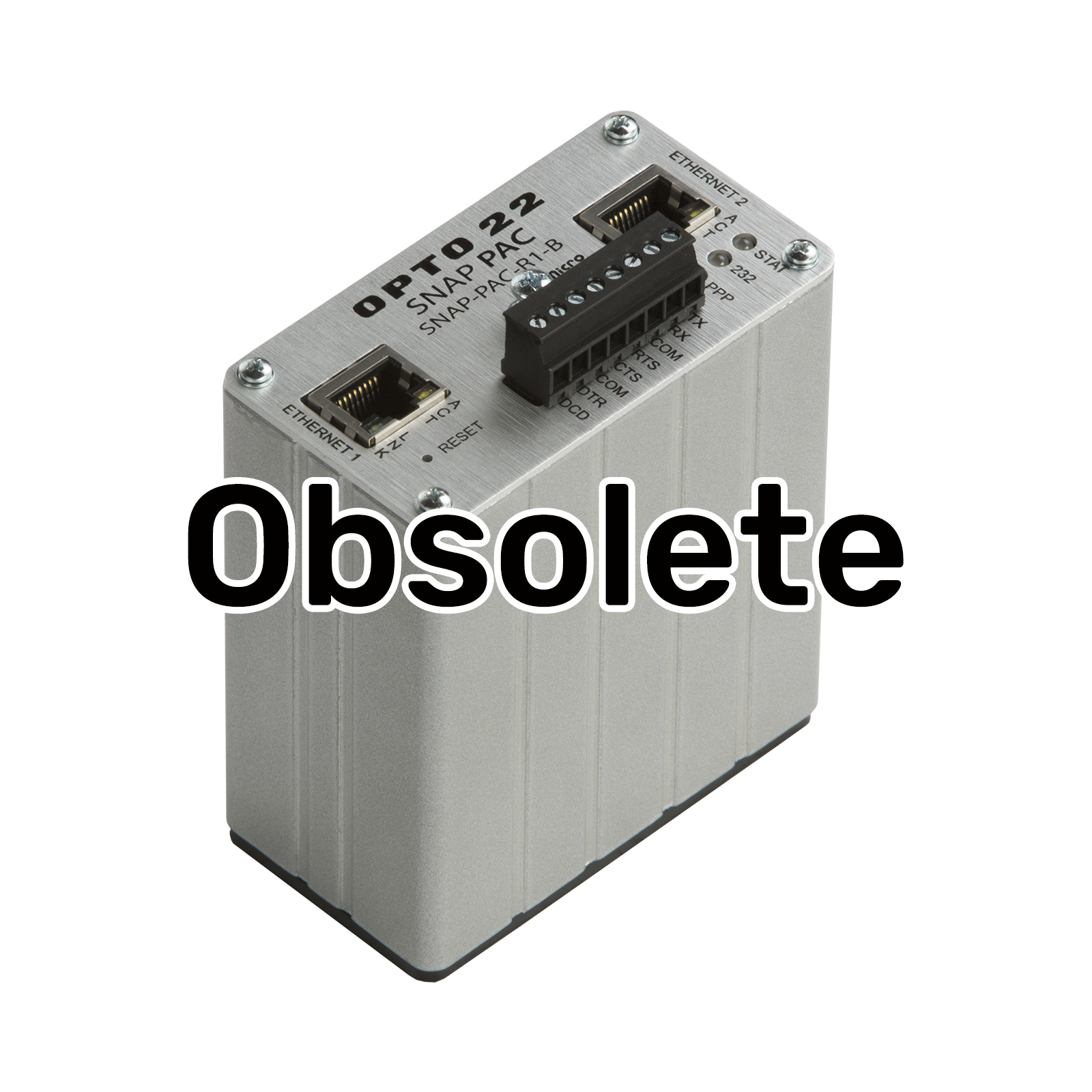

OBSOLETE SNAP PAC R-series Programmable Automation Controller - B-series rack - REST API - Analog, full digital, serial

Production Specification

*** This product is OBSOLETE, the replacement parts are SNAP-PAC-R1 and SNAP-RCK-M2B. ***

Build your system in the SNAP I/O Configurator.

Now developer and IoT ready with a built-in HTTP/HTTPS server and RESTful API. See Programming and Protocols, below.

** Compatible with groov EPIC. You can control SNAP PAC R-series I/O units with groov EPIC or control groov EPIC I/O units with a SNAP PAC R-series controller running PAC Control R10.a or higher. **

PLEASE NOTE: The SNAP-PAC-R1-B programmable automation controller provides an upgrade path for I/O on an older SNAP B-series rack. This controller can be used only on a B-series rack with a B in the part number (it cannot be used with a SNAP-D64RS rack). For new installations, do not use this controller; instead, use a SNAP-PAC-R1 controller on a SNAP PAC rack.

The SNAP-PAC-R1-B is identical to the SNAP-PAC-R1 except that, due to its use on B-series racks, 4-channel digital I/O modules can be placed only in the first 8 rack positions.

The SNAP-PAC-R1-B provides control, communication, and I/O processing in a compact, rack-mounted package. One of four components of the SNAP PAC System, the SNAP-PAC-R1-B is fully integrated with PAC Project software, SNAP PAC brains, and SNAP I/O modules.

Used with the included PAC Project Basic software suite (or PAC Project Professional, purchased separately), the Ethernet-based SNAP-PAC-R1-B can handle almost all your industrial control, remote monitoring, and data acquisition needs.

System Architecture
This intelligent, flexible PAC can be used in several ways. The SNAP-PAC-R1-B can provide complete cell control on its own rack with I/O modules. It can also control SNAP PAC and groov EPIC I/O units at the same time for a larger system. Or the R1 can be used in a more extensive distributed control system as an I/O unit controlled by a groov EPIC processor or a SNAP PAC S-series controller. It can even be used as intelligent remote I/O for Allen-Bradley Logix PLC systems, such as ControlLogix and MicroLogix.

Networking
Two independent, 10/100 Mbps Ethernet network interfaces are included on each SNAP-PAC-R1-B. These interfaces have separate IP addresses and can be used to segment the control network from the company network or to provide Ethernet link redundancy in case of link failure or maintenance. In addition, the controller has an RS-232 serial port with hardware handshaking, which can be used for PPP (Point-to-Point Protocol)communication over a modem or for direct connection to serial devices.

Programming and Protocols
The SNAP-PAC-R1-B is programmed using the included PAC Control software. PAC Control is a flowchart-based tool for developing control applications, called strategies. You create and debug the strategy on your computer and then download it to the R1-B, where it runs independently. The controller has 16 MB of RAM and can run up to 16 PAC Control flowcharts at once (many more can be included in the strategy).

REST API: All I/O point and strategy variable data is available for secure access using the built-in HTTPS server and RESTful API, with data delivered in JSON format. For complete API documentation and steps for getting started, see developer.opto22.com. In addition, two Node-RED nodes are available. Note that minimum firmware R9.5a and PAC Project R9.5a are required to use the REST API.

You can build full-featured operator interfaces (HMIs) using the included PAC Display software, which taps the same tagname database you've already developed in PAC Control. SNAP PAC R-series controllers are also compatible with Opto 22's groov products and groov View HMI tool.

In addition to control, the SNAP-PAC-R1-B provides communication. Because it is based on the Internet Protocol (IP), the SNAP-PAC-R1 can communicate simultaneously using several different protocols, including TCP/IP, EtherNet/IP, PPP, Modbus/TCP, SNMP for network management, SMTP for emailing, and OptoMMP, the open memory-mapped protocol used by all Opto 22 Ethernet-based devices.

I/O Processing
The controller mounts on a SNAP B-series mounting rack (for example, the SNAP-B12M). These racks handle a mix of I/O—analog, digital, and serial. Choose the modules needed for your application from the extensive line of SNAP I/O modules. Note that 4-channel digital I/O modules can be placed only in the first 8 slots on a B-series rack.
  • Analog features include thermocouple linearization, minimum/maximum values, offset and gain calibration, scaling, ramping, TPO, output clamping, filter weight, and watchdog timer. The SNAP-PAC-R1-B also offers up to 96 PID loops.
  • Digital features on 4-channel digital modules include latching, high-speed counting (up to 20 kHz depending on the module), quadrature counting, pulse generation and measurement, TPO, and watchdog timer. Features on high-density digital modules are more limited (see module data sheet for details).
Compare SNAP PAC controllers and brains (detailed chart).

Build your system in the SNAP I/O Configurator.
*** This product is OBSOLETE, the replacement parts are SNAP-PAC-R1 and SNAP-RCK-M2B. ***

Processor

200 MHz 32-bit ColdFire® 5475 with integrated floating-point unit (FPU)

Memory
  Total RAM

  Battery-backed RAM
  Flash



16 MB (5 MB available for PAC Control strategy and 2 MB for file storage)

  2 MB (1 MB available for PAC Control strategy)
  8 MB (3.25 MB available for PAC Control strategy; 384 KB available for file storage)

Removable storage

(Models with manufacture dates of November 2008 and newer. Requires firmware R9.4a or higher and loader R6.1a or higher) MicroSD card slot: supports microSD or microSDHC cards to 32 GB.
(Note: Models with card slots and firmware R8.4 through R9.3e support microSD cards up to 2 GB only.)

Backup battery

Rechargeable (recharges whenever the brain has power), 3-year power-off data retention (replacement part number: SNAP-PAC-BATTERY-ML2430)1

Communication
  Ethernet

  RS-232 serial



Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connectors). Each interface has a separate IP address. Connects to host and I/O. Supports Auto MDI-X (crossover cable not needed).
One RS-232 serial port2 with hardware handshaking. Connects to host (via modem and PPP) or serial device. Cannot connect to serial I/O.

I/O unit compatibility

SNAP PAC I/O units: SNAP PAC R-series and EB-series I/O units
groov EPIC
groov RIO

Power requirements

5.0–5.2 VDC @ 1.5 A

Hold-down screw

Torque: Not to exceed 1 in-lb (0.11 N-m)

Connector screw

Torque: 1.7 in-lb (0.19 N-m)

Environmental
  Operating temperature
  Storage temperature
  Humidity



-20 °C to 60 °C
-40 °C to 85 °C
0% to 95% relative humidity, non-condensing

Software
  PAC Project Basic
  PAC Project Professional


  REST API3

Includes programming, HMI software, and configuration software; included with purchase of controller.
PAC Project Basic plus OPC 2.0-compliant OPC server, database connectivity, OptoControl strategy and OptoDisplay project importing, and support for Ethernet link redundancy or network segmenting.
Use HTTPS to access data (read/write or read-only) from controller tags using your chosen programming language. Data returned in JSON. More information at developer.opto22.com

Number of charts that can run simultaneously

16

Agency certifications

ATEX, UL, DFARS, CE, RoHS; UKCA

Warranty

30 months from date of manufacture

Other features

• Multiple protocol support including TCP/IP, FTP, EtherNet/IP, Modbus/TCP,
  SNMP v2.0c, OptoMMP™, and SMTP
• Built-in I/O processor handles up to 16 digital
4, analog, and serial I/O modules   on the same rack
• Real-time clock
• FTP server/client with file system (in RAM and in removable storage)
• Scratch Pad area for peer-to-peer communication
• Configurable link redundancy or segmented networking
  for I/O-controller subnetting (when using PAC Project Professional)

1 Models manufactured before July 1, 2007 have a user-replaceable 3-volt CR2032 Lithium battery (typical service life with power off: 5 years).
2 Connecting to a serial device requires configuration in PAC Manager; PAC Control handles communication.
3 Requires firmware R9.5a or higher
4 SNAP-PAC-R1s with serial numbers lower than 600,000, and all SNAP-PAC-R1-Bs, are limited to eight 4-channel digital modules per rack; remaining eight can be analog, serial, and high-density digital modules.

SNAP PAC R-Series Controller Data Sheet

This data sheet describes Opto 22's SNAP PAC R-series programmable automation controllers, part of the SNAP PAC System. A SNAP PAC R-series controller is an on-the-rack, industrially hardened unit that handles multiple control, automation, and data acquisition tasks involving digital and analog control, serial string handling, PID, and enterprise connectivity.

This data sheet covers the following part numbers:

SNAP PAC R-Series Controllers User's Guide

This user's guide shows you how to install and use Opto 22's SNAP PAC R-series programmable automation controllers. SNAP PAC R-series controllers are on-the-rack industrial controllers. Each controller monitors and controls a wide range of devices and equipment wired to the I/O on its own rack and on distributed racks equipped with SNAP PAC EB-series brains. Alternatively, the R-series controller can be used as a slave to a larger groov EPIC edge programmable industrial controller or SNAP PAC S-series standalone industrial controller.

SNAP PAC controllers are programmed with PAC Control Basic or PAC Control Professional, Opto 22's flowchart-based development software, which is part of the PAC Project software suite.

This user's guide covers the following SNAP PACs:

IO4AB User's Guide

This guide provides instructions on how to set up EtherNet/IP messaging between an Allen-Bradley® Logix™ controller and Opto 22’s SNAP PAC I/O using Opto 22’s EtherNet/IP Configurator as well as Allen-Bradley’s RSLogix™ 5000 software.

Legacy Edition, PAC Manager User's Guide

This document is the Legacy Edition of the PAC Manager User's Guide. It includes information about both SNAP PAC hardware and older hardware.

Use this guide if you are using any legacy hardware (SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O, E1 and E2 brain boards) with PAC Manager (software part number PACMANAGER).

If you are using SNAP PAC controllers and SNAP PAC brains only, use Form 1704, PAC Manager User's Guide instead of this guide.

PAC Manager User's Guide

This guide shows you how to use PAC Manager to assign IP addresses, configure I/O, and inspect and maintain Opto 22 SNAP PAC hardware. PAC Manager is part of the PAC Project Software Suite and also available separately (part number PACMANAGER).

NOTE: If you are using older Opto 22 hardware in addition to SNAP PAC controllers and brains, use the Legacy Edition of this guide, form #1714.

SNAP PAC Controller Comparison Chart

This chart compares details for all SNAP PAC programmable automation controllers: SoftPAC software controller, SNAP PAC S-series standalone controllers, and SNAP PAC R-series rack-mounted controllers.

For additional details on SNAP PAC R-series controllers (including specific I/O processing features), see Form 1677,  SNAP PAC Controller and Brain Comparison Chart.

Using Modbus Devices with Opto 22 Products Technical Note

This technical note introduces the Modbus protocol and gives you basic information for using it to communicate between Opto 22 products and other devices. Because Modbus/TCP and Modbus serial are handled differently by various manufacturers, the tech note describes specific areas that may be a concern and includes troubleshooting suggestions.

SNAP PAC System Specification Guide

This guide is a comprehensive introduction to the SNAP PAC System. The guide describes the system's components (software, controllers, I/O processors, and I/O); shows how to build a basic system and how to expand it; and includes installation instructions, wiring diagrams, dimensional drawings, and specifications for parts.

SNAP PAC Controller and Brain Comparison Chart

This document compares features of SNAP PAC hardware controllers (SNAP PAC S-series and R-series) and SNAP PAC brains, all part of the SNAP PAC System.

NOTE: Due to the unavailability of essential parts, all SNAP PAC brains are obsolete and no longer available. Use rack-mounted controllers instead of Ethernet-based brains. For serial brain options, contact Opto 22 Product Support.

SNAP PAC System Product Guide

This document lists and describes all current Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

SNAP PAC Controllers and Brains Firmware README

This README file lists revision changes made to the firmware used in SNAP PAC S-series, R-series, and SoftPAC controllers; SNAP PAC EB-series and SB-series brains; and G4EB2 and G4D32EB2 brains.

PAC Project Readme Notes

Latest Readme for PAC Project Basic and Professional. Includes information on new features, enhancements, and bug fixes for each PAC Project application: PAC Control, PAC Display, OptoOPCServer, PAC Manager, and Tools.

SNAP PAC I/O Coprocessor Firmware README

This README file lists changes to the I/O coprocessor firmware available in rack-mounted Opto 22 controllers and brains manufactured starting in 2016.

I/O coprocessors can be present in the SNAP PAC R-series controllers, and in SNAP PAC EB-series and SB-series brains. Instructions to find out if your device has an I/O coprocessor are included in this README and in the PAC Manager User's Guide.

NOTE: The following products manufactured with I/O coprocessors have firmware R3.0a; you do not need to update the firmware in these products at this time:

  • SNAP-PAC-EB1
  • SNAP-PAC-EB1-W
  • SNAP-PAC-SB1
  • SNAP-PAC-SB2

EtherNet/IP for SNAP PAC Protocol Guide

This guide provides detailed descriptions of the EtherNet/IP commands that can be accessed when using remote Opto 22 I/O with an Allen-Bradley controller.

Modbus/TCP Protocol Guide

This document shows you how to set up communication between Ethernet-based Modbus systems (using Modbus/TCP) and the groov EPIC system or SNAP PAC System.

In addition to groov I/O and the SNAP PAC System, the guide also covers Modbus/TCP communication with older Opto 22 Ethernet-based devices, including SNAP Ethernet, SNAP Simple, and SNAP Ultimate I/O; and E1 and E2 brain boards.

OptoMMP Protocol Guide

This guide is for programmers who are writing custom applications to communicate with Opto 22 memory-mapped devices. These devices include groov EPIC processors; groov RIO modules; SNAP PAC controllers and SNAP PAC EB and SB brains; G4EB2 brains; SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O; E1 and E2 brain boards, and SNAP-LCE controllers.

The guide describes how to use the IEEE 1394-based OptoMMP memory-mapped protocol for programming. The guide also contains the complete memory map for all Opto 22 memory-mapped devices.

NOTE: This guide replaced previous individual programming guides for SNAP Ultimate I/O (form #1312) and SNAP Ethernet I/O (form #1227). This document was formerly called the "SNAP Ethernet-Based I/O Units Protocols and Programming Guide."

Configuring Email Applications for Opto 22 Products

You can use many Opto 22 products to send email notifications to keep engineers and technicians aware of
important conditions in your system. For example:

  • You can send email through a PAC Control strategy running on a groov EPIC or SNAP PAC controller.
  • Your groov View HMI can send event notifications via email.
  • Your Node-RED flow on groov RIO or groov EPIC can send email.
IMPORTANT: Due to security changes, you will stop receiving emails from your Opto 22 devices unless you
configure your email account with a new application-specific password. This technical note gives you details and steps to configure your account.

UKCA Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
