SNAP-PAC-R2-W
Hover over image to zoom in

SNAP-PAC-R2-W

Availability: Obsolete

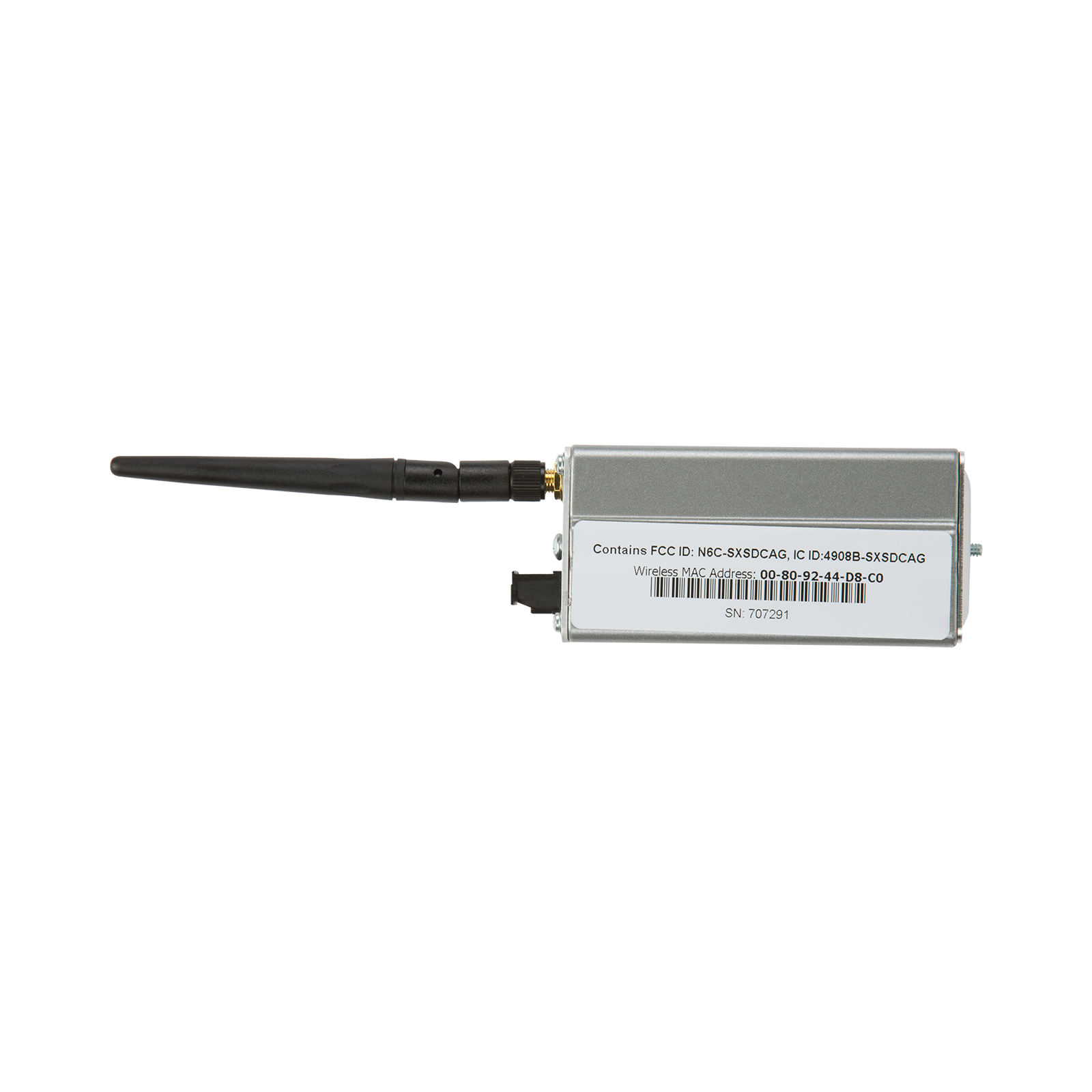

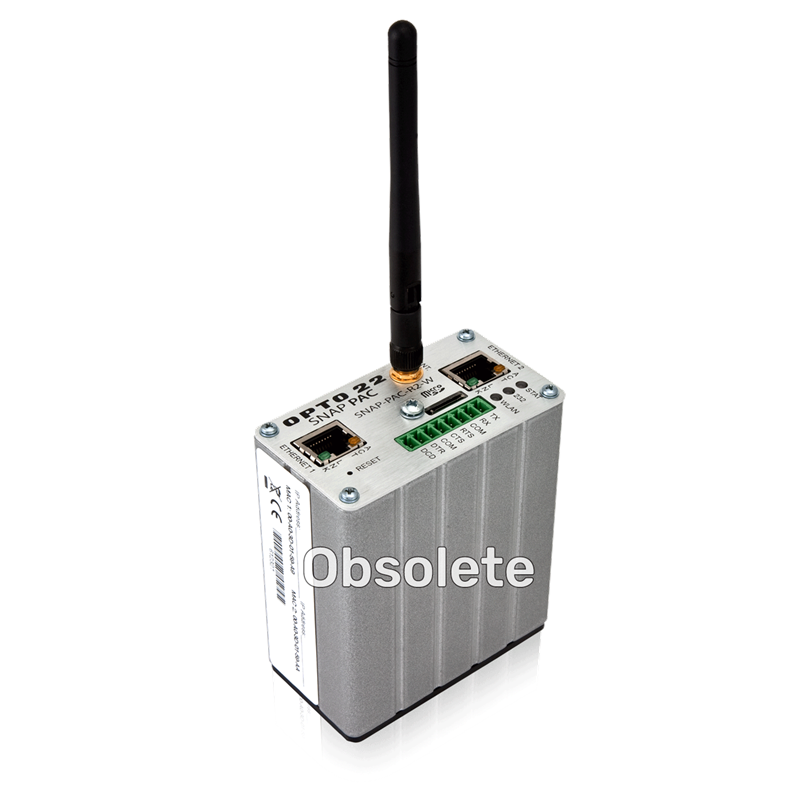

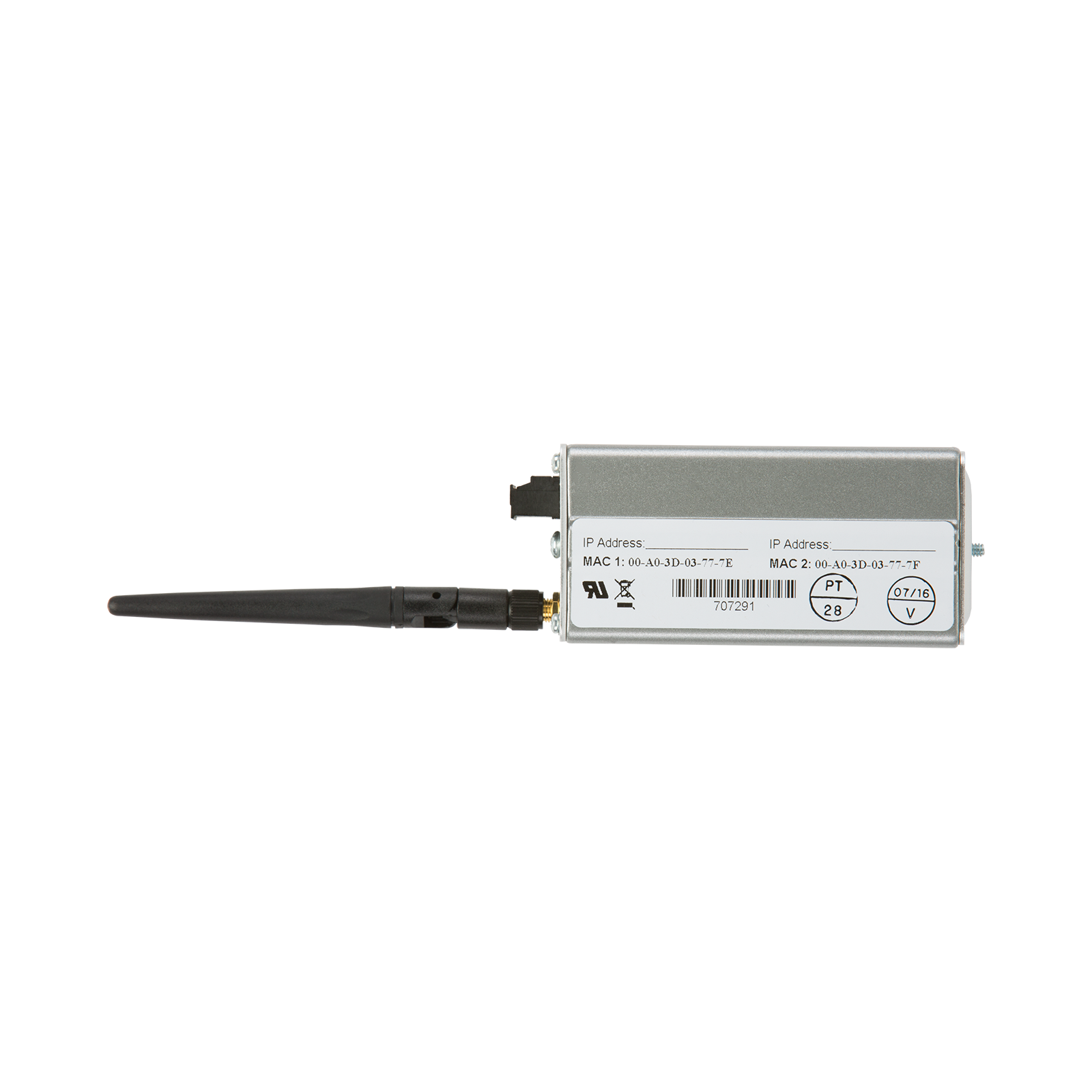

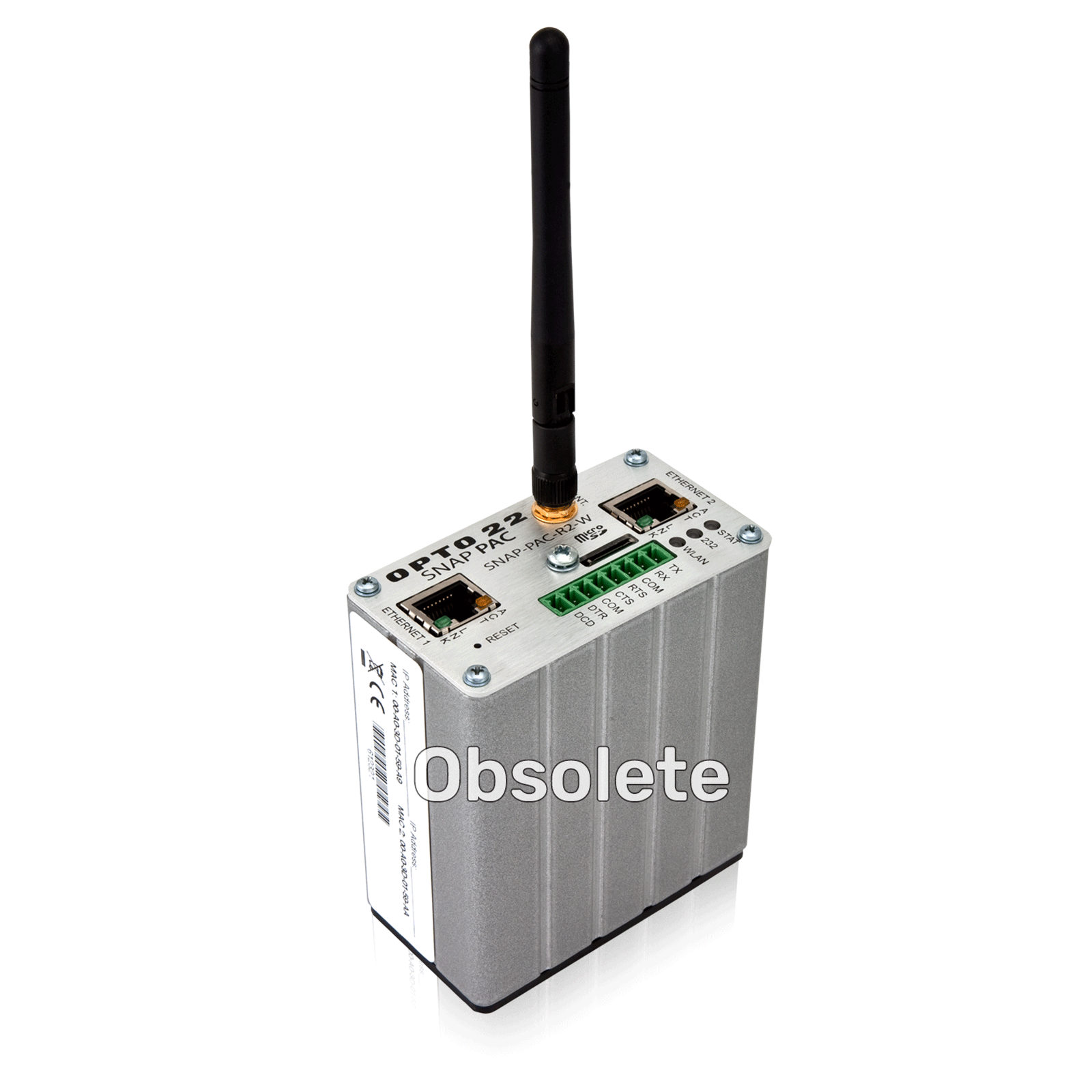

OBSOLETE Wired+Wireless SNAP PAC R-series Programmable Automation Controller - on-the-rack - REST API, analog, simple digital, serial

Production Specification

*** NOTE: The SNAP-PAC-R2-W is obsolete and no longer available. ***

The SNAP-PAC-R2-W offers all the same functionality as a SNAP-PAC-R2, and it adds wireless LAN communication capability as well.

This rack-mounted programmable automation controller provides control, communication, and I/O processing in a compact package. One of four components of the SNAP PAC System, the SNAP-PAC-R2-W is fully integrated with PAC Project software, SNAP PAC brains, and SNAP I/O modules.

Used with the included PAC Project Basic software suite (or PAC Project Professional, purchased separately), the Ethernet-based SNAP-PAC-R2-W can handle almost all your industrial control, remote monitoring, and data acquisition needs.

System Architecture
This intelligent, flexible PAC can be used in several ways. The SNAP-PAC-R2-W can provide complete cell control on its own rack with I/O modules. It can also control SNAP PAC I/O units at the same time for a larger system. Or the R1 can be used in a more extensive distributed control system as an I/O unit controlled by a SNAP PAC S-series standalone controller. It can even be used as intelligent remote I/O for Allen-Bradley Logix PLC systems, such as ControlLogix and MicroLogix.

Networking
The SNAP-PAC-R2-W includes a wireless LAN interface that supports 802.11a, b, and g network standards. The controller can be used in infrastructure or ad-hoc mode. For security, 802.11i standards are supported, including WPA2-AES as well as WPA and WEP for backwards compatibility.

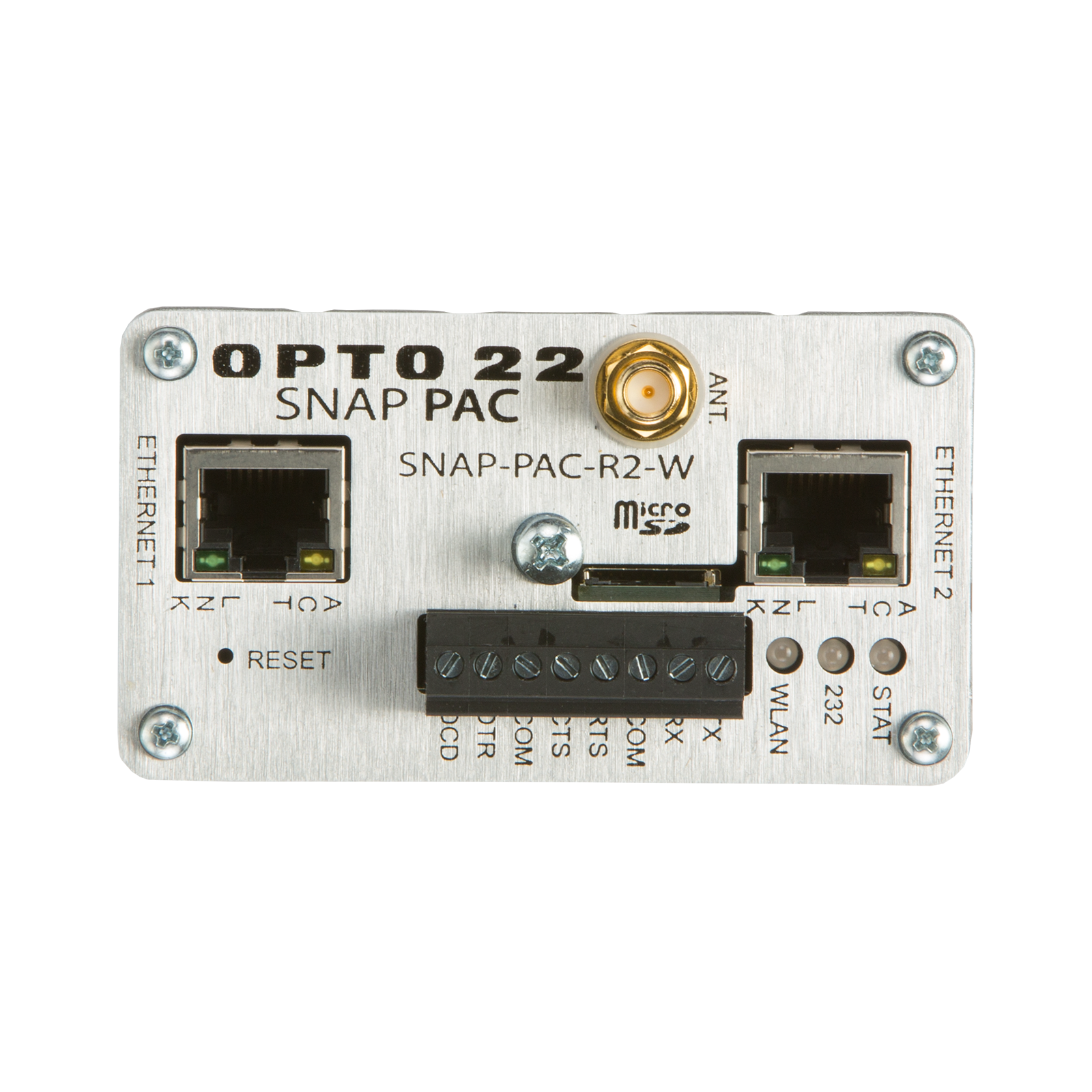

In addition, the PAC includes two independent, 10/100 Mbps wired Ethernet network interfaces. You can use the PAC wirelessly, on a wired network, or both at once. All three interfaces—one wireless and two wired—have separate IP addresses. They can be used to segment the control network from the company network or to provide Ethernet link redundancy in case of link failure or maintenance.

In addition, the controller has an RS-232 serial port with hardware handshaking, which can be used for PPP (Point-to-Point Protocol) communication over a modem or for direct connection to serial devices.

Programming and Protocols
The SNAP-PAC-R2-W is programmed using the included PAC Control software. PAC Control is a flowchart-based tool for developing control applications, or strategies. You create and debug the strategy on your computer and then download it to the PAC, where it runs independently. The controller has 32 MB of RAM and can run up to 16 PAC Control flowcharts at once (many more can be included in the strategy).

REST API: All I/O point and strategy variable data is available for secure access using the built-in HTTPS server and RESTful API, with data delivered bpiin JSON format. For complete API documentation and steps for getting started, see developer.opto22.com. In addition, two Node-RED nodes are available. Note that minimum firmware R9.5a and PAC Project R9.5a are required to use the REST API.

You can build full-featured operator interfaces (HMIs) using the included PAC Display software, which taps the same tagname database you've already developed in PAC Control. OR take advantage of Opto 22's groov to quickly build and view HMIs you can use on virtually any computer, tablet, or smartphone—any screen size, from any manufacturer—using just a modern web browser (like Firefox or Chrome). Learn more about groov.

In addition to control, the SNAP-PAC-R2-W provides communication. Because it is based on the Internet Protocol (IP), the SNAP-PAC-R2-W can communicate simultaneously using several different protocols, including TCP/IP, EtherNet/IP, PPP, Modbus/TCP, SNMP for network management, SMTP for emailing, and OptoMMP, the open memory-mapped protocol used by all Opto 22 Ethernet-based devices.

I/O Processing
The controller mounts on a SNAP PAC mounting rack with up to 4812, or 16 digital, analog, serial, and special-purpose I/O modules. Choose the modules needed for your application from the extensive line of SNAP I/O modules.
  • Analog features include thermocouple linearization, minimum/maximum values, offset and gain calibration, scaling, ramping, TPO, output clamping, filter weight, and watchdog timer. The SNAP-PAC-R2-W also offers up to 96 PID loops.
  • Digital features are simplified on the SNAP-PAC-R2. Digital features include status, latching, watchdog timer, TPO, totalizing, and pulse generation.
Please note: The SNAP-PAC-R2-W uses the same mounting racks and the same I/O modules no matter which network communication method you choose. If you change from a wired network to a wireless LAN or back again, you do not need to add hardware, reconfigure I/O, change field wiring, or change programming.

If you need high-speed digital features, see the SNAP-PAC-R1-W.

If you don't need a wireless LAN interface, see the SNAP-PAC-R2.

To compare product features, see the Compare SNAP PAC controllers and brains.

Build your system in the SNAP I/O Configurator.
*** NOTE: The SNAP-PAC-R2-W is obsolete and no longer available. ***

Processor

200 MHz 32-bit ColdFire® 5475 with integrated floating-point unit (FPU)

Memory
  Total RAM


  Battery-backed RAM
  Flash



Wired+Wireless models 32 MB (10 MB available for PAC Control strategy and 4 MB for file storage. Other models 16 MB (5 MB available for PAC Control strategy and 2 MB for file storage)

  2 MB (1 MB available for PAC Control strategy)
  8 MB (3.25 MB available for PAC Control strategy; 384 KB available for file storage)

Removable storage

(Models with manufacture dates of November 2008 and newer. Requires firmware R9.4a or higher and loader R6.1a or higher) MicroSD card slot: supports microSD or microSDHC cards to 32 GB.
(Note: Models with card slots and firmware R8.4 through R9.3e support microSD cards up to 2 GB only.)

Backup battery

Rechargeable (recharges whenever the brain has power), 3-year power-off data retention (replacement part number: SNAP-PAC-BATTERY-ML2430)1

Communication (wired)
  Ethernet

  RS-232 serial



Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connectors)
Each interface has a separate IP address. Connects to host and I/O. Supports Auto MDI-X (crossover cable not needed).
One RS-232 serial port
2 with hardware handshaking. Connects to host (via modem and PPP) or serial device. Cannot connect to serial I/O.

Communication (wireless)3
  Topologies
  Security

  Frequency 802.11a
  Frequency 802.11b/g
  Transmit Power
  Antenna Connector
  Roaming

Wireless LAN interface with separate IP address.
Infrastructure, Ad-Hoc
802.11i: AES - Compatible with WPA2 Personal, TKIP - Compatible with WPA Personal, WEP. Note: TKIP/AES security is not supported in Ad-Hoc mode.
5.180–5.240 GHz, 5.745–5.825 GHz
2.412–2.472 GHz, 2.484 GHz
15 dBm maximum
Reverse polarity SMA (RP-SMA or RSMA)
Supported within an SSID (Service Set Identifier) only

I/O unit compatibility

SNAP PAC I/O units: SNAP PAC R-series and EB-series I/O units

Power requirements

5.0–5.2 VDC @ 1.5 A

Hold-down screw

Torque:Not to exceed 1 in-lb (0.11 N-m)

Connector screw

Torque: 1.7 in-lb (0.19 N-m)

Environmental
  Operating temperature
  Storage temperature
  Humidity



-20 °C to 60 °C
-40 °C to 85 °C
0% to 95% relative humidity, non-condensing

Software
  PAC Project Basic

  PAC Project Professional


  REST API



Includes programming, HMI software, and configuration software; included with purchase of controller.
PAC Project Basic plus OPC 2.0-compliant OPC server, database connectivity,OptoControl strategy and OptoDisplay project importing, and support for Ethernet link redundancy or network segmenting.
Use HTTPS to access data (read/write or read-only) from controller tags using your chosen programming language. Data returned in JSON. More information at developer.opto22.com

Number of charts that can run simultaneously

16

Agency certifications

All models: DFARS; UKCA
All models except -W models: CE, RoHS
All models except -FM models: UL
(-W models only) U.S., FCC Part 15 Subpart C; Canada, IC RSS-210
(-B models only)  ATEX

Warranty

30 months from date of manufacture

Other features

• Multiple protocol support including TCP/IP, FTP, EtherNet/IP, Modbus/TCP,
  SNMP v2.0c, OptoMMP™, and SMTP
• Built-in I/O processor handles up to 16 digital
4, analog, and serial I/O modules   on the same rack
• Real-time clock
• FTP server/client with file system (in RAM and in removable storage)
• Scratch Pad area for peer-to-peer communication
• Configurable link redundancy or segmented networking
  for I/O-controller subnetting (when using PAC Project Professional)

1 Models manufactured before July 1, 2007 have a user-replaceable 3-volt CR2032 Lithium battery (typical service life with power off: 5 years).
2 Connecting to a serial device requires configuration in PAC Manager; PAC Control handles communication.
3 Requires a Wired+Wireless model (SNAP-PAC-R1-W or SNAP-PAC-R2-W).
4 SNAP-PAC-R1s with serial numbers lower than 600,000, and all SNAP-PAC-R1-Bs, are limited to eight 4-channel digital modules per rack; remaining eight can be analog, serial, and high-density digital modules.

IO4AB User's Guide

This guide provides instructions on how to set up EtherNet/IP messaging between an Allen-Bradley® Logix™ controller and Opto 22’s SNAP PAC I/O using Opto 22’s EtherNet/IP Configurator as well as Allen-Bradley’s RSLogix™ 5000 software.

Legacy Edition, PAC Manager User's Guide

This document is the Legacy Edition of the PAC Manager User's Guide. It includes information about both SNAP PAC hardware and older hardware.

Use this guide if you are using any legacy hardware (SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O, E1 and E2 brain boards) with PAC Manager (software part number PACMANAGER).

If you are using SNAP PAC controllers and SNAP PAC brains only, use Form 1704, PAC Manager User's Guide instead of this guide.

PAC Manager User's Guide

This guide shows you how to use PAC Manager to assign IP addresses, configure I/O, and inspect and maintain Opto 22 SNAP PAC hardware. PAC Manager is part of the PAC Project Software Suite and also available separately (part number PACMANAGER).

NOTE: If you are using older Opto 22 hardware in addition to SNAP PAC controllers and brains, use the Legacy Edition of this guide, form #1714.

SNAP PAC Controller Comparison Chart

This chart compares details for all SNAP PAC programmable automation controllers: SoftPAC software controller, SNAP PAC S-series standalone controllers, and SNAP PAC R-series rack-mounted controllers.

For additional details on SNAP PAC R-series controllers (including specific I/O processing features), see Form 1677,  SNAP PAC Controller and Brain Comparison Chart.

Using Modbus Devices with Opto 22 Products Technical Note

This technical note introduces the Modbus protocol and gives you basic information for using it to communicate between Opto 22 products and other devices. Because Modbus/TCP and Modbus serial are handled differently by various manufacturers, the tech note describes specific areas that may be a concern and includes troubleshooting suggestions.

SNAP PAC System Specification Guide

This guide is a comprehensive introduction to the SNAP PAC System. The guide describes the system's components (software, controllers, I/O processors, and I/O); shows how to build a basic system and how to expand it; and includes installation instructions, wiring diagrams, dimensional drawings, and specifications for parts.

SNAP PAC Controller and Brain Comparison Chart

This document compares features of SNAP PAC hardware controllers (SNAP PAC S-series and R-series) and SNAP PAC brains, all part of the SNAP PAC System.

NOTE: Due to the unavailability of essential parts, all SNAP PAC brains are obsolete and no longer available. Use rack-mounted controllers instead of Ethernet-based brains. For serial brain options, contact Opto 22 Product Support.

SNAP PAC Controllers and Brains Firmware README

This README file lists revision changes made to the firmware used in SNAP PAC S-series, R-series, and SoftPAC controllers; SNAP PAC EB-series and SB-series brains; and G4EB2 and G4D32EB2 brains.

PAC Project Readme Notes

Latest Readme for PAC Project Basic and Professional. Includes information on new features, enhancements, and bug fixes for each PAC Project application: PAC Control, PAC Display, OptoOPCServer, PAC Manager, and Tools.

SNAP PAC I/O Coprocessor Firmware README

This README file lists changes to the I/O coprocessor firmware available in rack-mounted Opto 22 controllers and brains manufactured starting in 2016.

I/O coprocessors can be present in the SNAP PAC R-series controllers, and in SNAP PAC EB-series and SB-series brains. Instructions to find out if your device has an I/O coprocessor are included in this README and in the PAC Manager User's Guide.

NOTE: The following products manufactured with I/O coprocessors have firmware R3.0a; you do not need to update the firmware in these products at this time:

  • SNAP-PAC-EB1
  • SNAP-PAC-EB1-W
  • SNAP-PAC-SB1
  • SNAP-PAC-SB2

EtherNet/IP for SNAP PAC Protocol Guide

This guide provides detailed descriptions of the EtherNet/IP commands that can be accessed when using remote Opto 22 I/O with an Allen-Bradley controller.

OptoMMP Protocol Guide

This guide is for programmers who are writing custom applications to communicate with Opto 22 memory-mapped devices. These devices include groov EPIC processors; groov RIO modules; SNAP PAC controllers and SNAP PAC EB and SB brains; G4EB2 brains; SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O; E1 and E2 brain boards, and SNAP-LCE controllers.

The guide describes how to use the IEEE 1394-based OptoMMP memory-mapped protocol for programming. The guide also contains the complete memory map for all Opto 22 memory-mapped devices.

NOTE: This guide replaced previous individual programming guides for SNAP Ultimate I/O (form #1312) and SNAP Ethernet I/O (form #1227). This document was formerly called the "SNAP Ethernet-Based I/O Units Protocols and Programming Guide."

UKCA Declaration of Conformity (EMC, LVD, RED, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
