SNAP-PAC-RCK16-FM

$201.00 (USA and Canada only)

Availability: Call for Availability
SNAP PAC 16-Module Mounting Rack, Factory Mutual Approved

Please call (800) 321-6786 to order.

SNAP-PAC-RCK16-FM

Production Specification

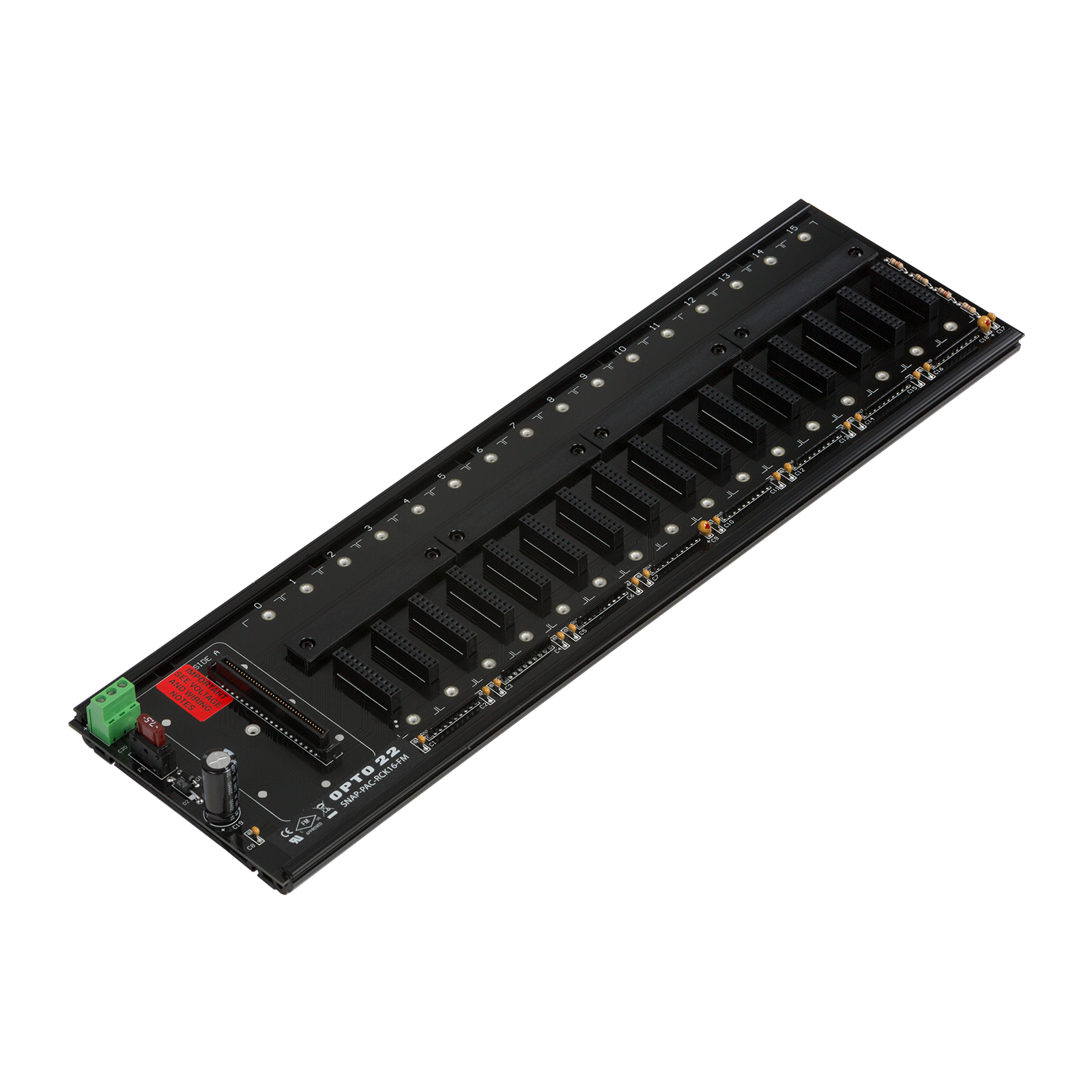

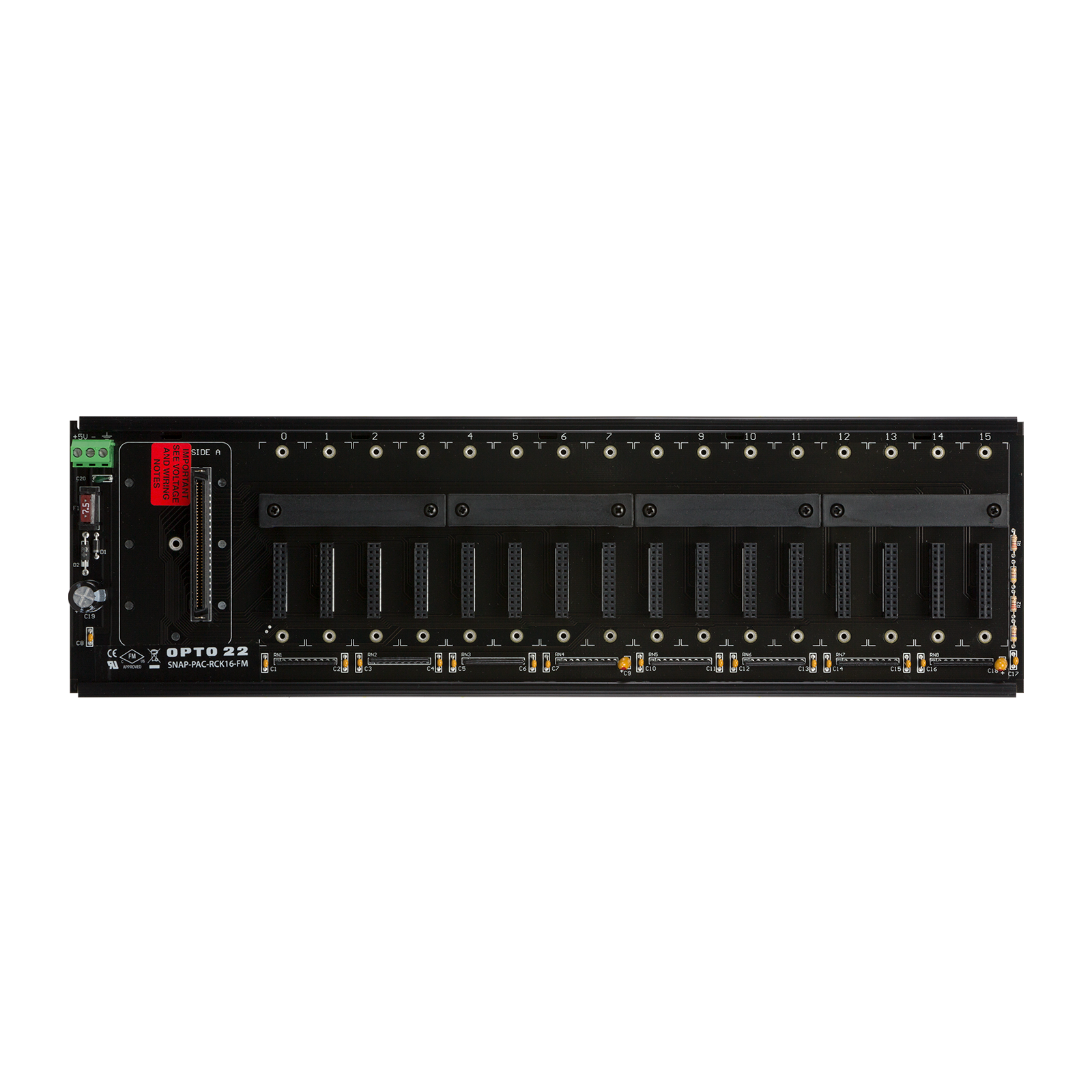

The SNAP-PAC-RCK16-FM mounts one SNAP PAC brain or on-the-rack controller and up to 16 analog, digital, serial, and special-purpose SNAP I/O modules. The SNAP-PAC-RCK16 can be DIN-rail or panel mounted.

This rack works with all SNAP I/O modules on the Opto 22 website. Analog, digital, and serial modules can be mixed on the rack and placed in any position. (Some serial modules are limited to a maximum of eight on one rack. See module data sheets for limitations and power requirements.)

Together with I/O modules and a brain or rack-mounted controller, this rack forms an I/O unit that provides distributed control in a SNAP PAC System. The I/O unit can also be used for PC-based control or as intelligent remote I/O for an Allen-Bradley MicroLogix PLC or other RSLogix-based system, such as ControlLogix or CompactLogix.

This rack is Factory Mutual approved. If you do not need FM approval, see the SNAP-PAC-RCK16.

Other SNAP PAC racks available: Build your system in the SNAP I/O Configurator.

Power1 Requirements

5.0 to 5.2 VDC @ 4.2 Amps max

I/O Processor2
Compatibility

SNAP-PAC-R1
SNAP-PAC-R2
SNAP-PAC-EB1
SNAP-PAC-EB2
SNAP-PAC-R1-W
SNAP-PAC-R2-W

SNAP-PAC-EB1-W
SNAP-PAC-EB2-W
SNAP-PAC-R1-FM
SNAP-PAC-R2-FM
SNAP-PAC-EB1-FM
SNAP-PAC-EB2-FM

Replacement Fuse

SNAP-FUSE7.5AB or Littelfuse 297 07.5

Rack Power Terminals Wire Size

22 to 14 AWG

Operating Temperature

–20 to 70 °C

Storage Temperature

–40 to 85 °C

Relative Humidity

95%, non-condensing

Agency Approvals

Non -FM models: UL, CE, RoHS, DFARS
-FM models: FM, CE, ATEX, RoHS, DFARS

Warranty

30 months from date of manufacture

1 Power requirements shown are for a rack, a processor, and a full load of analog modules. Power requirements for SNAP serial and high-density modules are higher. See module data sheets.

2 “I/O Processor” means a SNAP PAC brain or SNAP PAC on-the-rack controller. For compatibility with legacy Opto 22 products, see form #1693, Legacy and Current Product Comparison and Compatibility Charts.

SNAP PAC System Specification Guide

This guide is a comprehensive introduction to the SNAP PAC System. The guide describes the system's four components (software, controllers, brains, and I/O); shows how to build a basic system and how to expand it; and includes installation instructions, wiring diagrams, dimensional drawings, and specifications for parts.

SNAP PAC Racks Data Sheet

SNAP PAC racks mount one SNAP PAC brain or on-the-rack controller, plus up to 4, 8, 12, or 16 SNAP input/output (I/O) modules. Both standard wired controllers and brains and Wired+Wireless models are mounted on these racks.

I/O modules may be analog, digital, or serial modules. All module types can be mixed together on the same rack in any position.

SNAP PAC System Product Guide

This document lists and describes all Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, SNAP PAC brains, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

SNAP PAC Racks Assembly and Installation Data Sheet

This document comes packed in the box with a SNAP PAC I/O mounting rack. It shows where to find assembly and installation instructions, plus wiring accessories.

Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CE Declaration of Conformity: ATEX

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

Using Power Supplies with Opto 22 Systems

This technical note gives an overview of power supplies for use with control systems and recommends types of power supplies for Opto 22 mounting racks.

FM Approval Document

This document lists all Opto 22 part numbers that have Factory Mutual (FM) approval.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CAD 3D Drawing: SNAP-PAC-RCK16 Mounting Rack

This CAD file contains a 3-dimensional drawing of the SNAP-PAC-RCK16 mounting rack, which holds a SNAP PAC I/O processor (brain or rack-mounted controller) plus up to 16 analog, digital, or serial I/O modules. This drawing also applies to the SNAP-PAC-RCK16-FM, which is Factory Mutual approved.

CAD Drawing: Base for SNAP-PAC-RCK16, SNAP-PAC-RCK16-FM

This CAD file includes a drawing of the base for the SNAP-PAC-RCK16, a mounting rack that holds one SNAP PAC brain or on-the-rack controller plus any mix of up to 16analog, digital, and serial SNAP I/O modules.

This drawing also applies to the SNAP-PAC-RCK16-FM, which is Factory Mutual approved.

CAD Drawing: SNAP-PAC-RCK16, SNAP-PAC-RCK16-FM Mounting Rack

This CAD file includes drawings of the SNAP-PAC-RCK16, a mounting rack that holds one SNAP PAC brain or on-the-rack controller, plus up to 16 analog, digital, and serial SNAP I/O modules.

This drawing also applies to the SNAP-PAC-RCK16-FM rack, which is Factory Mutual approved.

Video: Verifying Voltage at the I-O Rack

Verifying the voltage level at the I/O rack is very important for equipment safety and point value accuracy. This is the proper technique for reading the voltage level at the rack.

Video: Securing SNAP Module

A quick overview on securing a SNAP Module to a SNAP rack.

Video: Removing a SNAP Module

A quick overview on removing a SNAP module.

Demo: Accuracy vs Resolution

What's the difference between accuracy and resolution in analog I/O specifications? Try your own specs in the calculator.
