$220.00 (USA and Canada only)
Power1 Requirements
5.0 to 5.2 VDC @ 4.2 Amps max
I/O Processor2 Compatibility
SNAP-PAC-R1 SNAP-PAC-R2 SNAP-PAC-EB13 SNAP-PAC-EB23
SNAP-PAC-EB1-W3 SNAP-PAC-EB2-W3 SNAP-PAC-R1-W3 SNAP-PAC-R2-W3
Replacement Fuse
SNAP-FUSE7.5AB or Littelfuse 297 07.5
Rack Power Terminals Wire Size
22 to 14 AWG
Operating Temperature
–20 to 70 °C
Storage Temperature
–40 to 85 °C
Relative Humidity
95%, non-condensing
Agency Approvals
CE, ATEX, RoHS, DFARS;UKCA
Warranty
30 months from date of manufacture
1 Power requirements shown are for a rack, a processor, and a full load of analog modules. Power requirements for SNAP serial and high-density modules are higher. See module data sheets.
2 “I/O Processor” means a SNAP PAC brain or SNAP PAC on-the-rack controller. For compatibility with legacy Opto 22 products, see form #1693, Legacy and Current Product Comparison and Compatibility Charts. 3 This product is OBSOLETE and no longer available when current stock is depleted.

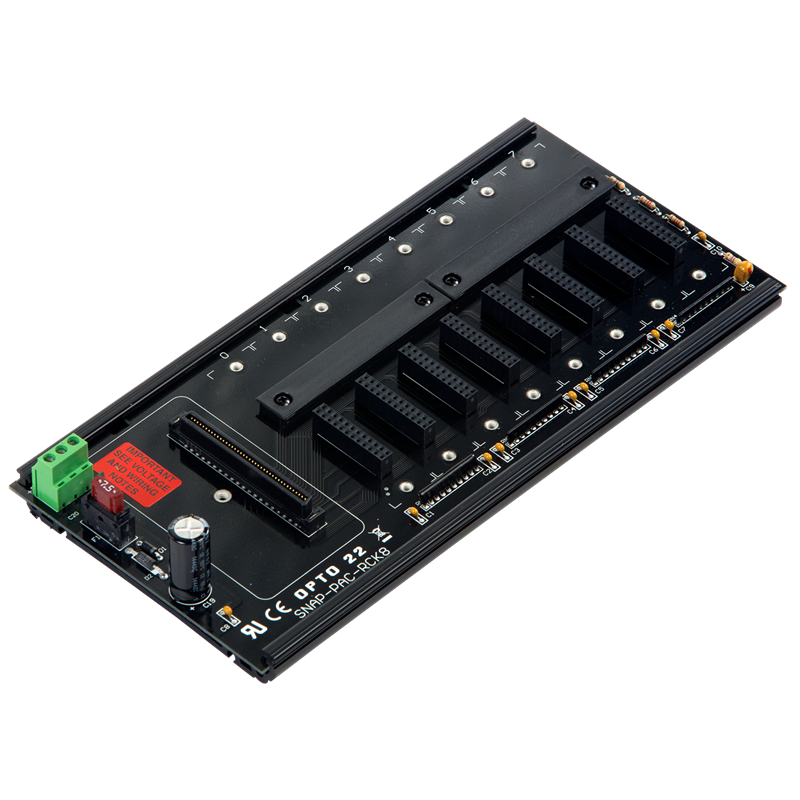

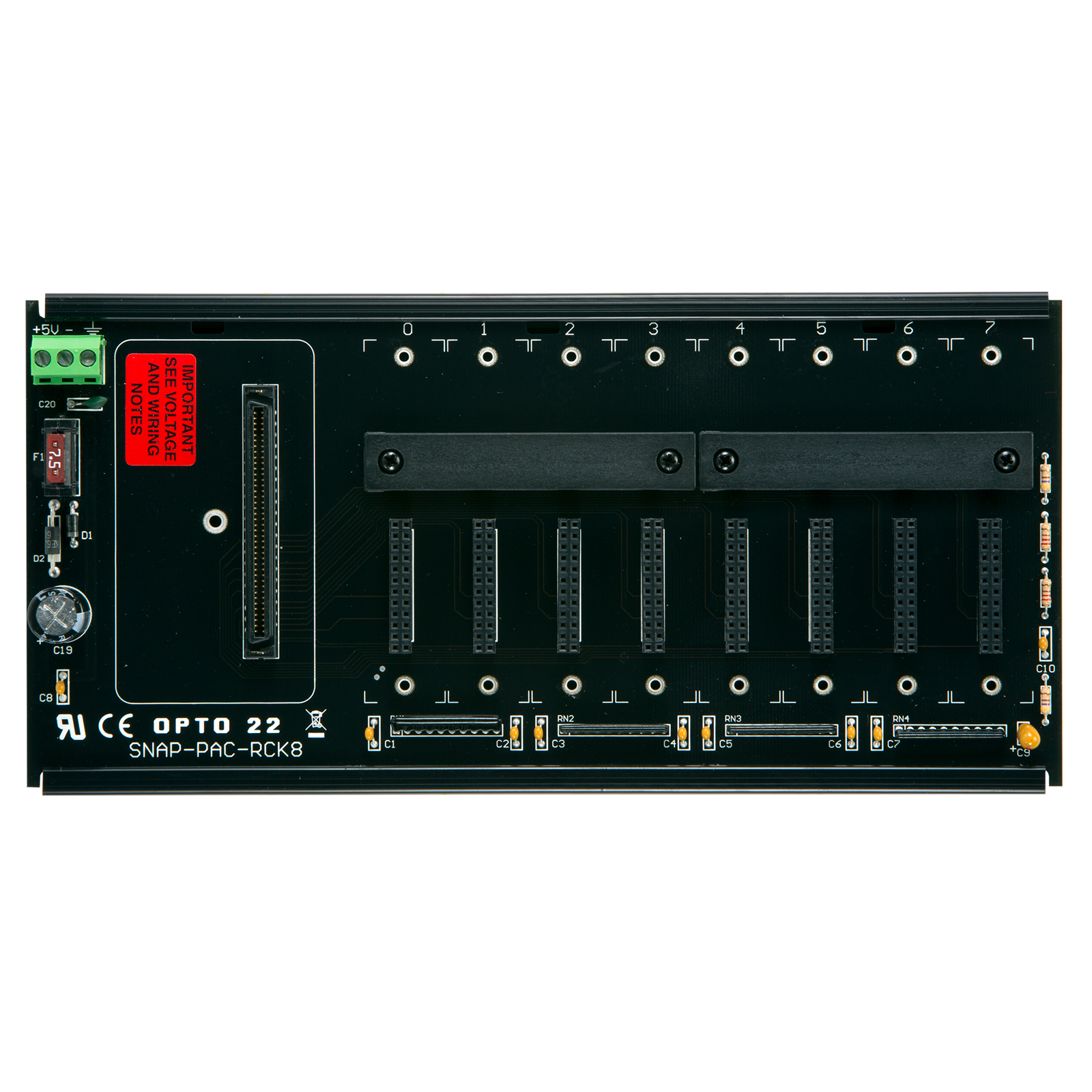

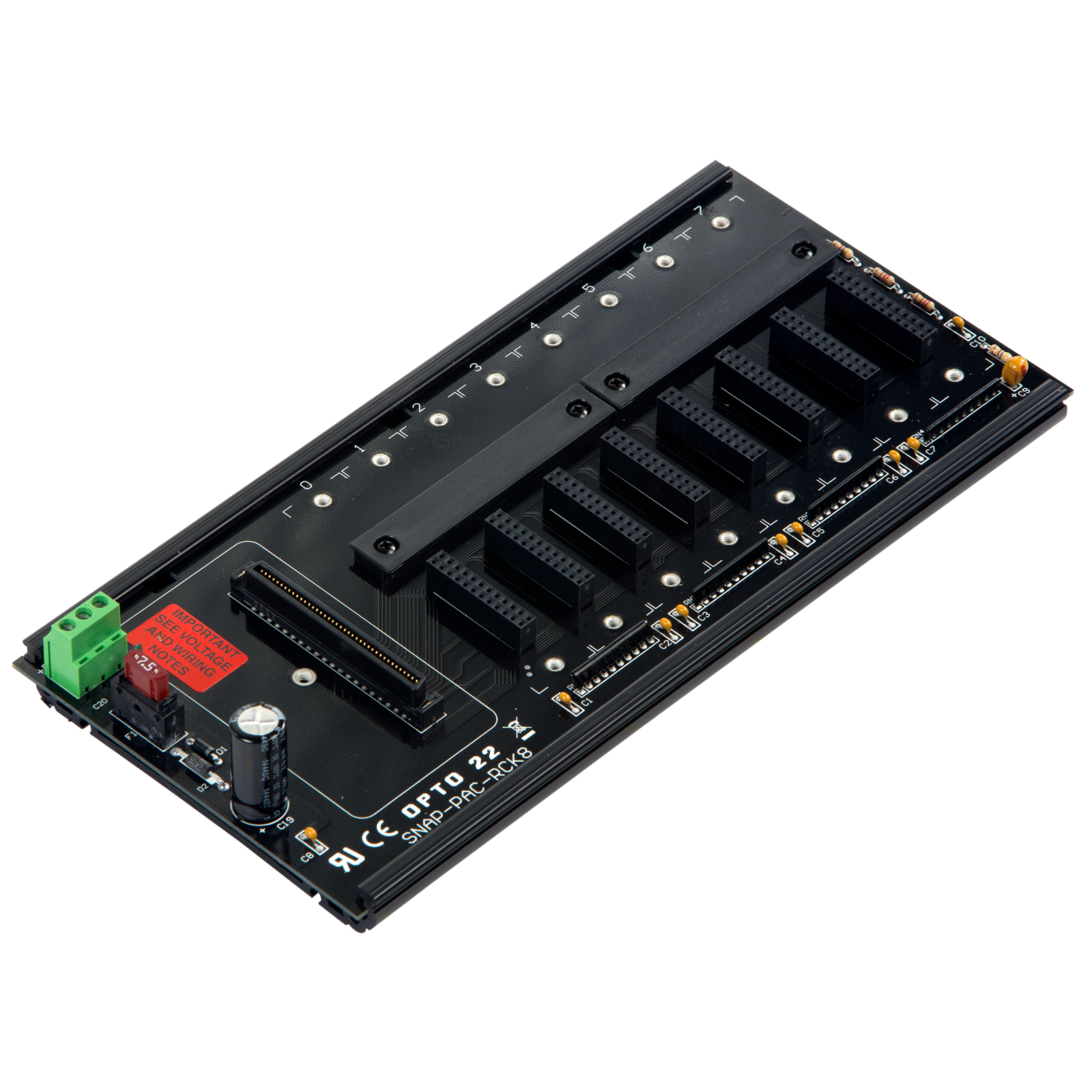

SNAP PAC racks mount one SNAP PAC brain or on-the-rack controller, plus up to 4, 8, 12, or 16 SNAP input/output (I/O) modules.
I/O modules may be analog, digital, or serial modules. All module types can be mixed together on the same rack in any position. This data sheet covers the following part numbers:
