SNAP-PAC-S2-W
Hover over image to zoom in

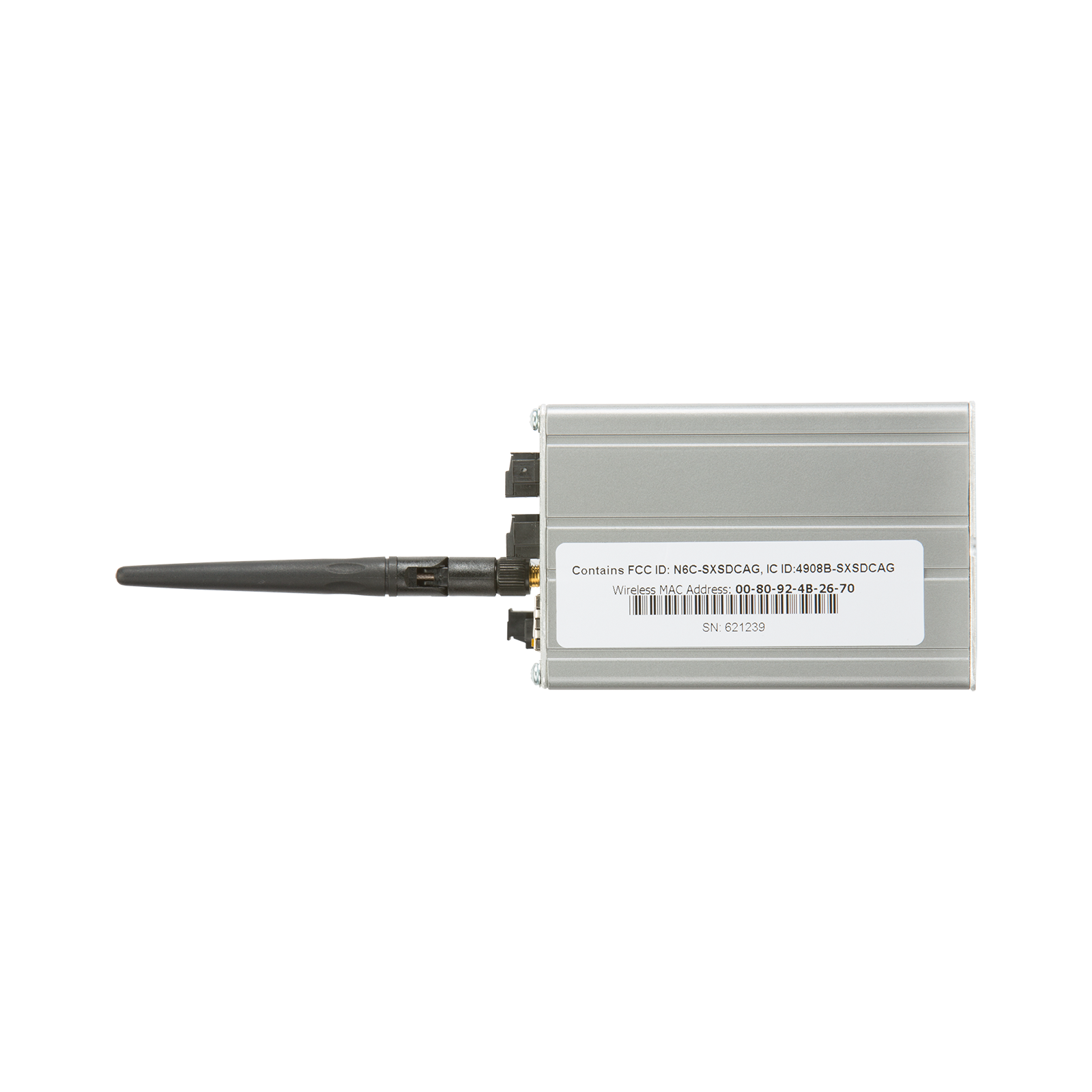

SNAP-PAC-S2-W

Availability: Obsolete

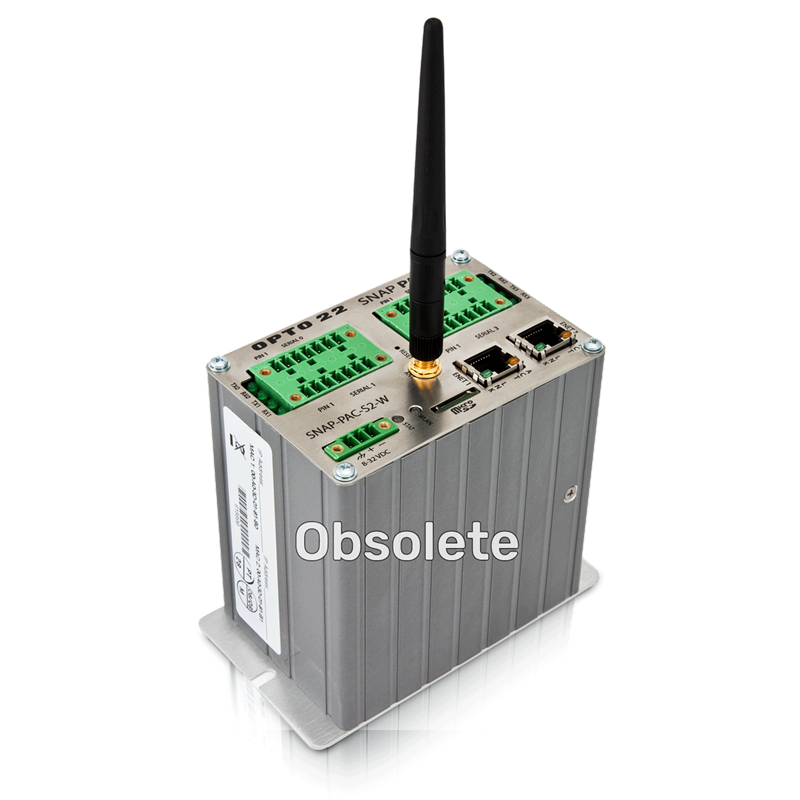

OBSOLETE Wired+Wireless SNAP PAC S-series Programmable Automation Controller with Four Serial Ports

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

The SNAP-PAC-S2-W programmable automation controller (PAC) provides all of the same features as the SNAP-PAC-S2 and adds a wireless LAN interface as well.


Compact and industrially hardened, this controller provides powerful, real-time control and communications to meet your industrial control, monitoring, and data acquisition needs. One of the four components of the SNAP PAC System, the SNAP-PAC-S2-W is fully integrated with PAC Project software, SNAP PAC brains, and SNAP I/O modules to form a complete control system. The SNAP PAC System includes digital and analog control, serial string handling, PID loops, and enterprise connectivity.

Programming
The SNAP-PAC-S2-W is programmed using the included PAC Control software. PAC Control is a flowchart-based tool for developing control applications, or strategies. You create and debug the strategy on your computer and then download it to the PAC, where it runs independently.

REST API: All I/O point and strategy variable data is available for secure access using the built-in HTTPS server and RESTful API, with data delivered in JSON format. For complete API documentation and steps for getting started, see developer.opto22.com. In addition, two Node-RED nodes are available. Note that minimum firmware R9.5a and PAC Project R9.5a are required to use the REST API.
You can build full-featured operator interfaces (HMIs) using the included PAC Display software, which taps the same tagname database you've already developed in PAC Control. OR take advantage of Opto 22's groov to quickly build and view HMIs you can use on virtually any computer, tablet, or smartphone—any screen size, from any manufacturer—using just a modern web browser (like Firefox or Chrome).

Learn more at groov.

Networking
The SNAP-PAC-S2-W includes a wireless LAN interface that supports 802.11a, b, and g network standards. The controller can be used in infrastructure or ad-hoc mode. For security, 802.11i standards are supported, including WPA2-AES as well as WPA and WEP for backwards compatibility.

In addition, the PAC includes two independent, 10/100 Mbps wired Ethernet network interfaces. You can use the PAC wirelessly, on a wired network, or both at once. All three interfaces—one wireless and two wired—have separate IP addresses. They can be used to segment the control network from the company network or to provide Ethernet link redundancy in case of link failure or maintenance. You can also set up a system with redundant controllers using two identical S-series controllers,  the SNAP PAC Redundancy Option Kit, and PAC Project Professional 9.0.

The SNAP-PAC-S2-W controller is well suited for use with serial-based I/O units and serial devices. The SNAP-PAC-S2-W has four serial ports that can be individually configured as either RS-232 or RS-485 (2-wire or 4-wire). Configured as RS-232, serial ports support serial device communication or a Point-to-Point Protocol (PPP) modem connection for creating a TCP/IP network over PSTN (Public Switched Telephone Network) lines. Configured as RS-485, serial ports connect to SNAP PAC Serial brains or to legacy Opto 22 mistic™ I/O units, including the serial B3000 brain and remote mistic bricks. (Note: If you are using the S2 with misticI/O units, use the legacy versions of the PAC Control, PAC Display, and PAC Manager guides.)

Protocols
In addition to control, the SNAP-PAC-S2-W provides communication. Because it is based on the Internet Protocol (IP), the SNAP-PAC-S2-W can communicate simultaneously using several different protocols, including TCP/IP, EtherNet/IP, PPP, Modbus/TCP, SNMP for network management, SMTP for emailing, and OptoMMP, the open memory-mapped protocol used by all Opto 22 Ethernet-based devices.
The SNAP-PAC-S2-W can be panel or DIN-rail mounted. For DIN rail, see the SNAP-S2DIN DIN-rail mounting kit.

If you need fewer serial ports, see the SNAP-PAC-S1-W.

If you do not need a wireless LAN interface, see the SNAP-PAC-S2.

For more details, see the Specifications tab and the Data Sheet.

To compare controller features, see the SNAP PAC Controller and Brain Comparison Chart.

Processor

266 MHz 32-bit ColdFire® 5475 with integrated floating-point unit (FPU)

Memory

SNAP-PAC-S1 and SNAP-PAC-S2
  Total RAM: 32 MB
  Total RAM for PAC Control Strategies: 16 MB
  Battery-backed RAM: 8 MB
  RAM File Storage: 2.5 MB
  Flash File Storage: 4 MB

SNAP-PAC-S1-W and SNAP-PAC-S2-W
  Total RAM: 128 MB
  Total RAM for PAC Control Strategies: 64MB
  Battery-backed RAM: 8 MB
  RAM File Storage: 16 MB
  Flash File Storage: 4 MB

Removable storage

(Models with manufacture dates of June 2014 and newer. Requires firmware R9.4a or higher and loader R6.1a or higher) MicroSD card slot: supports microSD or microSDHC cards to 32 GB.
(Models with manufacture dates of November 2008 through May 2014 with firmware R8.4 or higher) McroSD card slot: supports microSD cards up to 2 GB.

Backup battery

SNAP-PAC-S1s with serial number 625654 or higher and all SNAP-PAC-S2s: Rechargeable (recharges whenever the brain has power), 1-year power-off data retention (replacement part number: SNAP-PAC-BATTERY-ML2430)
SNAP-PAC-S1s with serial number 625653 or lower: User-replaceable 3.6-volt TL 5242 /W lithium, 10-year minimum power-off data retention (replacement part number: G4BATT32)

Ethernet Communication (wired) to host and I/O

Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connec­tors). Each interface has a separate IP address (separate subnet). Supports Auto MDI-X (crossover cable not needed).

Ethernet Communication (wireless)*

Wireless LAN interface with separate IP address.
Topologies: Infrastructure, Ad-Hoc
Security: 802.11i; AES - Compatible with WPA2 Personal, TKIP - Compatible with WPA Personal, WEP. Note: TKIP/AES security is not supported in Ad-Hoc mode.
Frequency 802.11a: 5.180–5.240 GHz, 5.745–5.825 GHz
Frequency 802.11b/g: 2.412–2.472 GHz, 2.484 GHz
Transmit Power: 15 dBm maximum
Antenna Connector: Reverse polarity SMA (RP-SMA or RSMA)
Roaming: Supported within an SSID (Service Set Identifier) only

Serial Communication

SNAP-PAC-S1
RS-232 serial: Two RS-232 serial ports (one DB-9 and one pluggable connec­tor); one port has full handshaking. PPP is supported only on port 0. Buffer size: 512 bytes each for RX and TX.
RS-485 serial: One RS-485 serial port (pluggable connector); two-wire RS-485; optional mistic signal interrupts. Range (serial multidrop): 32 stations maximum on a segment (including PC, controller, and I/O units); up to 3000 ft (914 m) on a segment. Buffer size: 512 bytes each for RX and TX.

SNAP-PAC-S2
Four serial ports that can be used as general purpose ports or for serial I/O units; each port is software configurable as either RS-232 (Tx, Rx, COM, DTR, DCD, RTS, CTS) or as RS-485 (2-wire, 4-wire, optional termination, optional biasing); optional mistic signal interrupts. Buffer size: 512 bytes each for RX and TX.

Power requirements

8–32 VDC ±0.5, 11.3 VA maximum
(SNAP-PAC-S1 controllers with serial numbers below 500,000 use 8–24 VDC)

Operating temperature
Storage temperature
Humidity

-20 °C to 60 °C
-40 °C to 85 °C
0% to 95% relative humidity, non-condensing

Software
 PAC Project Basic

 PAC Project Professional


 REST API



Includes programming, HMI software, and configuration software; included with purchase of controller.
PAC Project Basic plus OPC 2.0-compliant OPC server, OptoControl strategy and OptoDisplay project importing, support for serial mistic I/O units, and Ethernet link redundancy support.
Use HTTPS to access data (read/write or read-only) from controller tags using your chosen programming language. Data returned in JSON. More information at developer.opto22.com

Number of charts that can run simultaneously

32

Other features

Multiple protocol support including TCP/IP, FTP, SNMP v2.0c (with firmware 8.2a), Modbus/TCP, EtherNet/IP™, and OptoMMP™.
Real-time clock
FTP server/client with file system (in RAM and in removable storage)
Ethernet link redundancy or network segmenting

Agency certifications

(-W models only) U.S., FCC Part 15 Subpart C; Canada, IC RSS-210
All models except -W models: CE, RoHS, DFARS
-W models: DFARS; UKCA

Warranty

30 months from date of manufacture

* Requires a Wired+Wireless model (SNAP-PAC-S1-W or SNAP-PAC-S2-W)

SNAP PAC Controller Comparison Chart

This chart compares details for all SNAP PAC programmable automation controllers: SoftPAC software controller, SNAP PAC S-series standalone controllers, and SNAP PAC R-series rack-mounted controllers.

For additional details on SNAP PAC R-series controllers (including specific I/O processing features), see Form 1677,  SNAP PAC Controller and Brain Comparison Chart.

Using Modbus Devices with Opto 22 Products Technical Note

This technical note introduces the Modbus protocol and gives you basic information for using it to communicate between Opto 22 products and other devices. Because Modbus/TCP and Modbus serial are handled differently by various manufacturers, the tech note describes specific areas that may be a concern and includes troubleshooting suggestions.

SNAP PAC System Specification Guide

This guide is a comprehensive introduction to the SNAP PAC System. The guide describes the system's components (software, controllers, I/O processors, and I/O); shows how to build a basic system and how to expand it; and includes installation instructions, wiring diagrams, dimensional drawings, and specifications for parts.

SNAP PAC Controller and Brain Comparison Chart

This document compares features of SNAP PAC hardware controllers (SNAP PAC S-series and R-series) and SNAP PAC brains, all part of the SNAP PAC System.

NOTE: Due to the unavailability of essential parts, all SNAP PAC brains are obsolete and no longer available. Use rack-mounted controllers instead of Ethernet-based brains. For serial brain options, contact Opto 22 Product Support.

SNAP PAC Controllers and Brains Firmware README

This README file lists revision changes made to the firmware used in SNAP PAC S-series, R-series, and SoftPAC controllers; SNAP PAC EB-series and SB-series brains; and G4EB2 and G4D32EB2 brains.

PAC Project Readme Notes

Latest Readme for PAC Project Basic and Professional. Includes information on new features, enhancements, and bug fixes for each PAC Project application: PAC Control, PAC Display, OptoOPCServer, PAC Manager, and Tools.

IO4AB User's Guide

This guide provides instructions on how to set up EtherNet/IP messaging between an Allen-Bradley® Logix™ controller and Opto 22’s SNAP PAC I/O using Opto 22’s EtherNet/IP Configurator as well as Allen-Bradley’s RSLogix™ 5000 software.

EtherNet/IP for SNAP PAC Protocol Guide

This guide provides detailed descriptions of the EtherNet/IP commands that can be accessed when using remote Opto 22 I/O with an Allen-Bradley controller.

Legacy Edition, PAC Manager User's Guide

This document is the Legacy Edition of the PAC Manager User's Guide. It includes information about both SNAP PAC hardware and older hardware.

Use this guide if you are using any legacy hardware (SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O, E1 and E2 brain boards) with PAC Manager (software part number PACMANAGER).

If you are using SNAP PAC controllers and SNAP PAC brains only, use Form 1704, PAC Manager User's Guide instead of this guide.

PAC Manager User's Guide

This guide shows you how to use PAC Manager to assign IP addresses, configure I/O, and inspect and maintain Opto 22 SNAP PAC hardware. PAC Manager is part of the PAC Project Software Suite and also available separately (part number PACMANAGER).

NOTE: If you are using older Opto 22 hardware in addition to SNAP PAC controllers and brains, use the Legacy Edition of this guide, form #1714.

SNAP PAC S-Series Controllers User's Guide

This user's guide shows you how to install and use Opto 22's SNAP PAC S-series programmable automation controllers. SNAP PAC S-series controllers are one of four components of the SNAP PAC System. These controllers work with PAC Project software, SNAP PAC brains, and SNAP I/O modules to form an easy-to-use system for remote monitoring, industrial control, and data acquisition.

SNAP PAC controllers are programmed with PAC Control Basic or PAC Control Professional, Opto 22's flowchart-based development software, which is part of the PAC Project software suite.

This user's guide covers the following part numbers:

OptoMMP Protocol Guide

This guide is for programmers who are writing custom applications to communicate with Opto 22 memory-mapped devices. These devices include groov EPIC processors; groov RIO modules; SNAP PAC controllers and SNAP PAC EB and SB brains; G4EB2 brains; SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O; E1 and E2 brain boards, and SNAP-LCE controllers.

The guide describes how to use the IEEE 1394-based OptoMMP memory-mapped protocol for programming. The guide also contains the complete memory map for all Opto 22 memory-mapped devices.

NOTE: This guide replaced previous individual programming guides for SNAP Ultimate I/O (form #1312) and SNAP Ethernet I/O (form #1227). This document was formerly called the "SNAP Ethernet-Based I/O Units Protocols and Programming Guide."

UKCA Declaration of Conformity (EMC, LVD, RED, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
