*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22
Pre-Sales engineers for more information.

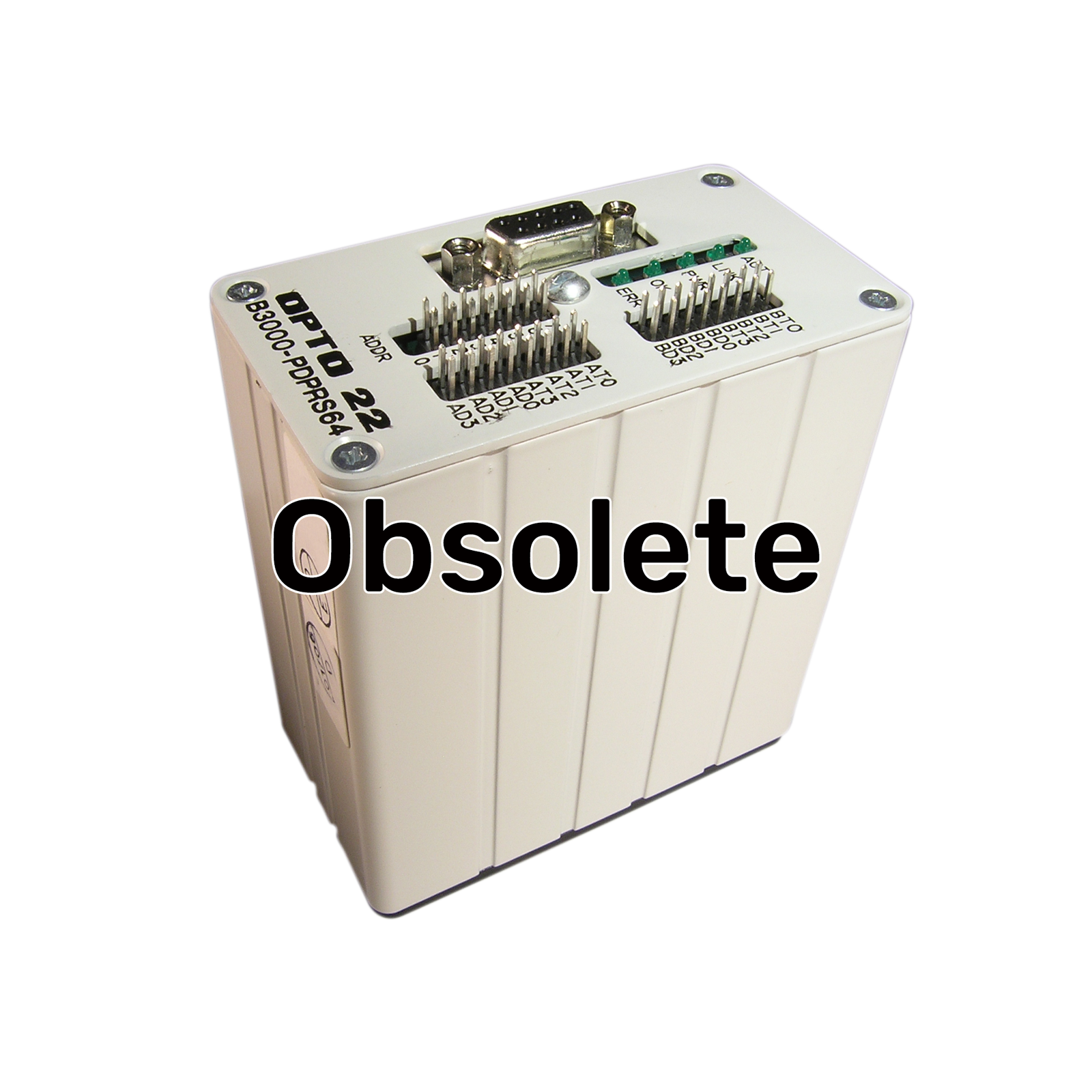

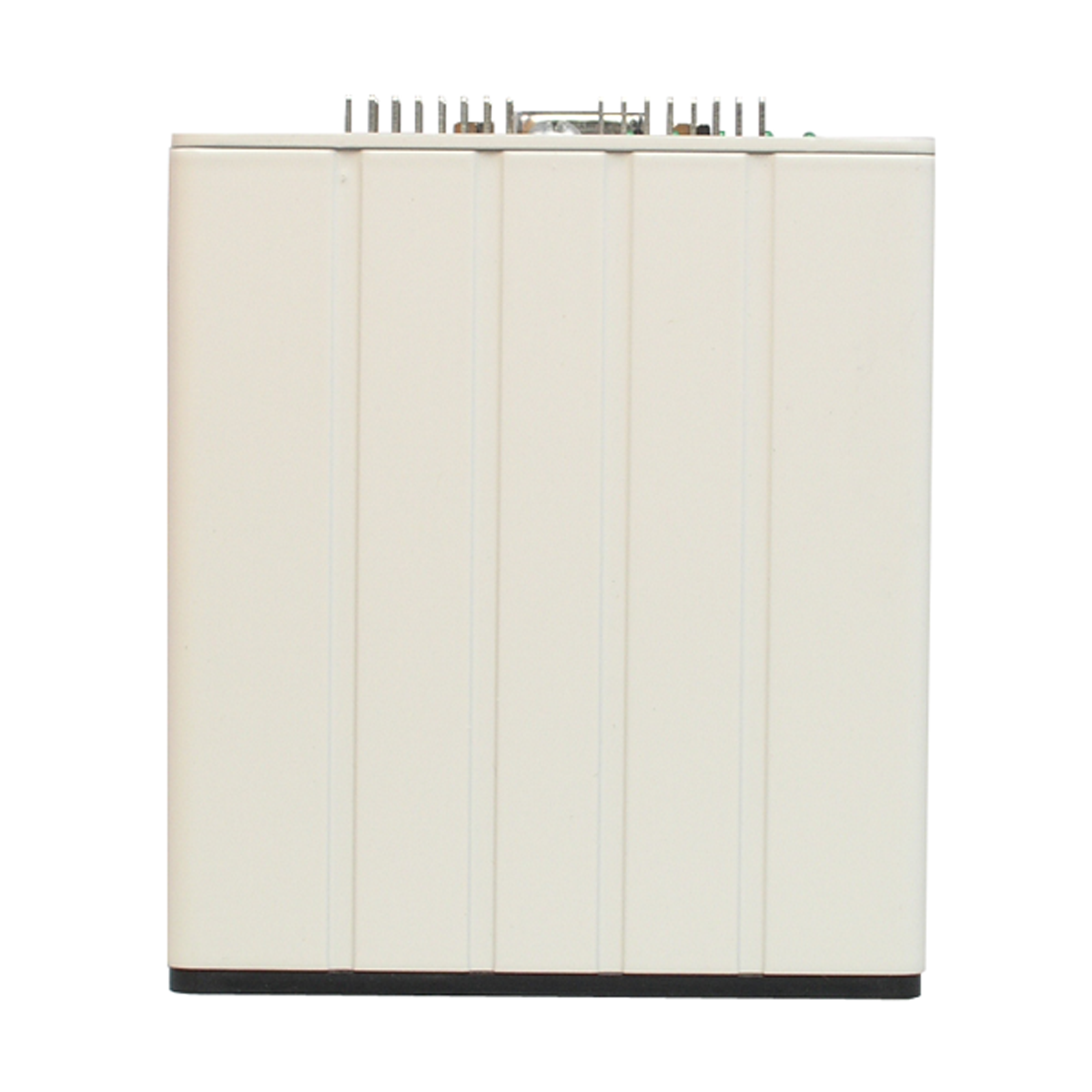

The SNAP-PDPRS64 brain is a high-performance processor capable of controlling up to 64 channels of SNAP digital I/O, configured as inputs or outputs in banks of eight.
The brain communicates to any Profibus-DP master device using a 9-pin D-shell connector. Functions include digital input and output read and write. The brain is used with the SNAP-D64 RS mounting rack.
NOTE: Not all SNAP I/O modules are compatible with this brain. See
Legacy and Current Product Comparison and Compatibility Charts to determine compatibility.
*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22
Pre-Sales engineers for more information.
|
Power Requirements
|
5.0 - 5.2 VDC at 1.3 A max. (includes fully-populated rack with brain)
|
|
Operating Temperature
|
0 to 70 °C, 95% humidity, non-condensing
|
|
Communications Interface
|
9-pin D-shell connector, Profibus-DP standard pinout
|
|
Data Rates
|
Automatically detected baud rates up to 12 Mbaud
|
|
Range
|
Per Profibus-DP network standard (speed-dependent)
|
|

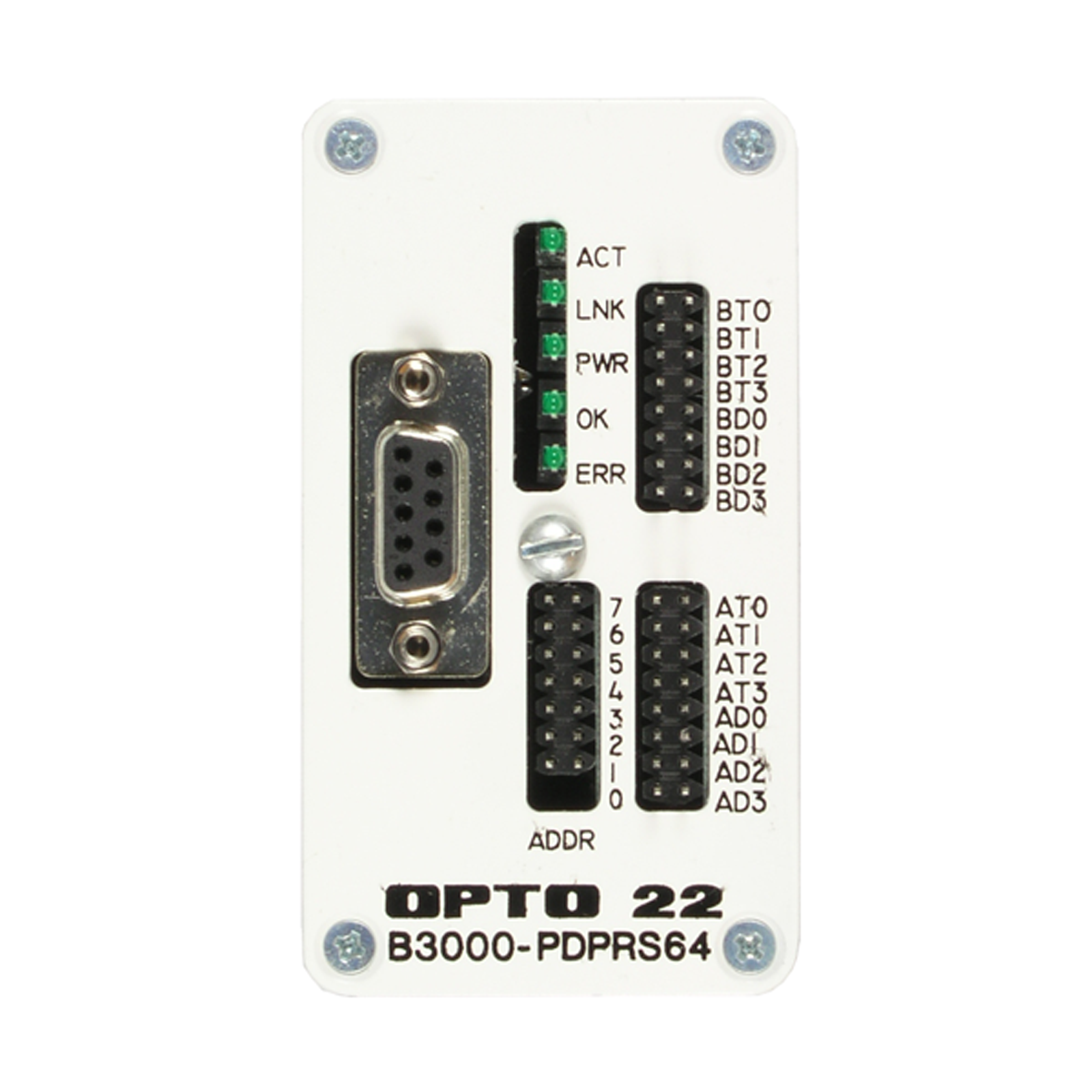

LED Indicators
|
Activity, Link status, Power, Normal operation, Error
|
|
Options: Jumper Selectable
|
Direction information (input or output), Profibus-DP address
|
*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.
With the SNAP Profibus-DP brain, part number SNAP-PDPRS64, you can use state-of-the-art Opto 22 digital I/O hardware with your existing Profibus DP-compatible controller.
This README file lists revision changes made to the firmware used in the following Opto 22 controllers that run Cyrano strategies: G4LC32, G4LC32SX, G4LC32ISA, G4LC32ISA-LT, M4, M4IO, M4RTU, M4RTU Rev.2, SNAP-LCM4, SNAP-LCSX, and SNAP-LCSX-PLUS.
This download contains the file opto087D.gsd, a device master file for customers who need to configure their Profibus software to recognize and use Opto 22’s B3000 PDPRS64.
Current release of 16-bit Cyrano firmware. This firmware is required to run Cyrano strategies on legacy Opto 22 controllers.
