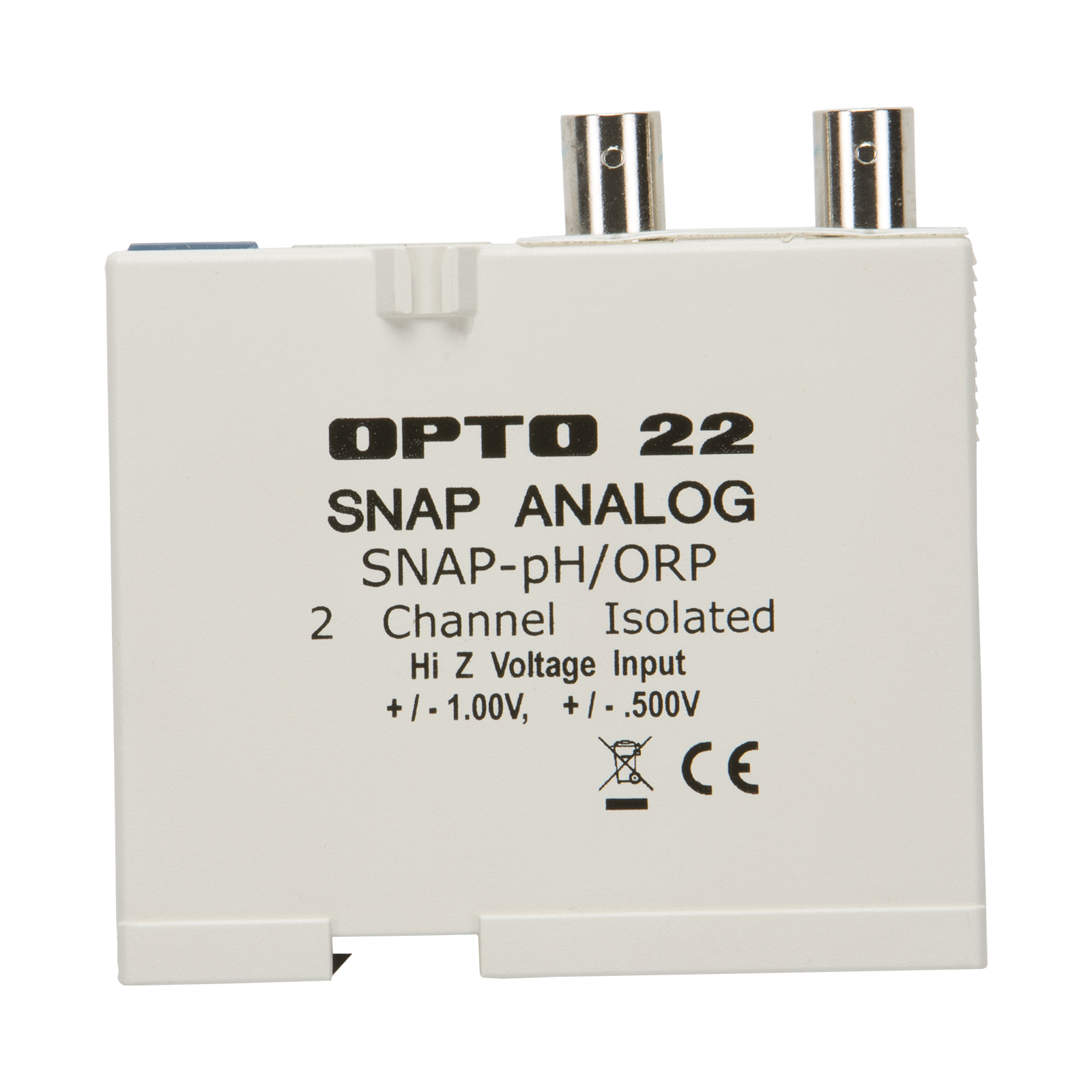

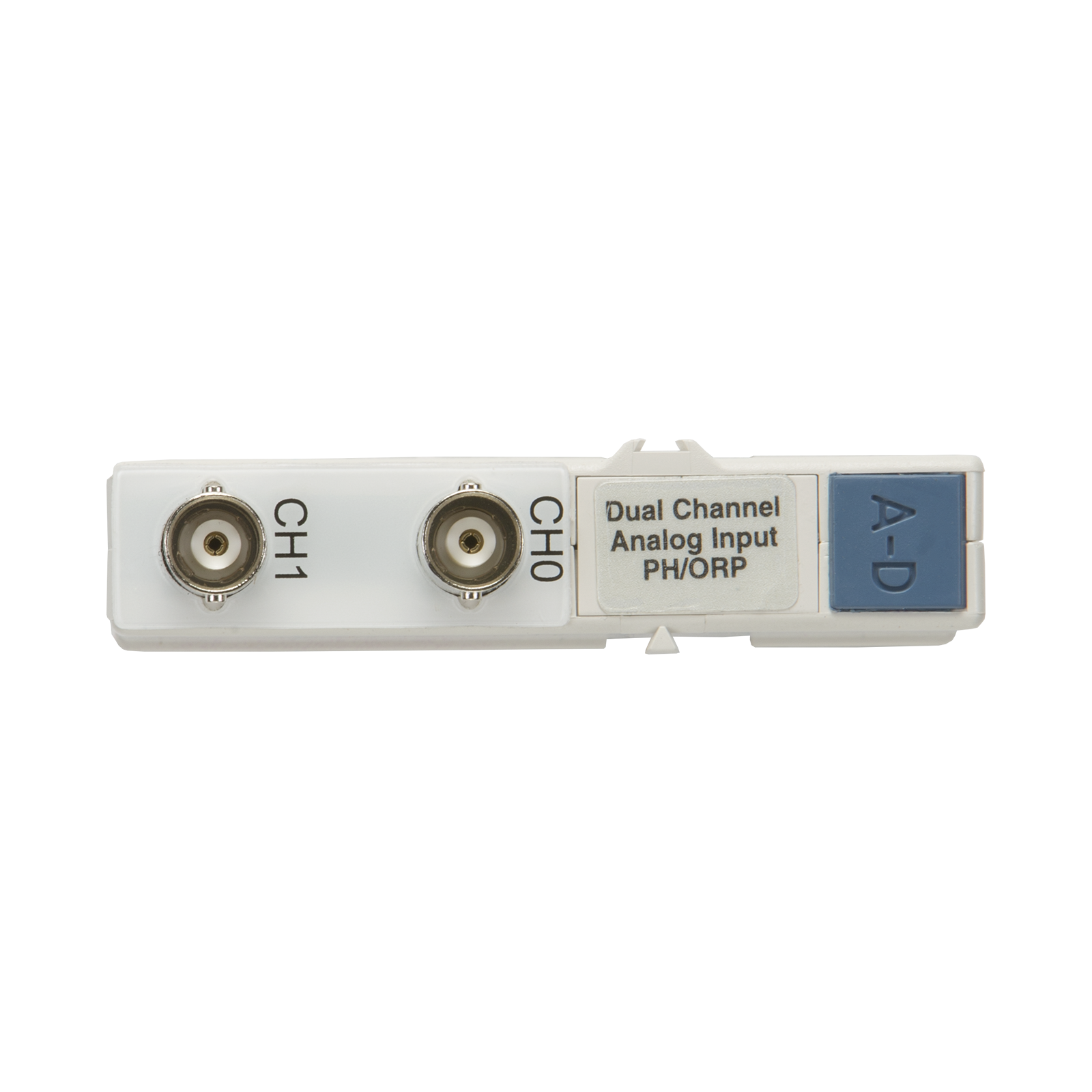

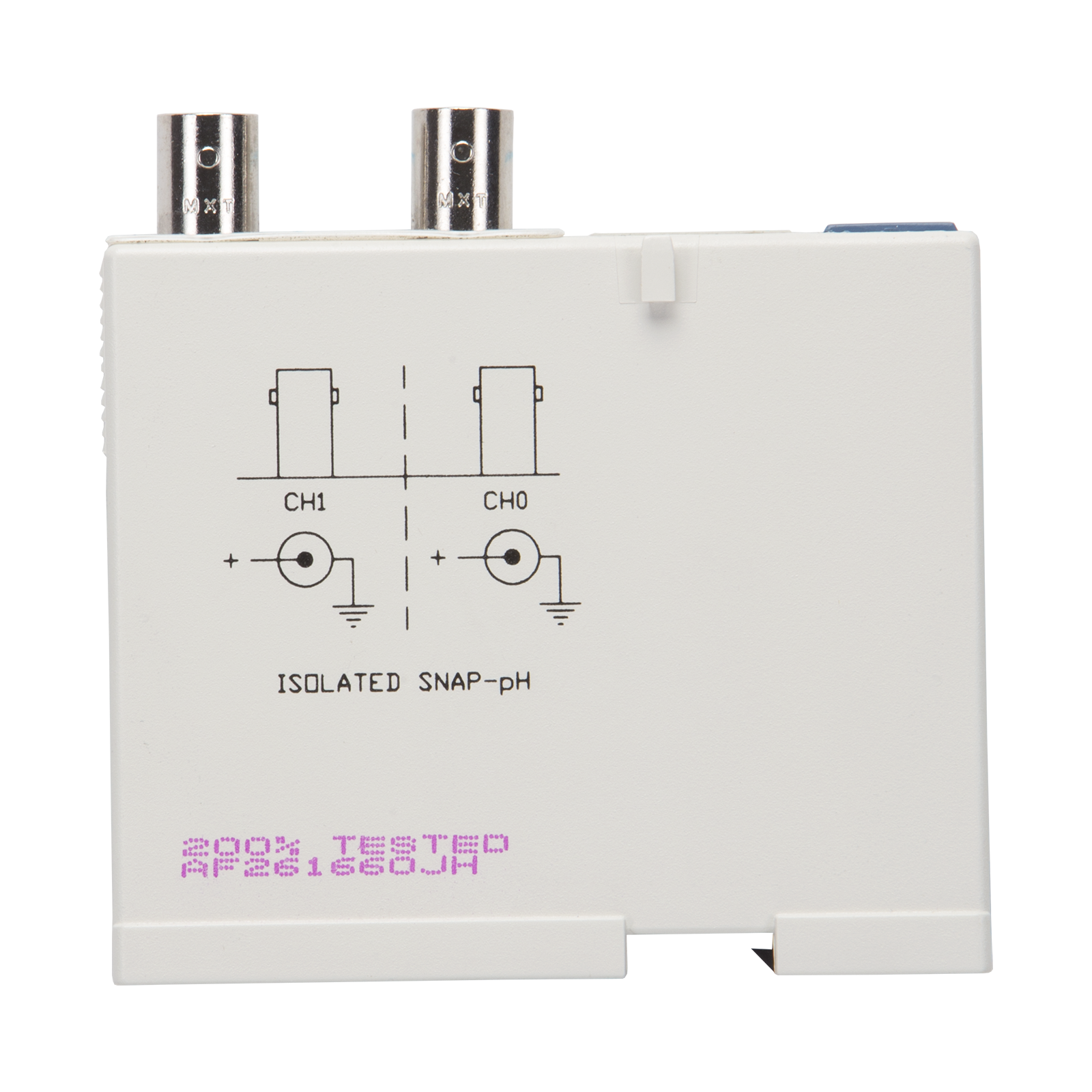

SNAP-pH/ORP Differential Voltage Measurement Input Module

Please call (800) 321-6786 to order.

SNAP-pH/ORP

Production Specification

The SNAP-pH/ORP module provides two isolated channels of high-impedence voltage input, either -1.00 to +1.00 volts or -0.50 to +0.50 volts. The module is ideal for differential voltage measurements and is used with pH or oxidation reduction potential (ORP) probes for monitoring bodies of water.

The SNAP-pH/ORP module can be used with SNAP PAC brains and R-series controllers, legacy SNAP Ethernet-based brains, and legacy serial B3000 and B3000-B brains.

Input Range

-1.00 V to +1.00 V for ORP probes
-0.50 V to +0.50 V for pH probes

Resolution

40 µV when configured -1.00 V to +1.00 V
20 µV when configured -0.50 V to +0.50 V

Data Freshness (Maximum)

126 ms (63 ms per channel) when configured -1.00 V to +1.00 V
251 ms (125.5 ms per channel) when configured -0.50 V to +0.50 V

lnput Filtering

-3 dB @ 2.4 Hz

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB at 60 Hz

Maximum Survivable Input

±100 VDC or peak AC

Maximum Operating Common
Mode Voltage

250 VDC or peak AC

Accuracy (% full scale)

0.05% when configured -1.00 V to +1.00 V
0.05% when configured -0.50 V to +0.50 V

Gain Temperature Coefficient

30 PPM/°C

Offset Temperature Coefficient

15 PPM/°C

Power Requirements

5 VDC (±0.15) at 170 mA

Input Resistance (Differential)

>10 Tera Ohms (each channel)

Ambient Temperature:
  Operating
  Storage



-20 to 70 °C
-40 to 85 °C

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

CE, RoHS, DFARS

Warranty

Lifetime

SNAP PAC System Product Guide

This document lists and describes all Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, SNAP PAC brains, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

SNAP-pH/ORP Module

The SNAP-pH/ORP module provides two isolated channels of high-impedance voltage input, either -1.00 to +1.00 volts or -0.50 to +0.50 volts. The module is ideal for differential voltage measurements and is used with pH or oxidation reduction potential (ORP) probes for monitoring bodies of water such as holding tanks, swimming pools, and cooling towers.
