$347.00 (USA and Canada only)

Availability: In stock

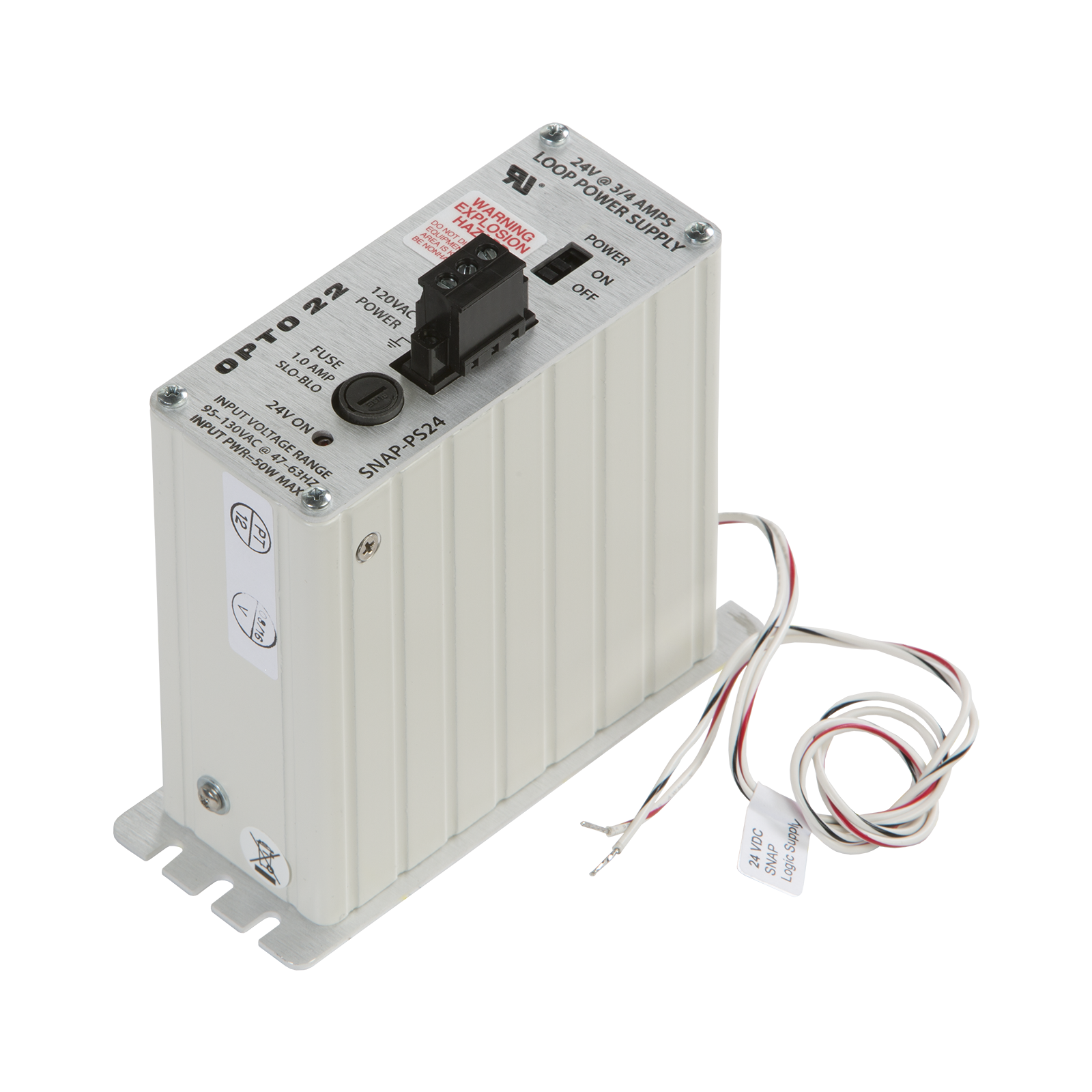

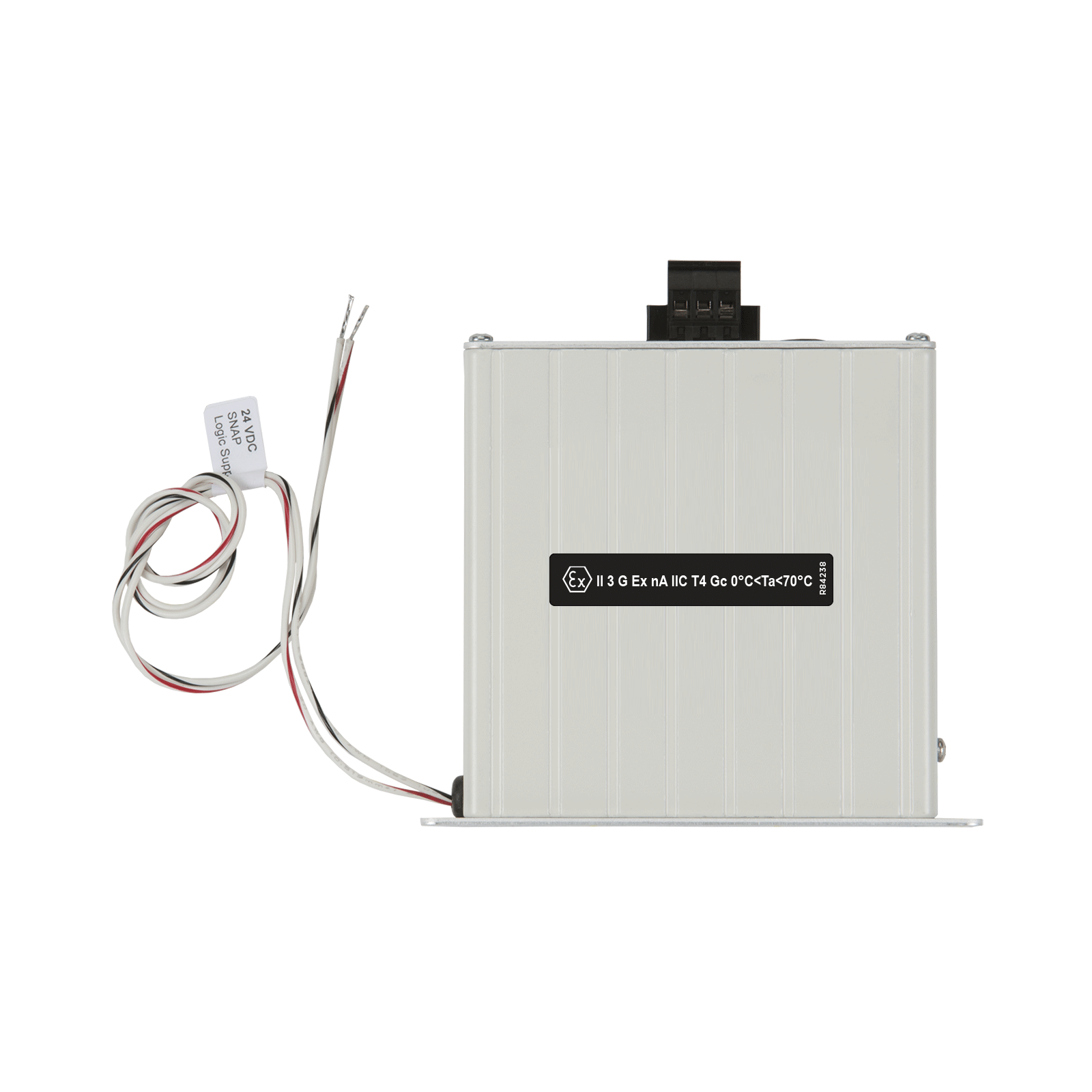

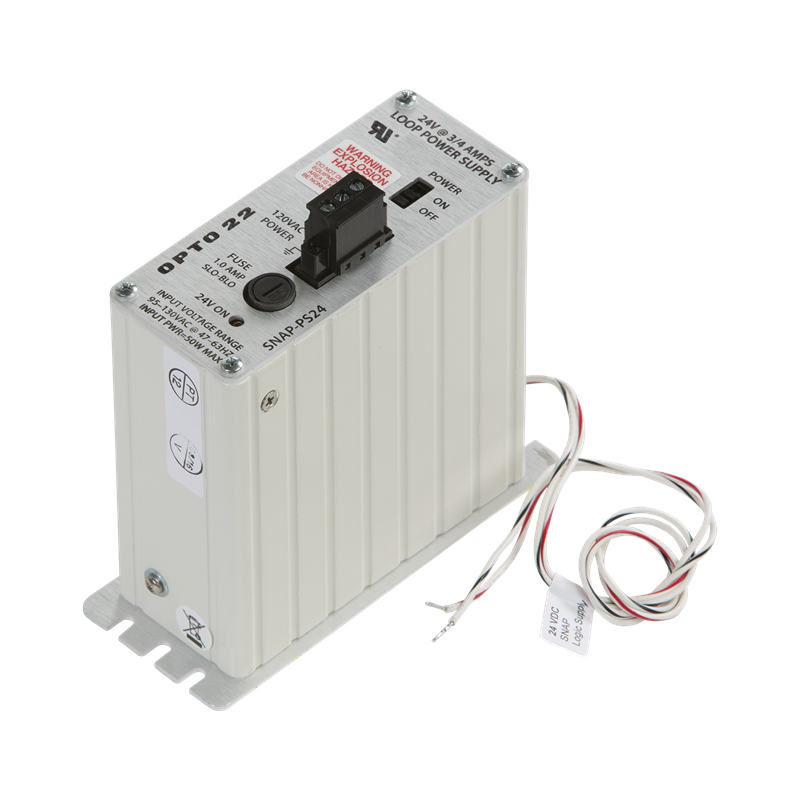

SNAP Power Supply, 110 VAC to 24 VDC

Production Specification

The SNAP-PS24 power supply provides 24 volts (0.75 amps) of DC power and requires a 120 VAC input. This power supply is ideal for powering a SNAP PAC S-series controller (such as the SNAP-PAC-S1) or for providing loop power for SNAP analog modules mounted on a SNAP PAC rack.

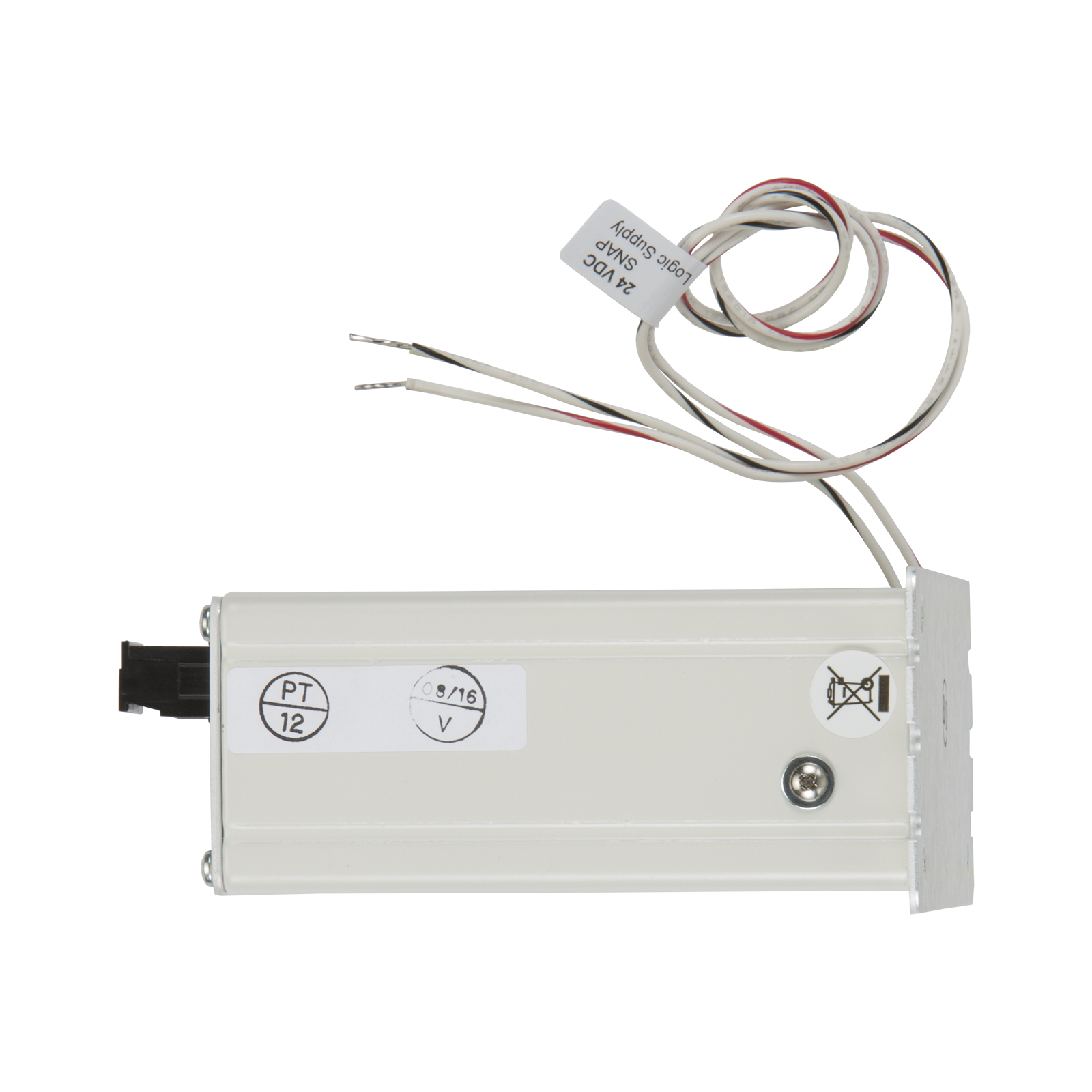

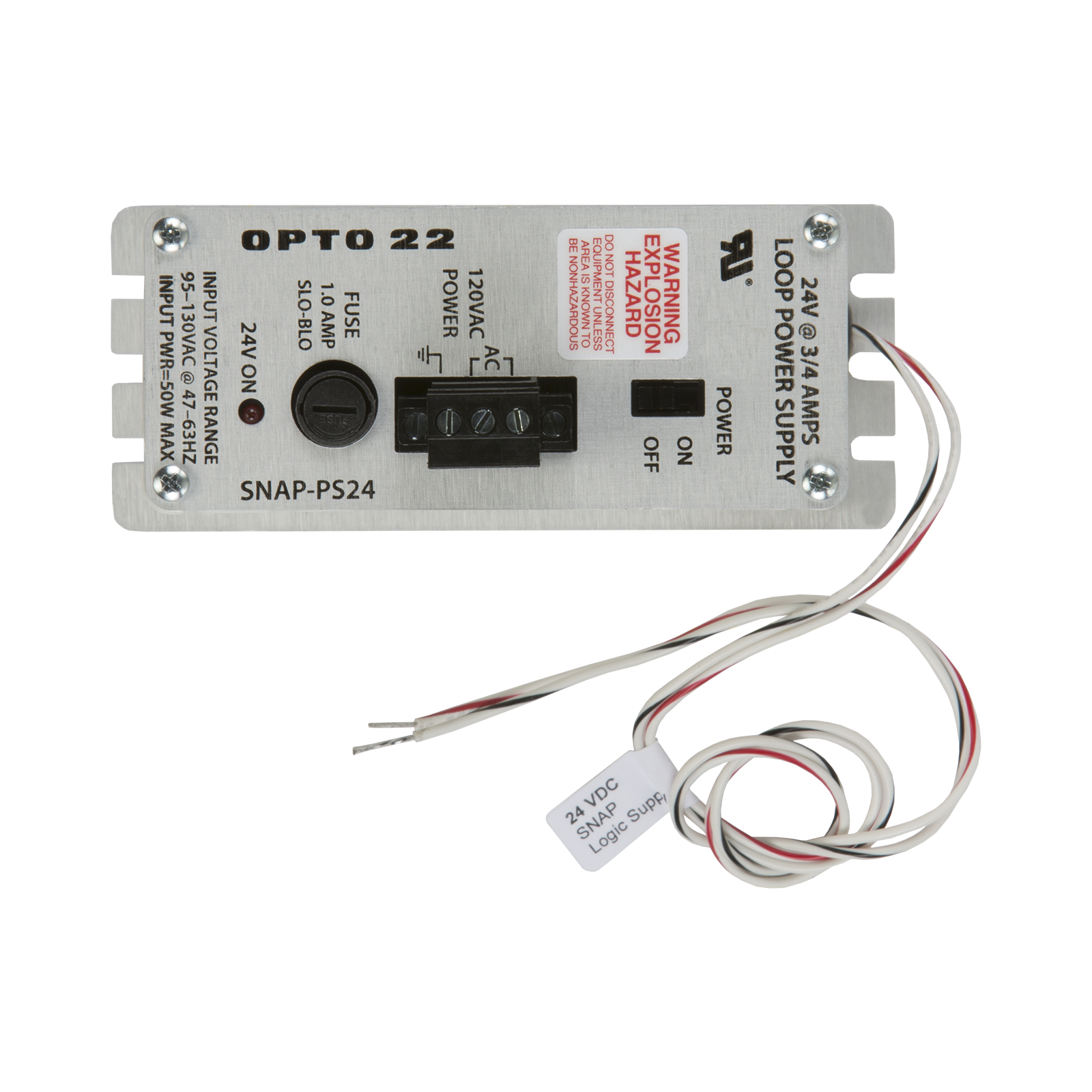

AC power connections are made to a removable terminal strip on top of the power supply. DC output power is hooked up using the attached wiring harness.

For larger loads (up to 1.25 amps) or an input of 100-250 VAC, see the SNAP-PS24U.

NOTE: The SNAP-PS24 can also be used to provide loop power for analog modules on a SNAP M-series or B-series rack.

Build your system in the SNAP I/O Configurator.




Input Voltage

95–130 VAC, 47–63 Hz

100–250 VAC, 47–63 Hz

Output Voltage

24 ± 0.6 VDC

24 ± 0.1 VDC

Output Current

0.75 A

1.25 A

Maximum Input Current Draw

0.4 Amps @ 120 VAC

0.5 Amps @ 120 VAC


4.05˝ x 4.89˝ x 2.00˝

6.34˝ x 4.13˝ x 2.53˝


2.1 lbs (952.54 g)

1.9 lbs (863.63 g)

Operating Temperature

-20 to 70 °C

-20 to 70 °C

Storage Temperature

-30 to 85 °C

-30 to 85 °C

Torque, connector screws

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)


Opto 22 PN: SNAP-FUSE1AB Vendor PN: GDC-1A (Bussman)

Internal fuse

Agency Approvals




30 months

30 months
