SNAP-PS5
Hover over image to zoom in

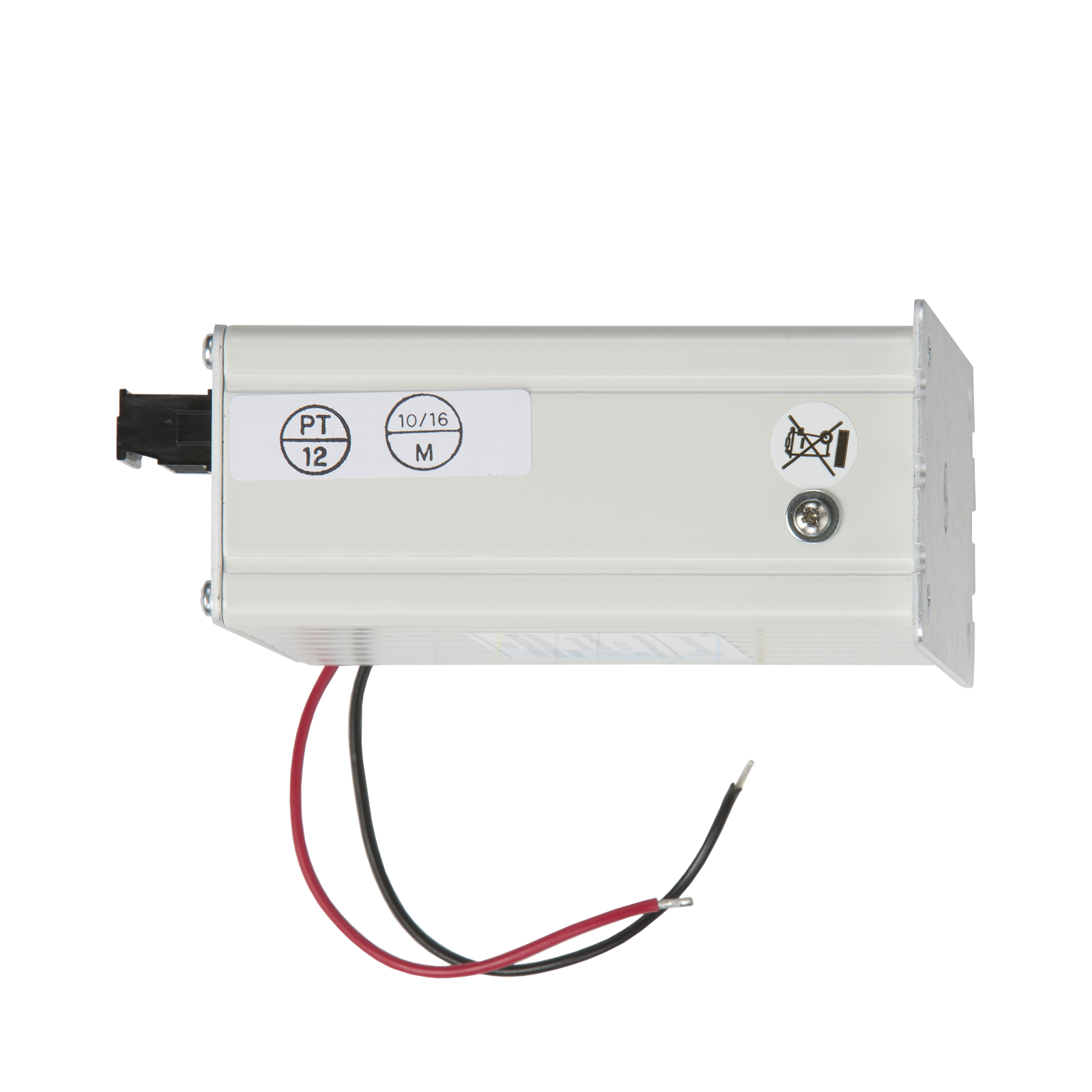

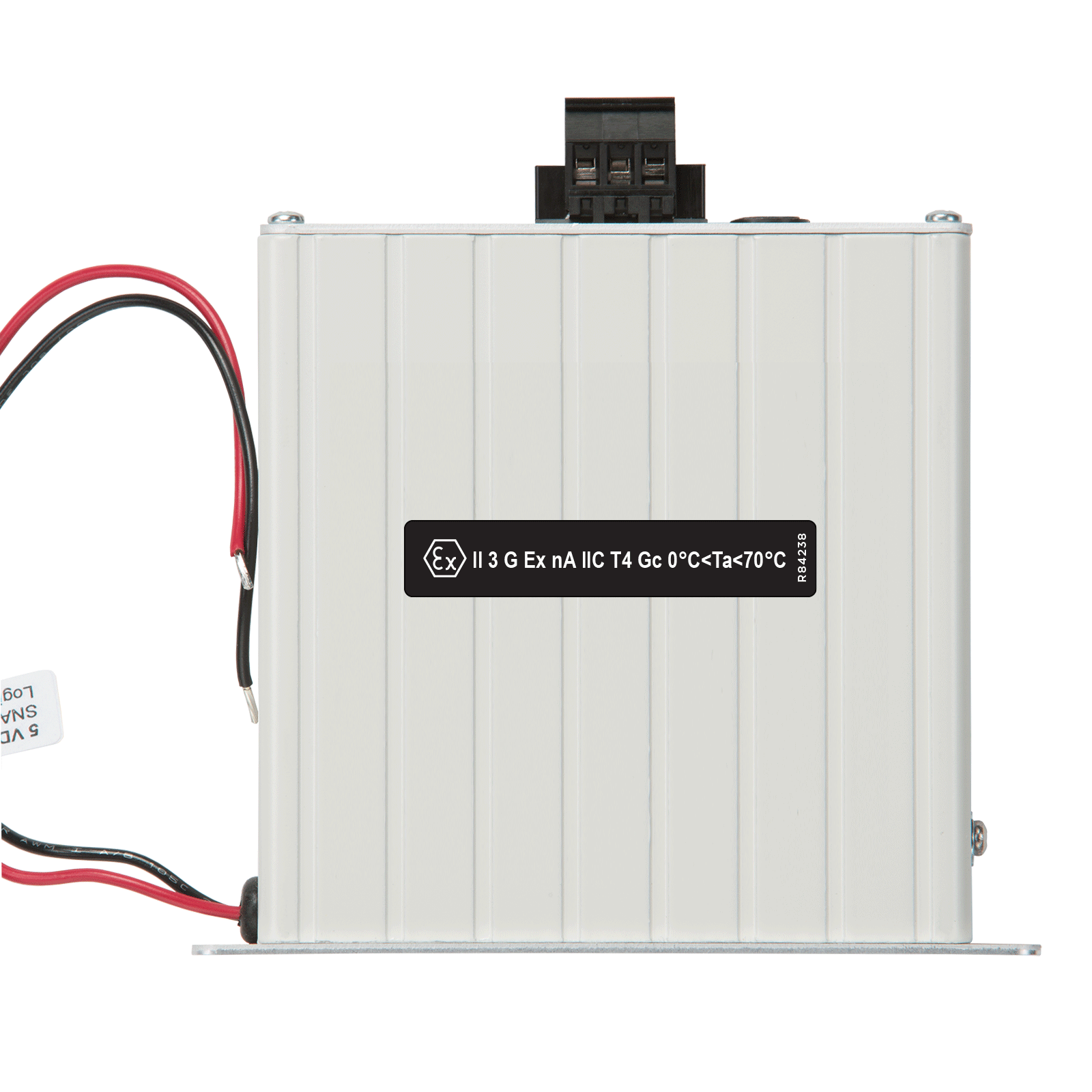

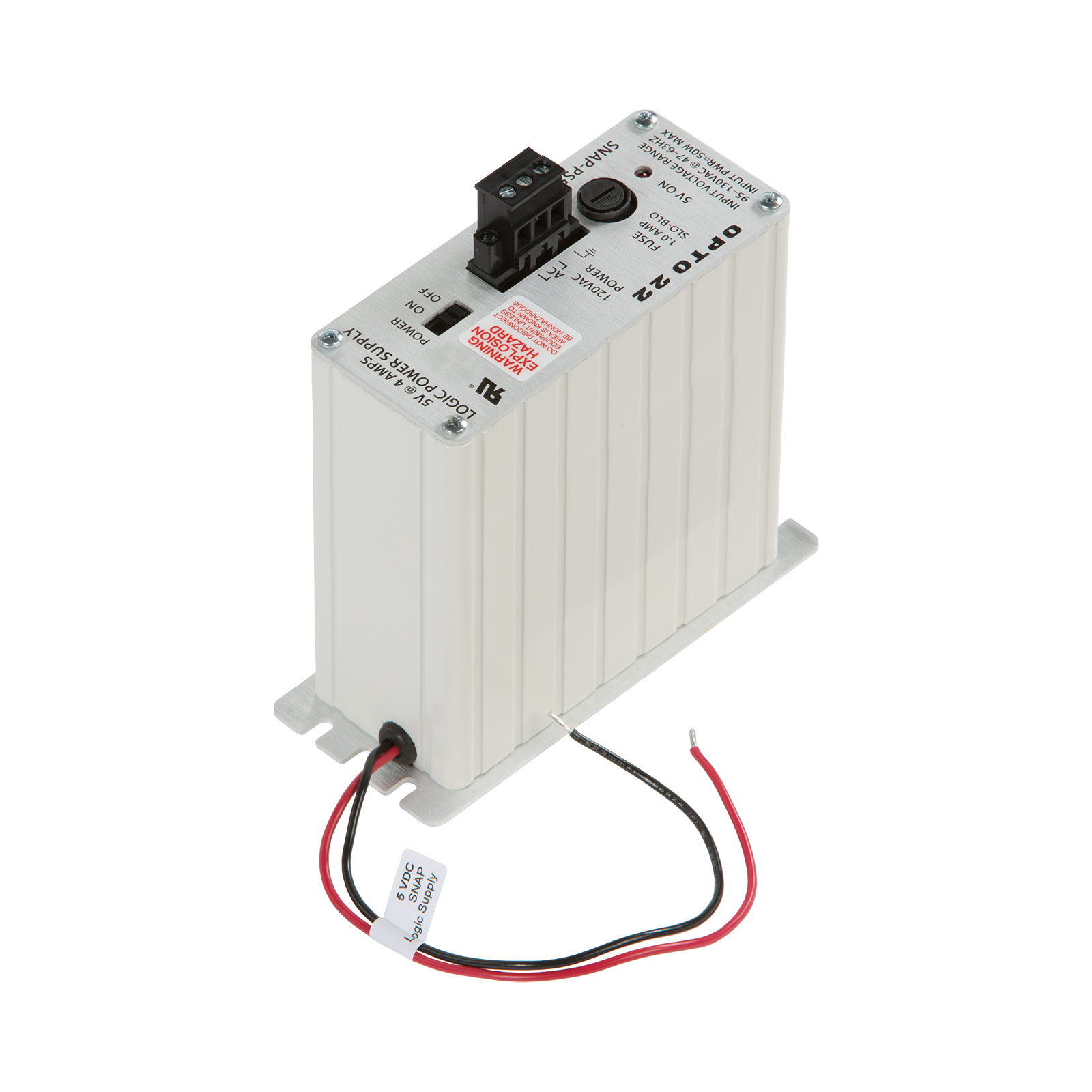

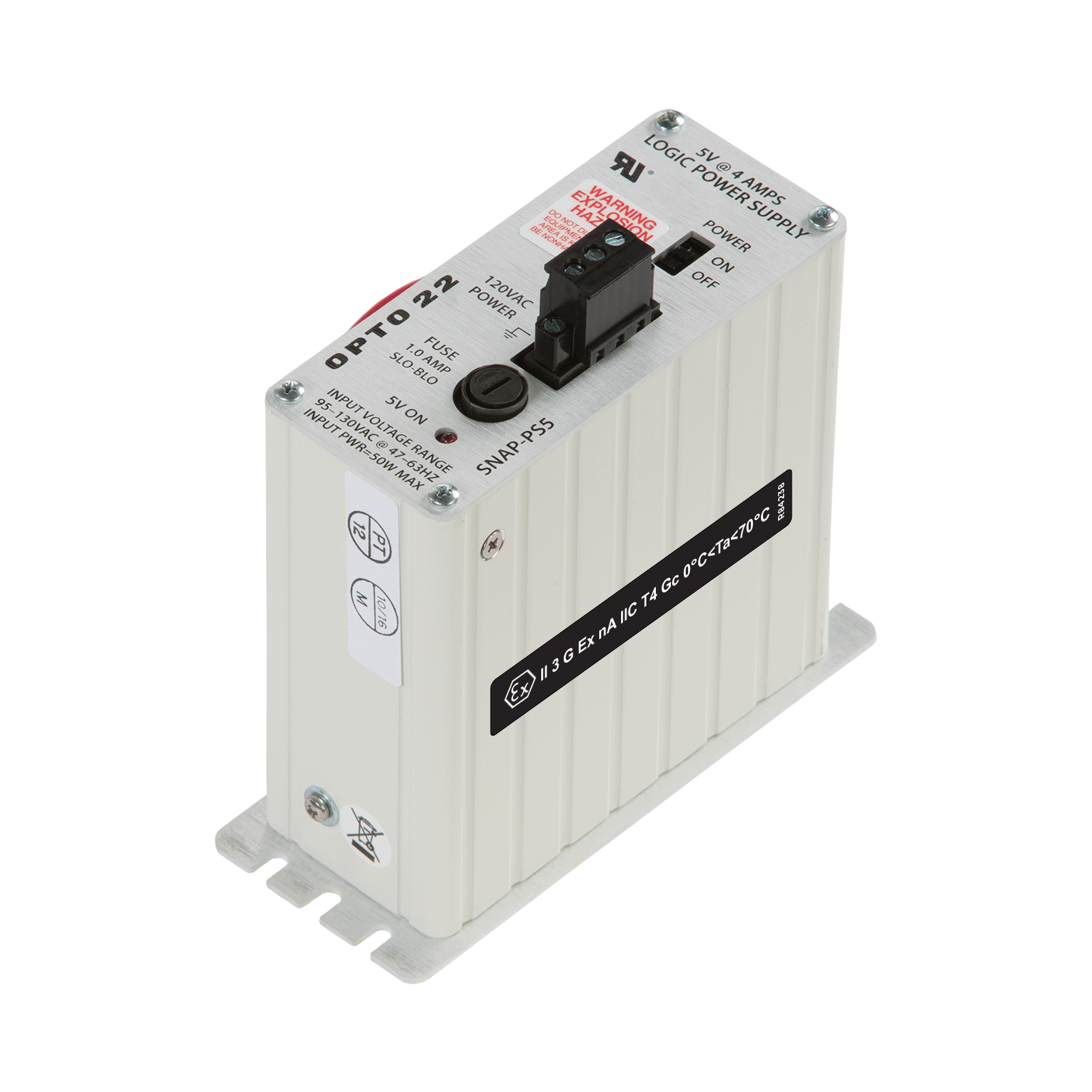

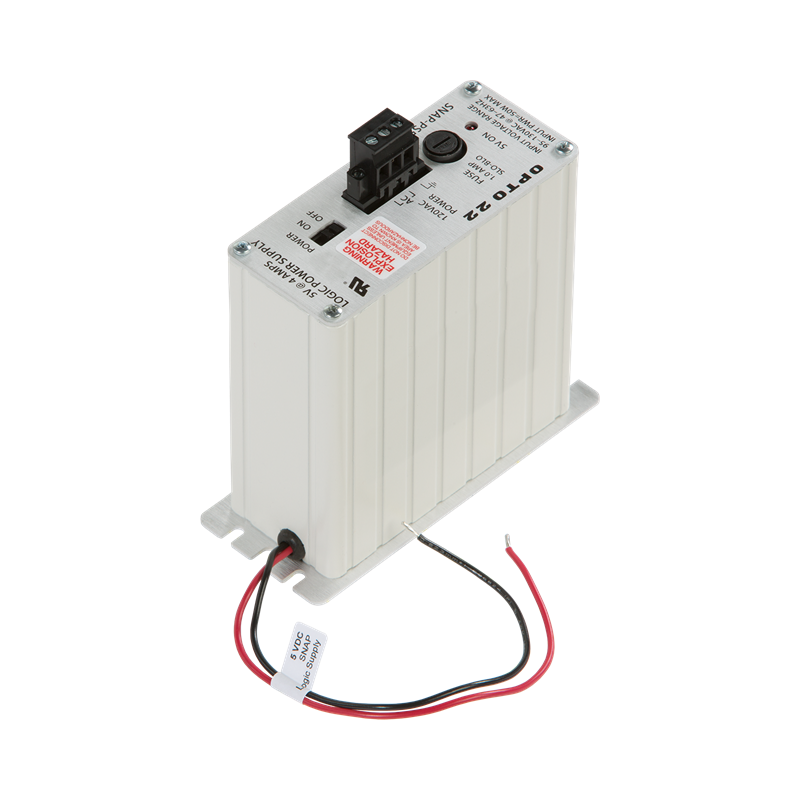

SNAP-PS5

$365.00 (USA and Canada only)

Availability: In stock
SNAP Power Supply, 110 VAC to 5 VDC
Data Sheet

Production Specification

The SNAP-PS5 power supply (120 VAC input) can provide 5 VDC power for loads up to 4 amps. This compact, sturdy supply is the best source of power for your SNAP PAC System. It includes a built-in fuse, an LED status indicator, and an ON/OFF power switch for ease of use.

The SNAP-PS5 provides 5 VDC power for a SNAP PAC rack with an I/O processor (SNAP PAC brain or R-series controller) and I/O modules mounted on the rack. To figure power requirements, see form #1120, the SNAP Power Supplies Data Sheet, under the Documents tab.

For larger loads (up to 5 amps) or an input of 100-250 VAC, see the SNAP-PS5U.

NOTE: The SNAP-PS5 is also compatible with SNAP Ultimate, SNAP Ethernet, and SNAP Simple brains, with other SNAP brains such as the serial B3000, and with legacy controllers (such as the SNAP-LCSX) that require 5 VDC.

Build your system in the SNAP I/O Configurator.



SNAP-PS5

SNAP-PS5-24DC

SNAP-PS5U

Input Voltage

95–130 VAC, 47–63 Hz

18–32 VDC

100–250 VAC, 47–63 Hz

Output Voltage

5.1 ±0.1 VDC

5.1 ±0.1 VDC

5.1 ±0.1 VDC

Output Current

4.0 A

4.0 A

5.0 A

Maximum Input Current Draw

0.4 Amps at 120 VAC

1.3 Amps at 24 VDC

0.5 Amps at 120 VAC

Dimensions

4.05˝ x 4.20˝ x 2.00˝

4.05˝ x 4.20˝ x 2.00˝

6.34˝ x 4.13˝ x 2.53˝

Weight

15 oz. (425.25 g)

15 oz. (425.25 g)

1.9 lbs (863.63 g)

Operating Temperature

-20 to 70 °C

-20 to 70 °C

-20 to 70 °C

Storage Temperature

-30 to 85 °C

-30 to 85 °C

-30 to 85 °C

Torque, connector screws

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

Fuse

Opto 22 PN: SNAP-FUSE1AB Vendor PN: GDC-1A (Bussman)

Opto 22 PN: SNAP-FUSE2AB Vendor PN: GDB-2A (Bussman)

Internal fuse

Agency Approvals

UL, CE ATEX, NEBS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS

Warranty

30 months

30 months

30 months

1120

SNAP Power Supplies Data Sheet
