SNAP-PS5-24DC

$239.00 (USA and Canada only)

Availability: In stock

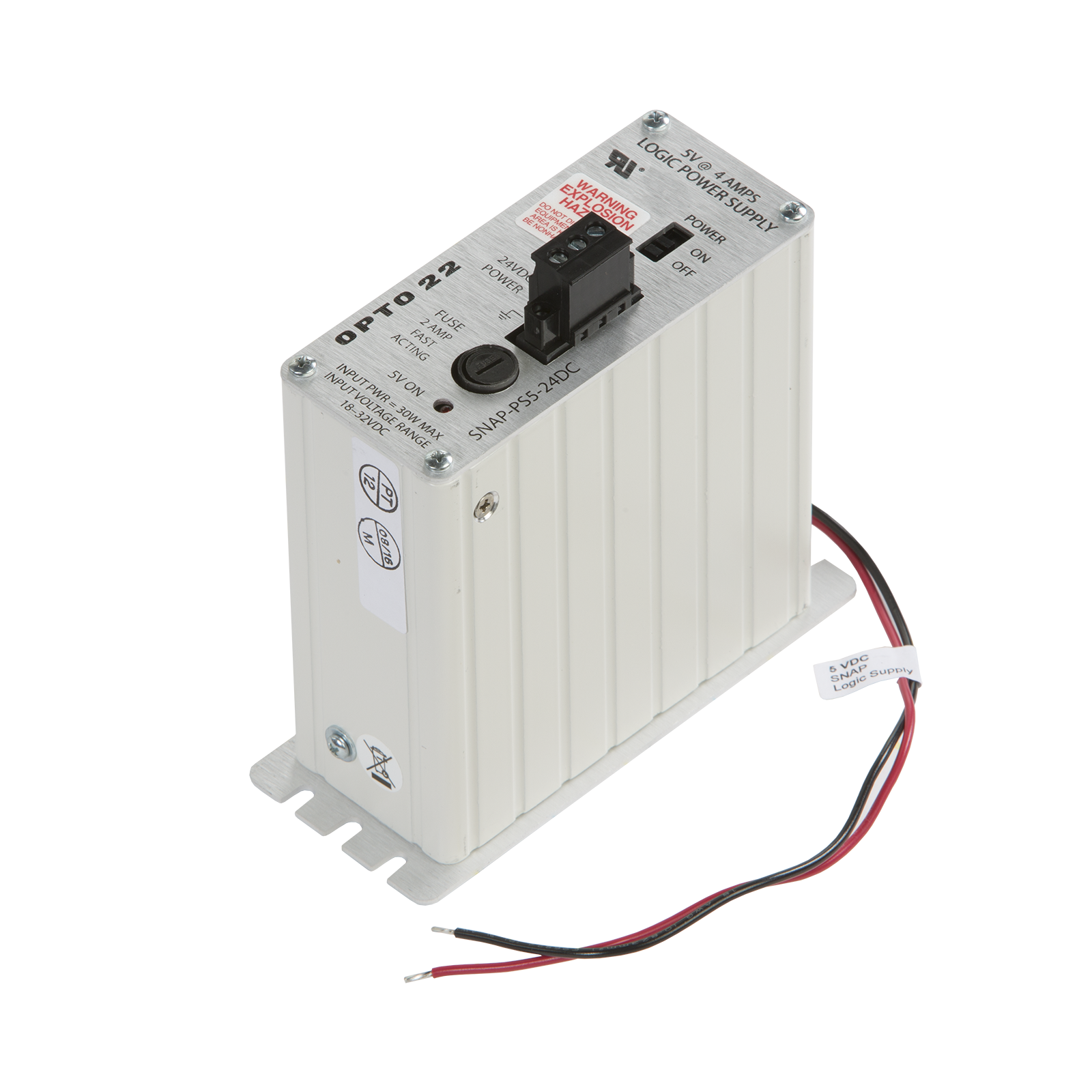

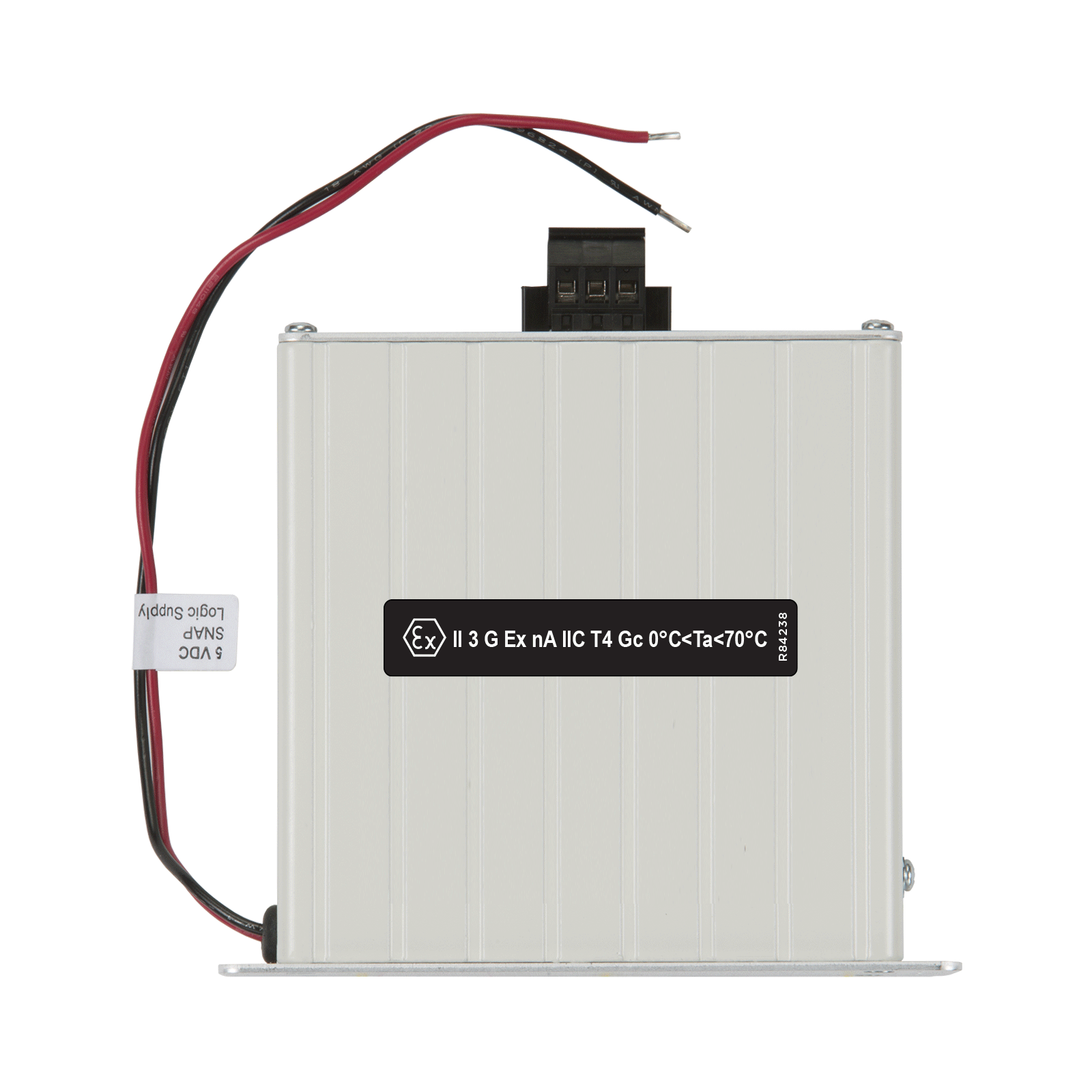

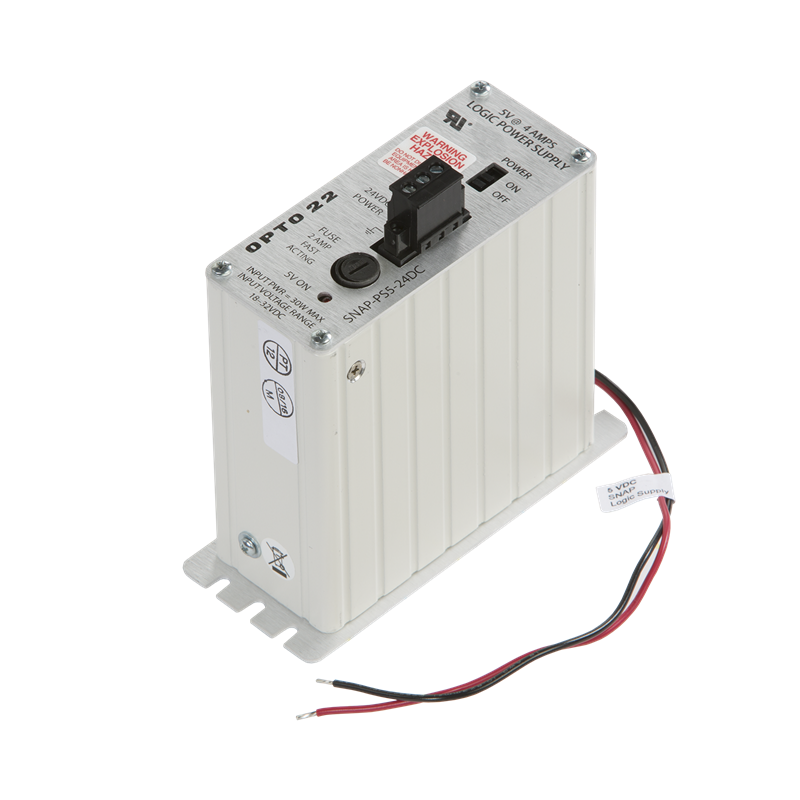

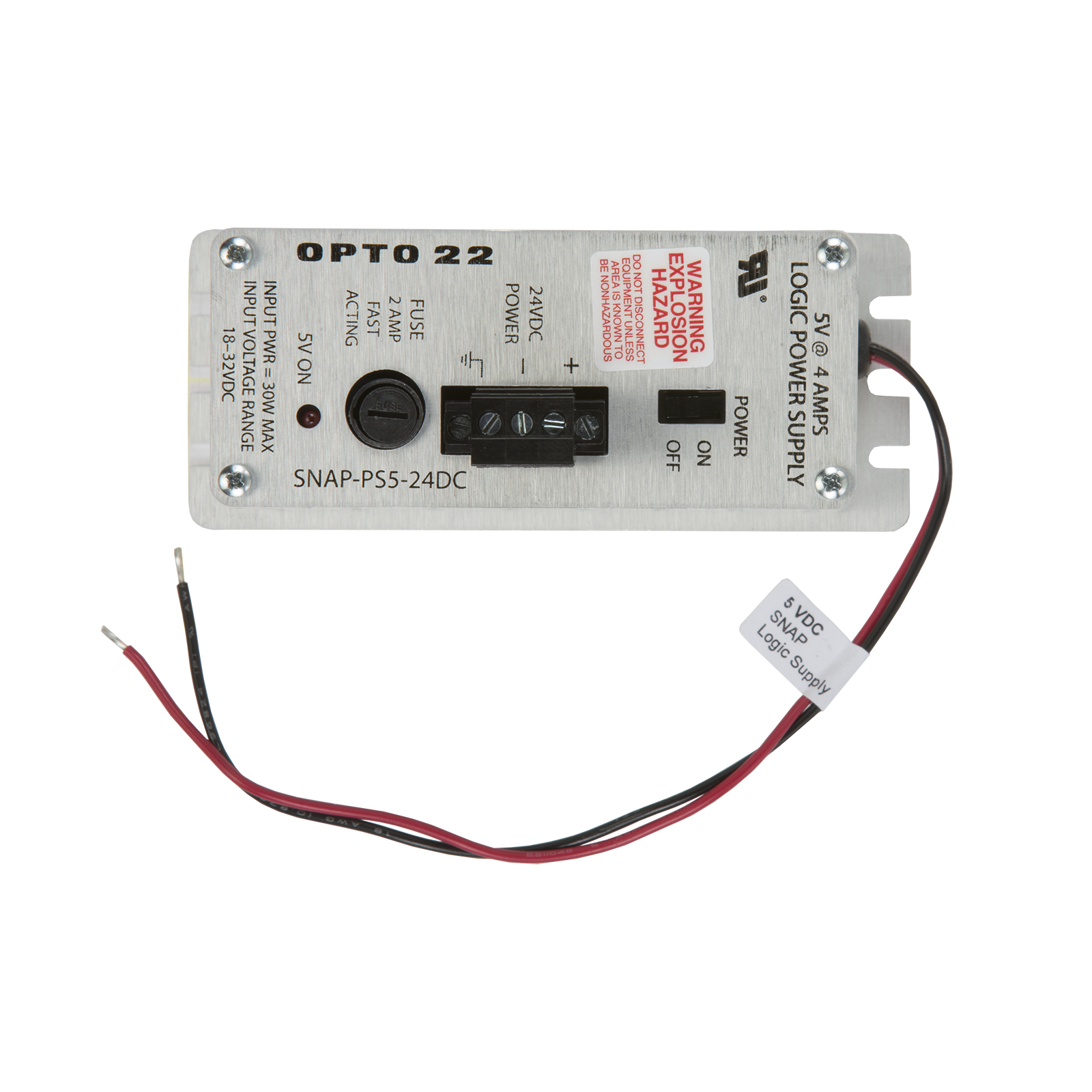

SNAP Power Supply, 24 VDC input, 5 VDC output

Please call (800) 321-6786 to order.

SNAP-PS5-24DC

Production Specification

The SNAP-PS5-24DC power supply (24 VDC input) can provide 5 VDC power for loads up to 4 amps. This DC-to-DC power supply requires a 24 VDC input and is ideal for systems using DC backup power. The SNAP-PS5-24DC is a compact, sturdy supply that includes a built-in fuse, an LED status indicator, and an ON/OFF power switch for ease of use.

The SNAP-PS5-24DC provides 5 VDC power for a SNAP PAC rack with an I/O processor (SNAP PAC brain or R-series controller) and I/O modules mounted on the rack.

NOTE: The SNAP-PS5-24DC is also compatible with SNAP Ultimate, SNAP Ethernet, and SNAP Simple brains, with other SNAP brains such as the serial B3000, and with legacy controllers such as the SNAP-LCSX that require 5 VDC. The SNAP-PS5-24DC power supply (24 VDC input) can provide 5 VDC power for loads up to 4 amps. This power supply is compatible with SNAP PAC R-series, SNAP Ethernet, SNAP Ultimate, and SNAP Simple I/O units, as well as serial controllers and brains.

For example, the SNAP-PS5-24DC power supply can provide power for: (1) a SNAP Ethernet brain, a SNAP mounting rack, and control power for I/O modules; or (2) a SNAP-LCSX or SNAP-LCSX-PLUS controller, a B3000 brain, a SNAP mounting rack, and control power for up to eight digital and eight analog SNAP I/O modules. The power supply can be panel-mounted, or it can be DIN-rail mounted using the optional adapter (SNAP-PSDIN).

Build your system in the SNAP I/O Configurator.



SNAP-PS5

SNAP-PS5-24DC

SNAP-PS5U

Input Voltage

95–130 VAC, 47–63 Hz

18–32 VDC

100–250 VAC, 47–63 Hz

Output Voltage

5.1 ±0.1 VDC

5.1 ±0.1 VDC

5.1 ±0.1 VDC

Output Current

4.0 A

4.0 A

5.0 A

Maximum Input Current Draw

0.4 Amps at 120 VAC

1.3 Amps at 24 VDC

0.5 Amps at 120 VAC

Dimensions

4.05˝ x 4.20˝ x 2.00˝

4.05˝ x 4.20˝ x 2.00˝

6.34˝ x 4.13˝ x 2.53˝

Weight

15 oz. (425.25 g)

15 oz. (425.25 g)

1.9 lbs (863.63 g)

Operating Temperature

-20 to 70 °C

-20 to 70 °C

-20 to 70 °C

Storage Temperature

-30 to 85 °C

-30 to 85 °C

-30 to 85 °C

Torque, connector screws

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

Fuse

Opto 22 PN: SNAP-FUSE1AB Vendor PN: GDC-1A (Bussman)

Opto 22 PN: SNAP-FUSE2AB Vendor PN: GDB-2A (Bussman)

Internal fuse

Agency Approvals

UL, FM, ATEX, DFARS

UL, FM, CE, ATEX, RoHS, DFARS

UL, CE, RoHS, DFARS

Warranty

30 months

30 months

30 months

SNAP PAC System Product Guide

This document lists and describes all Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, SNAP PAC brains, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

SNAP Power Supplies Data Sheet

SNAP power supplies provide the best source of AC or DC power for your Opto 22 SNAP PAC hardware. Packaged in a compact, sturdy housing, SNAP power supplies include a built-in fuse, an LED status indicator, and an ON/OFF power switch for ease of use.

This document provides information and specifications for SNAP-PS5, SNAP-PS5U, SNAP-PS24, SNAP-PS24U, and SNAP-PS5-24DC power supplies. It includes power supplies that were previously documented in form #953 (0953) as well as those covered in form #1120.

Declaration of Conformity (ATEX, EMC, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CE Declaration: ATEX

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

FM Approval Document

This document lists all Opto 22 part numbers that have Factory Mutual (FM) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

SNAP-PSDIN Installation Note

This document describes how to install a SNAP DIN-RAIL mounting assembly.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

AutoCAD Drawings

This file contains AutoCAD drawings of Opto 22 products dating from 1988 to 2003. These are the same drawings that have been available on our BBS. Included is an Excel file describing the file names and relevant Opto 22 part numbers.

CAD 3D Drawing: SNAP-PS5-24DC Power Supply

This CAD file includes drawings for the SNAP-PS5-24DC power supply. This DC-to-DC power supply requires a 24 VDC input and provides 5 VDC power for a SNAP PAC rack with SNAP PAC controller or brain and SNAP I/O modules. It is ideal for systems using DC backup power.

No videos or demos are available for this product.
