SNAP-PS5U

$299.00 (USA and Canada only)

Availability: In stock
SNAP Power Supply 100-250 VAC to 5 VDC

Please call (800) 321-6786 to order.

SNAP-PS5U

Production Specification

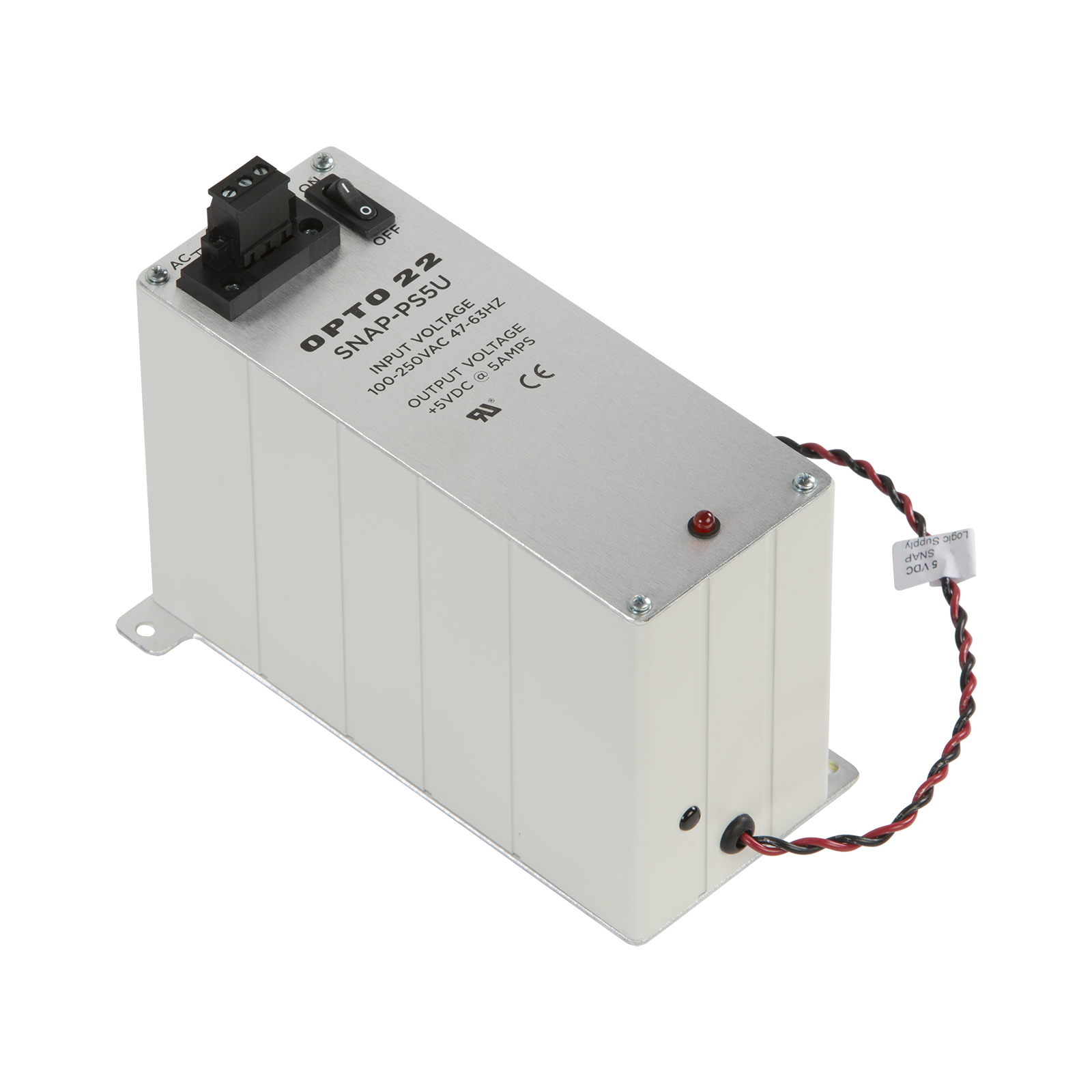

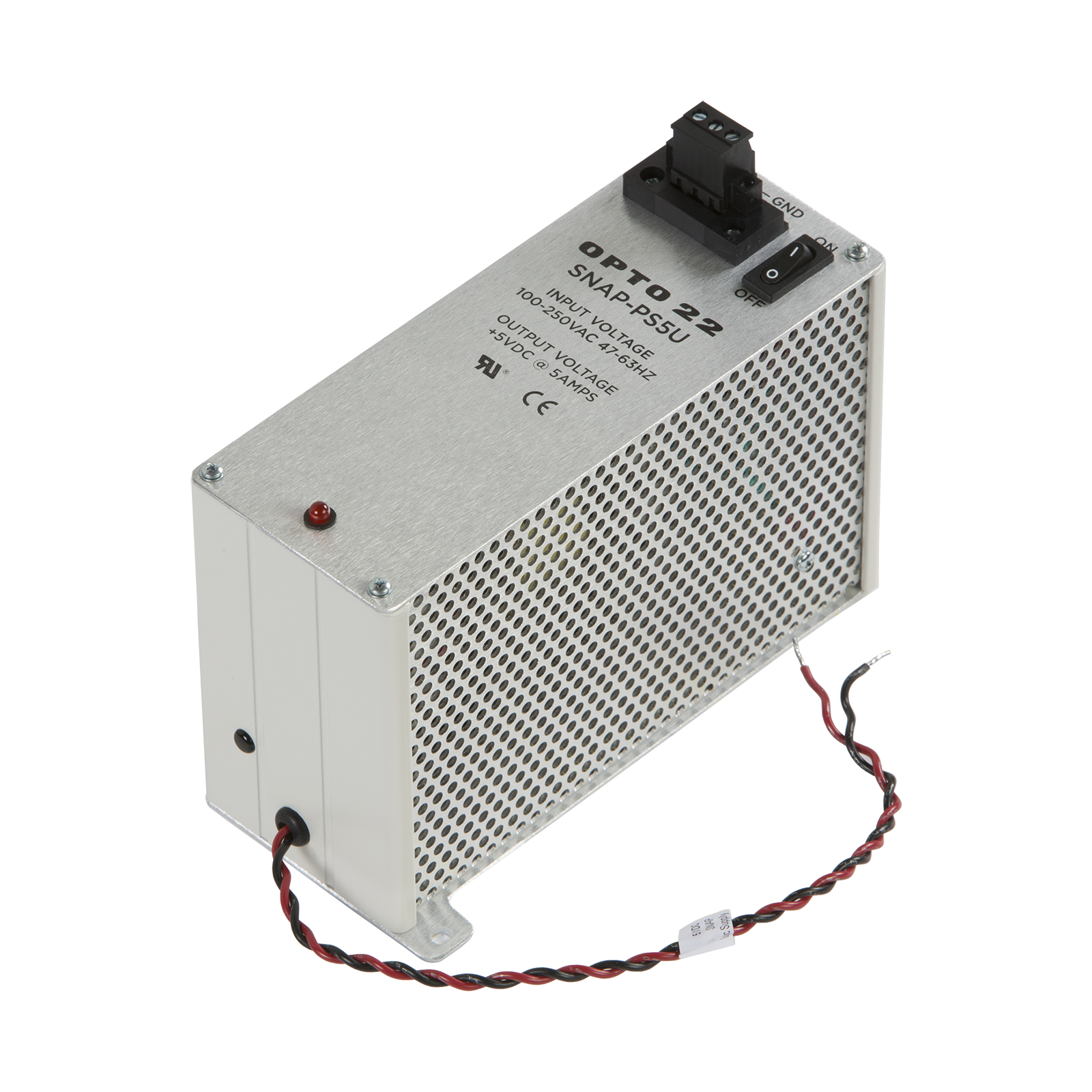

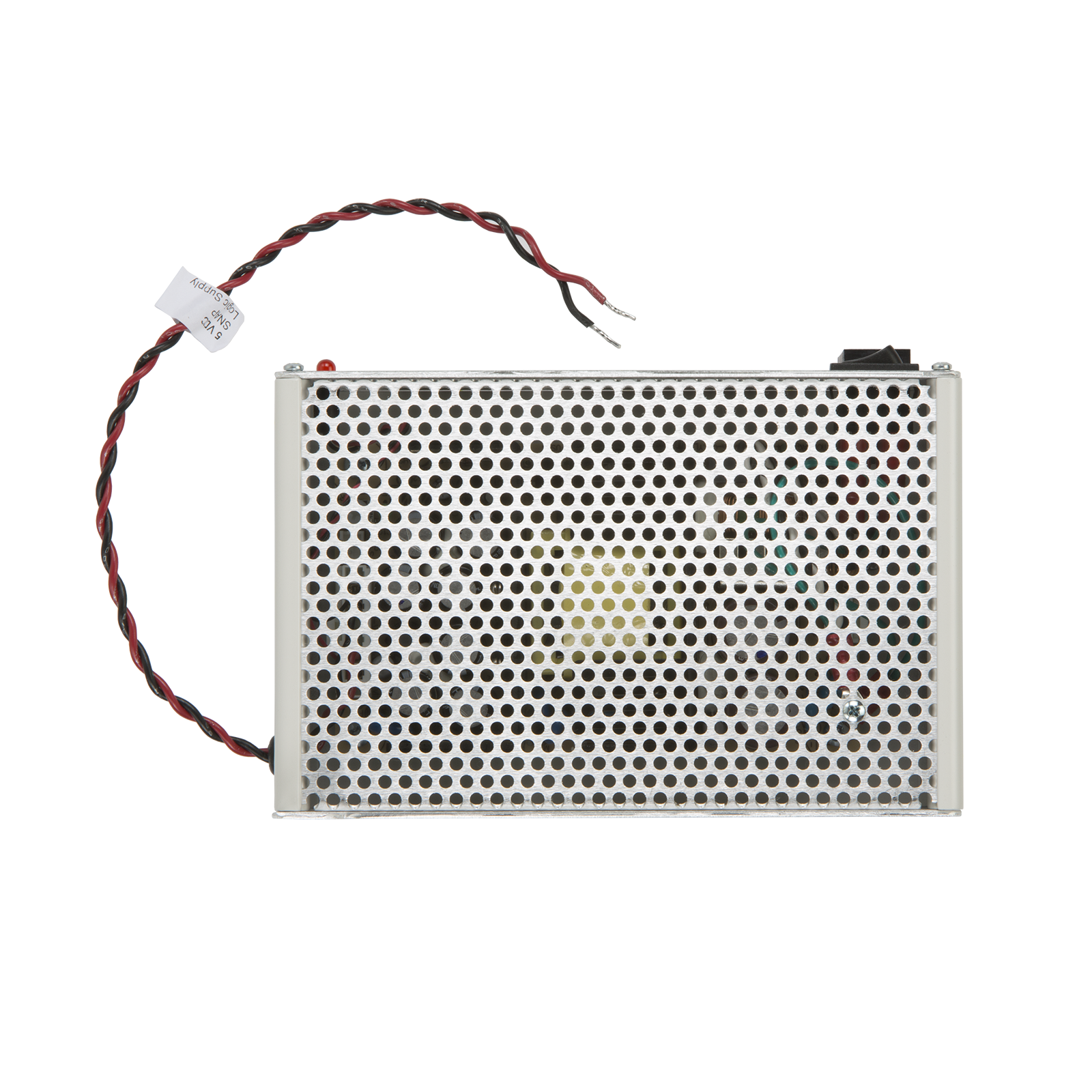

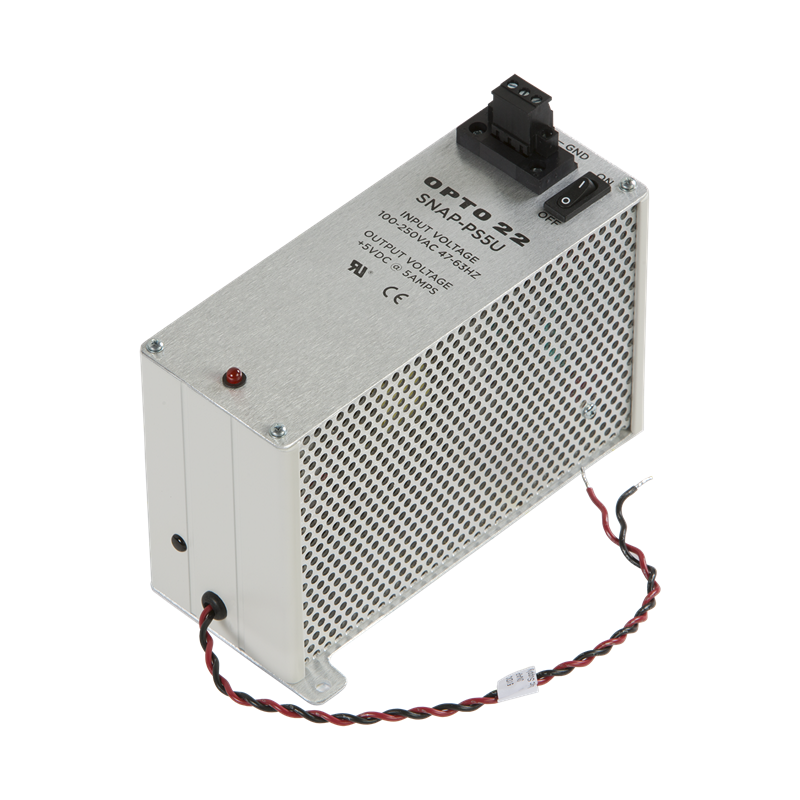

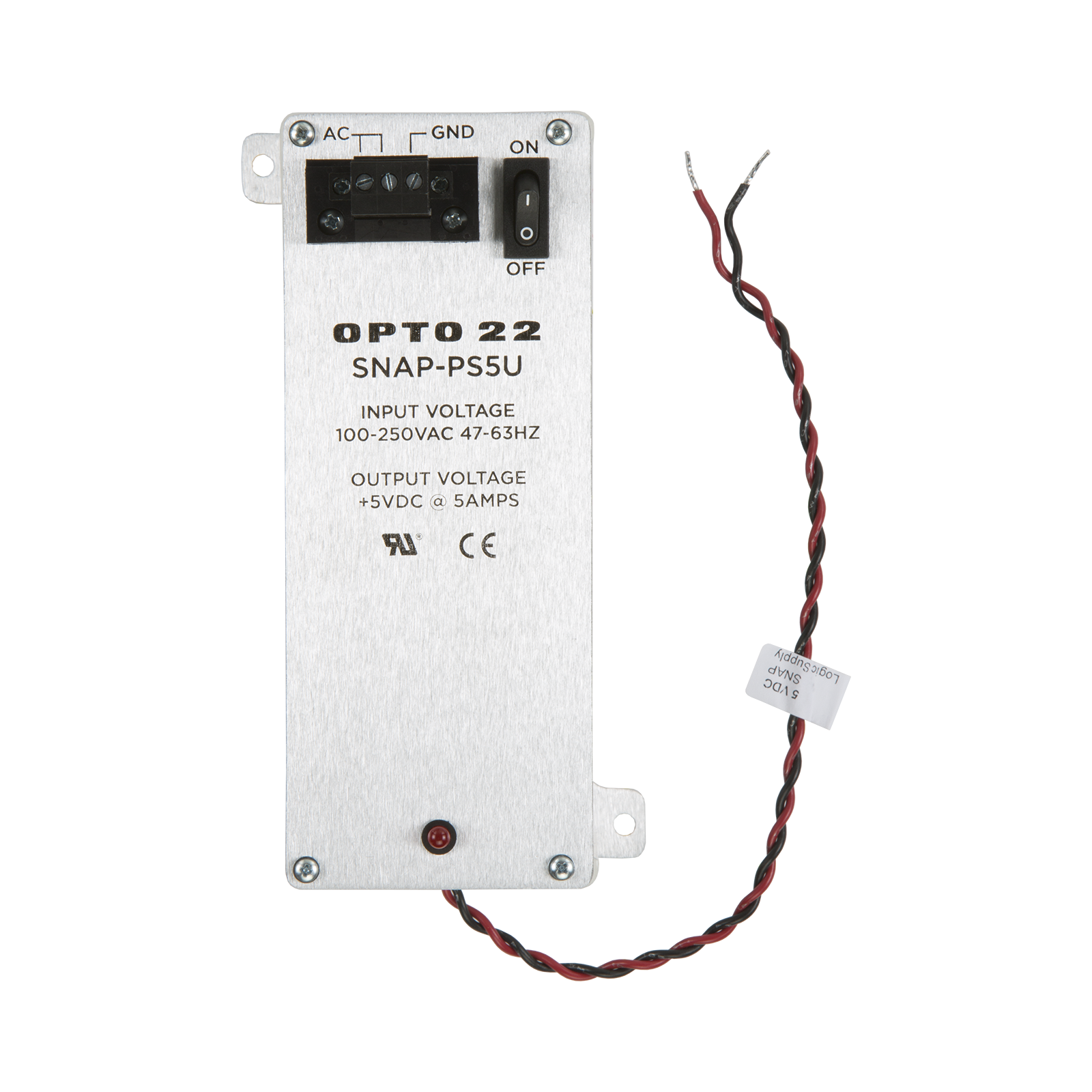

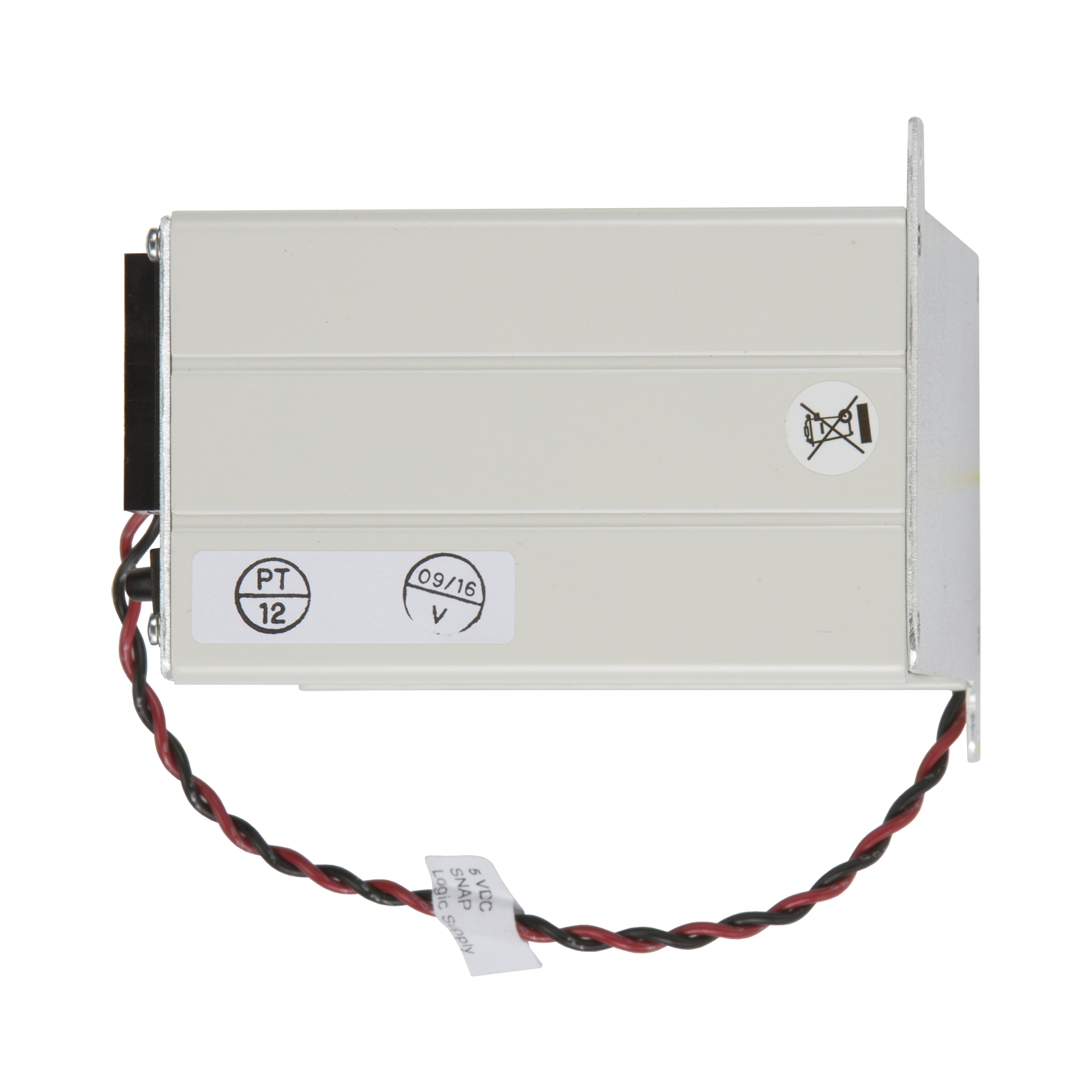

The SNAP-PS5U power supply (100-250 VAC input) can provide 5 VDC power for loads up to 5 amps. This compact, sturdy supply is the best source of AC or DC power for your Opto 22 SNAP PAC hardware. It includes a built-in fuse, an LED status indicator, and an ON/OFF power switch for ease of use.

The SNAP-PS5U is designed to provide 5 VDC power for a SNAP PAC rack with an I/O processor (SNAP PAC brain or R-series controller) and I/O modules mounted on the rack. To figure power requirements, see form #1120, the SNAP Power Supplies Data Sheet, under the Docs & Downloads tab.

If you do not need 5 amps and can use a 120 VAC input, see the SNAP-PS5, which provides 4 amps.

NOTE: This power supply is also compatible with SNAP Ethernet, SNAP Ultimate, and SNAP Simple I/O units, as well as serial controllers and brains.

Build your system in the SNAP I/O Configurator.



SNAP-PS5

SNAP-PS5-24DC

SNAP-PS5U

Input Voltage

95–130 VAC, 47–63 Hz

18–32 VDC

100–250 VAC, 47–63 Hz

Output Voltage

5.1 ±0.1 VDC

5.1 ±0.1 VDC

5.1 ±0.1 VDC

Output Current

4.0 A

4.0 A

5.0 A

Maximum Input Current Draw

0.4 Amps at 120 VAC

1.3 Amps at 24 VDC

0.5 Amps at 120 VAC

Dimensions

4.05˝ x 4.20˝ x 2.00˝

4.05˝ x 4.20˝ x 2.00˝

6.34˝ x 4.13˝ x 2.53˝

Weight

15 oz. (425.25 g)

15 oz. (425.25 g)

1.9 lbs (863.63 g)

Operating Temperature

-20 to 70 °C

-20 to 70 °C

-20 to 70 °C

Storage Temperature

-30 to 85 °C

-30 to 85 °C

-30 to 85 °C

Torque, connector screws

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

4.5 in-lb (0.51 N-m)

Fuse

Opto 22 PN: SNAP-FUSE1AB Vendor PN: GDC-1A (Bussman)

Opto 22 PN: SNAP-FUSE2AB Vendor PN: GDB-2A (Bussman)

Internal fuse

Agency Approvals

UL, FM, DFARS

UL, FM, CE, RoHS, DFARS

UL, CE, RoHS, DFARS

Warranty

30 months

30 months

30 months

SNAP PAC System Product Guide

This document lists and describes all Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, SNAP PAC brains, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

SNAP Power Supplies Data Sheet

SNAP power supplies provide the best source of AC or DC power for your Opto 22 SNAP PAC hardware. Packaged in a compact, sturdy housing, SNAP power supplies include a built-in fuse, an LED status indicator, and an ON/OFF power switch for ease of use.

This document provides information and specifications for SNAP-PS5, SNAP-PS5U, SNAP-PS24, SNAP-PS24U, and SNAP-PS5-24DC power supplies. It includes power supplies that were previously documented in 1120, Snap Power Supplies Data Sheet .

Declaration of Conformity (EMC, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

SNAP-PSDIN Installation Note

This document describes how to install a SNAP DIN-RAIL mounting assembly.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
