SNAP-RACKDIN

Availability: In stock

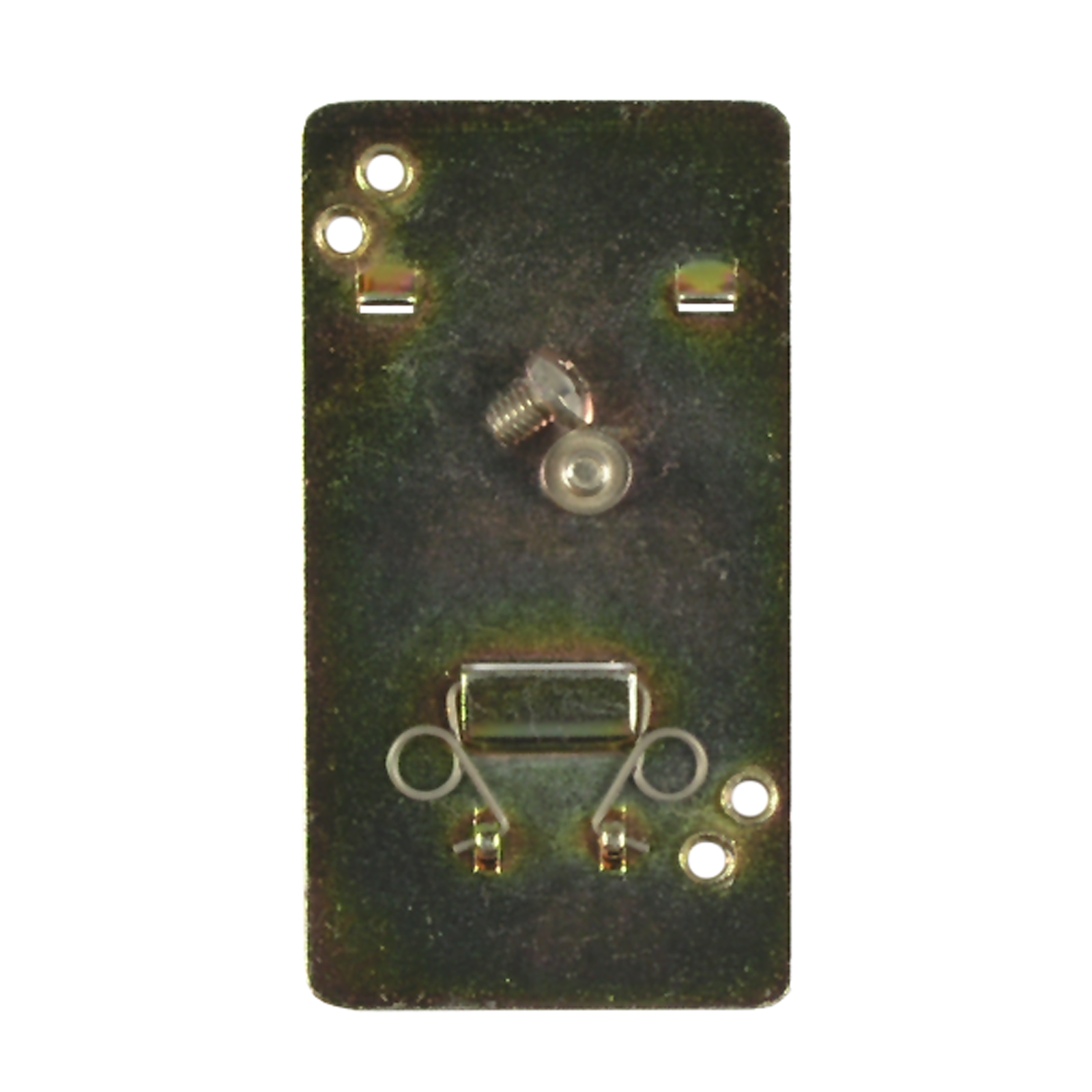

SNAP Rack DIN-rail Adapter Clip

Please call (800) 321-6786 to order.

SNAP-RACKDIN

Production Specification

The SNAP-RACKDIN provides adapter clips for mounting a SNAP rack on a 35mm DIN rail.
Specifications are not currently available for this product.

DIN-Rail Mounting Clip Compatibility Chart

This compatibility chart shows which DIN-rail kit or clip to use with your SNAP power supply, controller, I/O mounting rack, breakout board, or classic brain board.

SNAP I/O Racks Data Sheet

SNAP B-series mounting racks are designed to hold an intelligent SNAP I/O processor (either a SNAP brain or an on-the-rack controller) and several I/O modules.

This data sheet includes detailed information and specifications for SNAP B-series racks as well as the digital-only SNAP-D64RS rack. Rack fuses and DIN-rail adapters are also included in the data sheet.

B-series racks are used with serial and some Ethernet I/O processors.

  • With Ethernet processors such as the SNAP-B3000-ENET, B-series racks hold analog, digital, and serial modules.
  • With serial processors such as the serial B3000 brain, they hold analog and digital modules.

NOTE: For racks to use with SNAP PAC brains and rack-mounted controllers, or with SNAP-UP1-M64 and SNAP Simple brains, see Form #1684, the SNAP PAC Racks Data Sheet.

SNAP D Series Racks (with Terminal Strip) Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. These MC and MC-P model racks provide a screw-type terminal strip for additional wiring requirements.

SNAP D Series Racks Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules.

Declaration of Conformity (RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

Attaching the Adapter Clip to a DIN Rail

This document illustrates how to attach a DIN-rail clip (SNAP-RACKDIN) to a 35mm DIN rail.

DIN-rail clips are used with I/O mounting racks, such as SNAP PAC racks, which hold I/O modules and a brain or rack-mounted controller.

AutoCAD Drawings

This file contains AutoCAD drawings of Opto 22 products dating from 1988 to 2003. These are the same drawings that have been available on our BBS. Included is an Excel file describing the file names and relevant Opto 22 part numbers.

No videos or demos are available for this product.
