SNAP-RACKDINB

SNAP-RACKDINB

Please contact your local distributor for pricing. Please contact your local distributor for pricing.

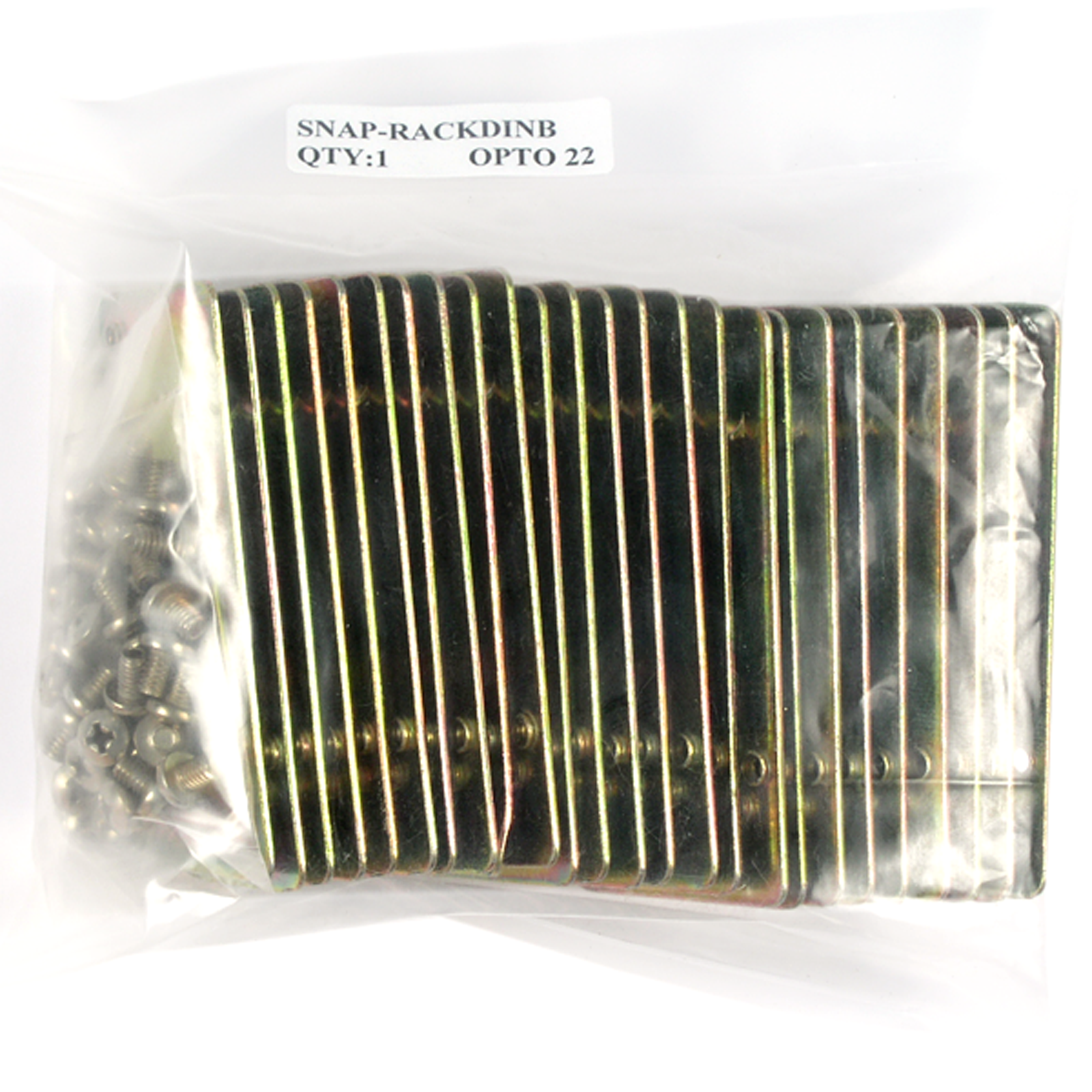

SNAP Rack DIN-rail Adapter Clip, 25-pack

Please call (800) 321-6786 to order.

Production Specification

The SNAP-RACKDINB provides a pack of 25 adapter clips for mounting SNAP racks on 35mm DIN rails. Each SNAP rack requires 2 to 4 clips (depending on rack length) for secure mounting.
Specifications are not currently available for this product.

DIN-Rail Mounting Clip Compatibility Chart

This compatibility chart shows which DIN-rail kit or clip to use with your SNAP power supply, controller, I/O mounting rack, breakout board, or classic brain board.

SNAP PAC Racks Data Sheet

SNAP PAC racks mount one SNAP PAC brain or on-the-rack controller, plus up to 4, 8, 12, or 16 SNAP input/output (I/O) modules. Both standard wired controllers and brains and Wired+Wireless models are mounted on these racks.

I/O modules may be analog, digital, or serial modules. All module types can be mixed together on the same rack in any position.

SNAP Racks Assembly Instructions

This legacy document describes how to install a legacy rack extrusion and how to install or remove a circuit board. It includes a list of SNAP rack accessories.

SNAP I/O Racks Data Sheet

SNAP B-series mounting racks are designed to hold an intelligent SNAP I/O processor (either a SNAP brain or an on-the-rack controller) and several I/O modules.

This data sheet includes detailed information and specifications for SNAP B-series racks as well as the digital-only SNAP-D64RS rack. Rack fuses and DIN-rail adapters are also included in the data sheet.

B-series racks are used with serial and some Ethernet I/O processors.

  • With Ethernet processors such as the SNAP-B3000-ENET, B-series racks hold analog, digital, and serial modules.
  • With serial processors such as the serial B3000 brain, they hold analog and digital modules.

NOTE: For racks to use with SNAP PAC brains and rack-mounted controllers, or with SNAP-UP1-M64 and SNAP Simple brains, see Form #1684, the SNAP PAC Racks Data Sheet.

SNAP D Series Racks (with Terminal Strip) Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. These MC and MC-P model racks provide a screw-type terminal strip for additional wiring requirements.

SNAP D Series Racks Data Sheet

The SNAP I/O D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules.

Declaration of Conformity (RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

Attaching the Adapter Clip to a DIN Rail

This document illustrates how to attach a DIN-rail clip (SNAP-RACKDIN) to a 35mm DIN rail.

DIN-rail clips are used with I/O mounting racks, such as SNAP PAC racks, which hold I/O modules and a brain or rack-mounted controller.

AutoCAD Drawings

This file contains AutoCAD drawings of Opto 22 products dating from 1988 to 2003. These are the same drawings that have been available on our BBS. Included is an Excel file describing the file names and relevant Opto 22 part numbers.

No videos or demos are available for this product.
