SNAP-RCK-B2M
Hover over image to zoom in

SNAP-RCK-B2M

Availability: Obsolete

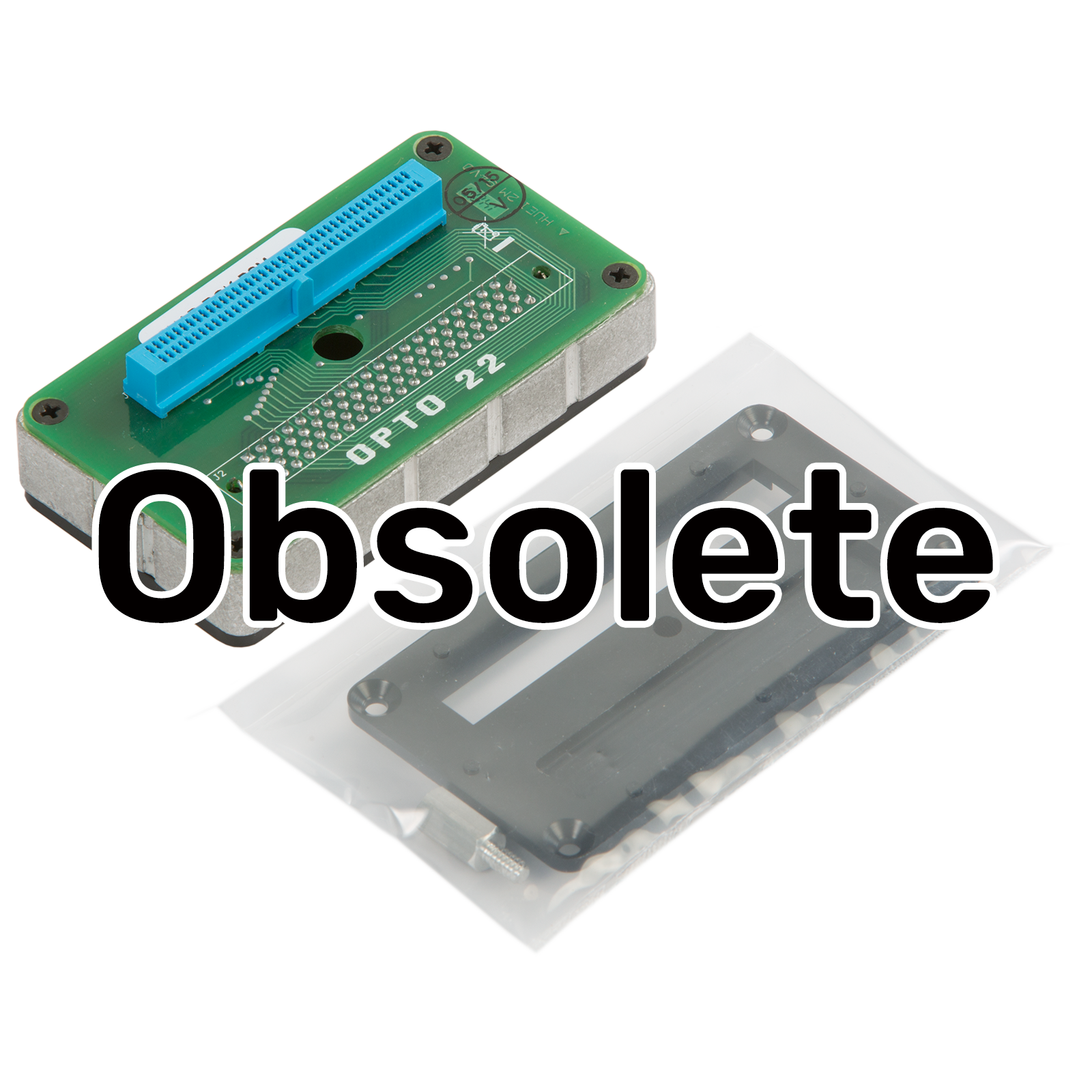

OBSOLETE Adapter for using legacy SNAP brain on SNAP PAC or SNAP M-series mounting racks

Production Specification

*** NOTE: This part is OBSOLETE and no longer available. ***

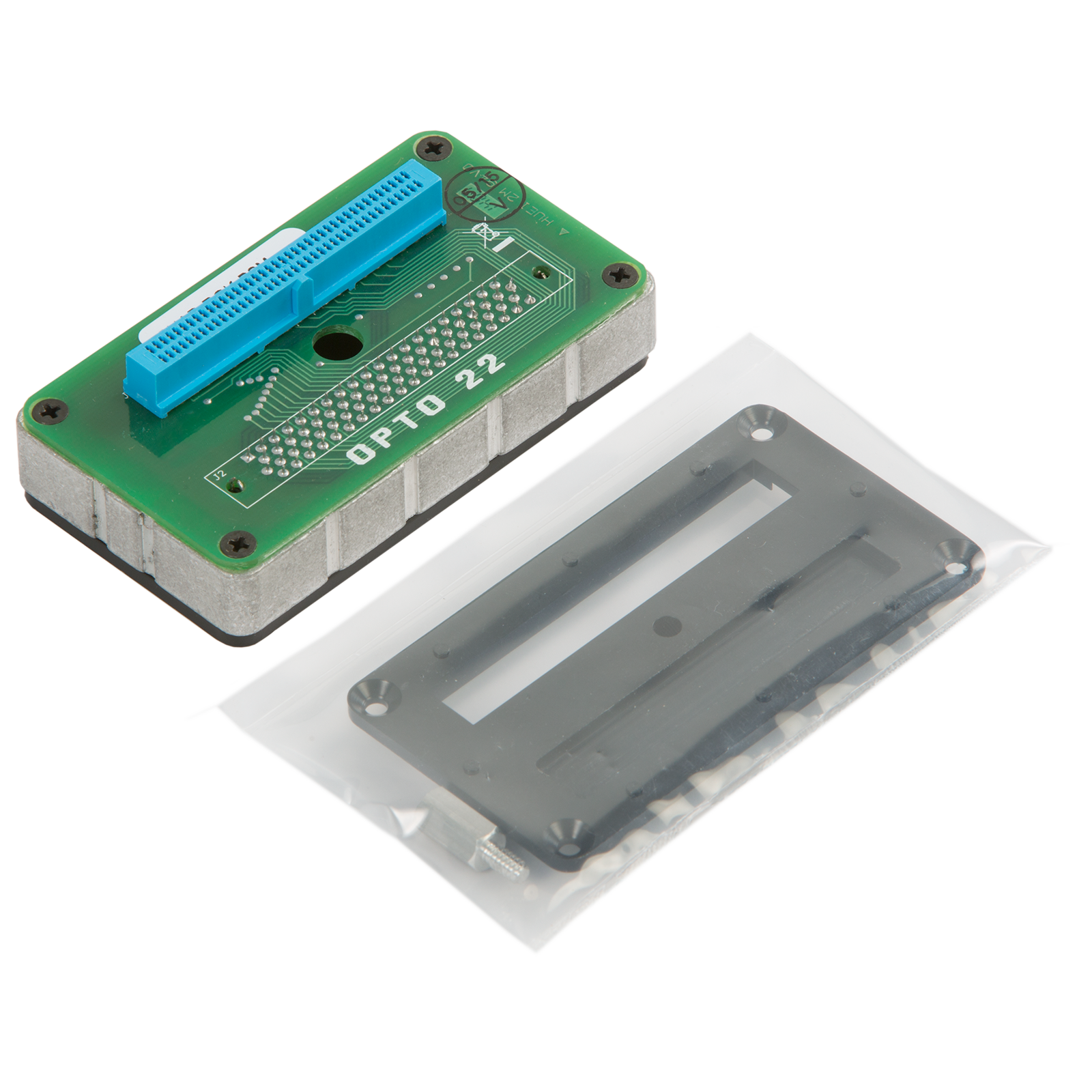

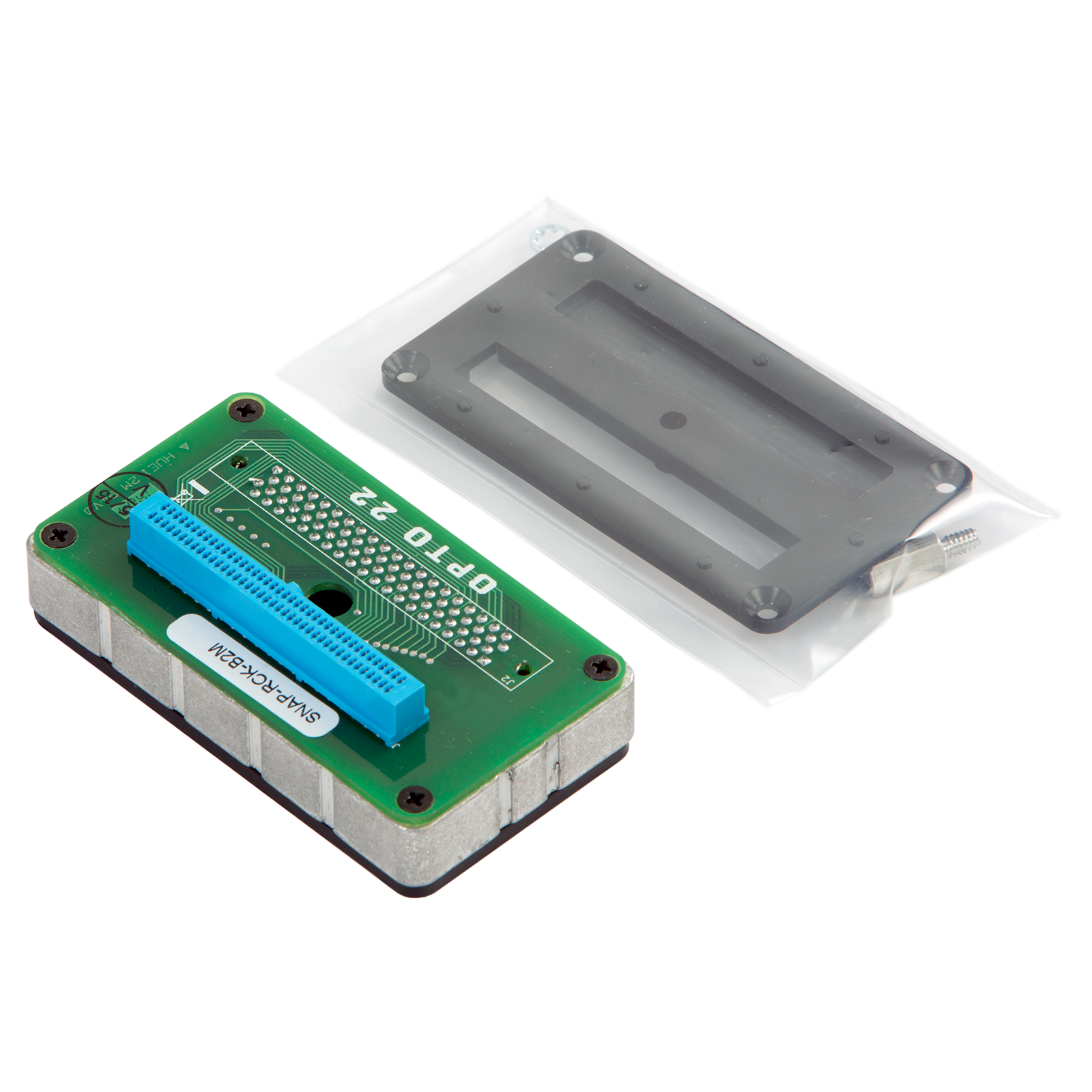

The SNAP-RCK-B2M is a small adapter for SNAP PAC racks or SNAP M-series racks, which allows the rack to accommodate a brain (such as the SNAP-B3000-ENET) that would normally mount on a SNAP B-series rack.

The adapter adds 0.595 inches (1.511 cm) to the overall height of the unit.

NOTE: The adapter does not change the feature limitations of the brain.
*** NOTE: This part is OBSOLETE and no longer available. ***

SNAP TEX Mounting/Wiring Tools and Spare Parts Data Sheet

SNAP TEX wiring and mounting accessories are covered in two data sheets. This document includes DIN-rail mounting kits, rack accessories, spare parts, and tools with the following part numbers:

For cables and breakout boards, see Form 1756, SNAP TEX Cables and Breakout Boards Data Sheet.

SNAP-RCK-B2M Rack Adapter Installation Note

*** NOTE:  These parts are obsolete and no longer available. *** Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.

This document shows you how to install the SNAP-RCK-B2M rack adapter. The adapter makes it possible to use a SNAP PAC rack or a SNAP M-series rack with a brain that would normally mount on a B-series rack (for example, the SNAP-UP1-ADS or the SNAP-B3000-ENET).
