SNAP-ROKDIN

Availability: Obsolete
OBSOLETE DIN-Rail Adapter for SNAP-PAC-SRA Arbiter or SNAP-RPSW Redundant Power Switch

Production Specification

*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

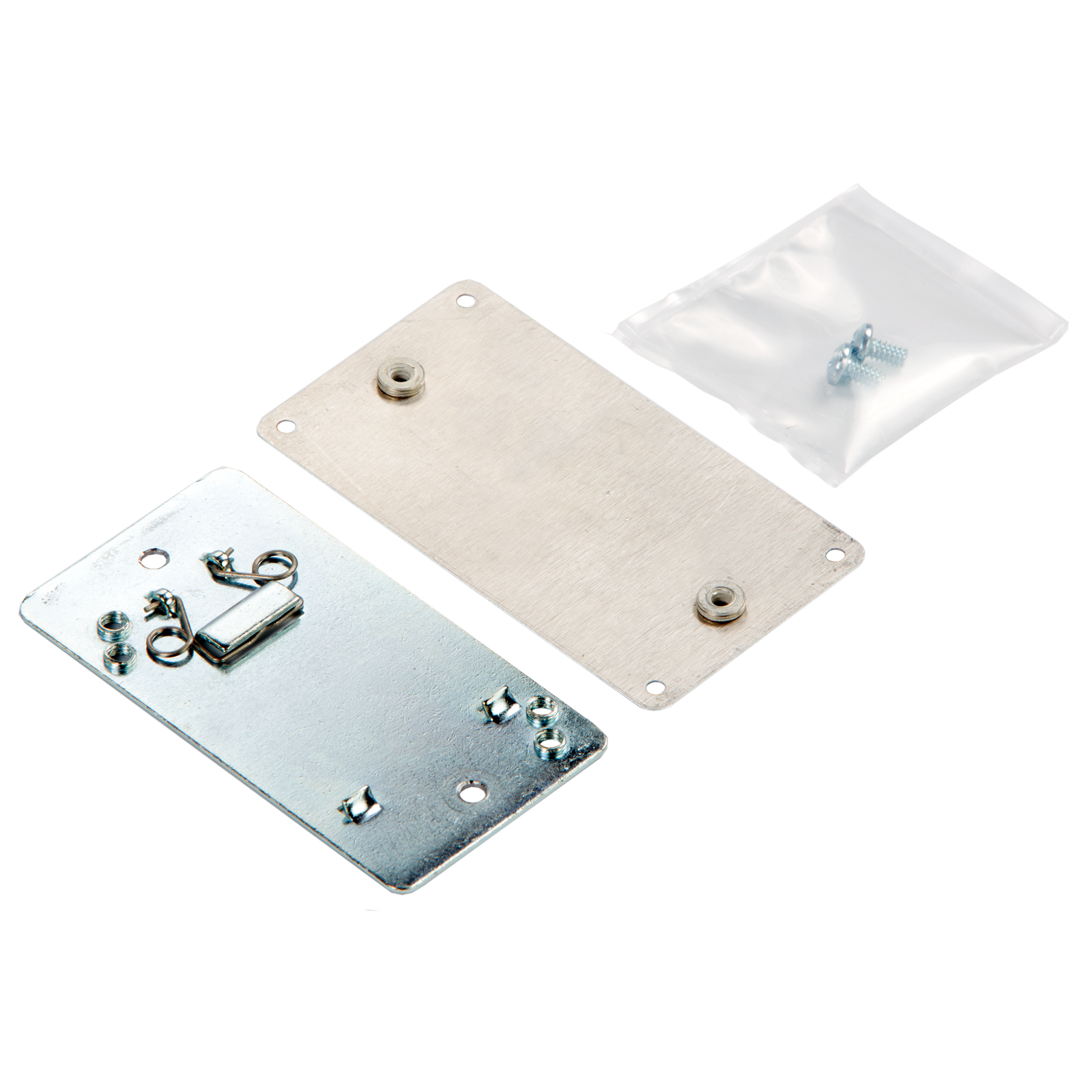

The SNAP-ROKDIN is a DIN-rail adapter clip used to attach either a SNAP-PAC-SRA arbiter or a SNAP-RPSW redundant power switch to a standard DIN rail. Both of these devices are included in the SNAP PAC Redundancy Option Kit (SNAP-PAC-ROK), used for a system with redundant SNAP PAC controllers.

You need one SNAP-ROKDIN for each device. The DIN-rail clip adds an additional 0.375 inches (0.9525 cm) to the device’s height. Installation instructions are included.
*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

SNAP PAC Redundancy Option Kit Data Sheet

NOTE: Due to the unavailability of essential parts, the SNAP-PAC-ROK is obsolete and unavailable as of November, 2022. This document will remain on our website for customers who already own this product.

This data sheet describes the SNAP PAC Redundancy Option Kit, which includes a SNAP-PAC-SRA arbiter, a SNAP-RPSW redundant power switch, and the SNAP PAC Redundancy Option User’s Guide, form 1831.

The SNAP PAC Redundancy Option Kit provides you the tools you need to develop a control system with redundant controllers that provides an increased level of reliability that can survive single points of failure and improve your system’s mean time between failures (MTBF).

DIN-Rail Mounting Clip Compatibility Chart

This compatibility chart shows which DIN-rail kit or clip to use with your SNAP power supply, controller, I/O mounting rack, breakout board, or classic brain board.

SNAP TEX Mounting/Wiring Tools and Spare Parts Data Sheet

SNAP TEX wiring and mounting accessories are covered in two data sheets. This document includes DIN-rail mounting kits, rack accessories, spare parts, and tools with the following part numbers:

For cables and breakout boards, see Form 1756, SNAP TEX Cables and Breakout Boards Data Sheet.

SNAP-ROKDIN Installation Note

This installation note shows you how to install the SNAP-ROKDIN DIN-rail adapter kit on a SNAP device, such as a SNAP-PAC-SRA arbiter or a SNAP-RPSW redundant power switch.

NOTE: The SNAP-ROKDIN, SNAP-PAC-SRA, and SNAP-RPSW are all obsolete as of November 2022. This document will remain on our website for customer reference.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
