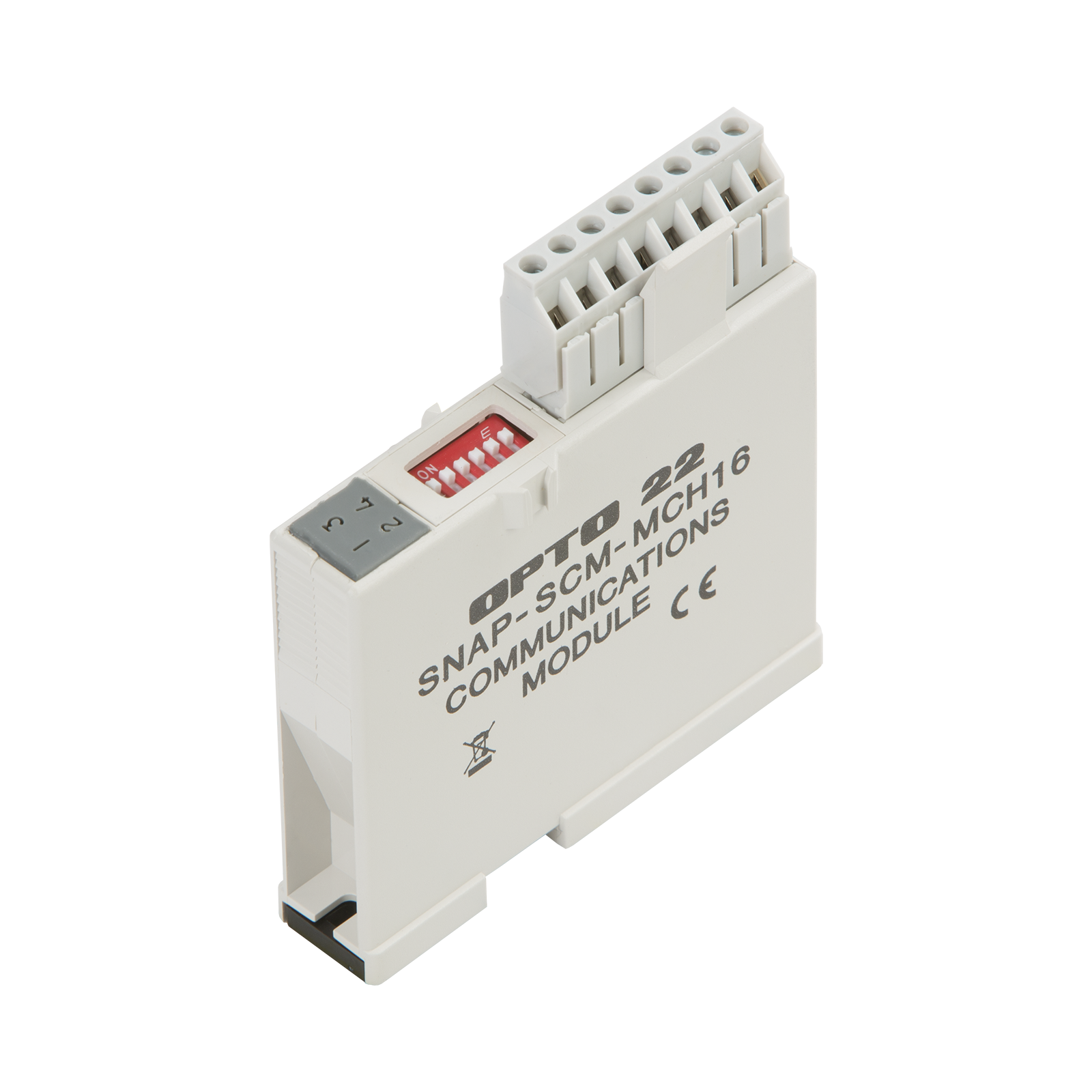

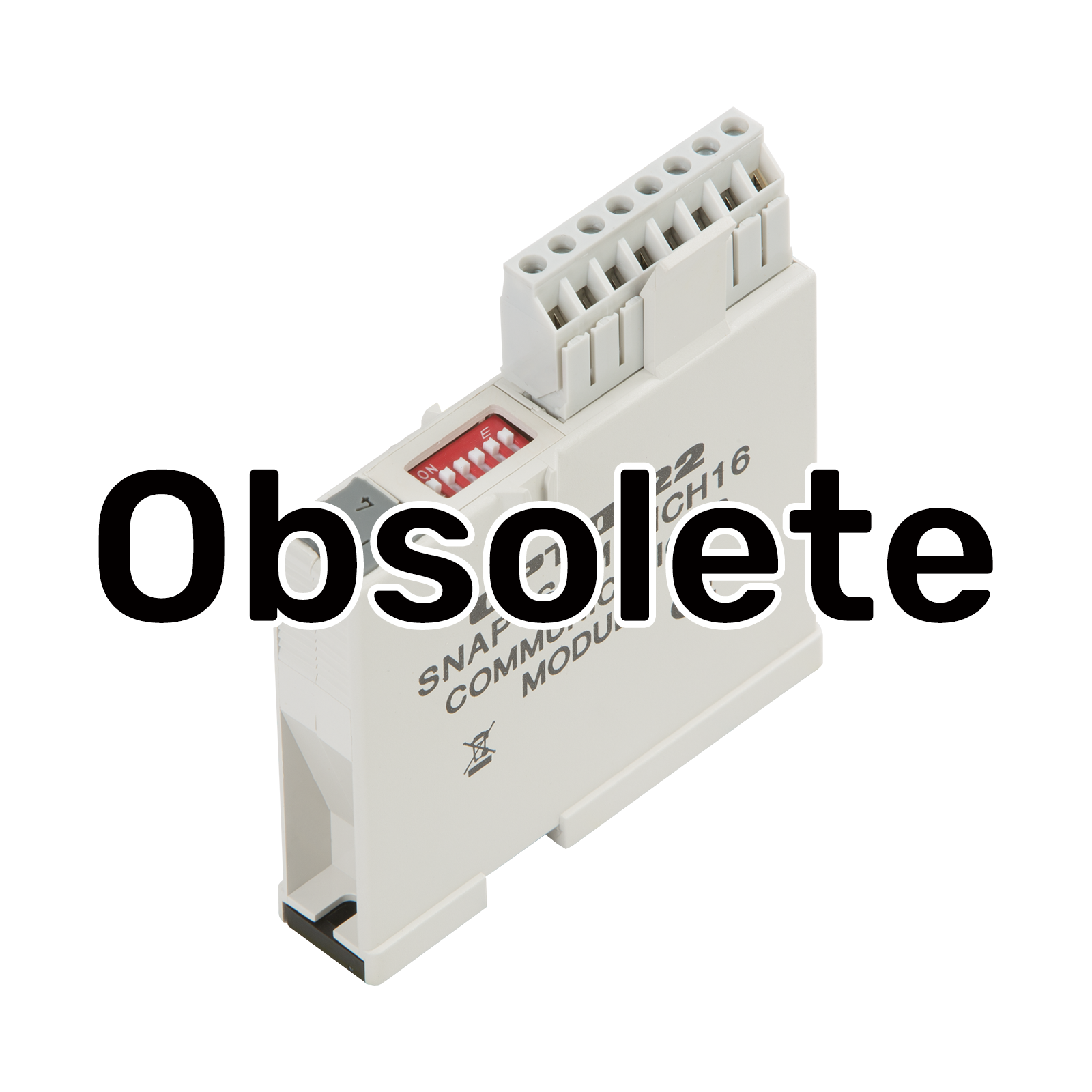

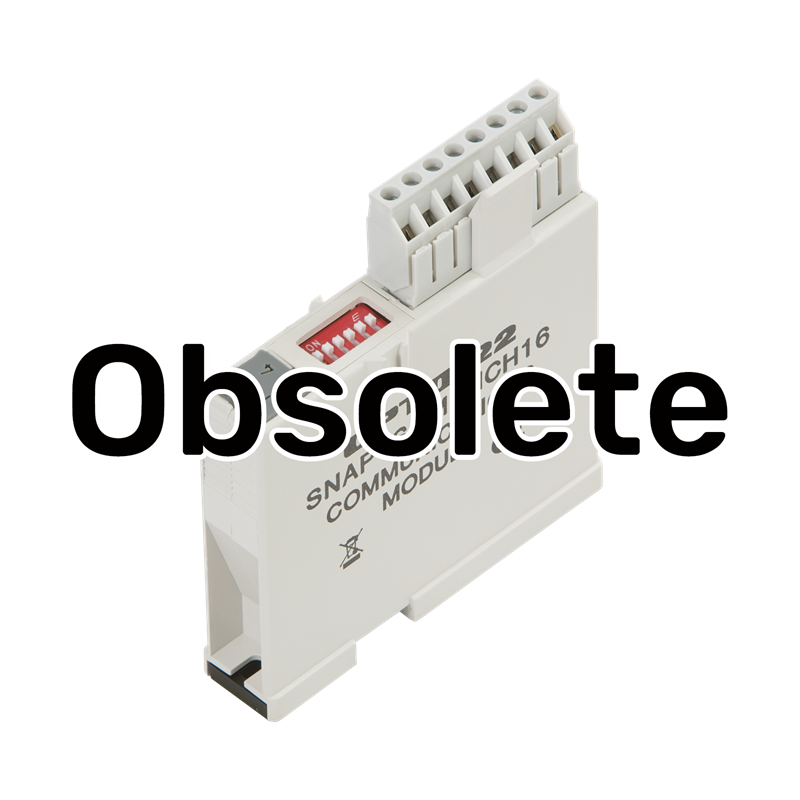

SNAP-SCM-MCH16

$354.00 (USA and Canada only)

Availability: In stock
SNAP Motion Control Host Communication Module, 16 Axes

Please call (800) 321-6786 to order.

SNAP-SCM-MCH16

Production Specification

The SNAP-SCM-MCH16 motion control host module is a key part of the SNAP PAC Motion Control Subsystem for the SNAP PAC System. Typically, the SNAP-SCM-MCH16 works with a SNAP PAC controller running a PAC Control programming strategy to control up to 16 stepper motors.

A single SNAP-SCM-MCH16 links up to four SNAP-SCM-BB4 motion control breakout boards. Each breakout board is equipped with a Magellan(TM) processor chip set that outputs pulse and direction signals for up to four stepper motor systems.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley MicroLogix PLC system, or other RSLogix-based system, such as ControlLogix or CompactLogix.

For more information see form #1672, the SNAP PAC Motion Control Subsystem Data Sheet, under the Documents tab.

Build your system in the SNAP I/O Configurator.

Baud rates

115,200

Parity

Even

Data bits

8 only

Logic supply voltage

5.0 to 5.2 VDC

Logic supply current

250 mA1
500 mA2

Number of ports per module

1

Maximum number of modules per rack

81

Maximum cable length, multi-drop

1,000 feet at 115,200 Baud

I/O processor (brain or on-the-rack
controller) compatibility

SNAP-PAC-R1, SNAP-PAC-R2, SNAP-PAC-EB1, or SNAP-PAC-EB2

Operating temperature

-20 to 70 °C

Storage temperature

-30 to 85 °C

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

UL, CE, RoHS, DFARS

Warranty

30 months

1. Each breakout board is powered by a separate power supply.
2. Breakout board uses power from the module.
