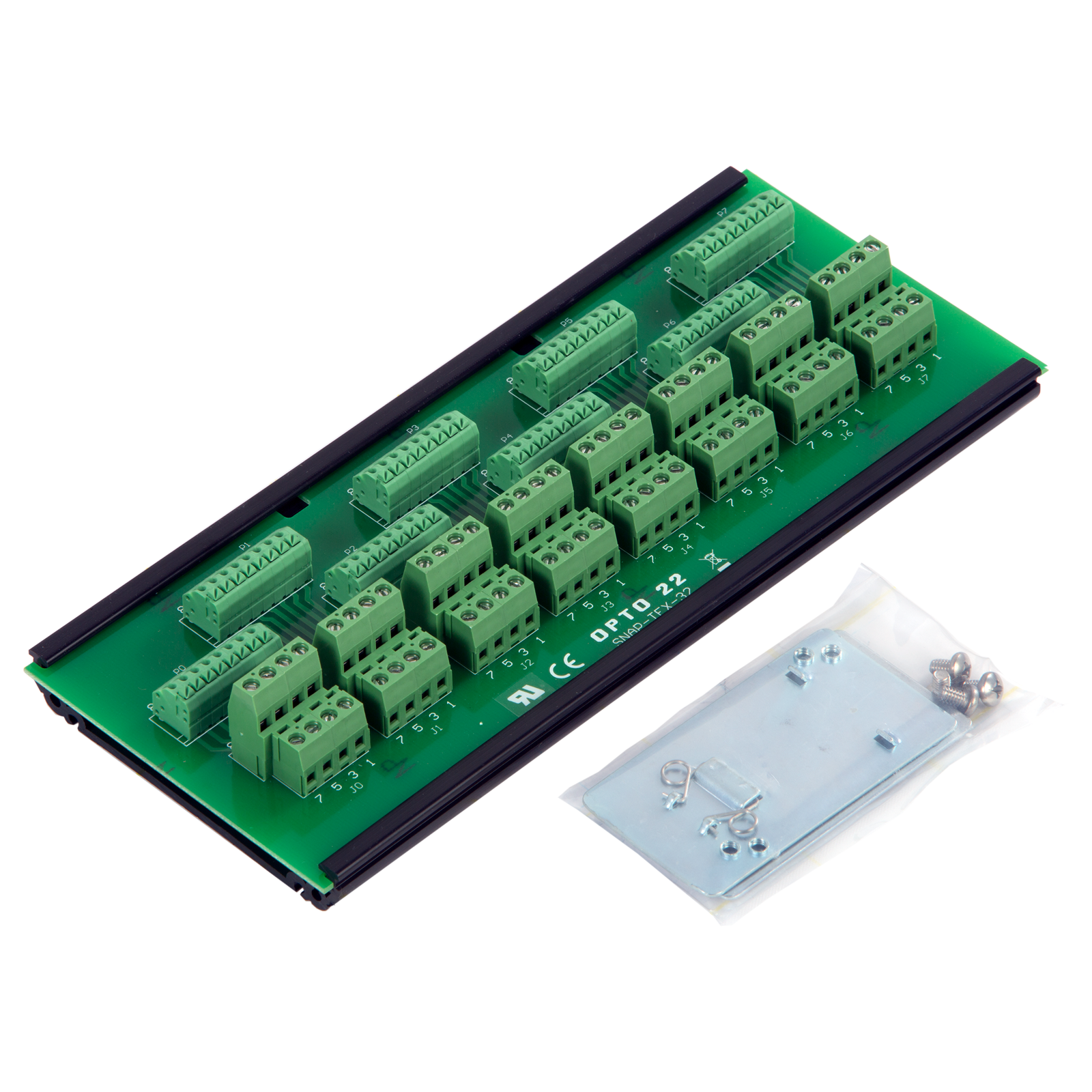

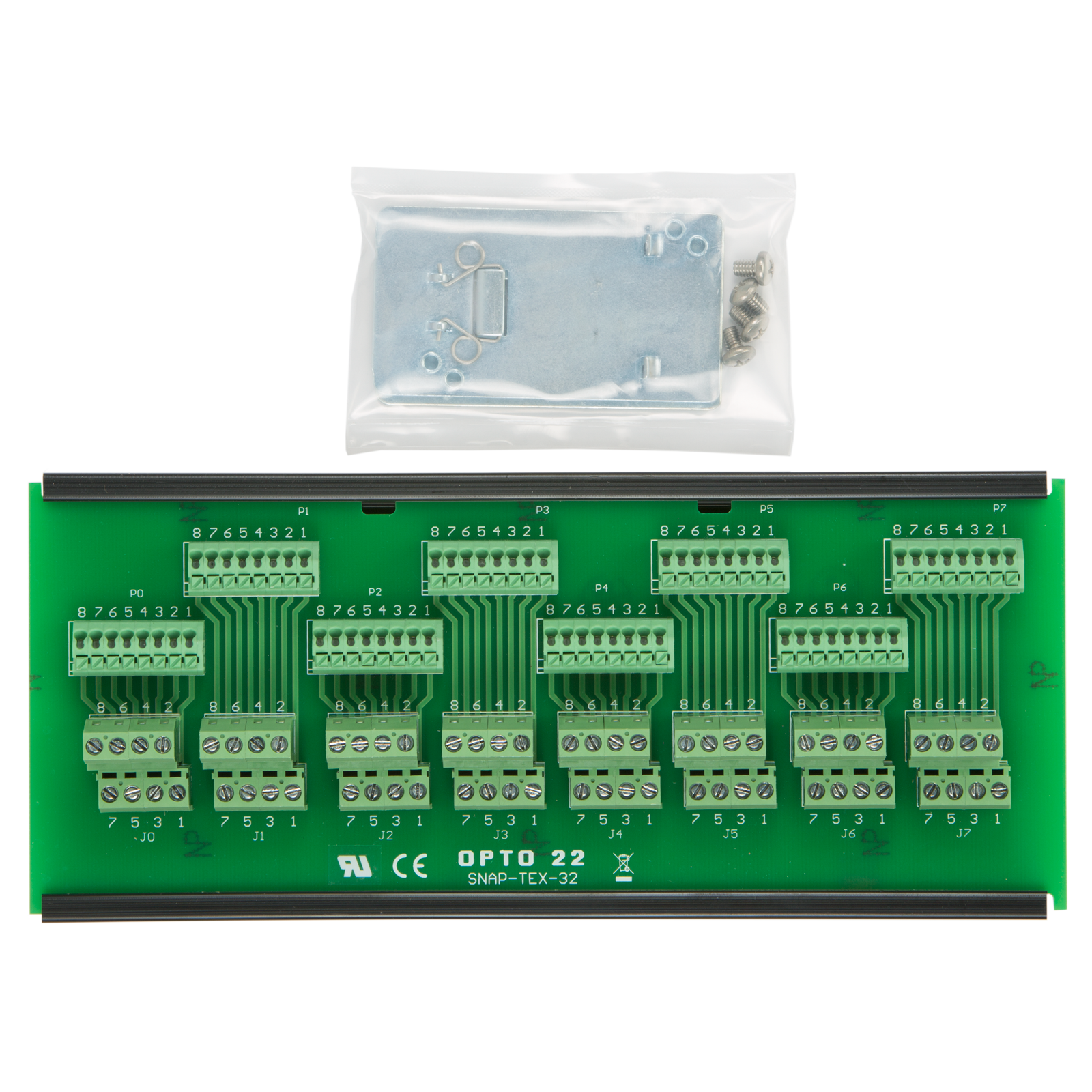

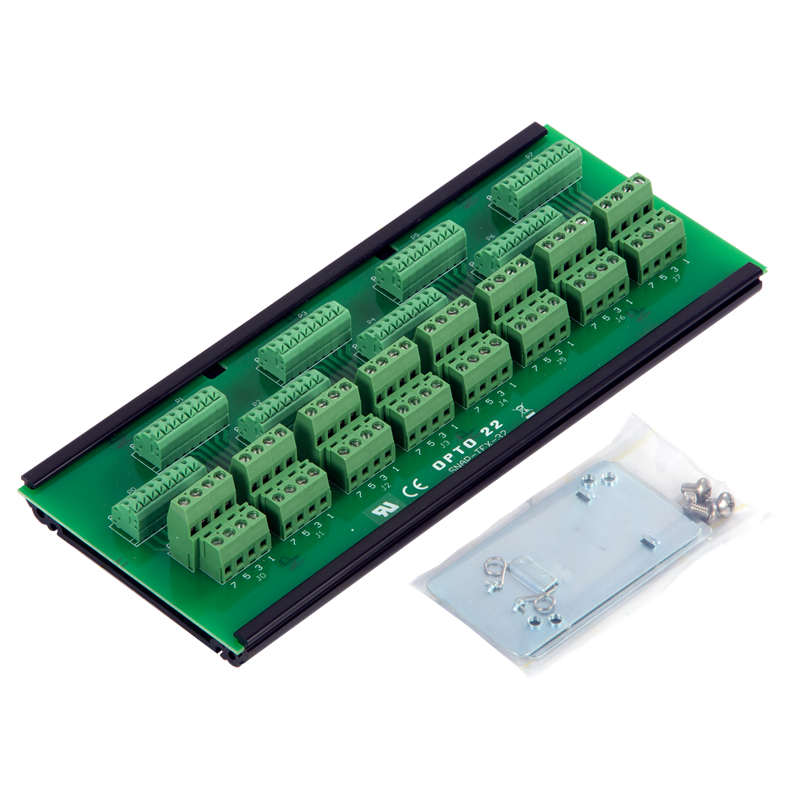

32-Point Breakout Board for SNAP I/O Modules

Please call (800) 321-6786 to order.

SNAP-TEX-32

Production Specification

Part of the SNAP TEX family of mounting and wiring accessories, the SNAP-TEX-32 is a simple breakout board with straight-through wiring. Designed primarily for 1-, 2-, and 4-channel analog inputs/outputs and for 4-channel digital inputs/outputs, the breakout board is used with SNAP-TEX cables.

The SNAP-TEX-32 can also be used with 8-, 16-, or 32-channel SNAP analog modules (not thermocouples). See the data sheet for recommended module, cable, and breakout board combinations.

Or see: Modules, Cables, and Breakout Boards Compatibility Charts

Build your system in the SNAP I/O Configurator.

Feature

SNAP-TEX-32

SNAP-TEX-FB16-H

SNAP-TEX-FB16-L

Use with I/O modules

2- or 4-channel analog inputs/outputs; 4-channel digital inputs/outputs *

4-channel digital inputs and outputs
16- and 32-ch digital inputs/outputs

4-channel digital inputs and outputs
16- and 32-ch digital inputs/outputs

Use with cables

SNAP-TEX-CBE6 (even pins connected), SNAP-TEX-CBO6 (odd pins connected), or SNAP-TEX-CBS6 (no connections), depending on module.

4-ch modules: SNAP-TEX-CBO6 (odd pins connected)** or SNAP-TEX-CBS6 (straight-through), depending on module.
16-ch modules: SNAP-HD-ACF6
32-ch modules: SNAP-HD-CBF6

4-ch modules: SNAP-TEX-CBO6 (odd pins connected)** or SNAP-TEX-CBS6 (straight-through), depending on module.
16-ch modules: SNAP-HD-ACF6
32-ch modules: SNAP-HD-CBF6

Connectors

32 spring connectors; accommo­dates eight 4-channel modules

16 spring connectors; accommo­dates four 4-channel modules

16 spring connectors; accommo­dates four 4-channel modules

Fusing

none

1 A, 250 V, fast-acting fuse for each
I/O point (16 total). Replace with Opto 22 PN SNAP-FUSE1AC (Wick­man PN 19373-1A)

1 A, 250 V, fast-acting fuse for each
I/O point (16 total). Replace with Opto 22 PN SNAP-FUSE1AC (Wick­man PN 19373-1A)

Indicators

none

1 LED per fuse (16 LEDs total)

1 LED per fuse (16 LEDs total)

Bussed power

none

120–240 V

12–24 V

Agency Approv­als

CE, RoHS, DFARS

UL, CE, RoHS, DFARS

UL, CE, RoHS, DFARS

Warranty

30 months

30 months

30 months

* Can also be used with 8-, 16-, or 32-channel digital and analog inputs (not thermocouples).
**
IMPORTANT: Do NOT USE the FB16 breakout boards with a SNAP-TEX-CBE6 cable. The board has odd pins connected; the cable has even pins connected.

SNAP TEX Cables and Breakout Boards Data Sheet

SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules.
