SNAP-TEX-CBO6

$41.00 (USA and Canada only)

Availability: In stock
8-wire Cable for SNAP I/O Modules, Odd Terminals Connected

Please call (800) 321-6786 to order.

SNAP-TEX-CBO6

Production Specification

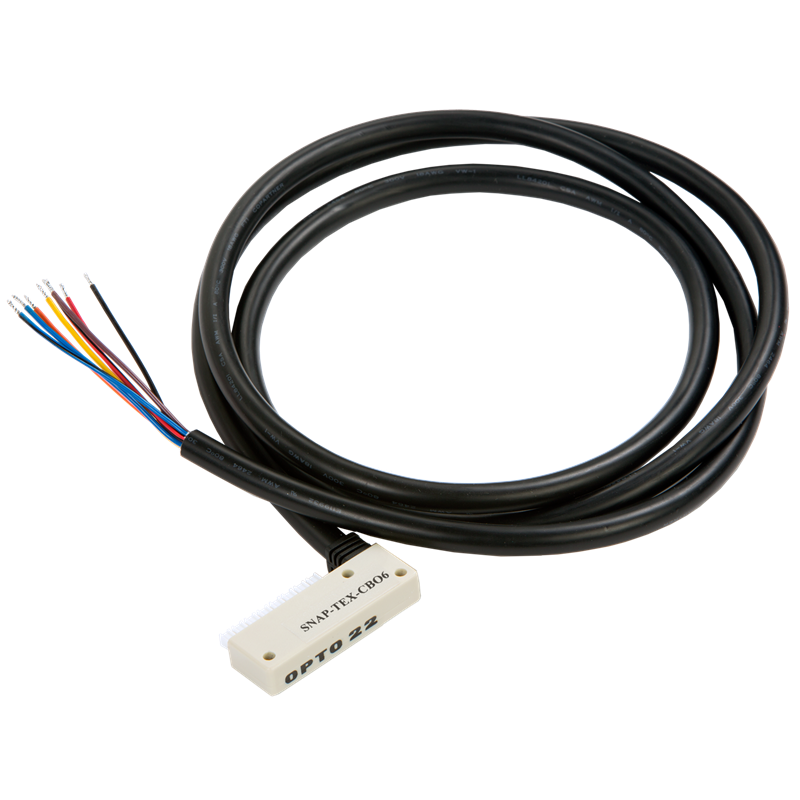

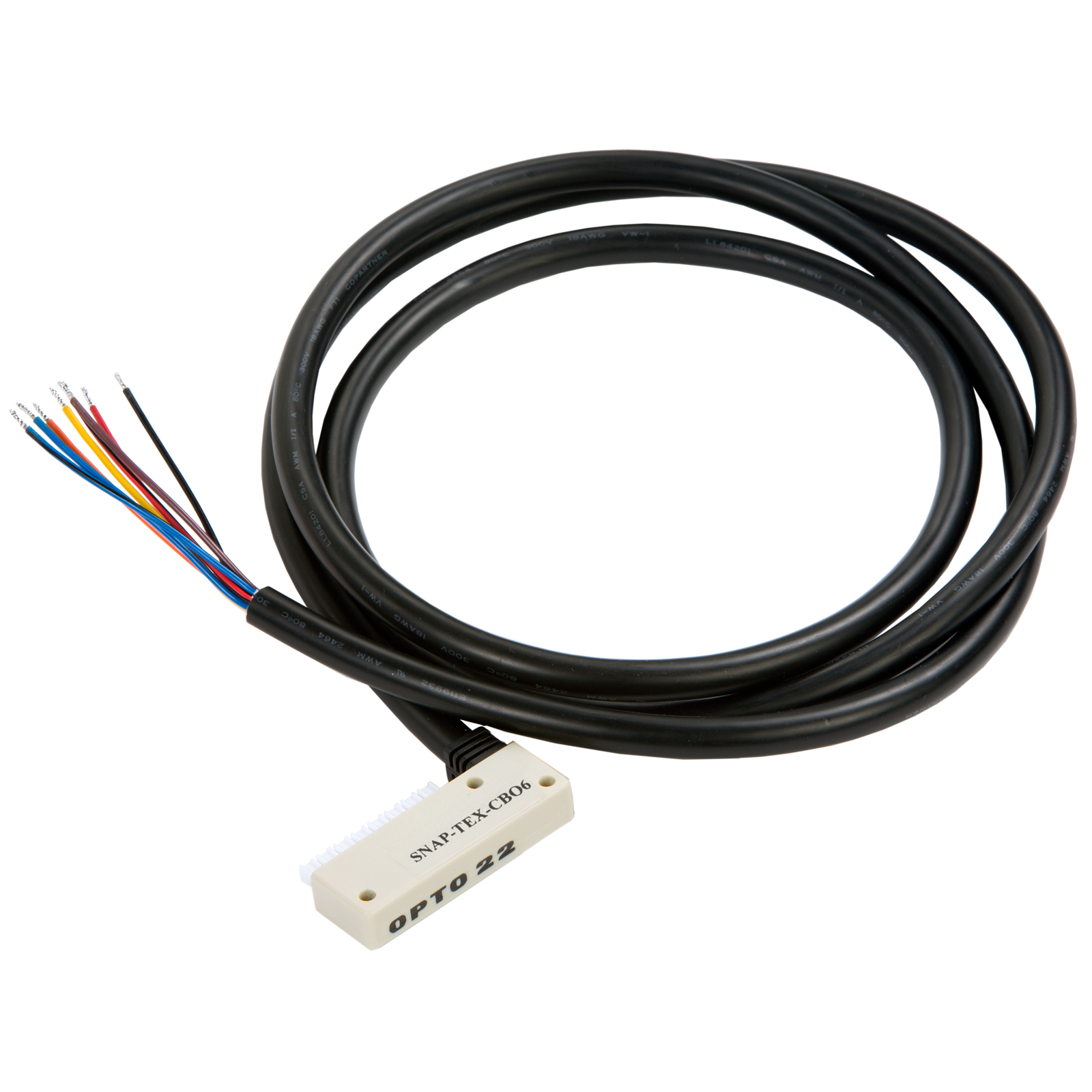

Part of the SNAP TEX family of mounting and wiring accessories, the SNAP-TEX-CBO6 cable provides neat, protected wiring from the top of a SNAP I/O module to a SNAP TEX breakout board. The cable is six feet (1.8 m) long.

Installation, maintenance, and troubleshooting are faster and simpler using SNAP TEX cables. Each cable snaps into the top of one module and terminates at the breakout board with 18-gauge, color-coded flying leads, already stripped and ready for wiring. The leads attach easily to the breakout board with spring connectors.

NOTE: On the SNAP-TEX-CBO6, odd-numbered terminals are connected. This cable is generally used with digital input and output modules. See the data sheet for details. Or see: Modules, Cables, and Breakout Boards Compatibility Charts

Build your system in the SNAP I/O Configurator.

Feature

SNAP-TEX-CBO6

SNAP-TEX-CBE6

SNAP-TEX-CBS6

Cable length

6 feet (1.8 meters)

6 feet (1.8 meters)

6 feet (1.8 meters)

Connector

8 pins, 0.2 in. (5.08 mm) center-to-center

8 pins, 0.2 in. (5.08 mm) center-to-center

8 pins, 0.2 in. (5.08 mm) center-to-center

Wires

8 pre-stripped, color-coded, 18 gauge

8 pre-stripped, color-coded, 18 gauge

8 pre-stripped, color-coded, 18 gauge

Bussing

Odd-numbered pins connected

Even-numbered pins connected*

No connected

Agency Approvals

CE, RoHS, DFARS

CE, RoHS, DFARS

CE, RoHS, DFARS

Warranty

30 months

30 months

30 months

*Do NOT USE the CBE6 with a SNAP-TEX-FB16-H or -L breakout board. The FB16s have odd-numbered pins connected.

SNAP TEX Cables and Breakout Boards Data Sheet

SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules.

Declaration of Conformity (EMC, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

SNAP TEX Cables Installation Note

SNAP TEX cables make wiring to field devices easier. This installation note shows how to install the following cables:

  • SNAP-TEX-CBO6
  • SNAP-TEX-CBE6
  • SNAP-TEX-CBS6
